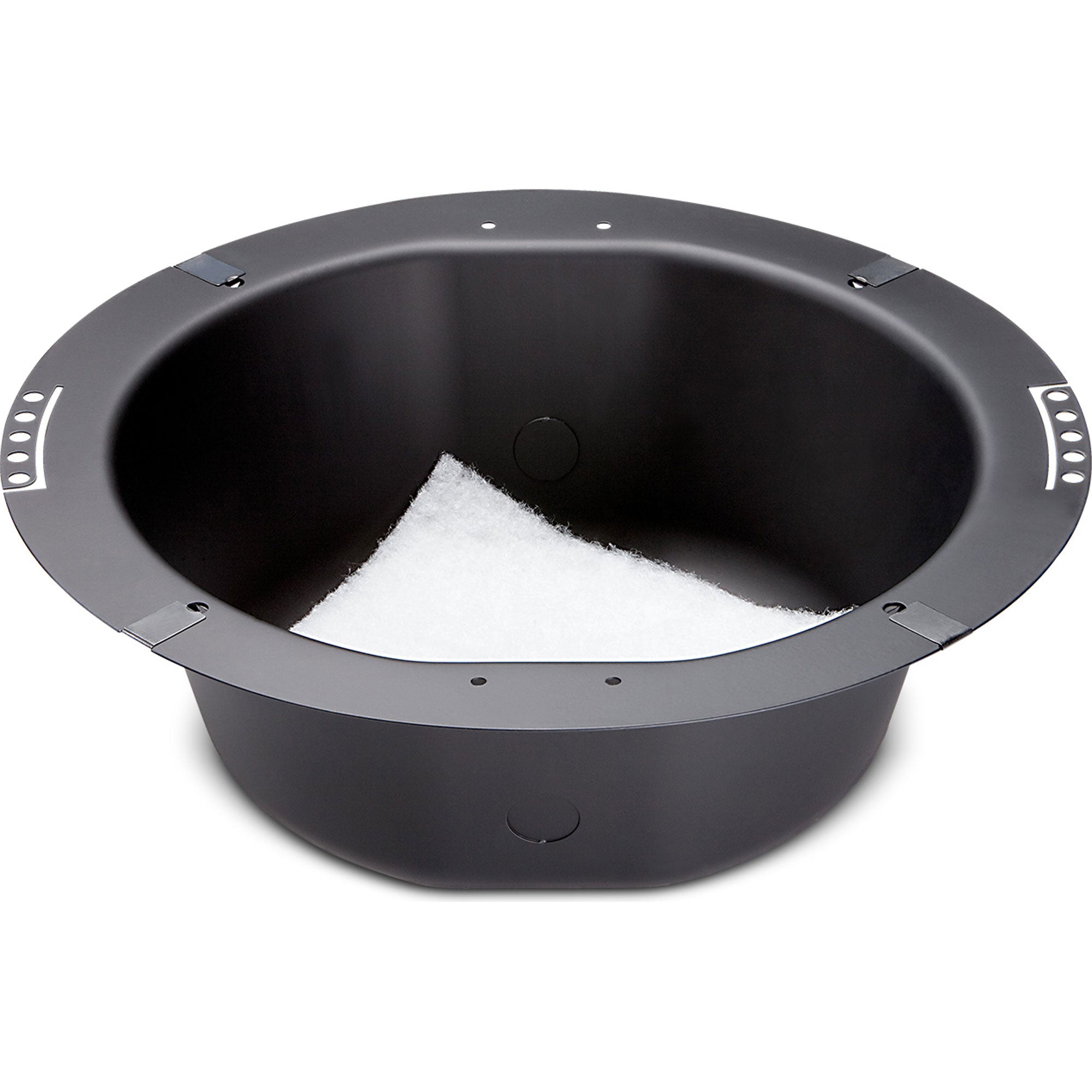

JBL CSS-BB8x6 8" Backcans for CSS8008 or CSS8018 (6 Pack)

8" Backcans for CSS8008 or CSS8018 Speaker - Package of 6

Pre-install backcan for use with CSS8008 or CSS8018 speaker.

For suspended ceilings, tile rail is CSS-TR4/8.

Comes in packs of 6 pcs CSS-BB8x6, for 6 speakers.

Specifications:

• Compatibility: CSS8008 and CSS8018 speaker, CSS-TR4/8 tile rails
• Dimensions: 108 deep x 334 diameter mm (4.3 x 13.2 in)
• Bolt Mount Circle: 4 points on 286 mm (11.25 in) diameter
• Air Space: 4.0 liters (0.15 cu ft)
• Material: Steel, zinc-plated, powder-coated
• Conduit Knockouts: Five (5) knockouts:
• 4 on sides spaced at 90 and
• 1 at center of top panel
• Attachment Points: 4 points on 286 mm (11.25 in) diameter with clip nuts for 4 screws.
• Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed loudspeaker, above. S7232/UL Listed, Signaling Speaker. CUL Listed. In accordance with IEC60849/EN60849.
• Net Weight (ea): 0.87 kg (2.0 lb)
• Shipping Weight (ea): 1.04 kg (2.3 lb)
• Included Accessories: 4 pcs M4 x 8 mm machine screws for attaching two tiles rails to backcan
