Key Features
- 5.25" Woofer & 0.75" Dome Tweeter
- 60W Long-Term Power Handling
- 120 x 120° Pattern Control
- Integrated 10W Multi-Tap Transformer
- Supports 70V, 100V, or 8-Ohm Operation
- Compact & Lightweight Enclosure
- Includes Wall Mount Brackets
Description

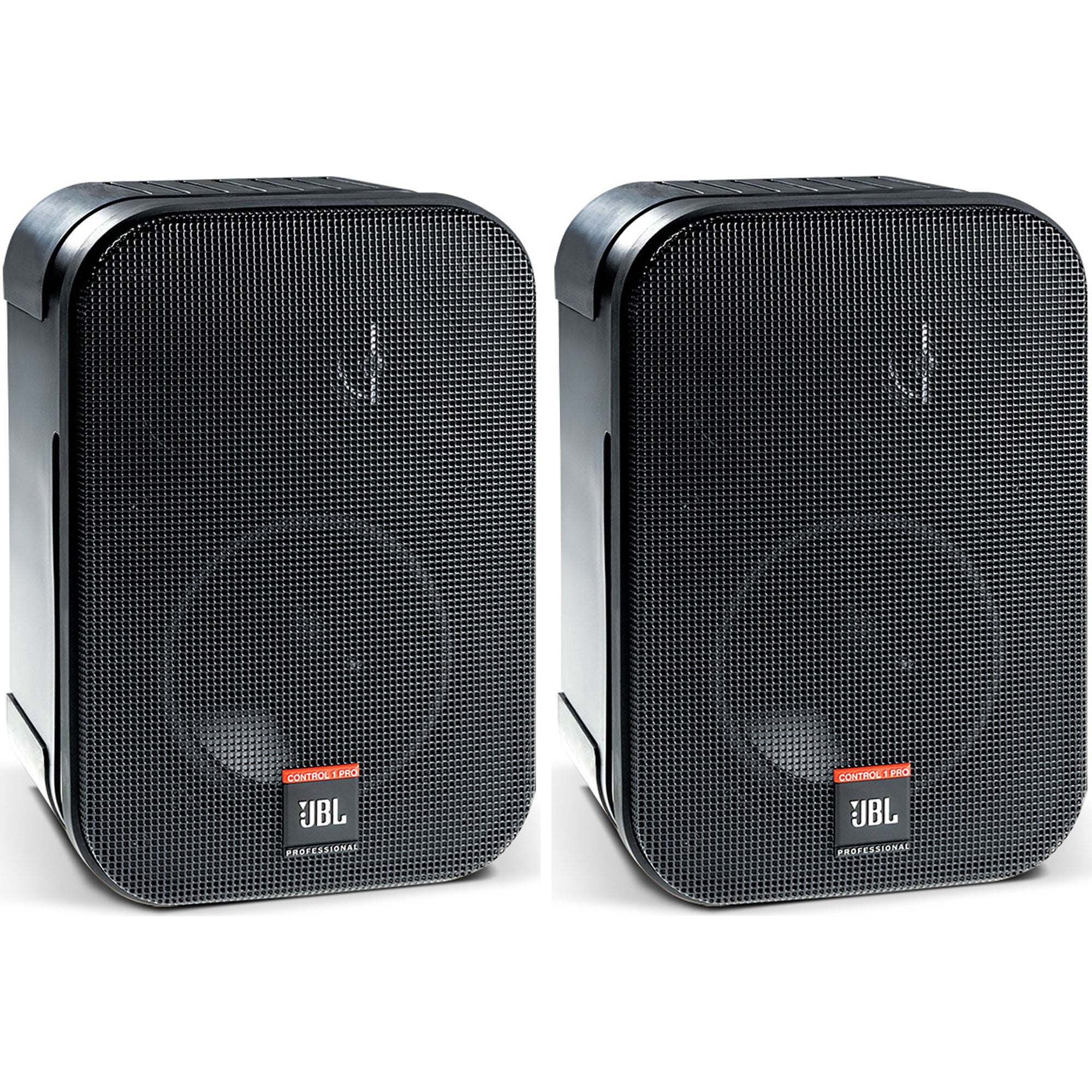

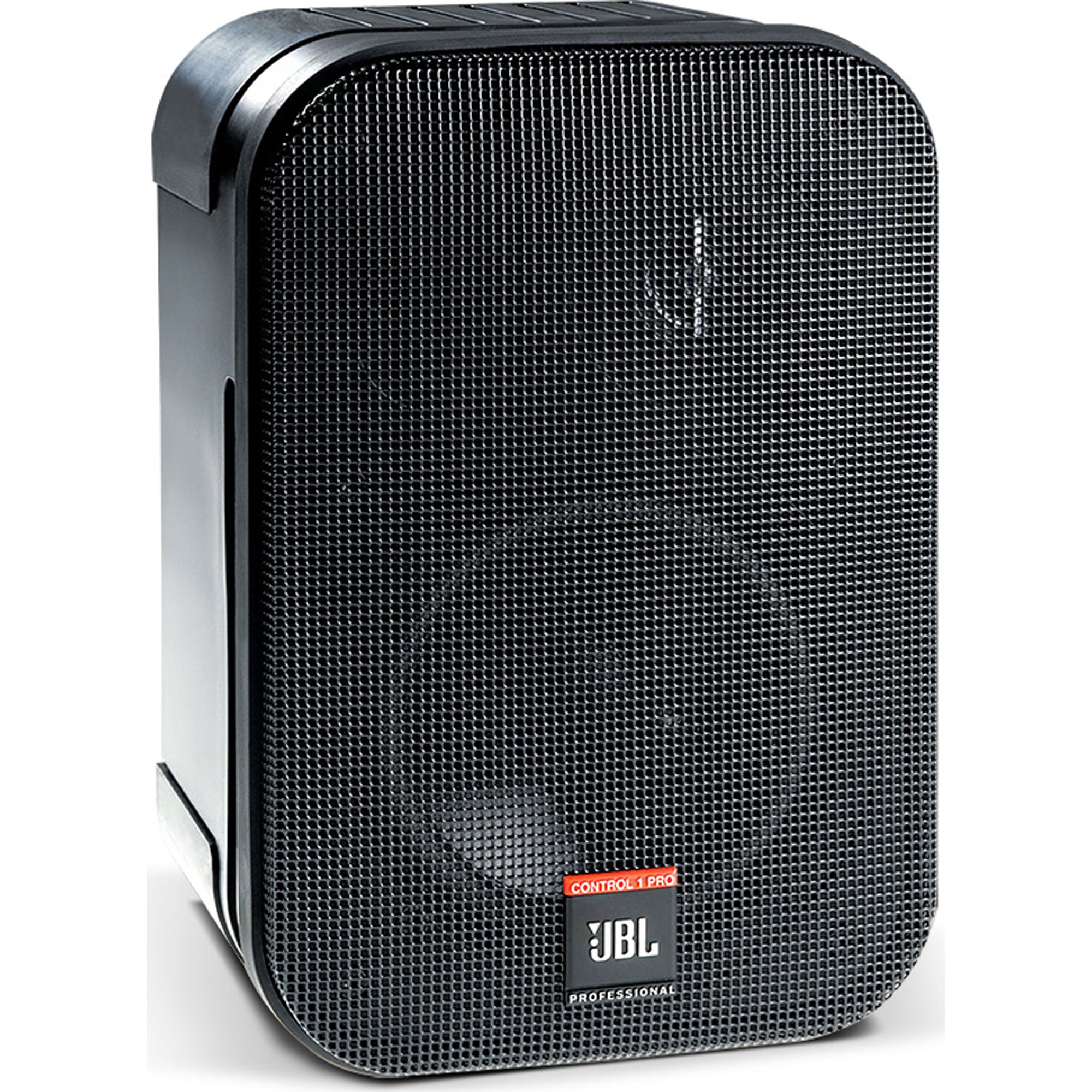

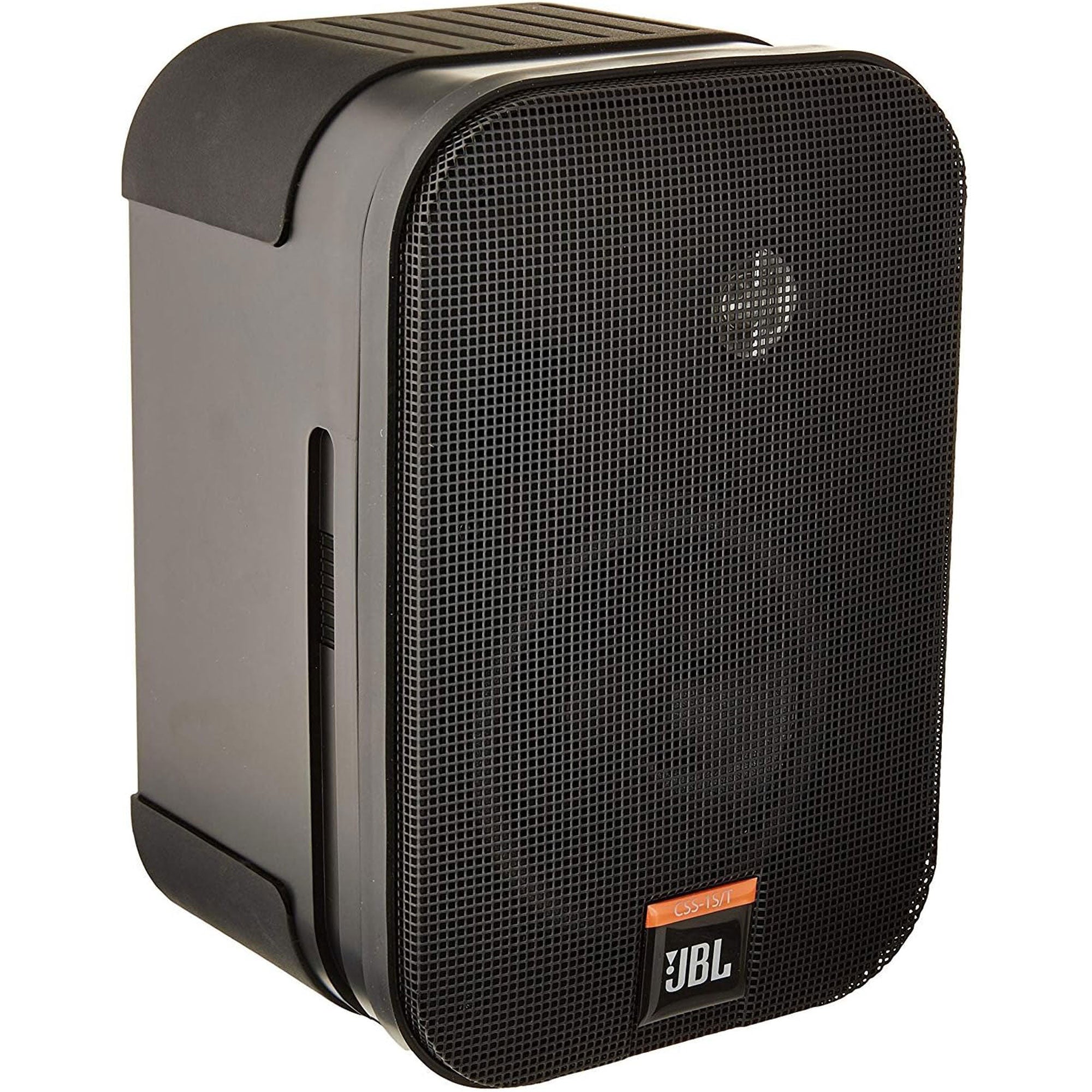

Compact 5.25" Two-Way 100V/70V/8-Ohm Surface-Mount Loudspeaker - Black - Pair
CSS-1S/T is a versatile, compact two-way loudspeaker designed for use on 100V or 70V distributed speaker lines, or in 8 ohm direct mode. The 135 mm (5.25 inch) low frequency loudspeaker and 19 mm (.75 inch) polycarbonate dome tweeter reproduce full-range sound quality for foreground or background music and are voiced for maximum speech clarity and intelligibility.
Specifications:
- Frequency Range (-10 dB): 85 Hz - 18 kHz
- Power Capacity (8 ohms): 60 Watts
- Nominal Coverage: 120 x 120
- Transformer Taps: 10W, 5W (& 2.5W @ 70V)

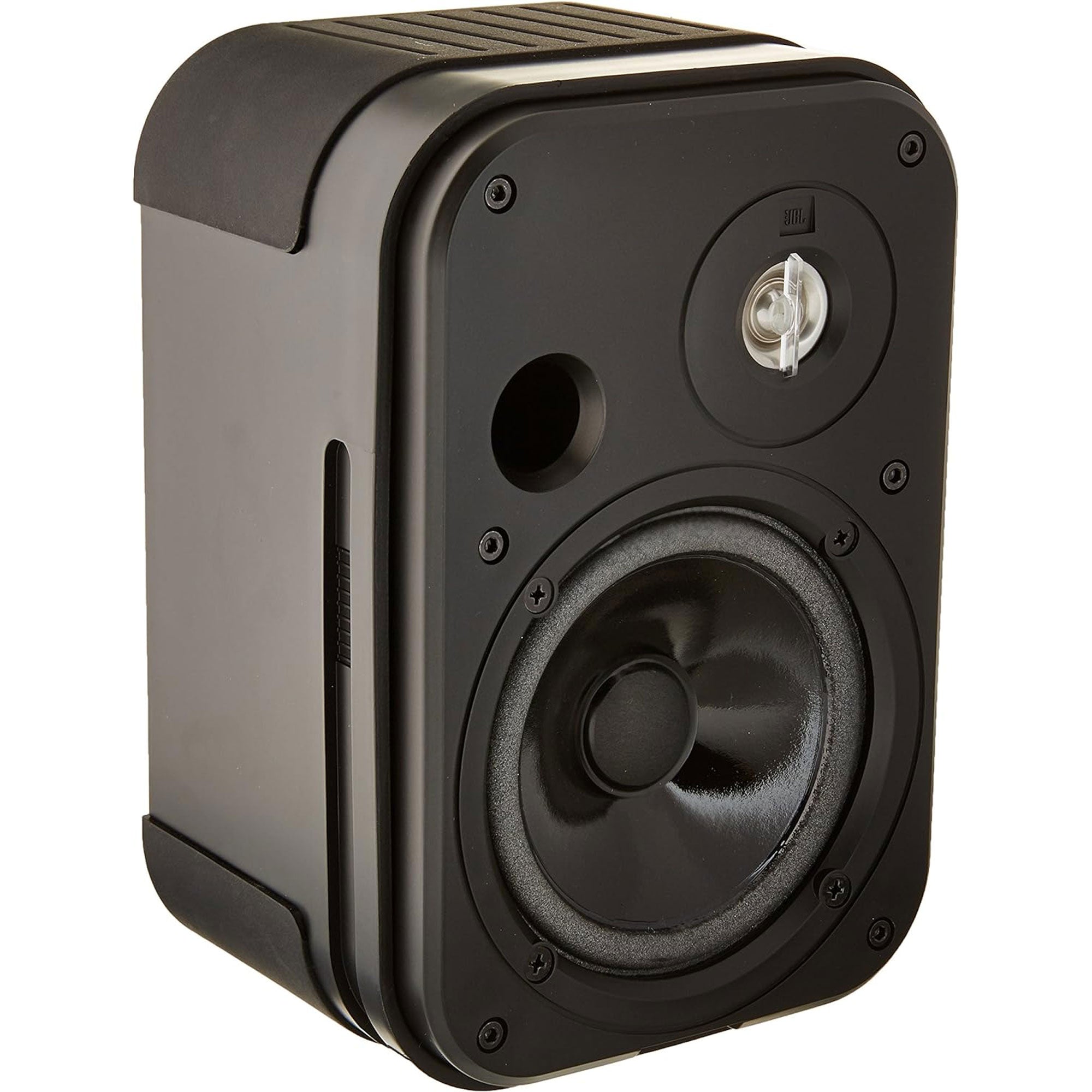

- LF Driver: 135 mm (5.25 in)
- HF Driver: 19 mm (0.75 in) polycarbonate dome tweeter

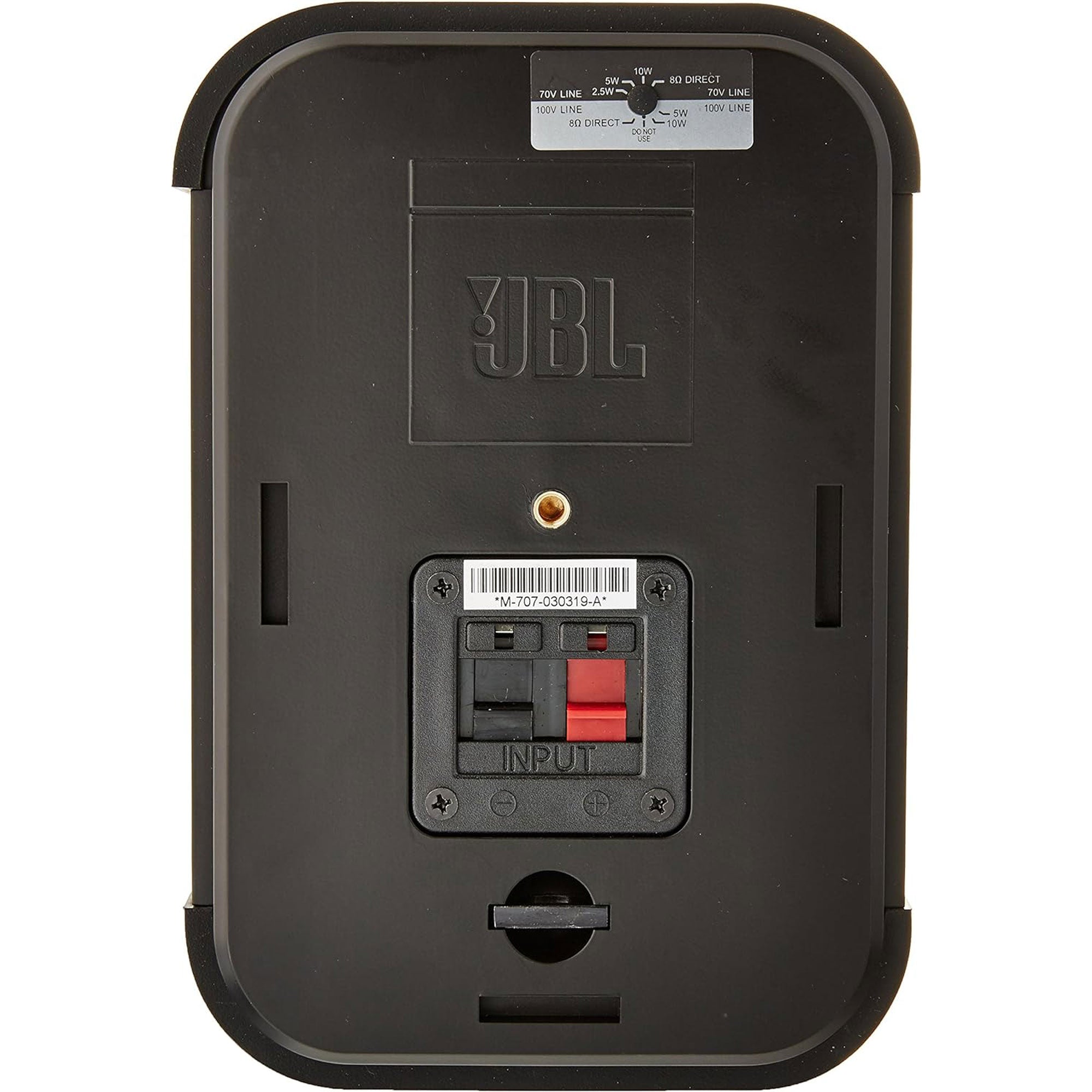

- Input Connectors: Spring-loaded terminals
- Dimensions: 229 mm x 159 mm x 143 mm (9.0 x 6.3 x 5.6 in)

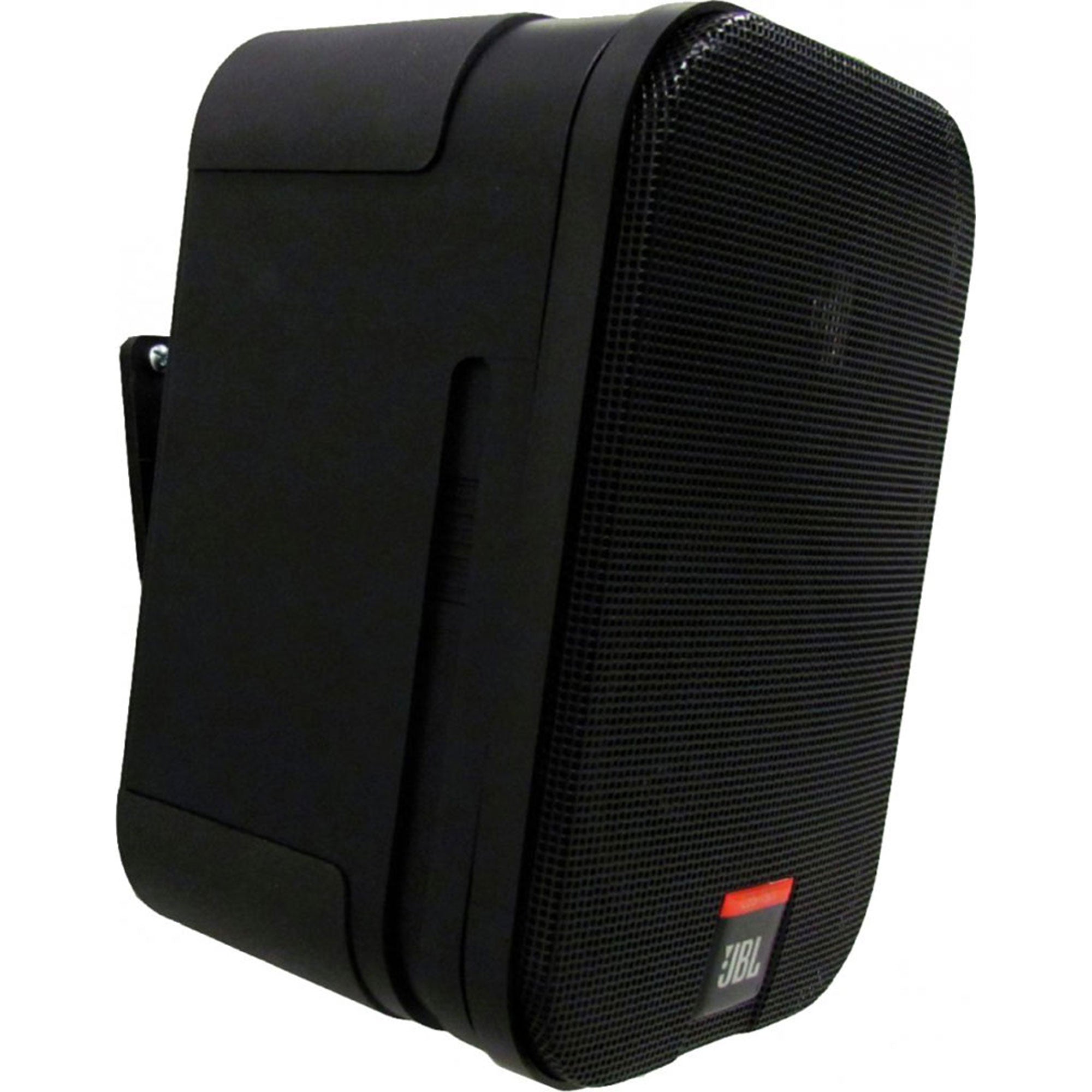

- Included Accessoies: Wall-mounting brackets assembly with tilt-pan aiming
Details
- Manufacturer: JBL
- MPN: CSS-1S/T
- Model Number: CSS-1S/T
- UPC: 050036904698
