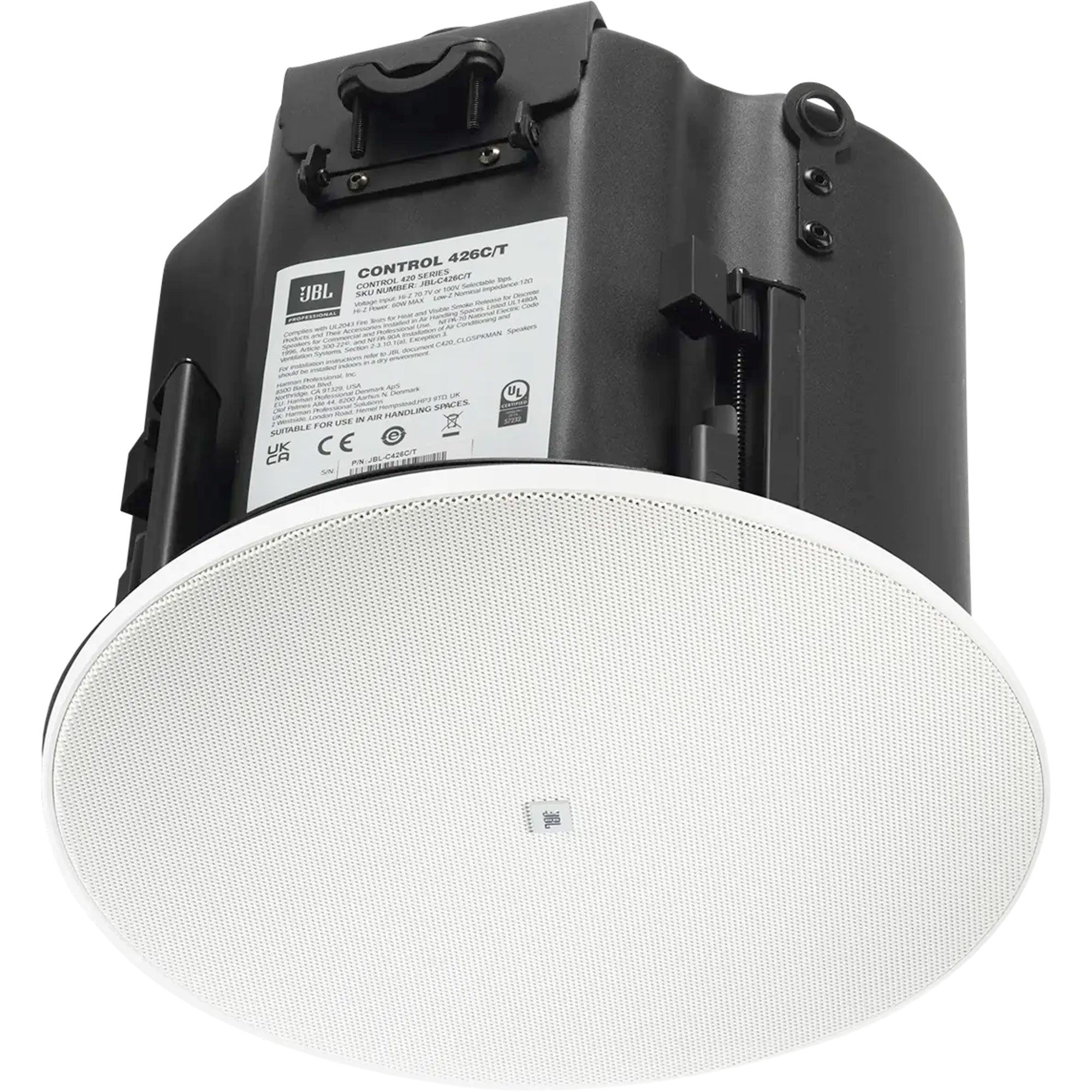

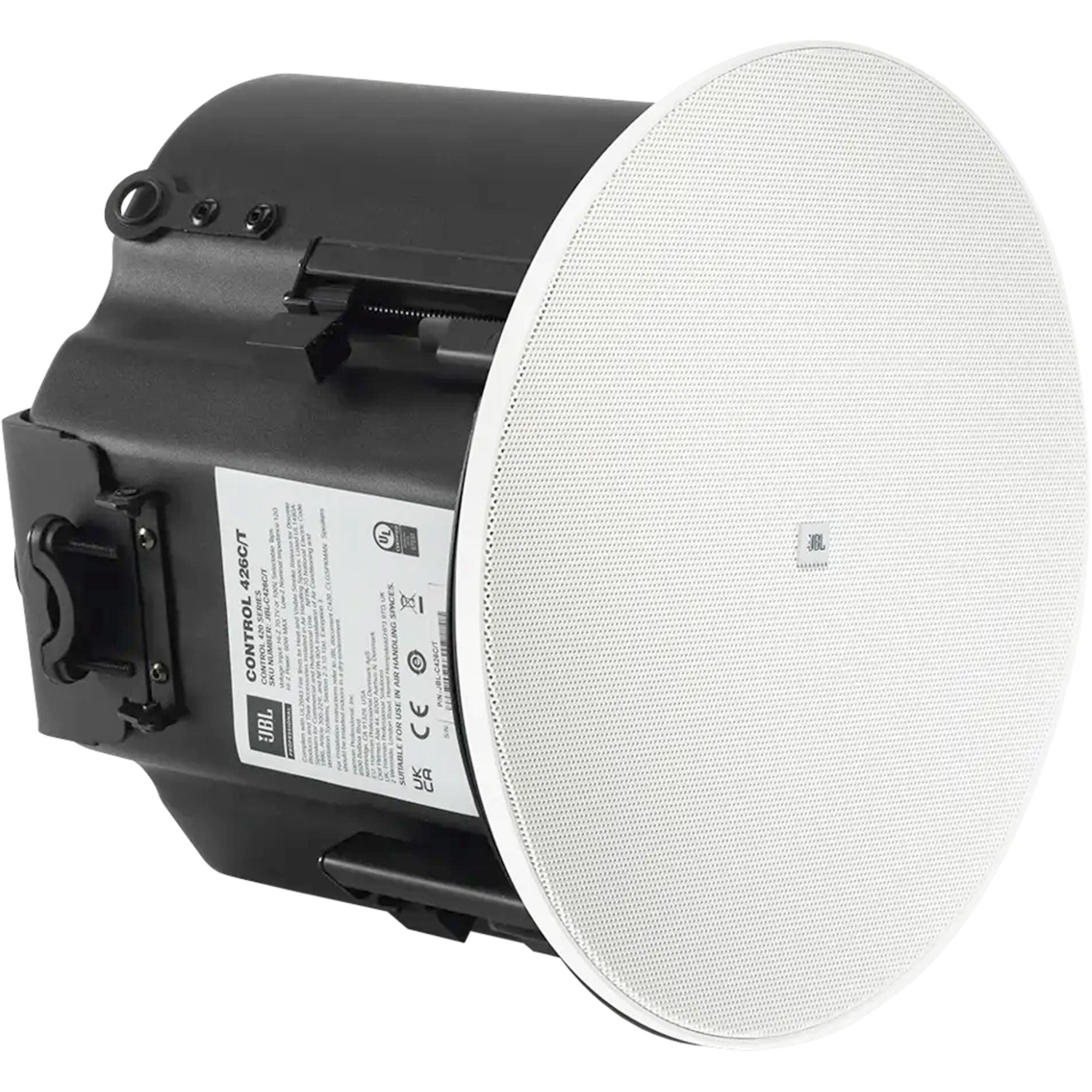

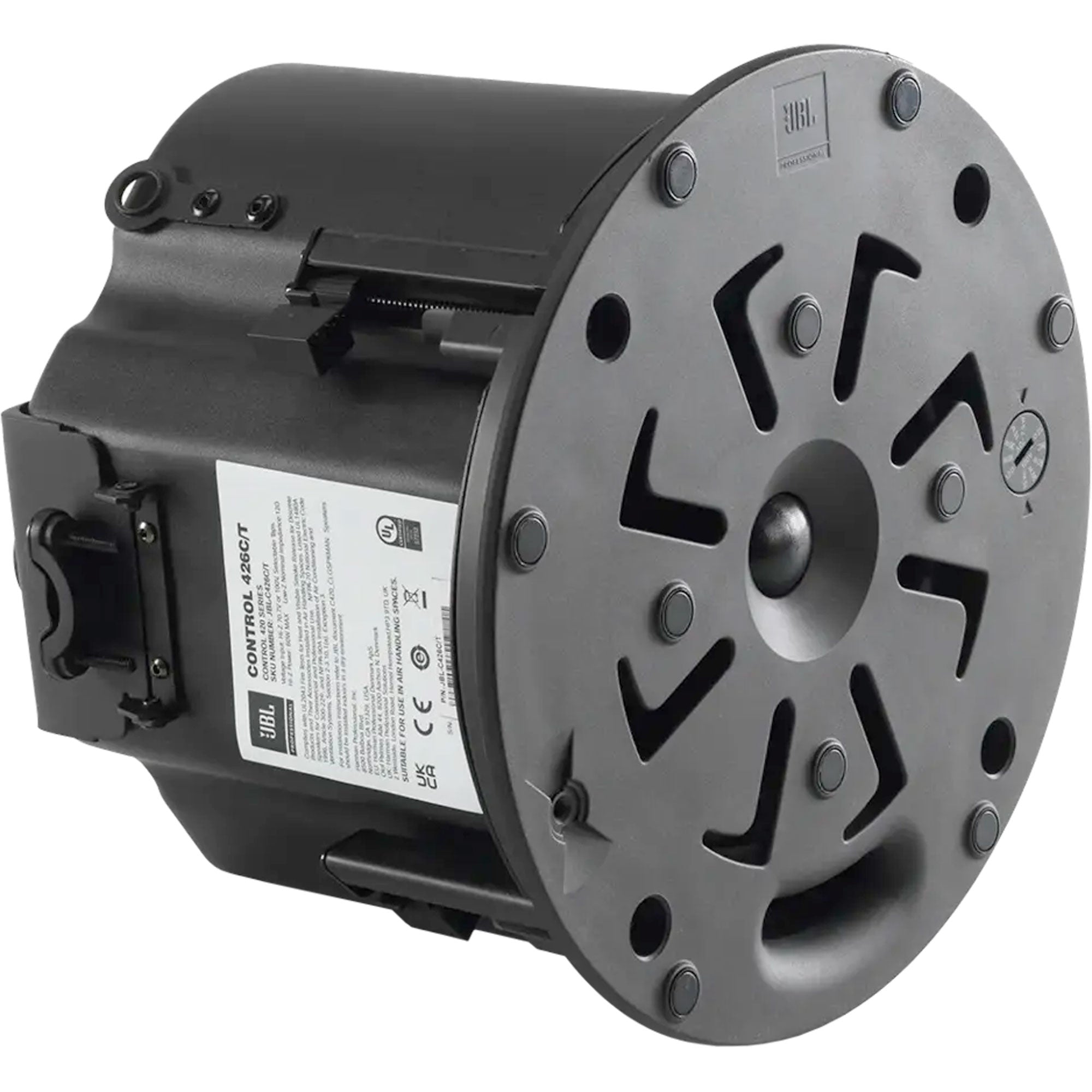

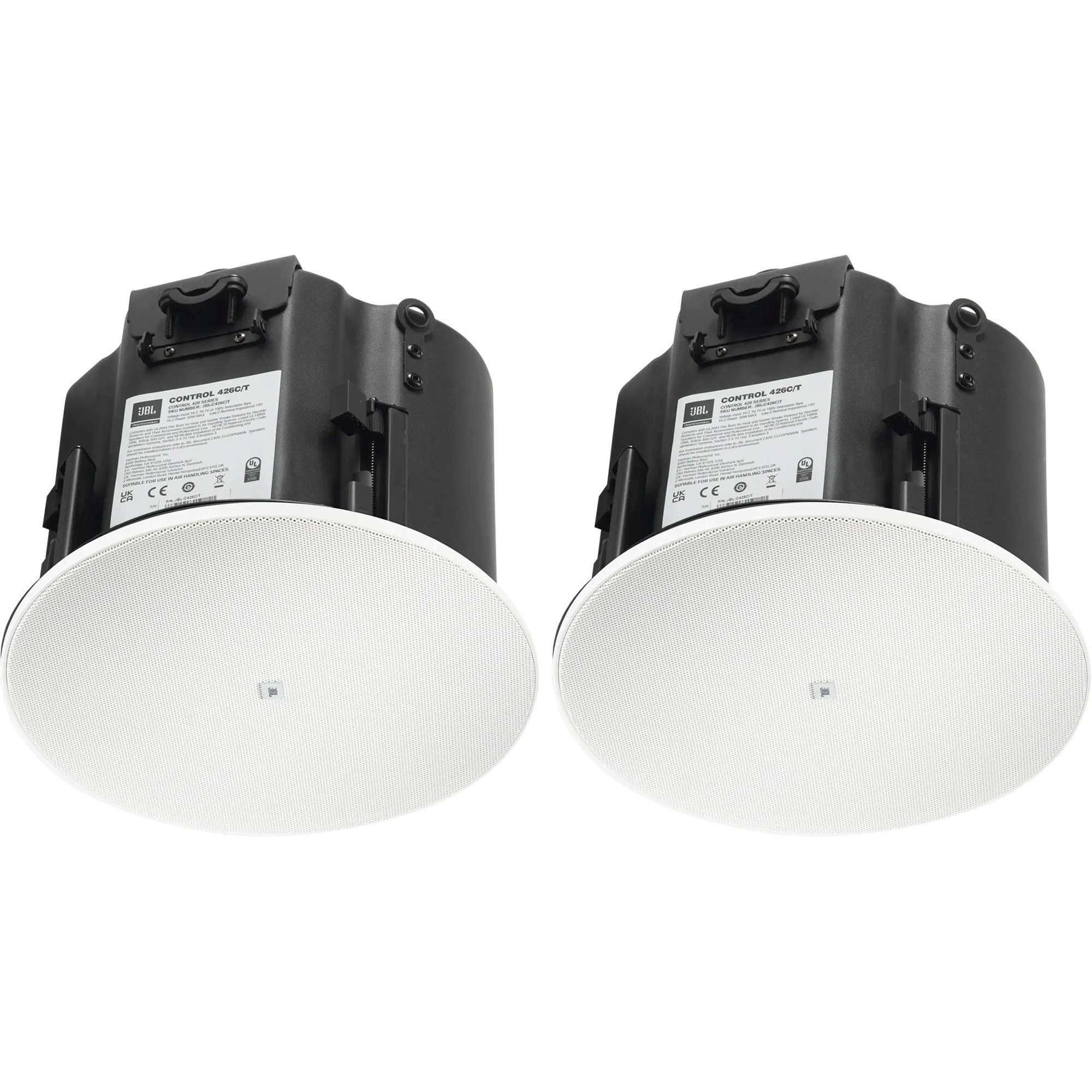

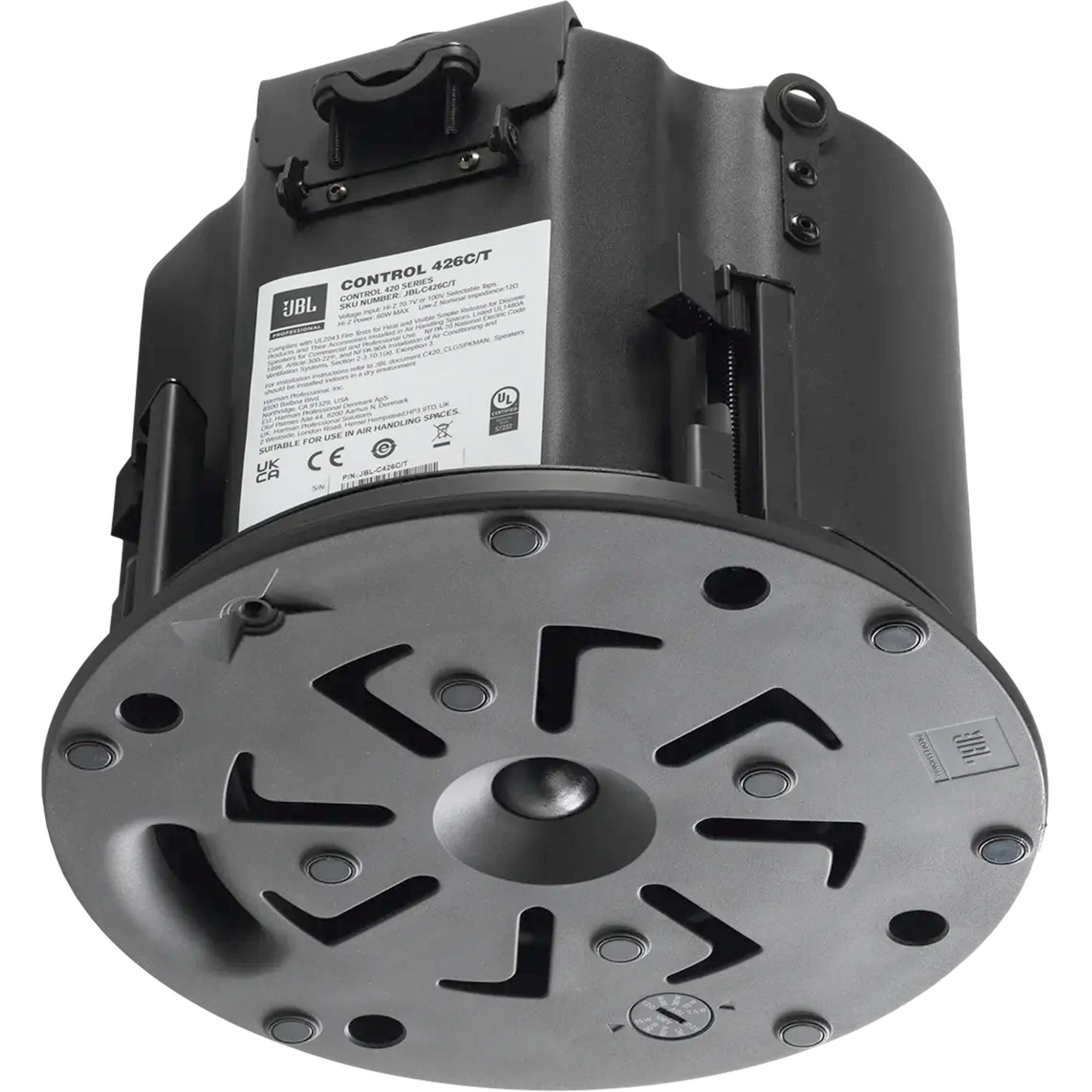

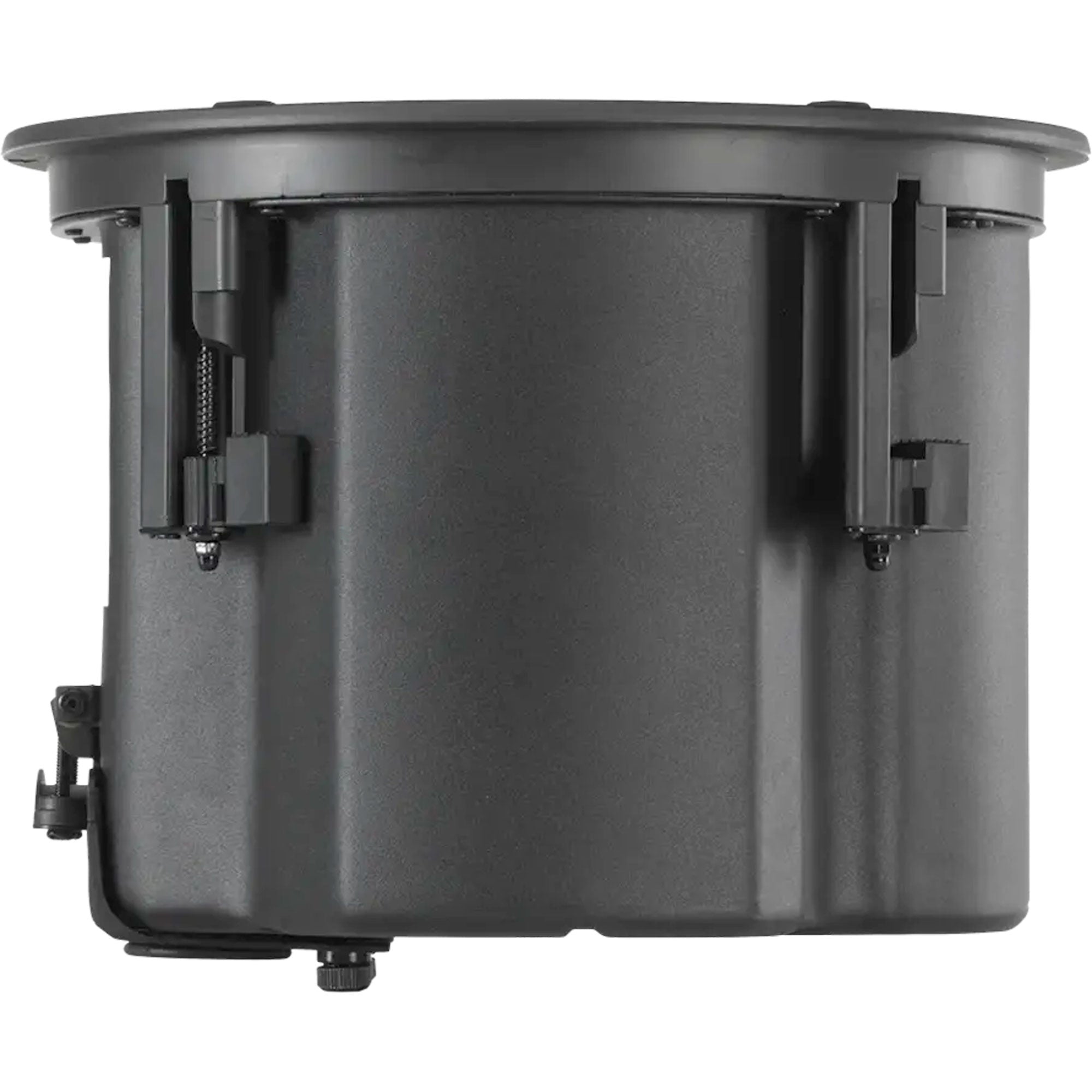

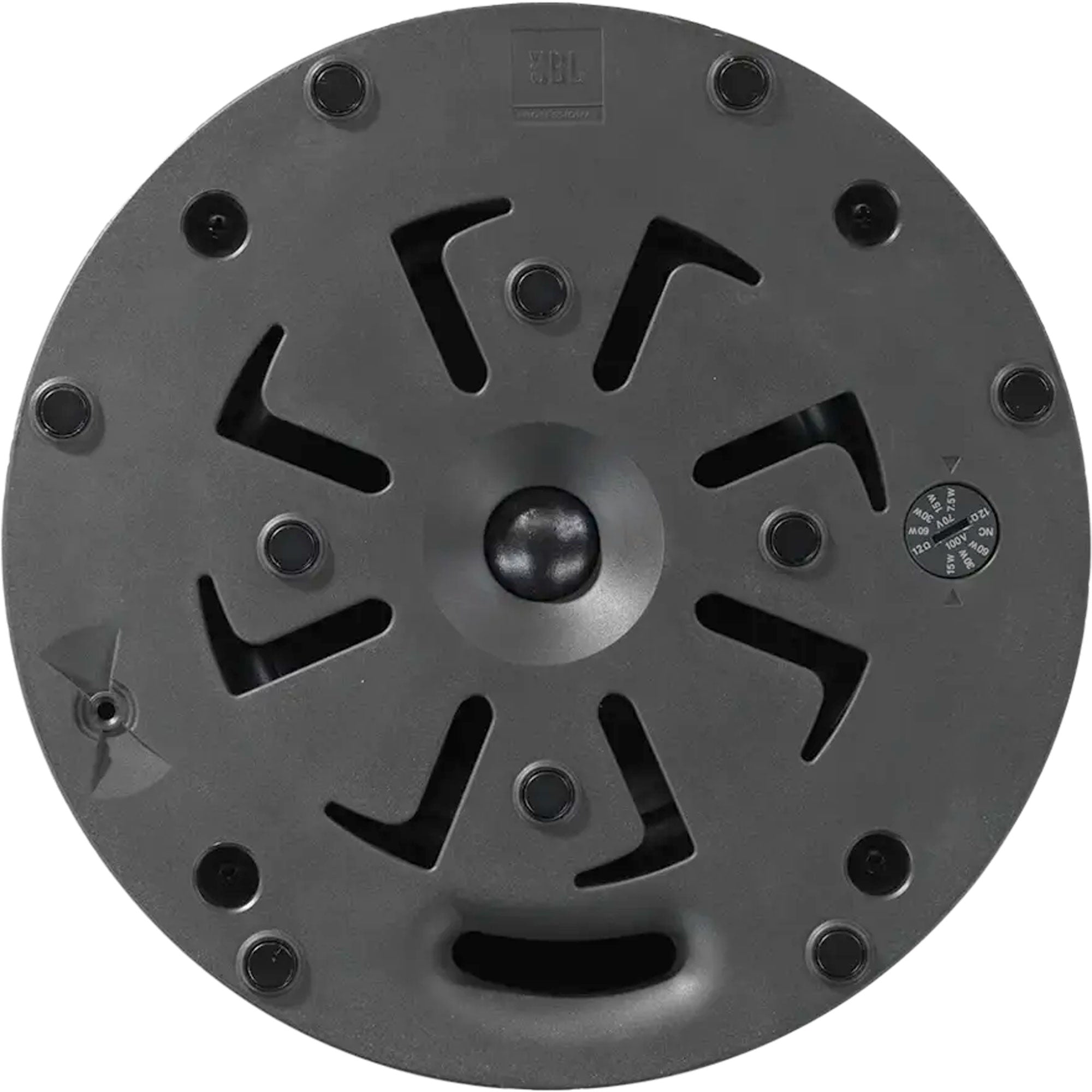

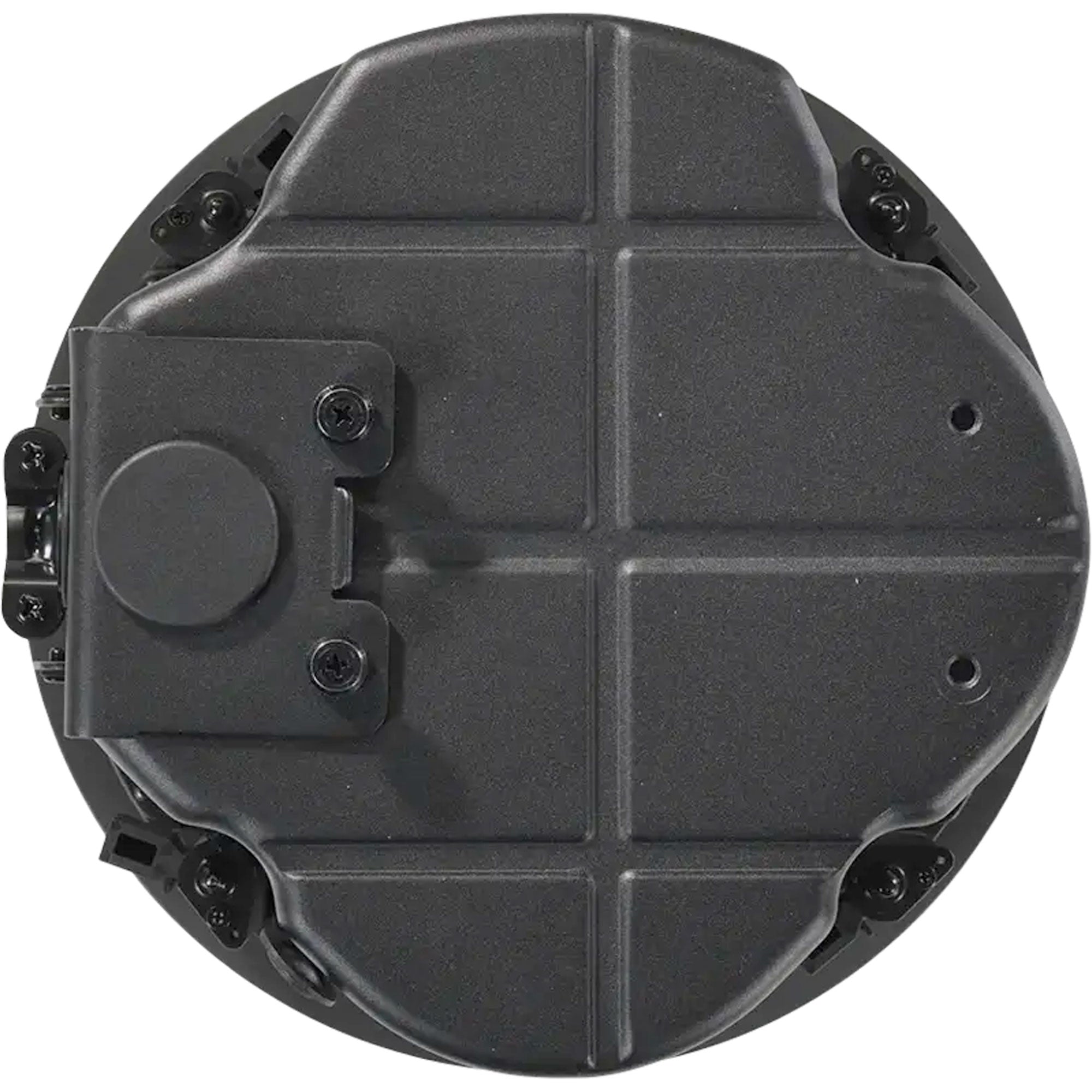

JBL Control 426C/T 6.5" Two-Way Coaxial Ceiling Loudspeaker (Pair, White)

Pair of Control 400 Enhanced Coverage Series Ceiling 6.5" CRBI-Equipped Two-Way Coaxial Ceiling Loudspeakers

The JBL Control 426C/T is a two-way coaxial ceiling loudspeaker, featuring a 6.5" woofer and integrated enclosure that is ideal for installation in most ceiling plenum spaces. Integrated CRBI technology provides 110° of consistent, full, rich sound to the listening area. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 426C/T includes a transformer to support both 70V/100V and low impedance applications.

Superior Sonic Performance

The Coplanar RBI, or CRBI delivers an especially smooth sound character that remains consistent, clear, and pleasant across a wide coverage area. It reduces on-axis hot spots and off-axis cold spots and improves the listening experience for users as they move throughout a space. This enhanced coverage results in fewer speakers, amplifier channels, and project costs, required to cover a space.

Efficient, Flexible Installation

Various Control 400 Enhanced Coverage Series mounting enhancements improve installation repeatability and safety while reducing installation time. Redesigned terminal covers provide both top and side cable entry ports and can be secured without tools thanks to captive hand-screws. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

Refined, Modern Aesthetics

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Features:

• Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter
• Integrated enclosure that is ideal for installation in most ceiling plenum spaces
• CRBI technology for consistent 110° coverage across the listening area
• Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input
• Full-face, easily paintable magnetic grilles
• Top and side exit cable entry options
• Robust and adaptable dogears for wide range of ceiling thicknesses
• IP33 rated

Specifications:

• Frequency Range (-10 dB): 72 Hz - 19 kHz
• Power Capacity:
  110 W (440 W Peak), Continuous Pink Noise (2 hrs)
  75 W (300 W Peak) Continuous Pink Noise Power (100 hrs)
• Sensitivity (1m/1W): 89dB
• Coverage Angle: 110° conical
• Maximum SPL (1m): 109 dB continuous pink noise (115 dB peak)
• Nominal Impedance: 12Ω
• Transformer Taps:
  70 V: 60 W, 30 W, 15 W & 7.5 W
  100 V: 60 W, 30 W, 15 W
• Drivers:
  LF: 165 mm (6.5 in) with treated paper cone and high-performance magnet
  HF: 25 mm (1.0 in) textile soft-dome with Neodymium magnet assembly
• Ceiling Cutout Size: 223 mm (8.8 in)
• Dimensions:
  190 mm (7.4 in) H x 253 mm (9.9 in) dia.
  181 mm (7.1 in) from bottom of ceiling tile to top of backcan
• Safety Agency Rating: Suitable for use in air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 and S7232/UL1480A Listed.
• Environmental: IP33 rating per EN/IEC 60529.
• Operating temperature 0°C to 45°C
• Optional Accessories:
  JBL-MTC-426BG black (RAL9004) round grille
  JBL-MTC-426SG white (RAL9003) square grille
  JBL-MTC-426NC new construction bracket
  JBL-MTC-426MR mud-ring construction bracket
  JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
• Color: Stock grille is White (RAL9003), paintable
• Net Weight (ea): 4.2 kg (9.3 lbs)
• Shipping Weight (pair): 13.48 kg (29.73 lbs)
• SKU Numbers: JBL-C426C/T
