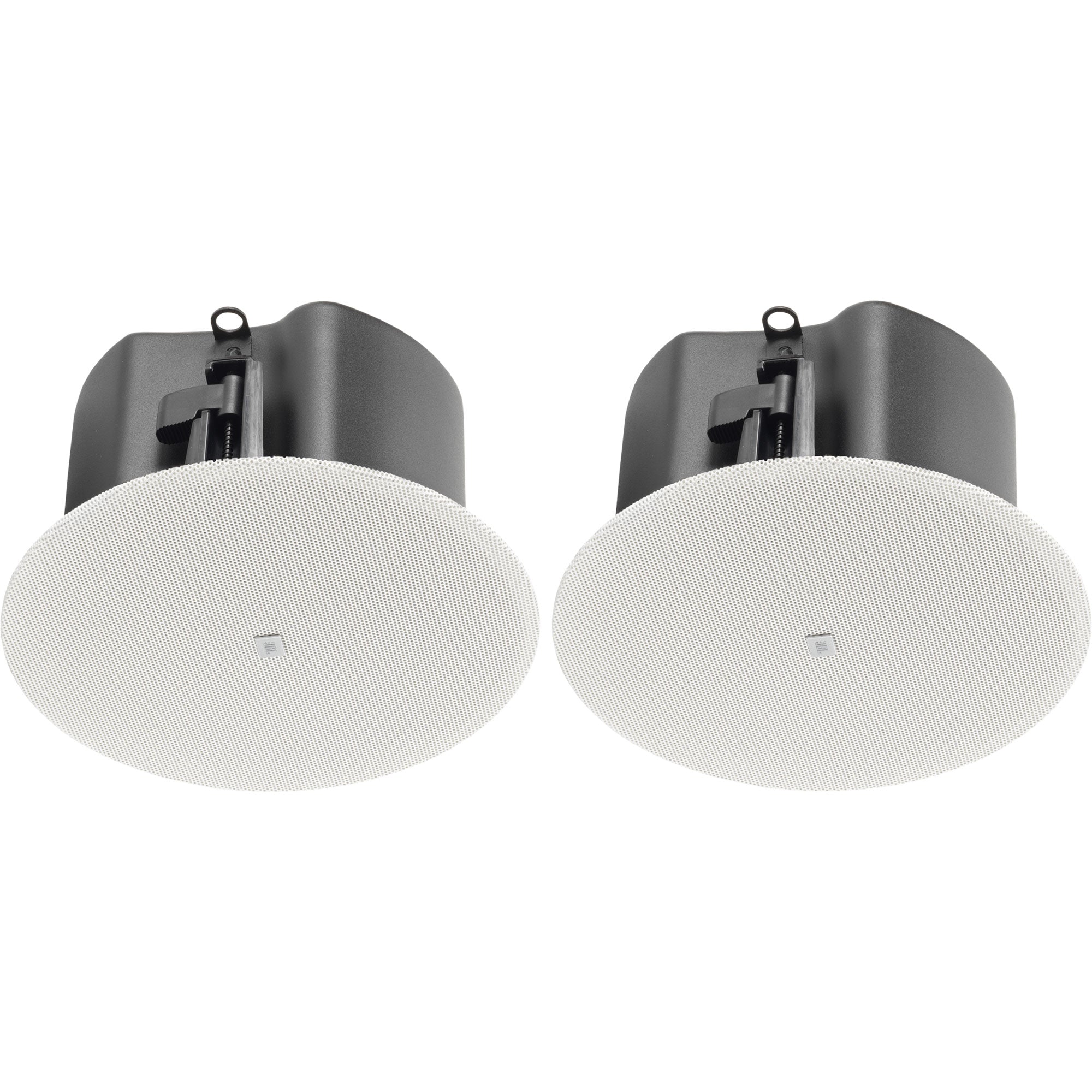

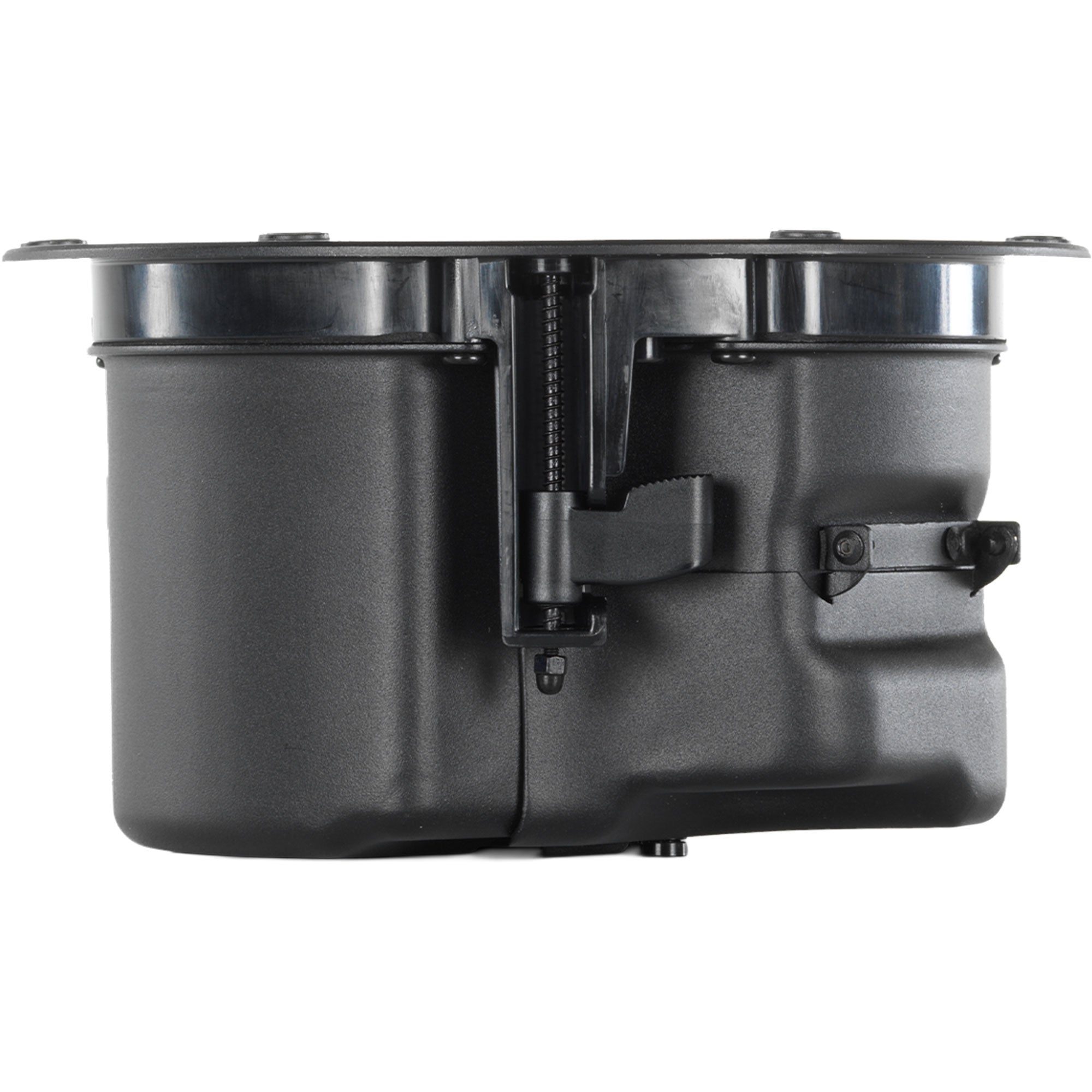

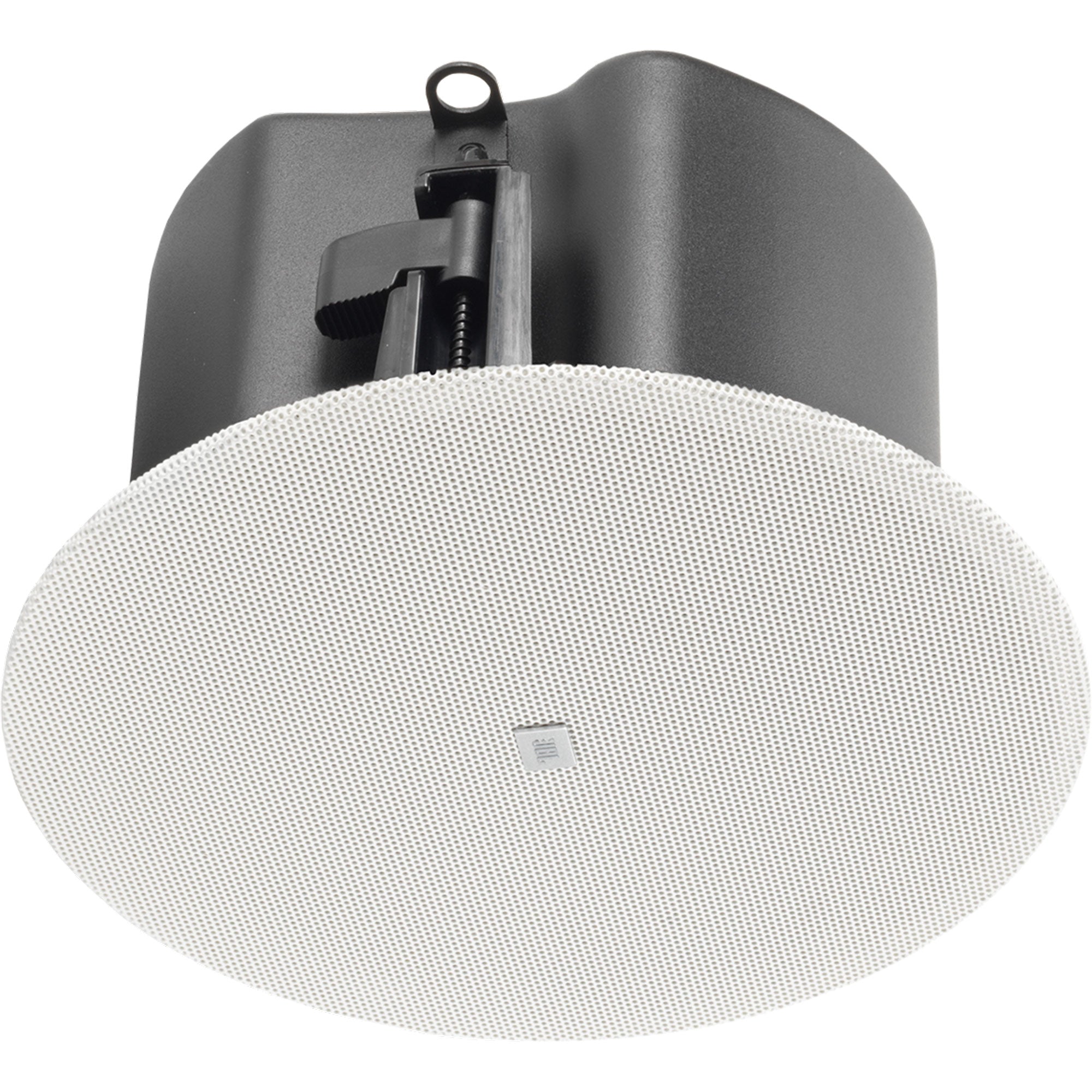

JBL Control 414C/T Micro 4" Two-Way Low-Profile Ceiling Loudspeaker (Pair, White)

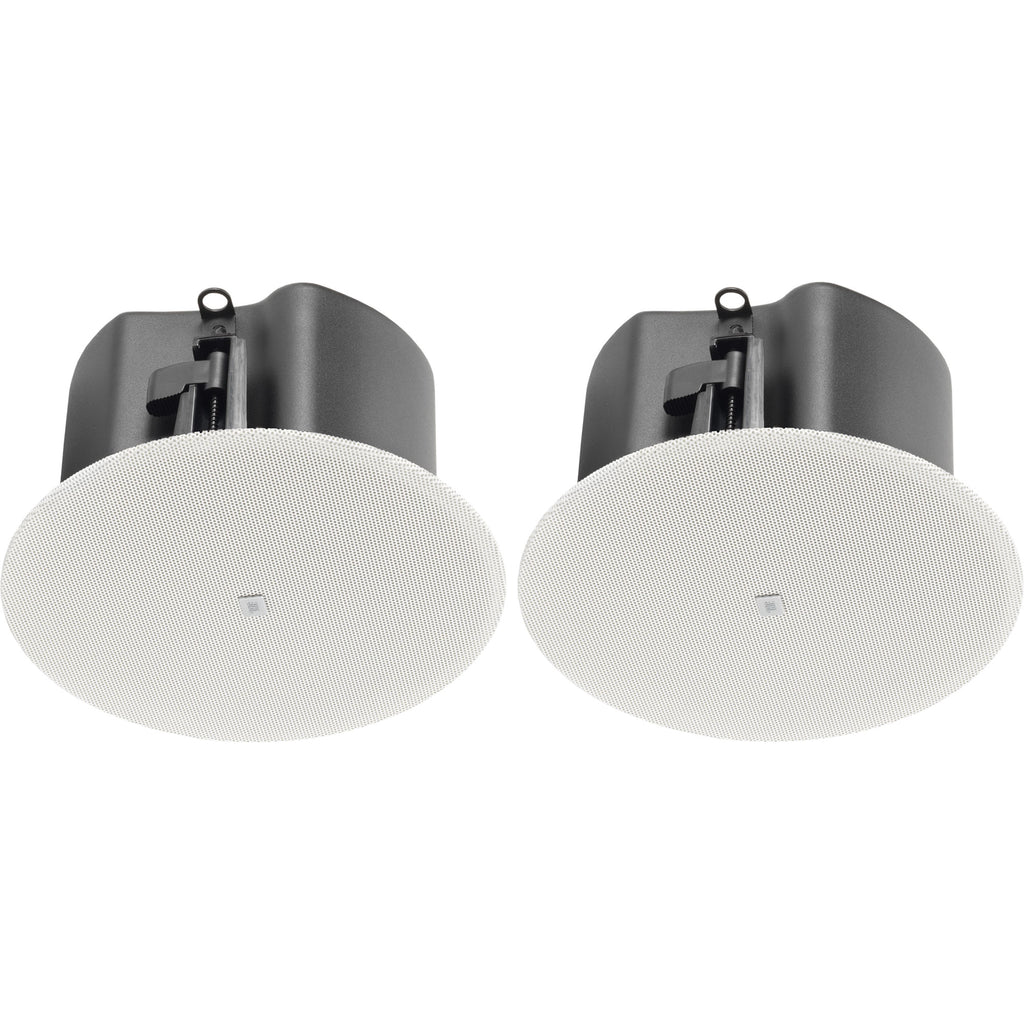

Pair of Control 400 Standard Coverage Series Ceiling 4" Two-Way Ceiling Loudspeakers with Low-Profile Enclosure

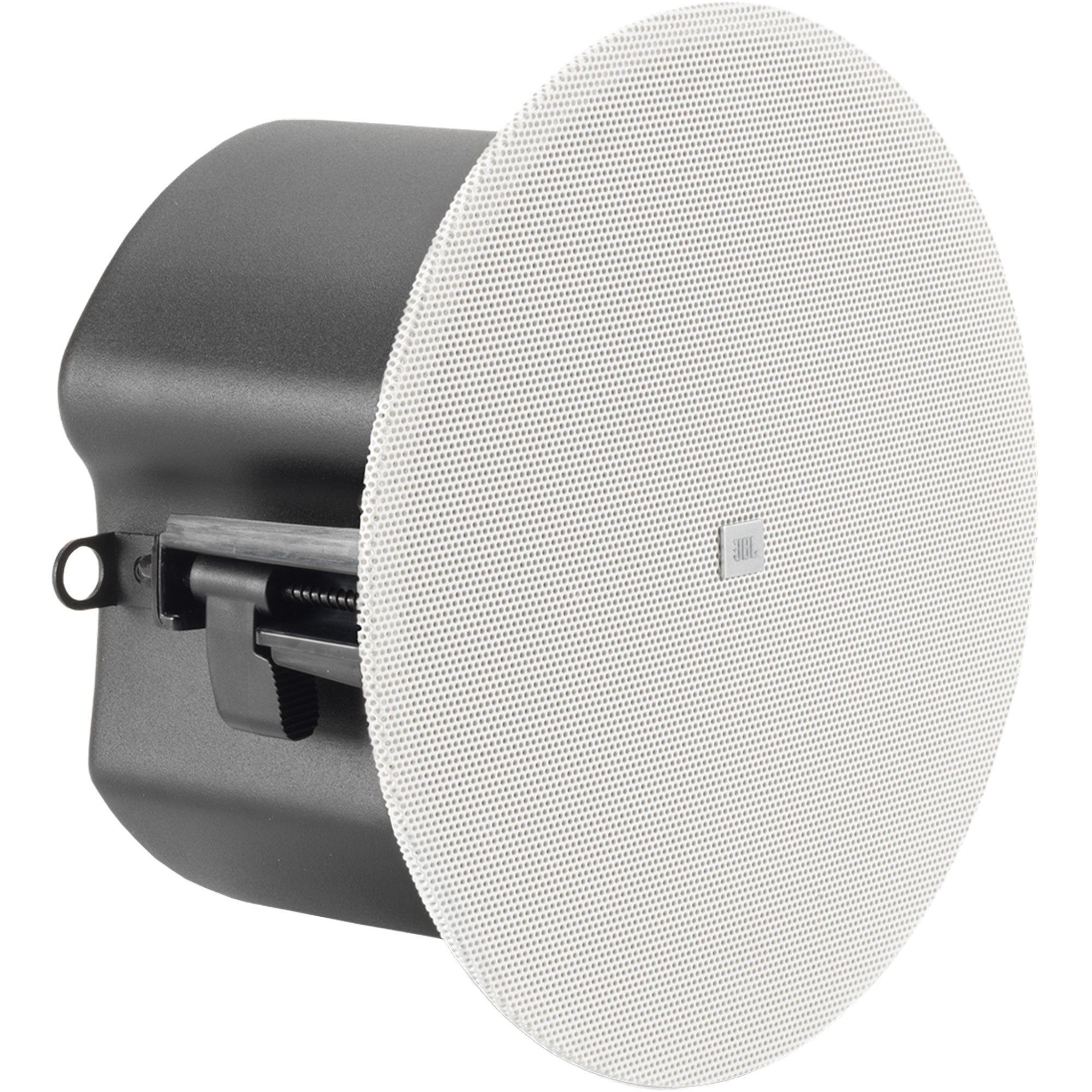

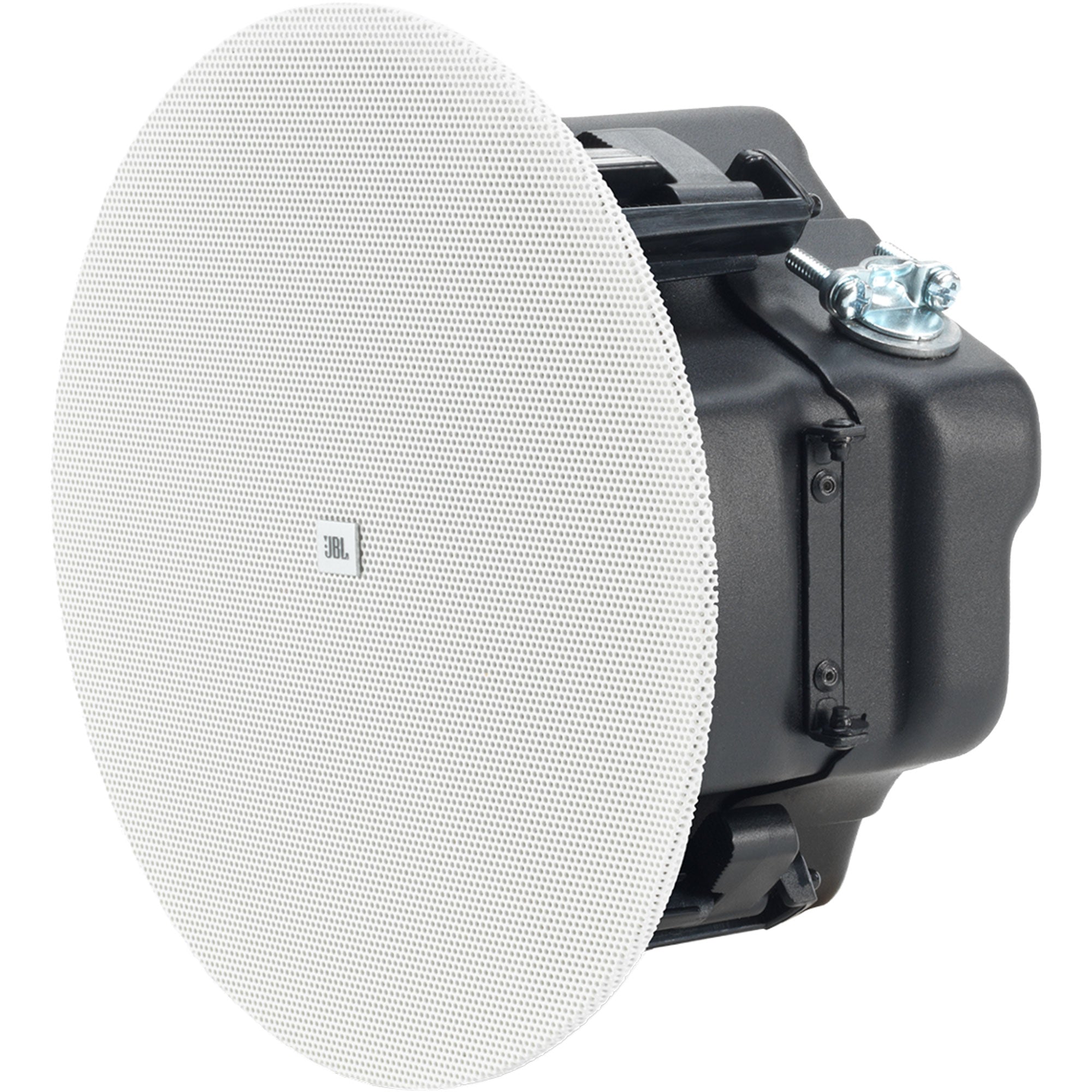

The JBL Control 414C/T Micro, part of the Control 400 Standard Coverage Series, is a two-way ceiling loudspeaker, featuring a 4" woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted.

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.

The Control 414C/T Micro includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 414C/T Micro supports both 70V/100V and low impedance applications.

EFFICIENT, FLEXIBLE INSTALLATION

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

REFINED, MODERN AESTHETICS

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Features:

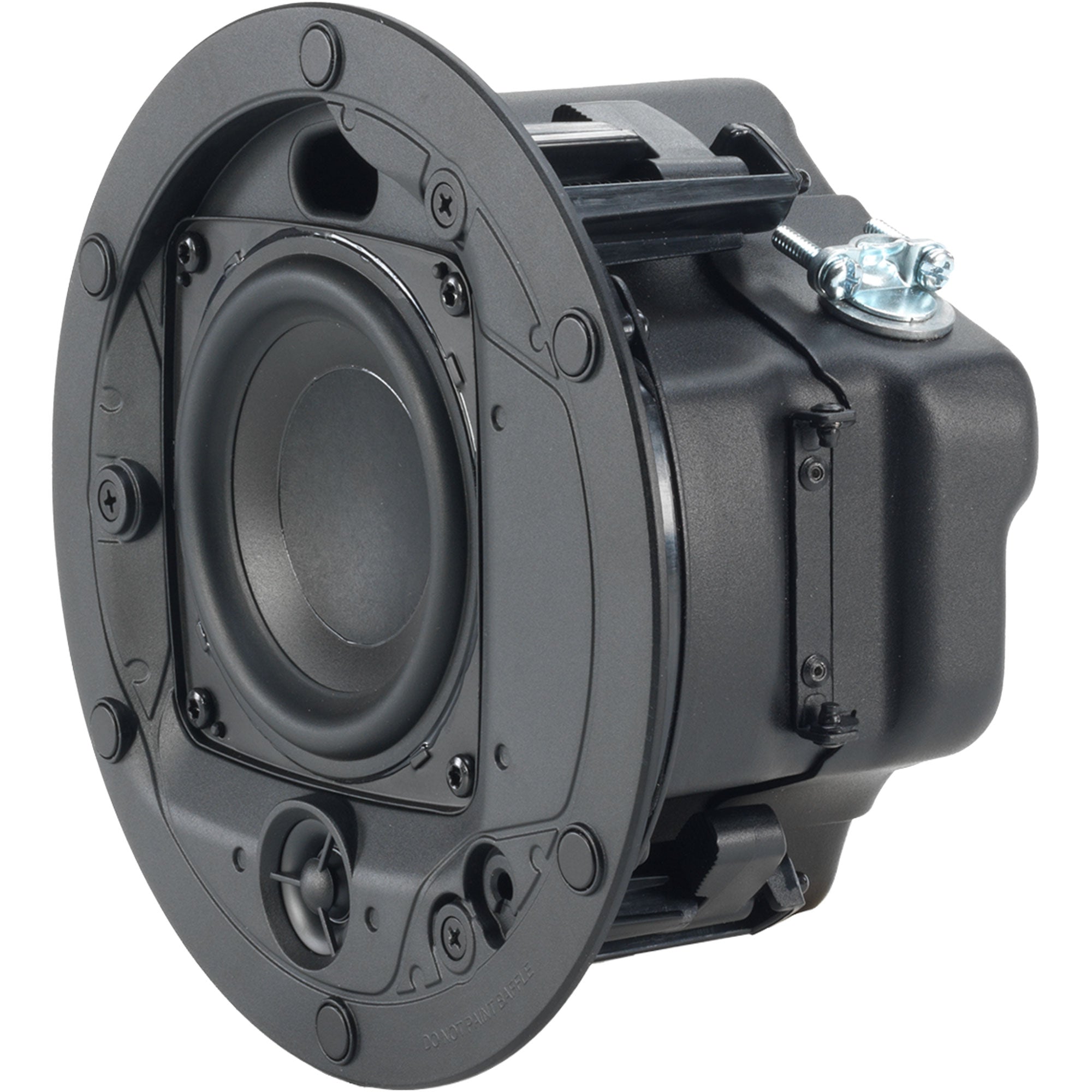

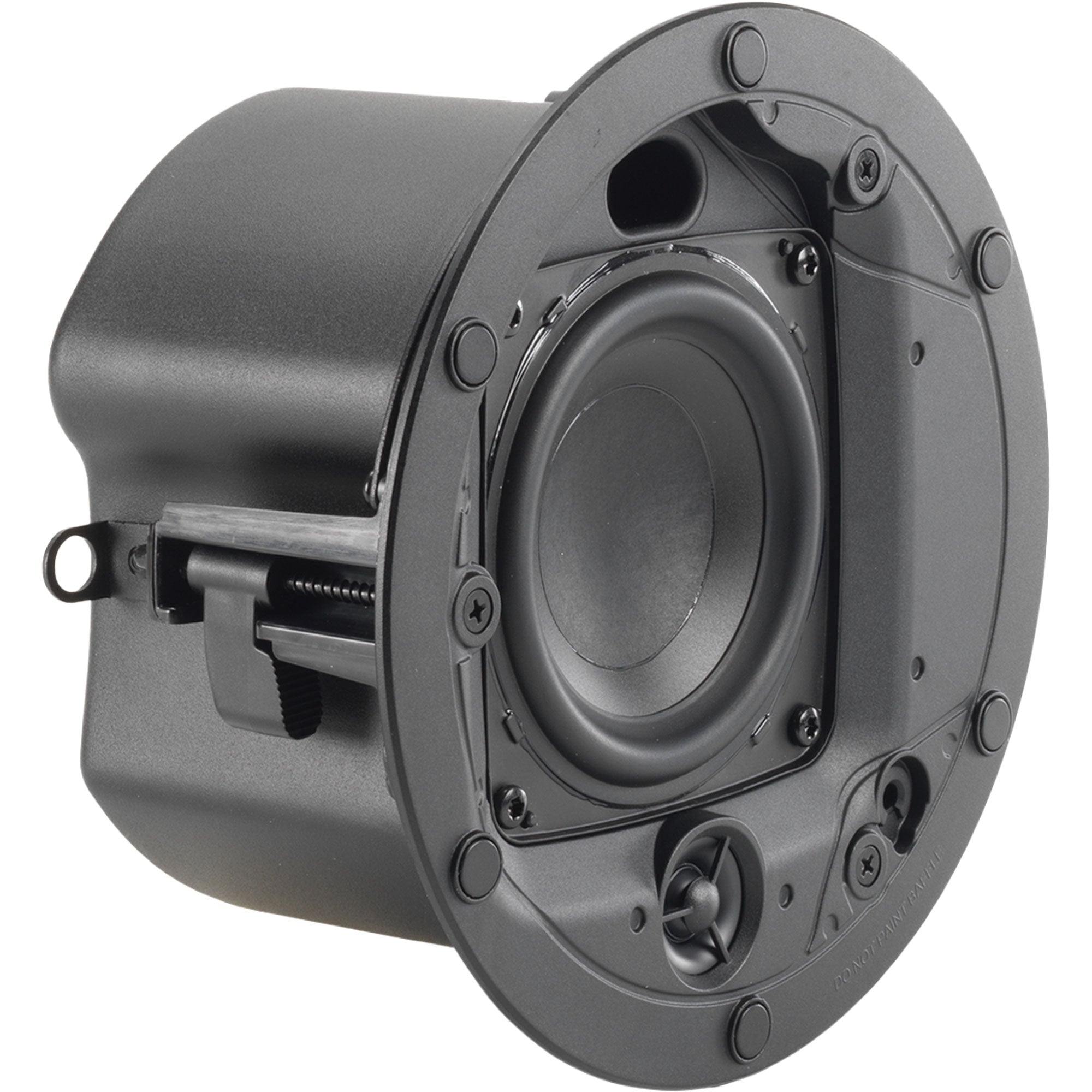

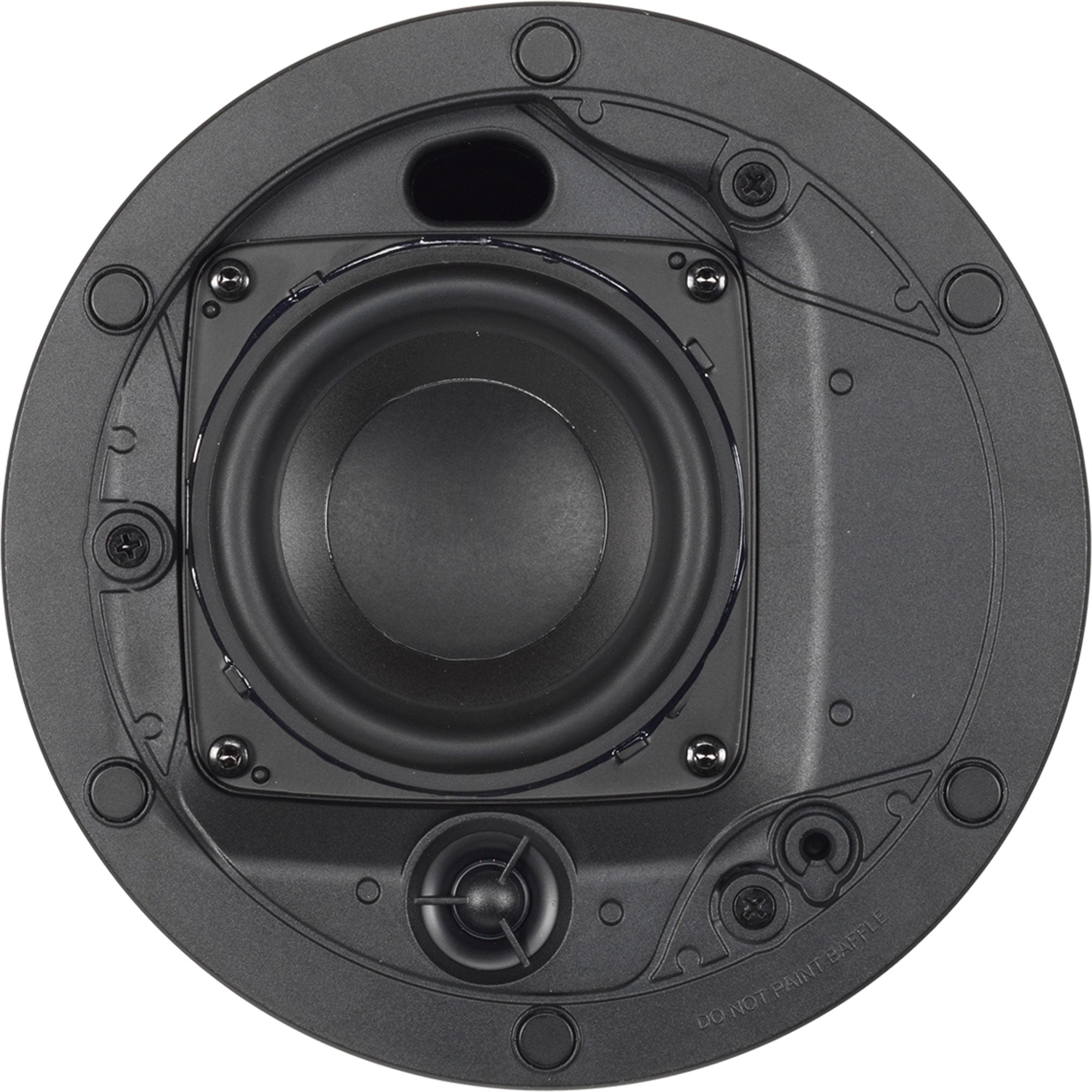

• 100 mm (4 in) woofer and 12mm (0.5 in) PEI dome tweeter
• Shallow 105 mm (4.13 in) depth
• Integrated enclosure that is ideal for installation in most ceiling plenum spaces
• Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
• Full-face, easily paintable magnetic grilles

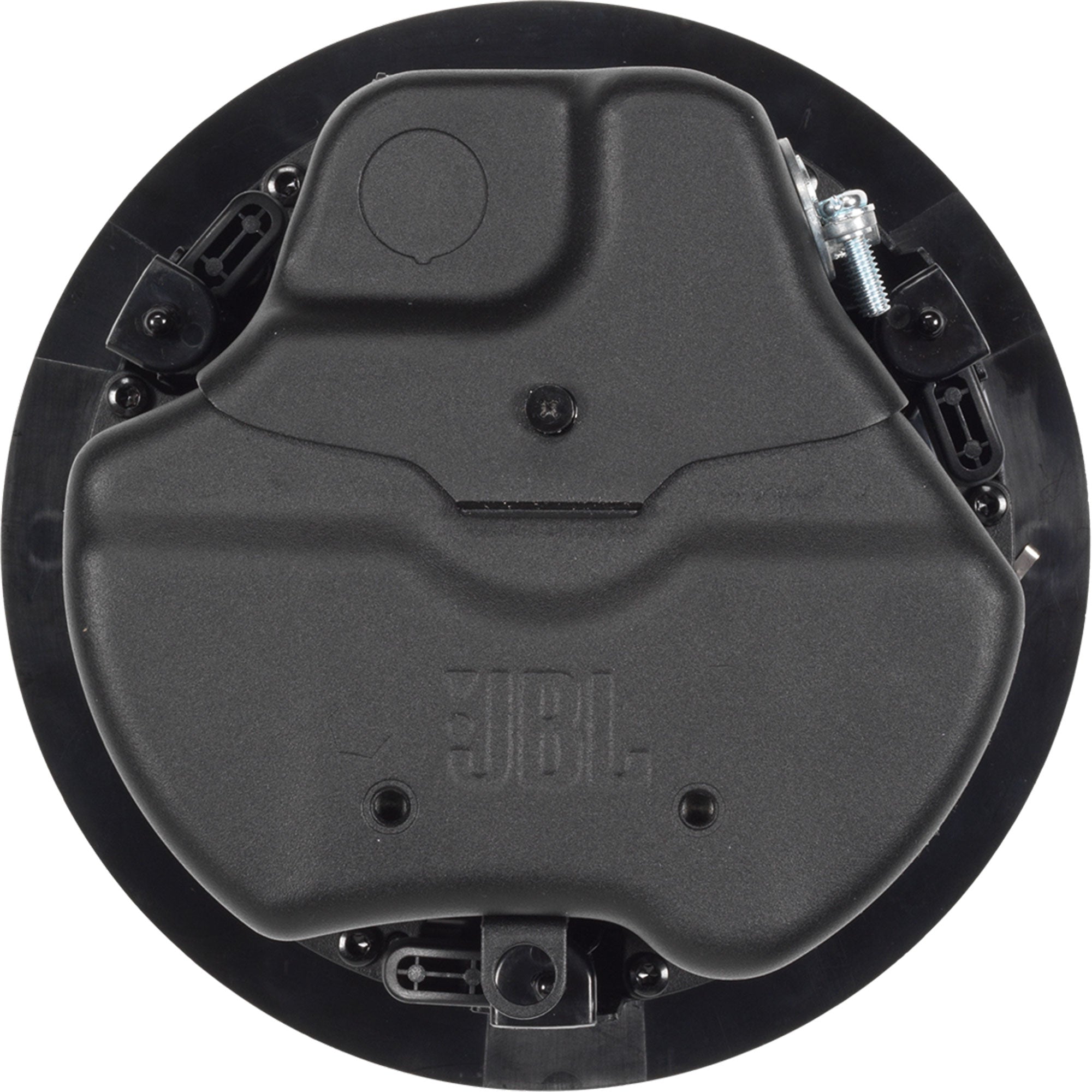

• Top and side cable entry options
• Robust and adaptable dogears for wide range of ceiling thicknesses
• IP32 rated

Specifications:

• Frequency Range (-10 dB): 69Hz - 25kHz
• Power Capacity:
  22.5 W (90 W Peak), Cont. Pink Noise (2 hrs)
  15 W (60 W Peak), Cont. Pink Noise (100 hrs)
• Sensitivity (1m/1W): 86dB
• Coverage Angle: 160° conical
• Maximum SPL (1m): 98 dB continuous pink noise (104 dB peak)
• Nominal Impedance: 8Ω

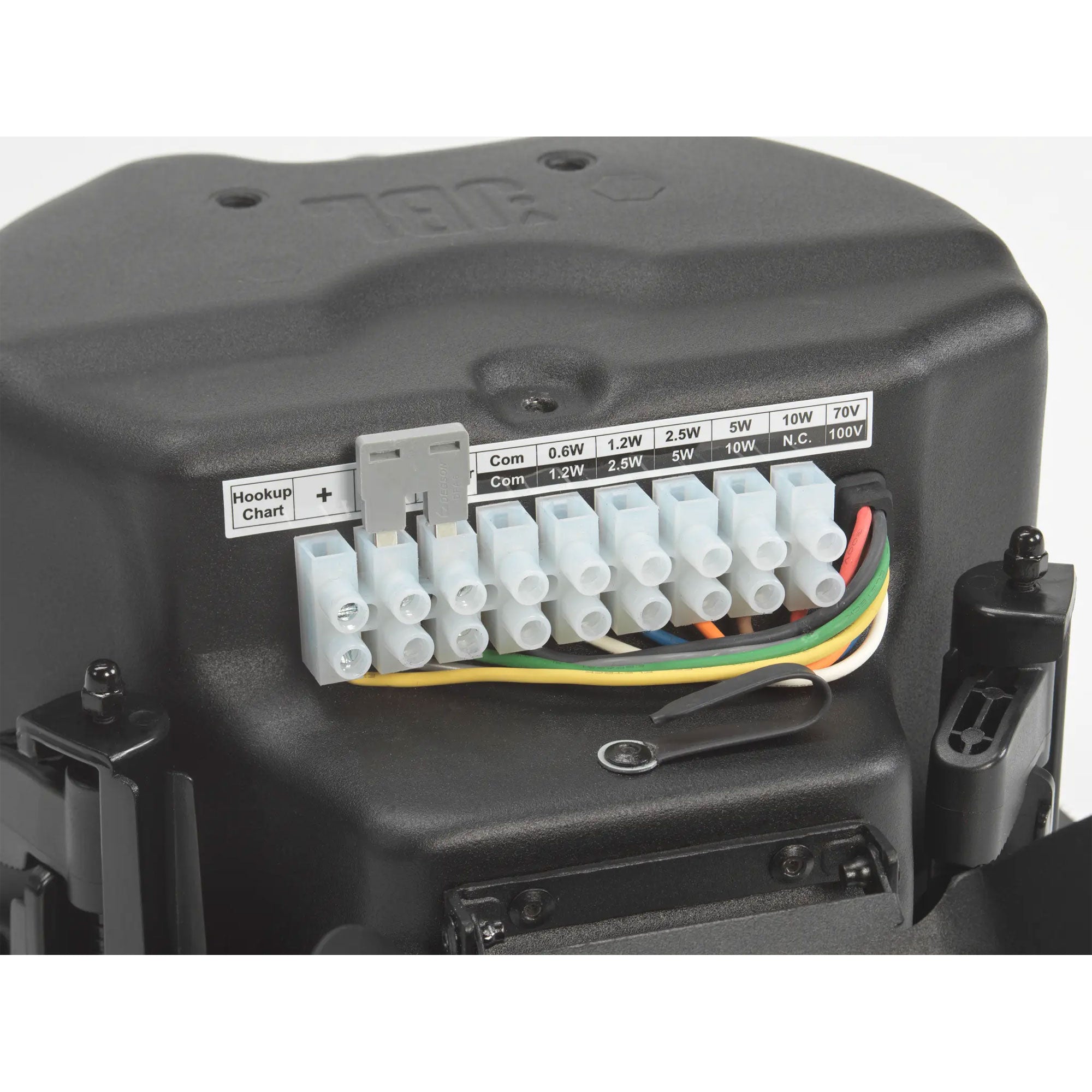

• Transformer Taps:
  70 V: 10 W, 5 W, 2.5 W, 1.2 W & 0.6 W
  100 V: 10 W, 5 W, 2.5 W & 1.2 W
• Drivers:
  LF: 103 mm (4 in) with PP cone and paper cup, SBR surround
  HF: 13 mm (0.5 in) PEI dome
• Ceiling Cutout Size: 168 mm (6.6 in)
• Dimensions:
  114 mm (4.6 in) H x 203 mm (8.1 in) dia.
  105 mm (4.2 in) from bottom of ceiling tile to top of backcan
• Safety Agency Rating: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
• Environmental: IP rating: IP32 per EN/IEC 60529.
• Operating temperature: 0° C to 45 °C.
• Optional Accessories:
  JBL-MTC-414BG black (RAL9004) round grille
  JBL-MTC-414SG white (RAL9003) square grille
  JBL-MTC-414WG weather grille
  JBL-MTC-424NC new construction bracket
  JBL-MTC-424MR mud-ring construction bracket
  JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
• Color: Stock grille is White (RAL9003), paintable
• Net Weight (ea): 2.11 kg (4.65 lbs)
• Shipping Weight (pair): 8.58 kg (18.92 lbs)
• SKU Numbers: JBL-C414MC/T
