RapcoHorizon Pro Co AVP1V Audio Visual Passive Interface Wallplate (Black)

Wallplate Audio/Video Interface Wallplate Unit with Input Level Control - Black

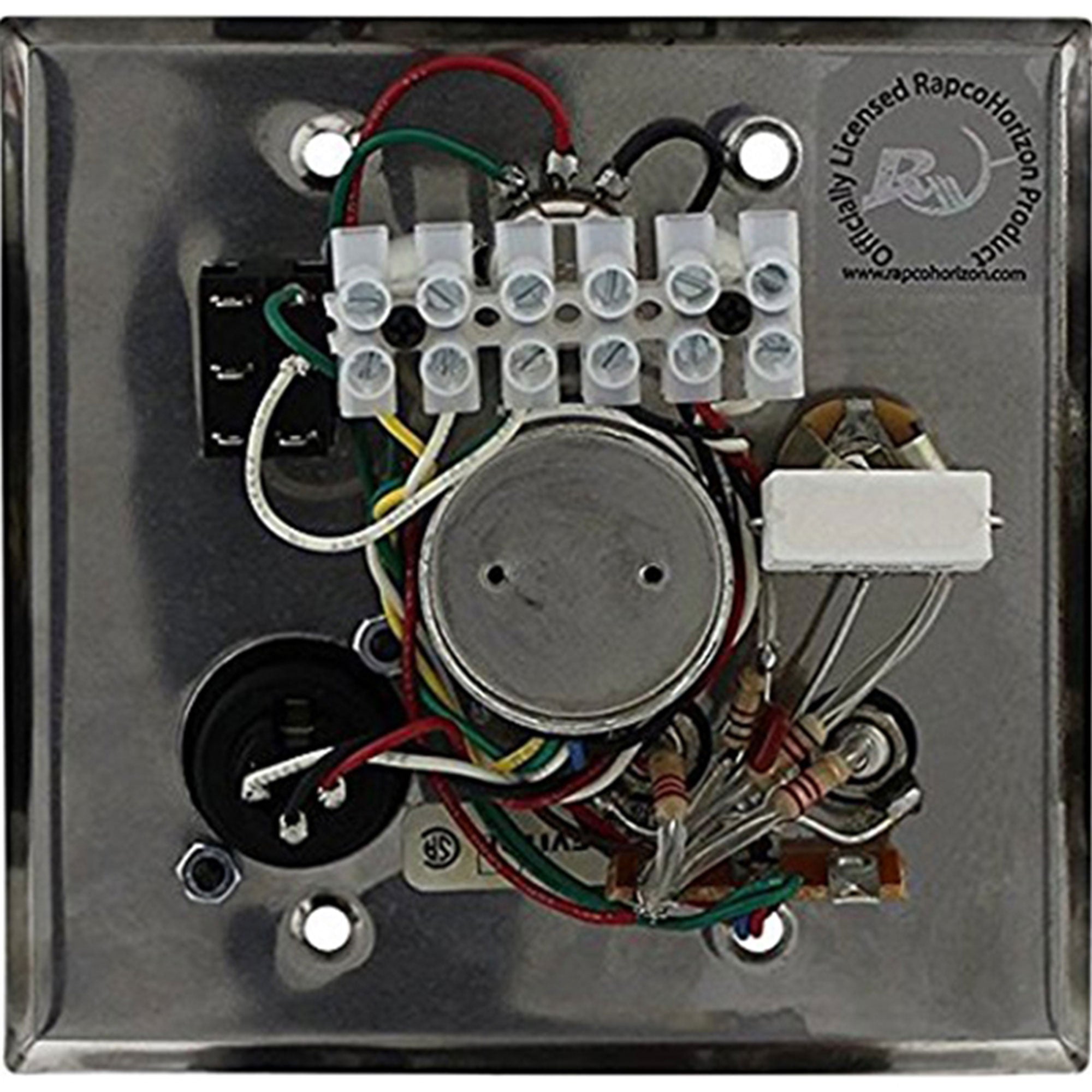

The AVP1V is a dual-gang wallplate mounted interface device that allows the line-level outputs of audio and video tape/cassette recorders, phonographs, etc. to be connected to microphone inputs of house P.A. systems. It has the added feature of a 10kW linear input level control and is available on a brushed stainless steel or black anodized aluminum wallplate.

The Proco AVP-1V is a wall-mounted impedance matching unit with multiple audio inputs, designed for Audio/Video applications in school classrooms, lecture halls, and meeting or conference rooms. The unit features a dedicated microphone input, an input level control, a transformer-balanced, low-impedance barrier strip output, and a hum-canceling ground loop switch on the front panel.

Features:

• A/V wall mounted impedance matching unit for use in schools, houses of worship and meeting or conference rooms
• Improved sound from projectors, recorders and audio playback devices
• Projector In jack loads source with 16-Ohm/5W dummy load
• Front panel input level control
• Output Transformer for ground isolation, front panel Hum Cancel ground lift switch
• Independent microphone input
• Transformer-isolated low impedance output on Barrier Strip

Specifications:

• Speaker Input:

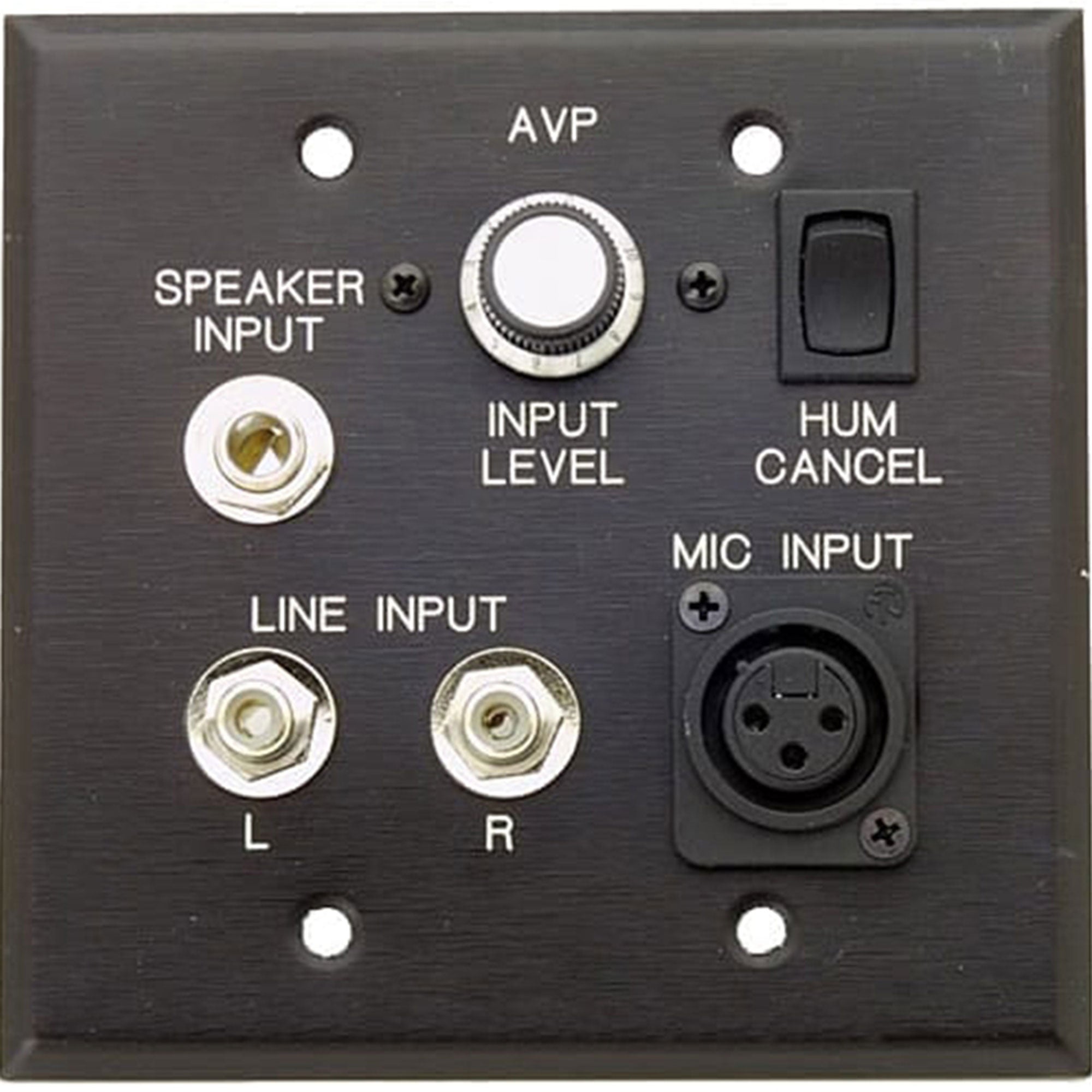

  1/4" 3-conductor phone jack, wired for use with standard 2-conductor plug, accepts signals from unbalanced line level or speaker-level sources such as phonographs, audio and video tape recorders and movie projectors. Has 16-ohm, 5-watt dummy load, 20 dB attenuator network, and low-pass filter (-3 dB @ 8 kHz, 6 dB/octave). Input impedance: approx. 16 ohm.
• LINE INPUT L/R:
  RCA phono jacks, resistively mixed to monaural, for signals from nominal -10 dBV sources such as radio, cassette or VCR outputs. Input impedance: approx. 4 kohm.
• MIC INPUT:
  Female 3-pin XLR-type connector provides independent microphone input (brought out to output barrier strip) for announcer, lecturer, etc.
• HUM CANCEL:
  Ground-lift switch, used to reduce hum and buzz by eliminating ground loops and providing proper grounding for various conditions. Breaks connection between input and output shields.
• Input Impedance:>130 kOhm @1kHz (line in L/R jacks, mono source)4.0 kOhm (line in L/R jacks, stereo source, resistively mixed)16 Ohms (PROJ IN jack)
• Output Impedance: <200 ohms @1kHz
• Frequency Response:20 Hz - 20 kHz, +/-.5dB @-15dBv output-3dB @85 kHz6dB/octave attenuation above 8 kHz (PROJ IN jack)
• Input Connectors:2 x RCA Phono Line In1 x 3-pin XLR Female Mic In1 x 1/4" TS Phone PROJ IN(SPKR.)
• Output Connector: Barrier Strip
• Weight: 6.5 oz (184.3)
• Dimensions: 4.6 x 4.6 x 1.25" (115.8 x 115.8 x 31.75mm)
