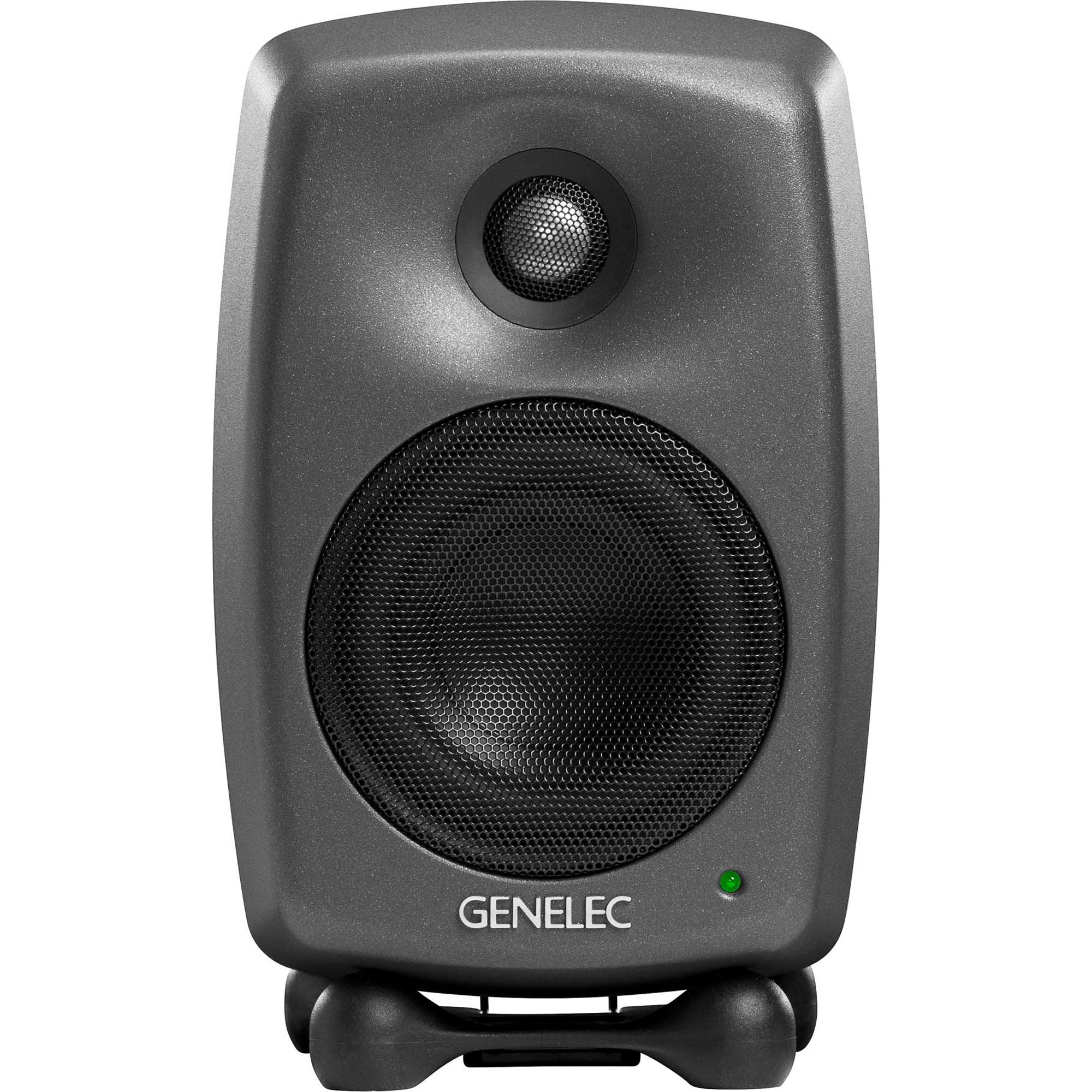

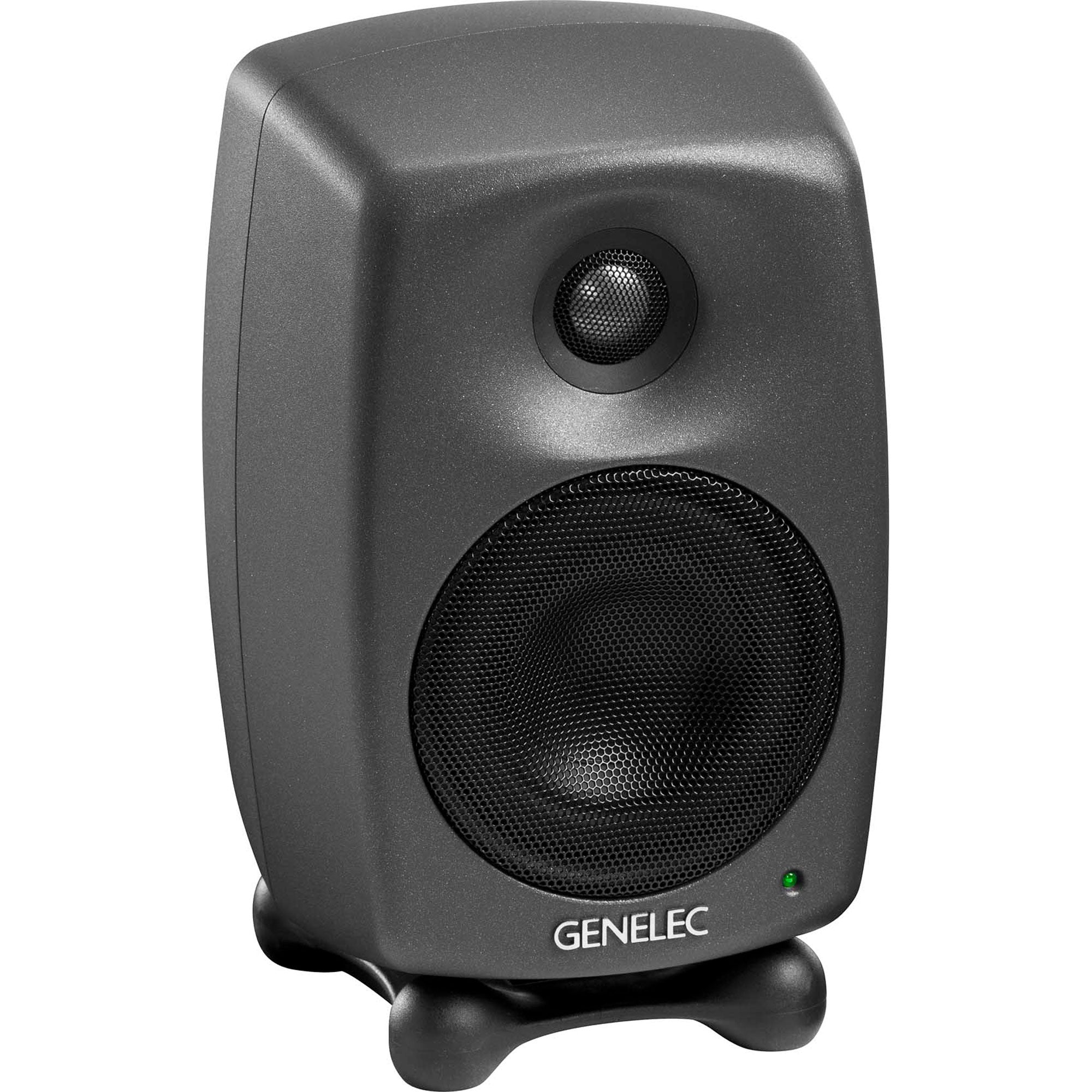

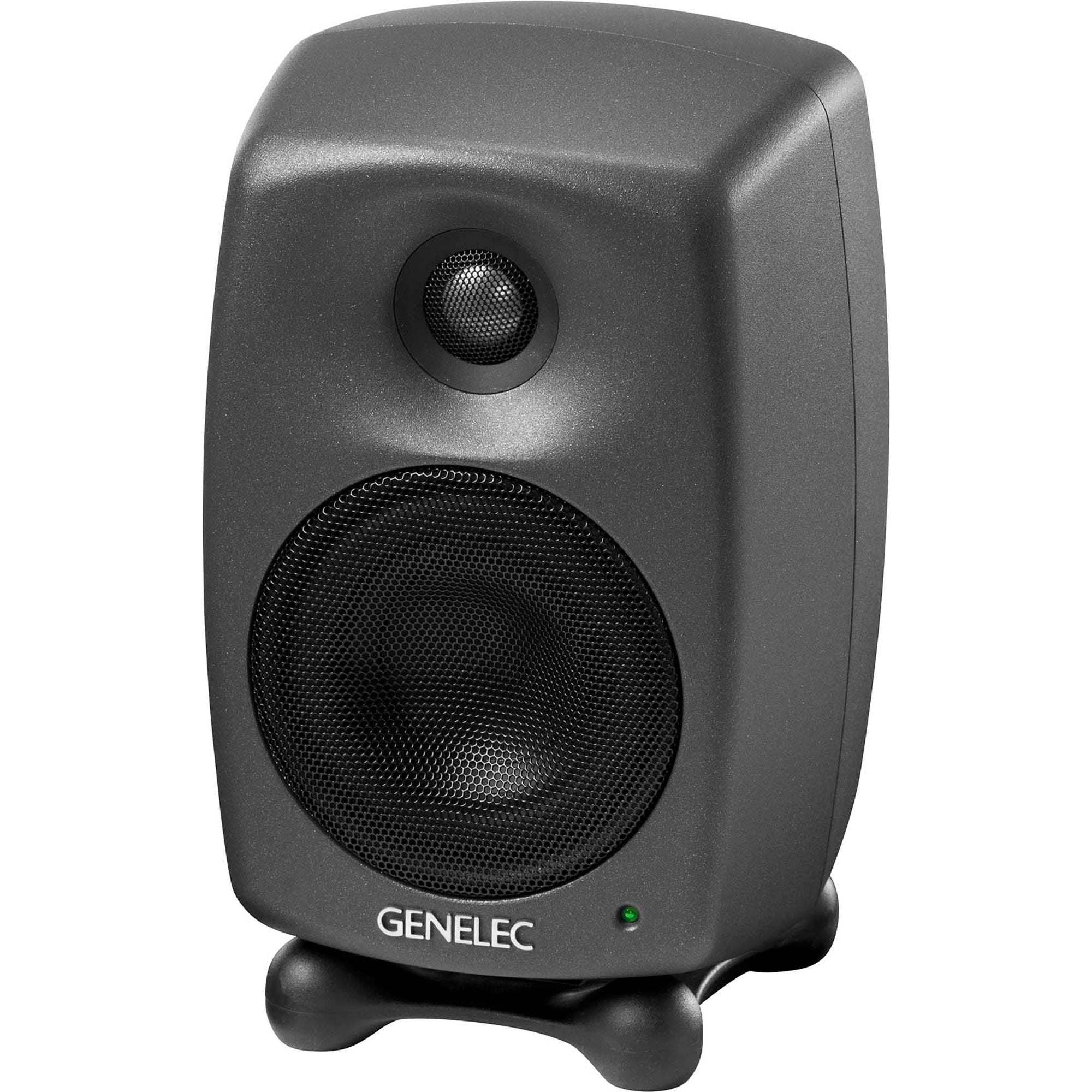

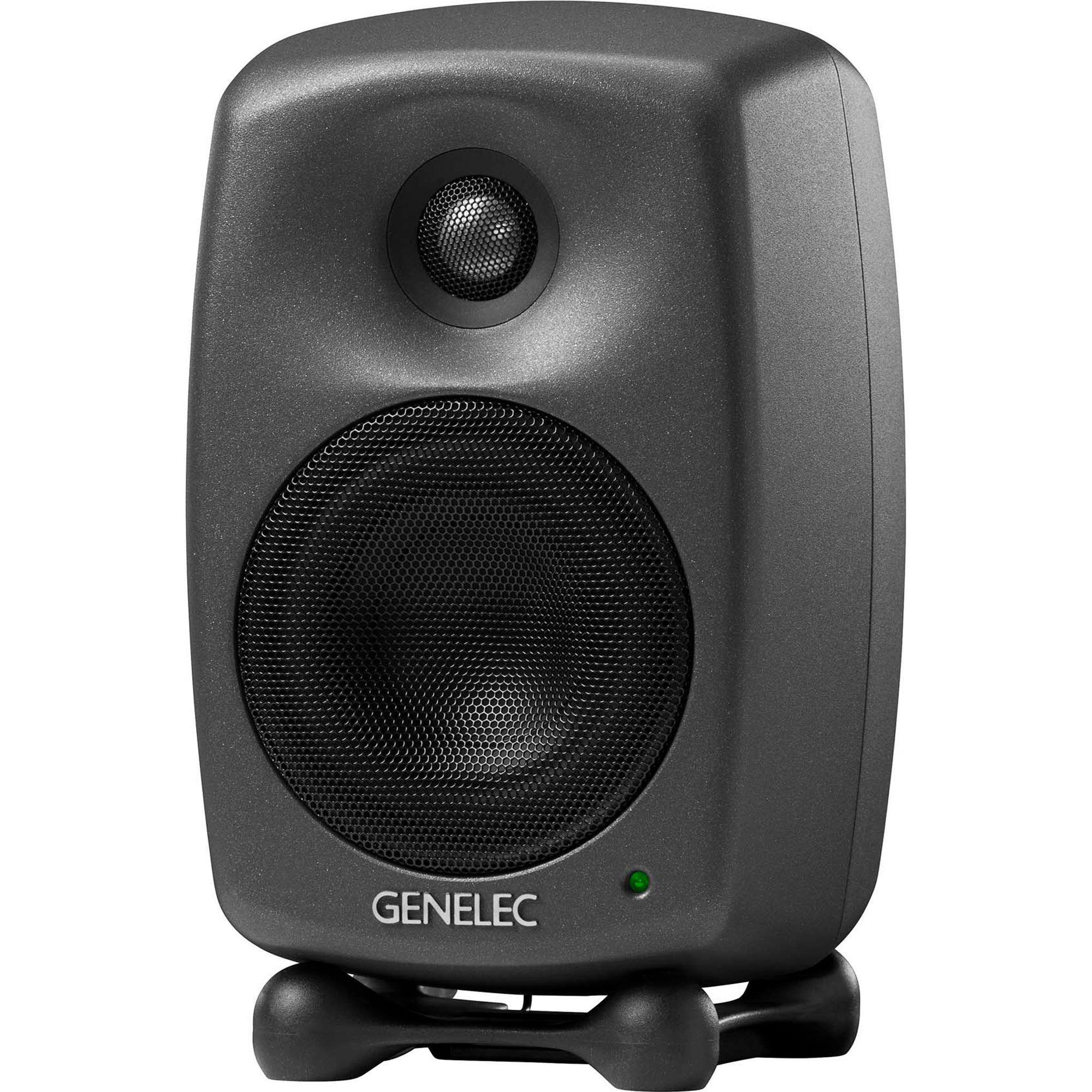

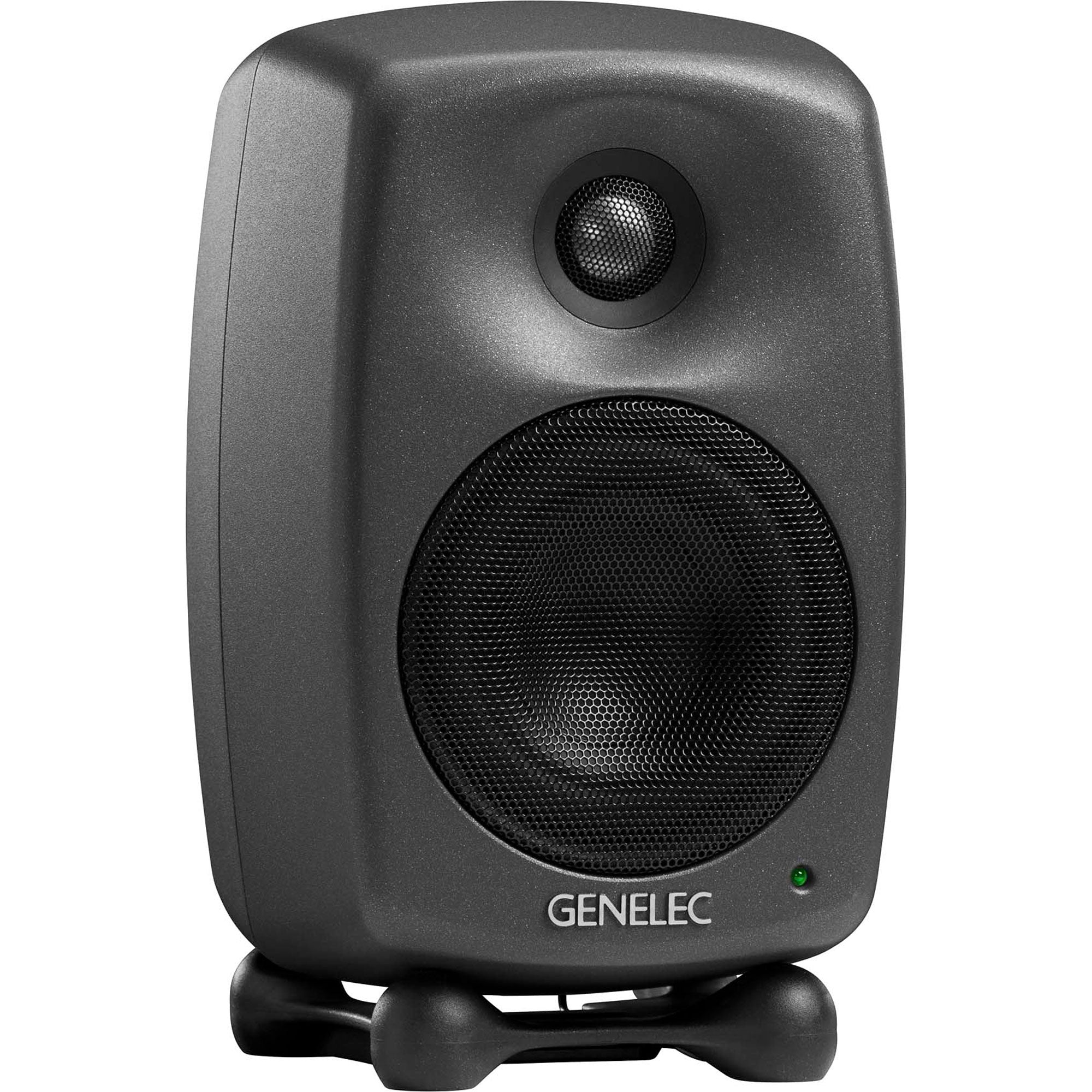

Genelec 8020D Two-Way 4" Active Studio Monitor (Single, Dark Grey)

Powered Studio Monitor with 50W 4" Woofer, 50W 3/4" Tweeter, and Aluminum Enclosure - Dark Grey Producer Finish (each)

When it comes to performance versus size, the 8020 has set the benchmark in nearfield monitoring for over 15 years.

Classic design
The 8020D is the latest revision of this enduring studio classic, boasting an even higher SPL yet lower energy consumption than previous versions. Designed to adapt to the broadest possible range of listening environments, the 8020D thrives when space is at a premium.

Transparent and truthful
Engineers love the transparent and truthful reproduction of the 8020D, and with its wide uncoloured sweet spot you are always in a position to make accurate, reliable mix decisions. Additionally, our Intelligent Signal Sensing (ISS) circuitry detects when your monitor is no longer in use, placing it into an environmentally friendly, power-saving standby mode.

Features:

• Attached Iso-Pod table stand insulates the speaker from vibration and enables you to tilt its position upward or downward
• Well-suited for near-field studio monitoring, control rooms, editing suites, surround sound applications, and multimedia entertainment systems

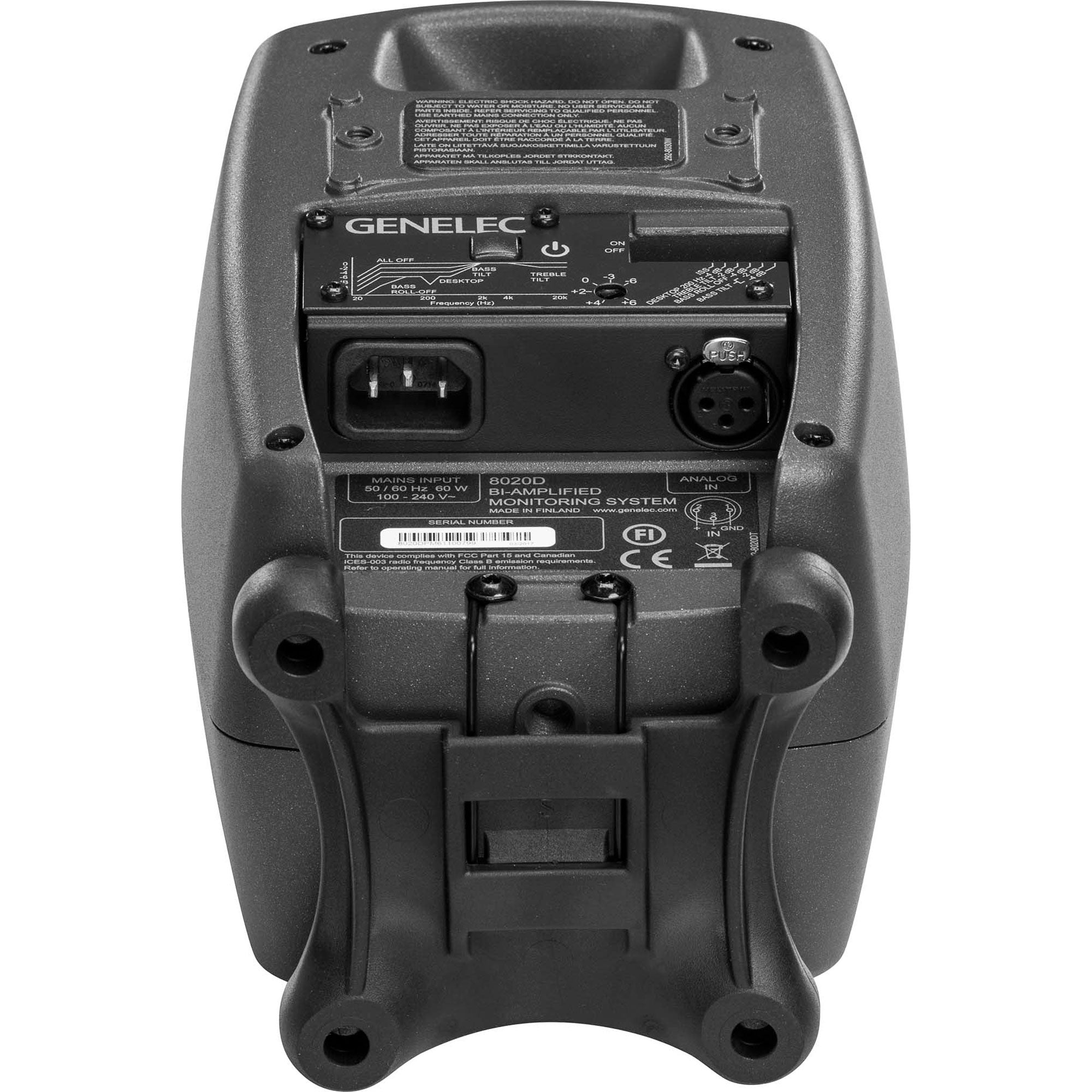

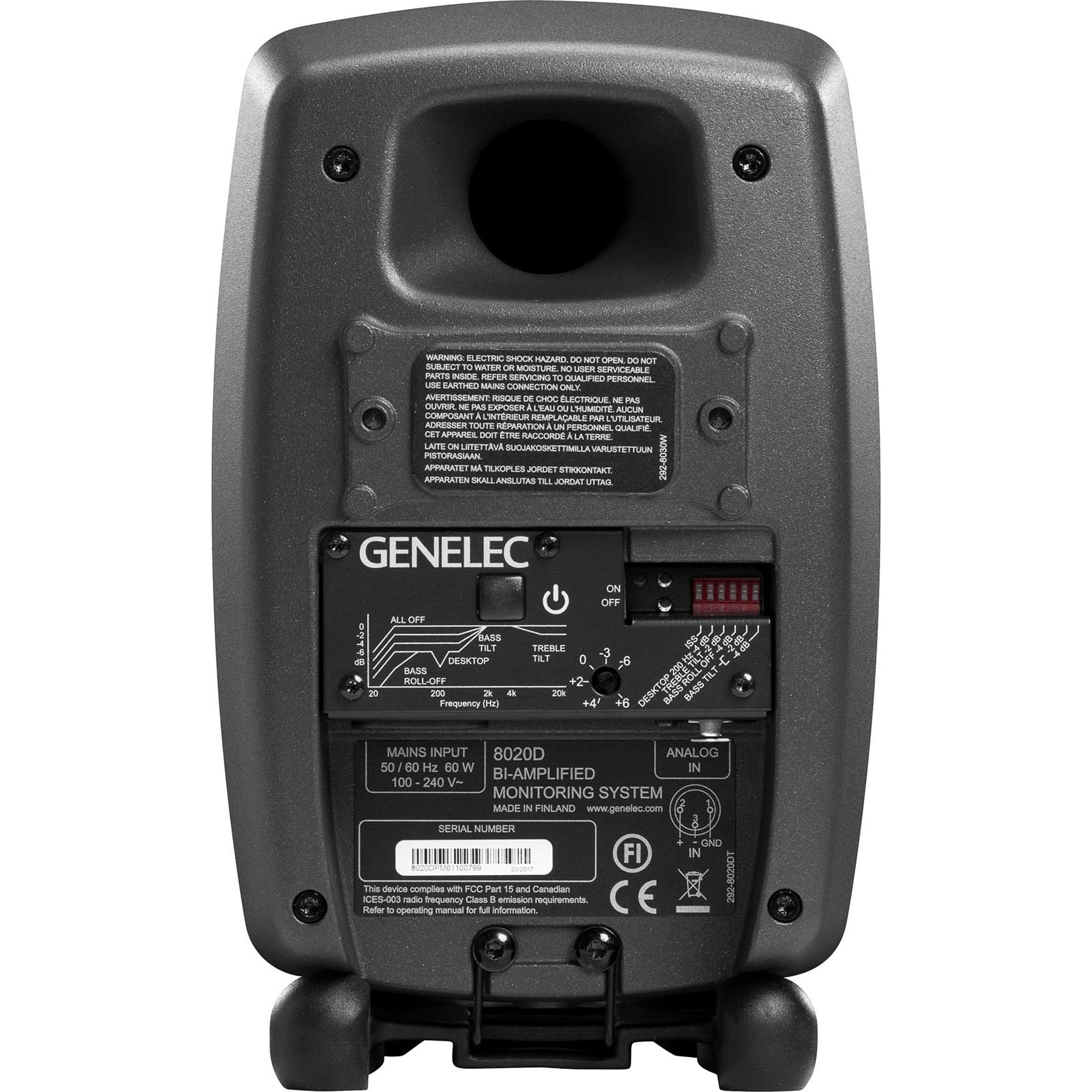

• Rear-facing treble-tilt, bass roll-off, and desktop cut controls enable you to optimize the speaker to its environment
• Threaded holes for wall or ceiling brackets
• Active crossover filter
• Driver unit protection circuitry
• Woofer and tweeter magnetically shielded

Specifications:

• Cut-Off Frequency:
  Lower: ≤ 56 Hz at -6 dB
  Upper: ≥ 25 kHz at -6 dB
• Frequency Response: 62 Hz to 20 kHz (±2.5 dB)
• SPL:
  ≥ 100 dB SPL maximum (short-term sine-wave acoustic output on axis in half-space, averaged from 100 Hz to 3 kHz at 3.3' / 1 m)
  93 dB SPL maximum (long-term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 3.3' / 1 m)
• Peak Output Capacity: ≥ 107 db maximum peak acoustic output (per pair in listening room with music material at 3.3' / 1 m)
• Self-Generated Noise Level: ≤ 5 dB (in free field at 3.3' / 1 m on axis (A-weighted))
• Harmonic Distortion:
  < 3% (at 85 dB SPL at 3.3' / 1 m on axis, 50 to 200 Hz)
  < 0.5% (at 85 dB SPL at 3.3' / 1 m on axis, higher than 200 Hz)
• Drivers:
  Bass: 4" / 105 mm cone
  Treble: 3/4" / 19 mm metal dome
  Both drivers are magnetically shielded
• Amplifier:
  Bass Amplifier Short-Term Output Power: 50 W
  Treble Amplifier Short-Term Output Power: 50 W
  Long-term output power is limited by driver protection circuitry
• THD: ≤ 0.05% at nominal output
• Crossover Frequency: Bass/Treble: 3 kHz
• Digital Controls:
  GLM Software Frequency Response Adjustment
  Parametric Notch Filters: 16x
  Shelving Filters: 2 x LF and 2 x HF
  System Room Response Calibration: Genelec GLM AutoCal, GLM manual, standalone
• Mains Voltage: 100 to 240 VAC 50/60 Hz
• Power Consumption:
  Idle: 3 W
  Standby: < 0.5 W
  Full Output: 60 W
• Analog Input: XLR female, balanced (pin 1 ground, pin 2 positive, pin 3 negative)
• Input Level: -6 dBu at volume control max (for 100 dB SPL at 3.3' / 1 m)
• Input Impedance: 10 kOhms
  Sensitivity: -12 dB (constantly variable, control range relative to maximum output)
• Controls:
  Treble Tilt Control (operating range): 0 to -2 dB at 15 kHz
  Desktop 200-Hz Control: -4 dB at 200 Hz
  Bass Roll-Off Control: 0 to -4 dB at 65 Hz
• Analog Input: Maximum Analog Input Level: +24 dBu
• Analog Input Sensitivity: -6 dBu (100 dBSPL at 3.3' / 1 m)
• Analog Input Sensitivity Control: Adjustable from +36 to -6 dBu
• Dimensions (H x W x D):
  9.5 x 6.0 x 5.6" / 242.0 x 151.0 x 142.0 mm, Iso-Pod stand included
  9.1 x 6.0 x 5.6" / 230.0 x 151.0 x 142.0 mm, Iso-Pod stand excluded
• Weight: 7.0 lb / 3.2 kg
