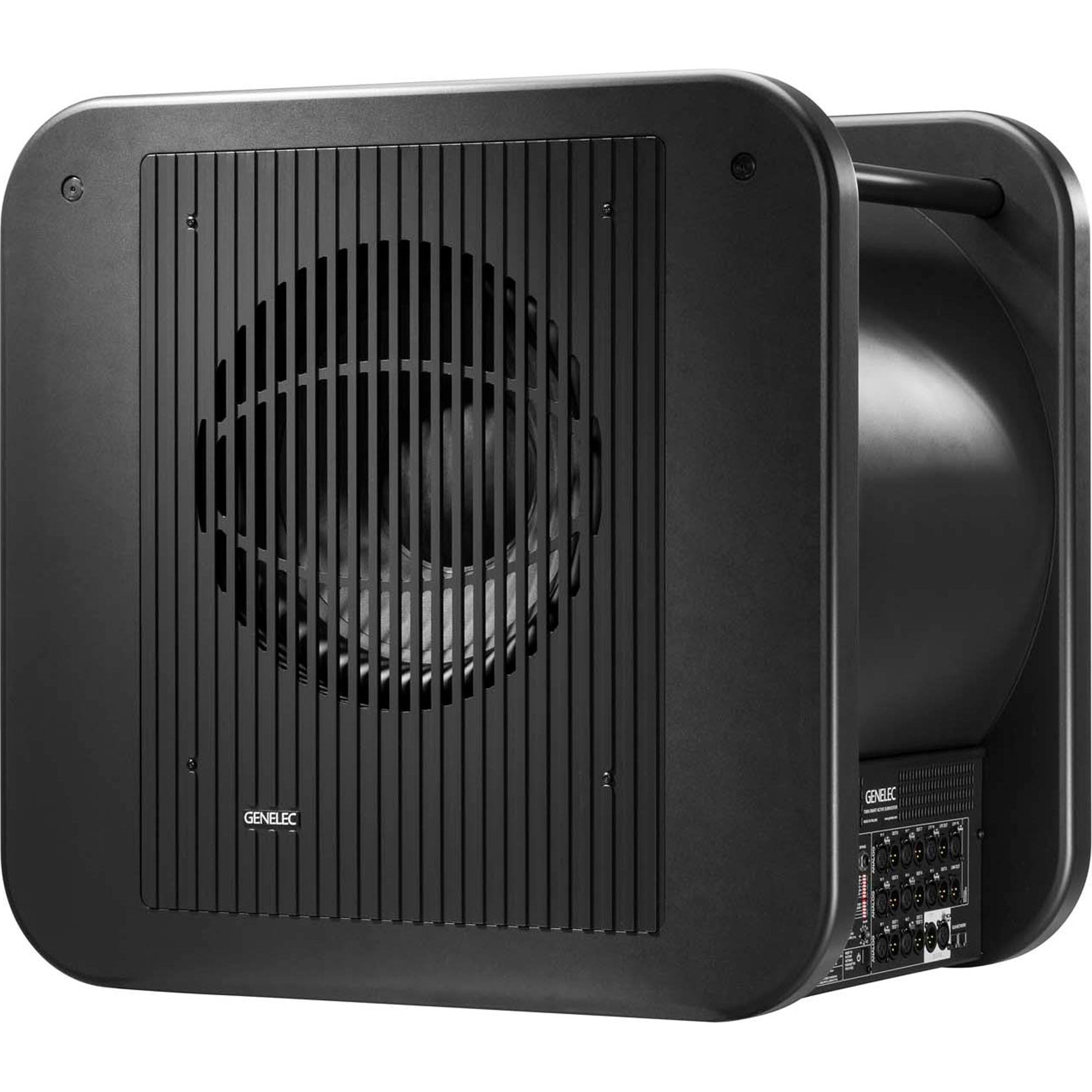

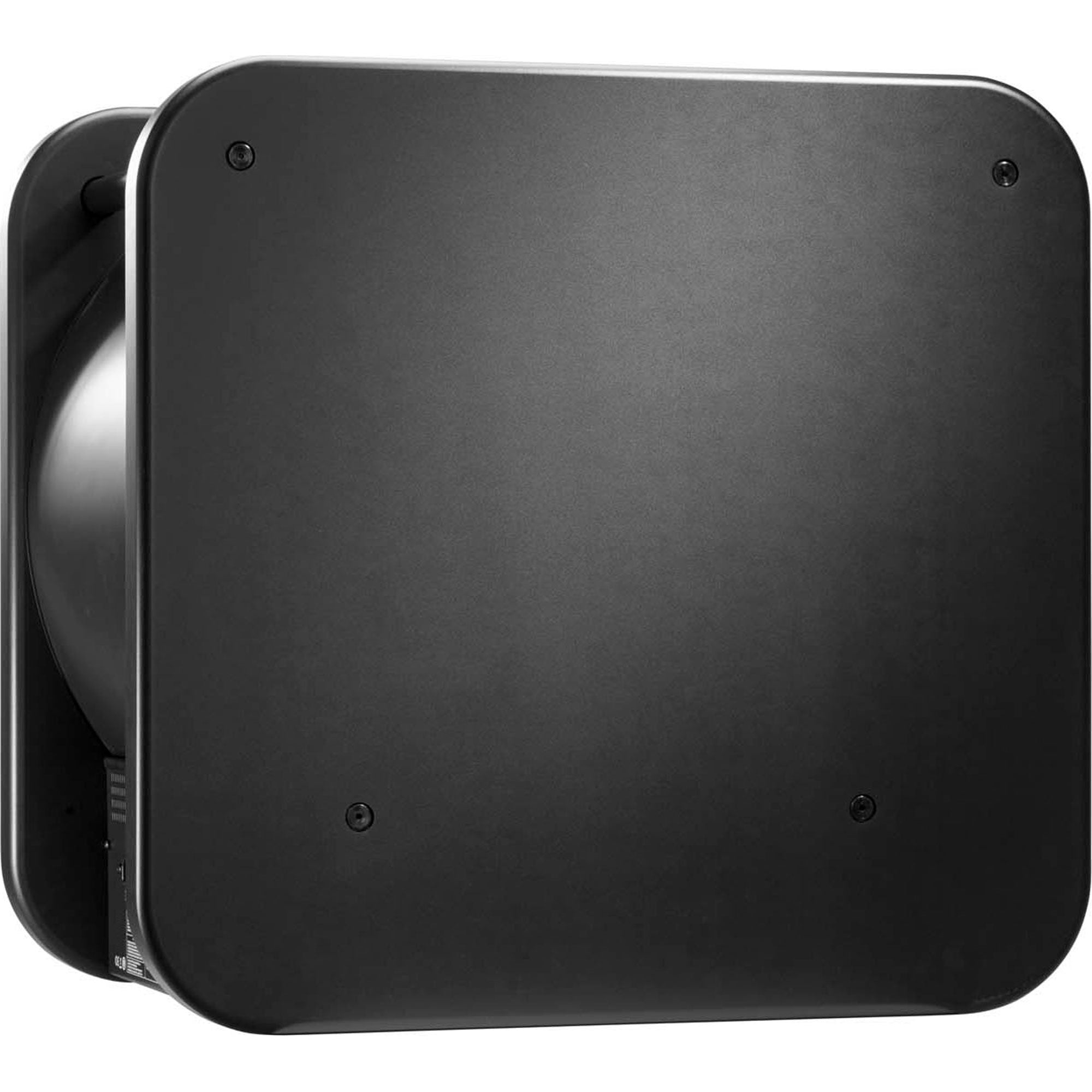

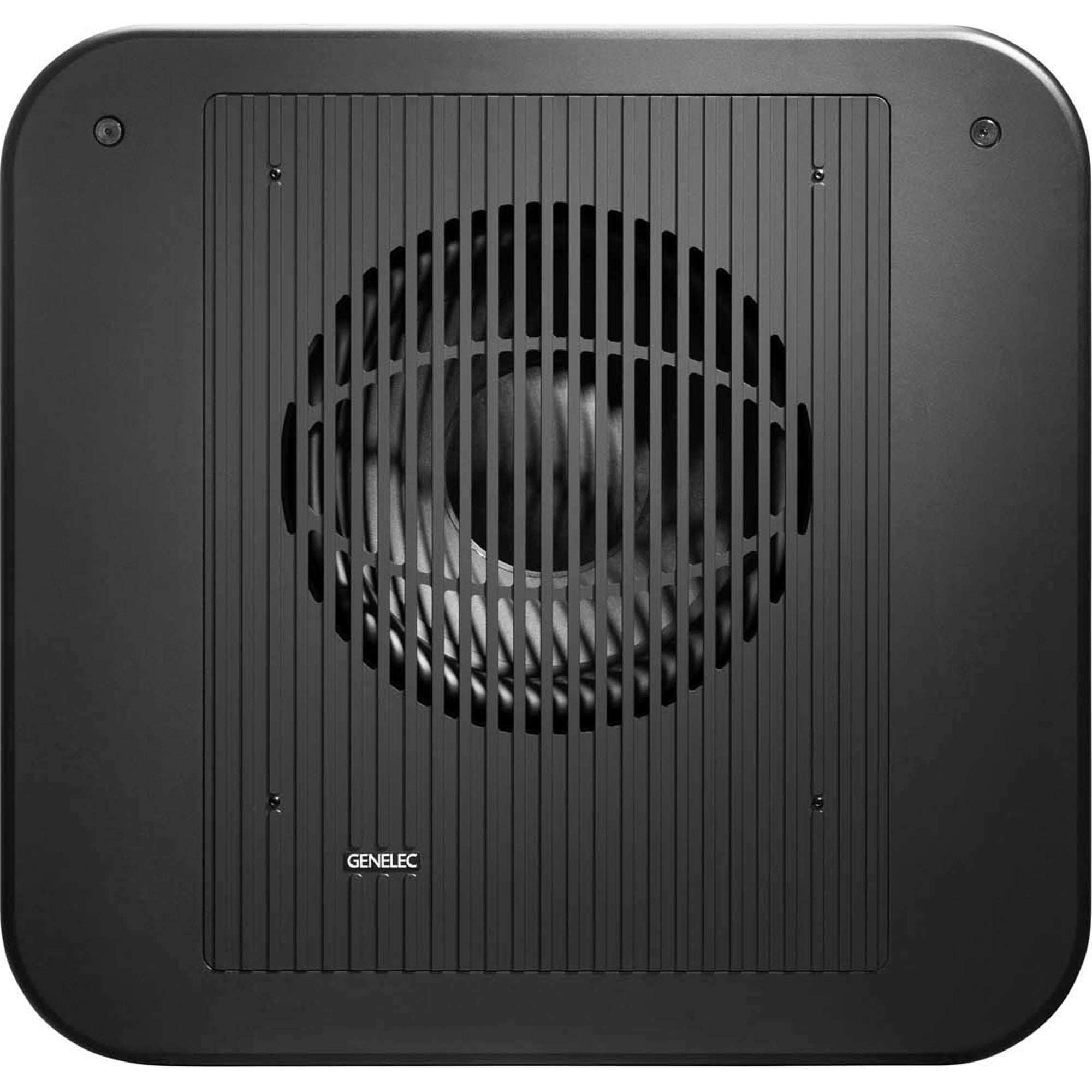

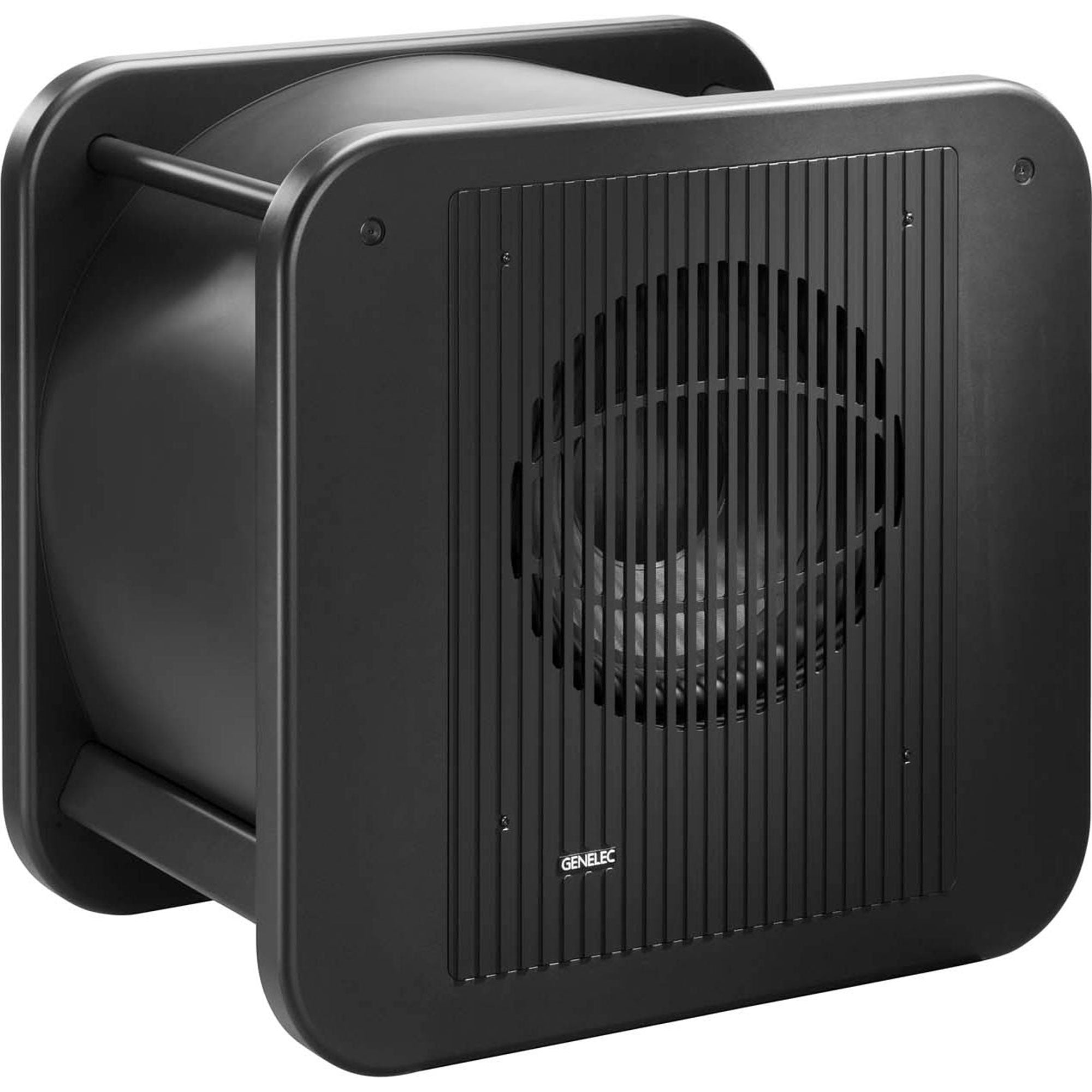

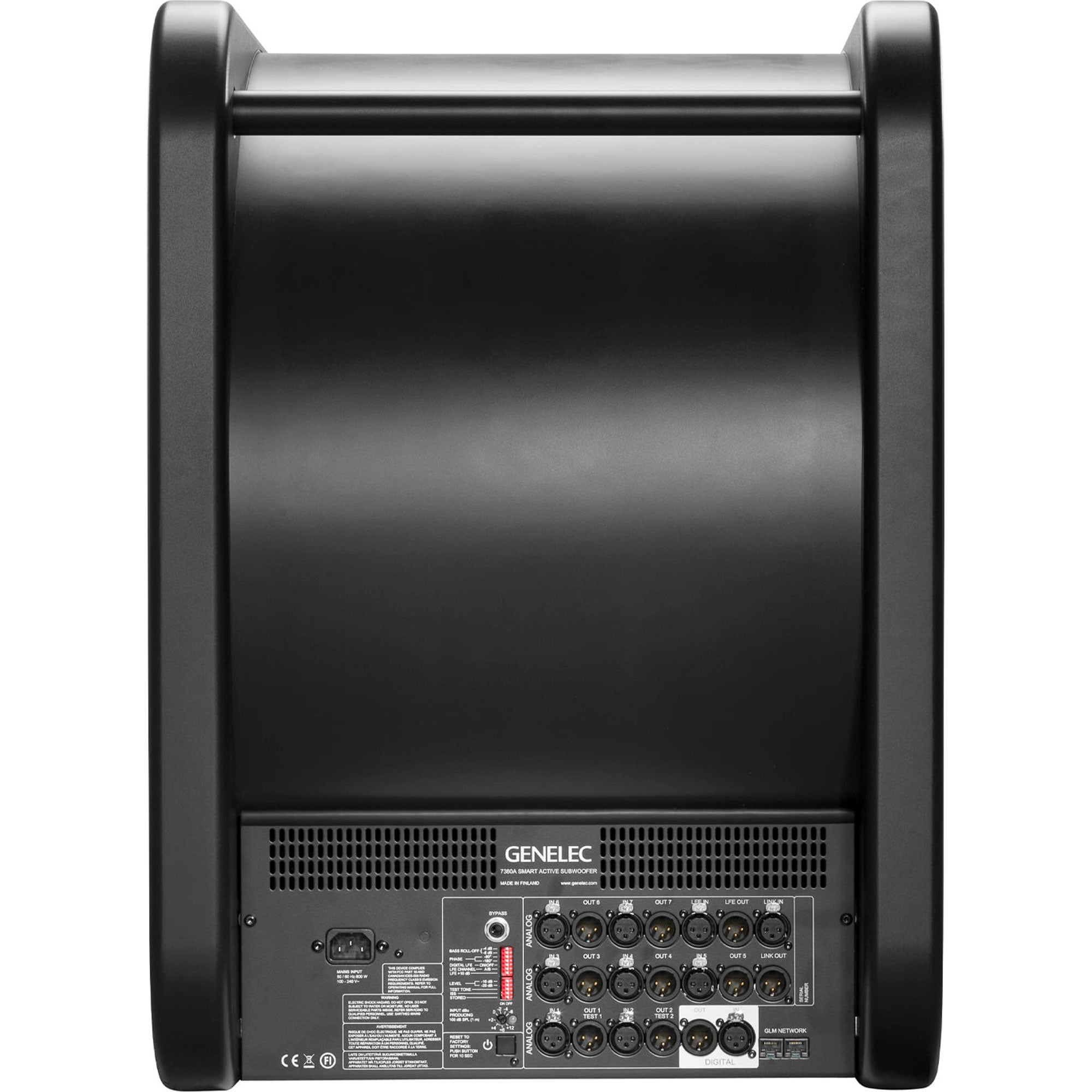

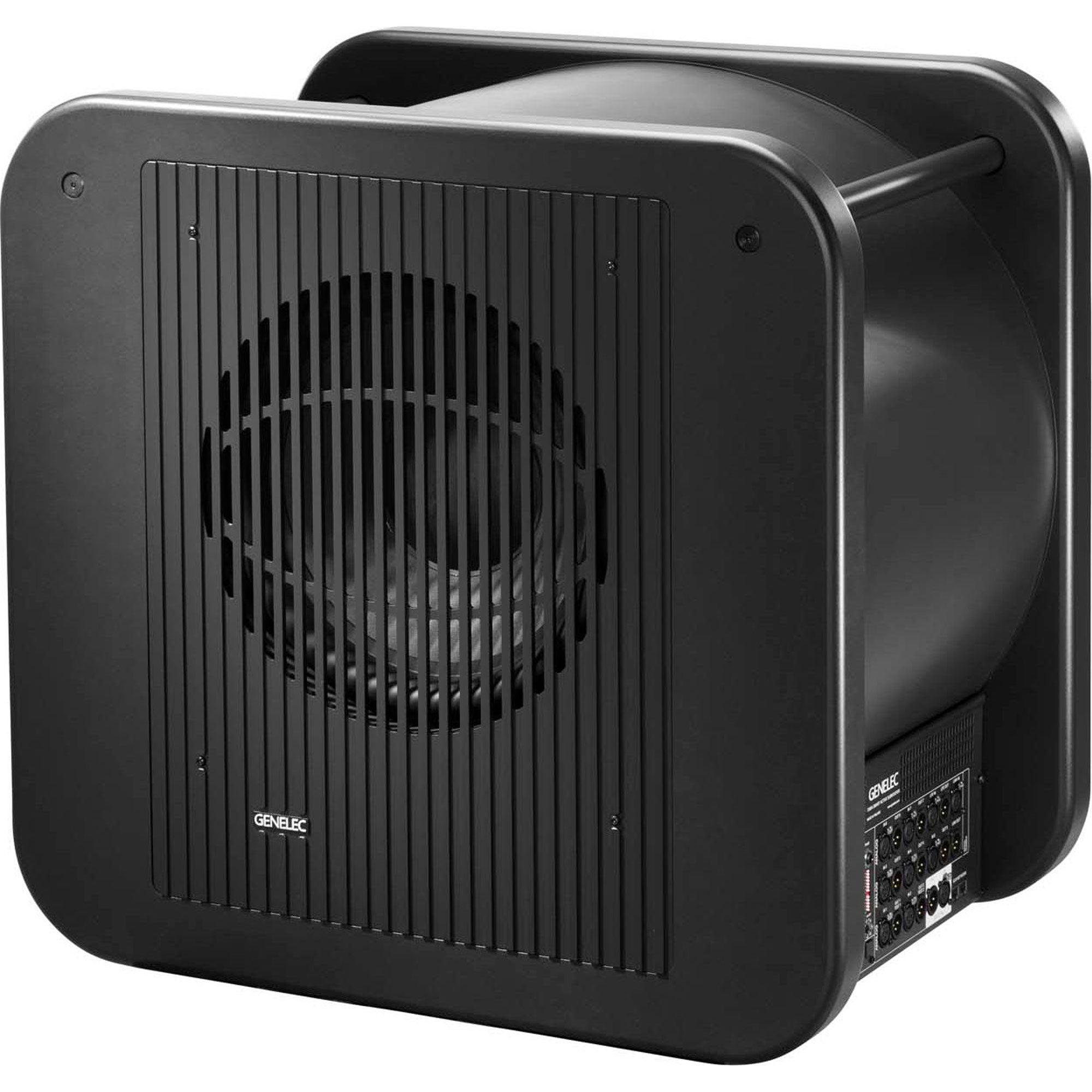

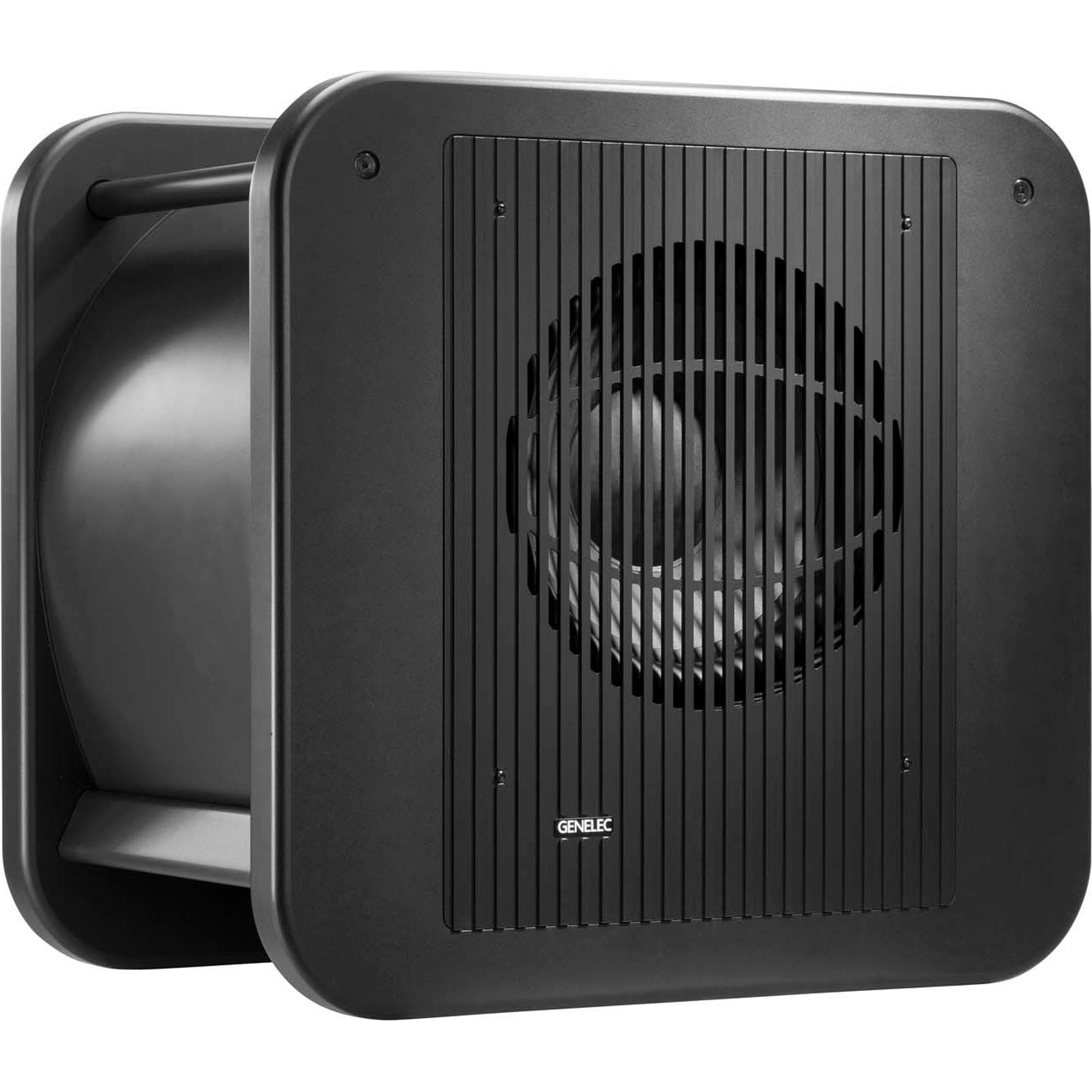

Genelec 7380A SAM Series 800W 15" Active Studio Subwoofer (Dark Grey)

Powered 15" SAM Studio Subwoofer with Laminar Spiral Enclosure - Dark Grey Producers Finish

Delivering high SPL and extended LF response, the 7380A offers power, clarity and flexibility in equal measures.

High SPL, low distortion
Providing a level of performance normally associated with much larger enclosures, the 7380A subwoofer offers both high power and high SPL, with an extended low-distortion LF response and flexible bass management options. Comprehensive connectivity ensures that the 7380A is equally at home in stereo or multichannel environments, making it perfect for music, post, film or broadcast applications that demand powerful, dependable LF reproduction in a surprisingly compact form factor.

Configure, calibrate and control
The 7380A works closely with our GLM software, which allows all monitors and subwoofers in a system to be configured, calibrated and controlled. Offering access to advanced system auto-calibration and management, GLM's powerful room compensation features enable the 7380A to be optimised for a wide range of acoustic environments, and permits both centralised and distributed bass management modes to be employed.

Features:

• Smart Active Monitor (SAM) systems
• Laminar Spiral Enclosure (LSE) technology
• Bass Management system
• Intelligent Signal Sensing (ISS) technology
• Optimized amplifiers
• Active crossovers
• Protection circuitry

Specifications:

• Studio Monitor
• Monitor Type: Active Subwoofer
• Enclosure: Bass-Reflex, Shielded
• Power Rating: 800 W
• Drivers: Full-Range Driver: 1 x 15" / 38.1 cm Cone
• Performance
• Frequency Range: 16 Hz to 120 Hz (at -6 dB)
• Maximum Sound Pressure Level (SPL): 123 dB
• Total Harmonic Distortion (THD): 0.01%
• Maximum Input Level: +24 dBu
• Analog Input Sensitivity/Gain: +48 dBu to -6 dBu (Continuously Variable)
• Self-Generated Noise: Less Than 5 dBA (at 3.28' / 1 m)
• Phase Adjustment: 4-Position Switch
• Signal Processing
• EQ: 1 x LF Shelf: -12 to 0 dB at 20 Hz (4 dB Increments)
• Filters:
  Low-Pass at 85 Hz
  High-Pass at 85 Hz
• Connectivity
• I/O:
  9 x 3-Pin XLR Balanced Female Analog Input
  9 x 3-Pin XLR Balanced Male Analog Output
  1 x 3-Pin XLR AES/EBU Female Digital Input (110 Ohms)
  1 x 3-Pin XLR AES/EBU Male Digital Output (110 Ohms)
• Computer Interface: 2 x RJ45 (Controller, Network)
• Digital Audio
• Max Sample Rate/Resolution: 192 kHz / 24-Bit
• Power
• AC Input Power: 100 to 240 VAC, 50/60 Hz
• Power Consumption:
  2 W (Standby)
  40 W (Idle)
  600 W (Maximum)
• General
• Dimensions (W x H x D): 28.3 x 27 x 19.4" / 718 x 685 x 492 mm
• Weight: 152.1 lb / 69.0 kg

Includes:

• Genelec 7380A SAM 800W 15" SAM-Series Studio Subwoofer
• Mains Cable
• GLM Network Cable (5m)
• Limited 2-Year Warranty
