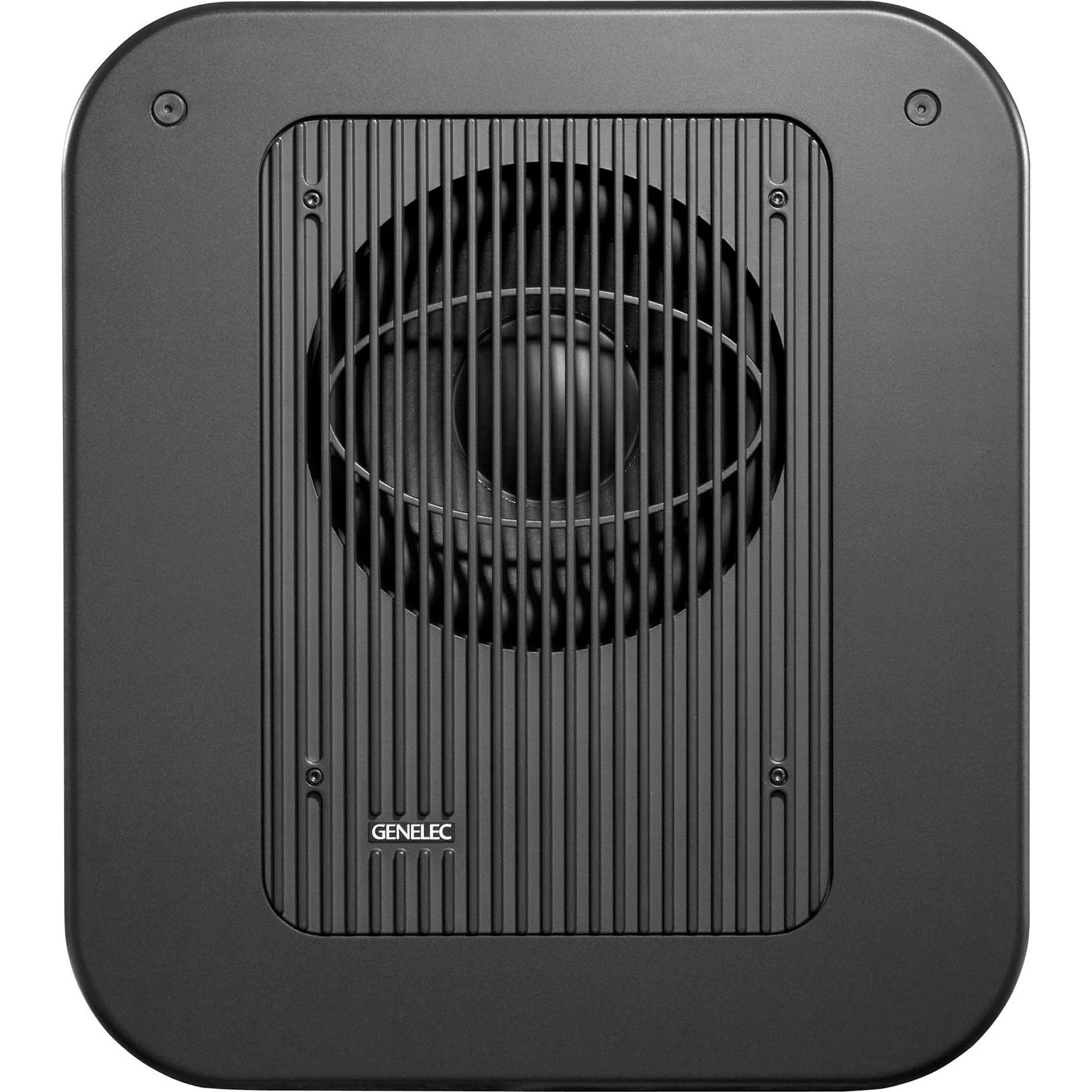

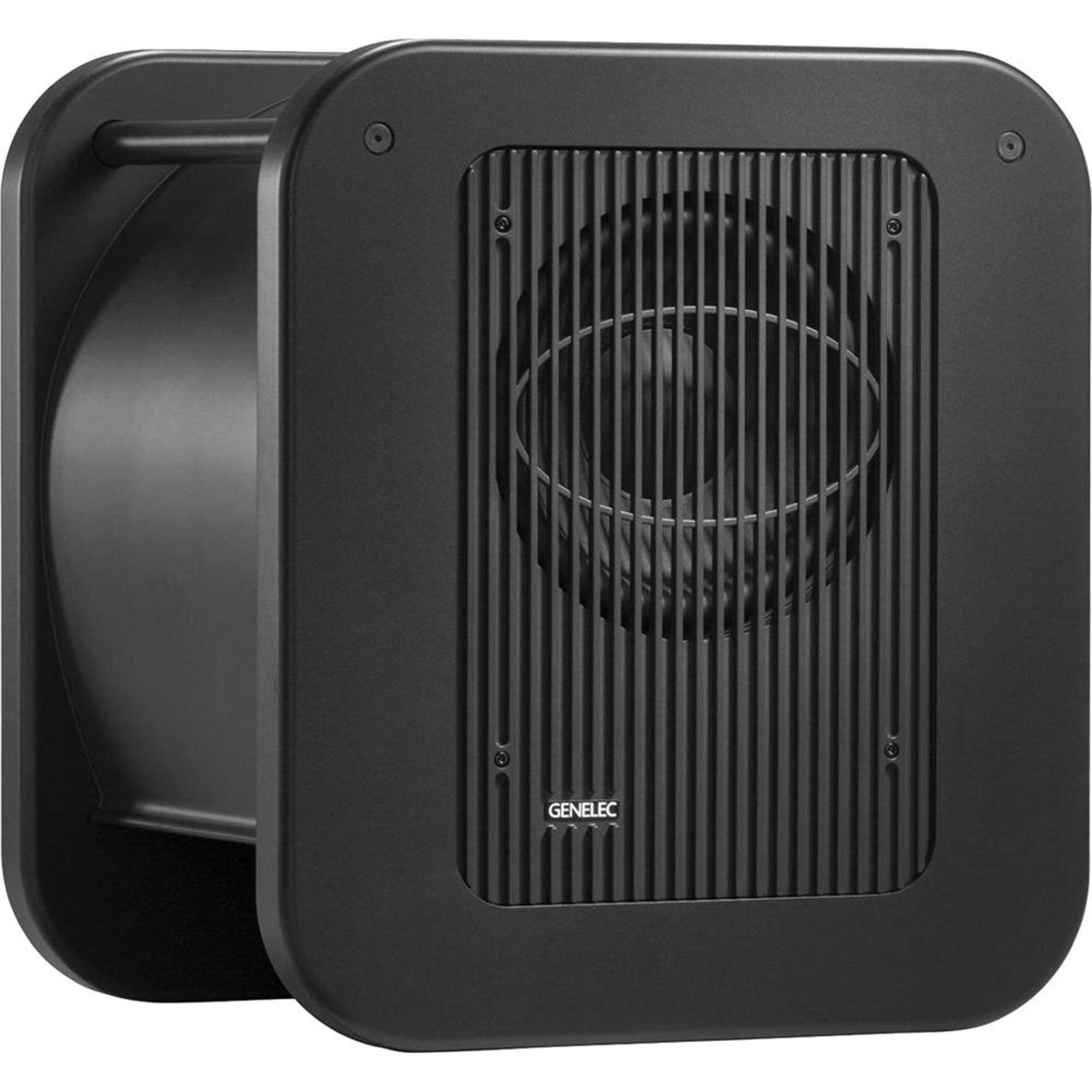

Genelec 7370A SAM Series 400W 12" Active Studio Subwoofer (Dark Grey)

Powered 12" SAM Studio Subwoofer with Laminar Spiral Enclosure - Dark Grey Producers Finish

Created to deliver superb definition, the 7370A subwoofer intelligently adapts to your acoustic space to provide controlled, uncoloured LF reproduction.

Clean and precise
Offering more SPL and low frequency extension than our smaller smart subwoofers, the Laminar Spiral Enclosure design of the 7370A offer clean, precise performance with extremely low distortion – even at high playback levels. Created for discerning music, post and broadcast professionals, the 7370A will provide decades of reliable service in even the most demanding environments.

Low frequency that translates
The 7370A also offers onboard bass management and multi-channel connectivity, and can be configured and calibrated with our GLM software. GLM will analyse your room acoustics and intelligently adjust frequency, level, delay and crossover phase - so monitors and subwoofer integrate perfectly. This process produces a totally optimised listening experience, delivering mixes that translate beautifully.

Features:

• Smart Active Monitor (SAM) systems
• Laminar Spiral Enclosure (LSE) technology
• Bass Management system
• Intelligent Signal Sensing (ISS) technology
• Optimized amplifiers
• Active crossovers
• Protection circuitry

Specifications:

• Studio Monitor
• Monitor Type: Active Subwoofer
• Enclosure: Bass-Reflex, Shielded
• Power Rating: 400 W
• Drivers: Subwoofer Driver: 1 x 12" / 304.8 mm Woofer
• Performance
• Frequency Range: 19 Hz to 150 Hz (at -6 dB)
• Maximum Sound Pressure Level (SPL): 118 dB
• Total Harmonic Distortion (THD): 0.01%
• Maximum Input Level: +24 dBu
• Analog Input Sensitivity/Gain: +48 dBu to -6 dBu (Continuously Variable)
• Self-Generated Noise: Less Than 5 dBA (at 3.28' / 1 m)
• Phase Adjustment: 4-Position Switch
• Signal Processing
• EQ: 1 x LF Shelf: -12 to 0 dB at 20 Hz (4 dB Increments)
• Filters:
  Low-Pass at 85 Hz
  High-Pass at 85 Hz

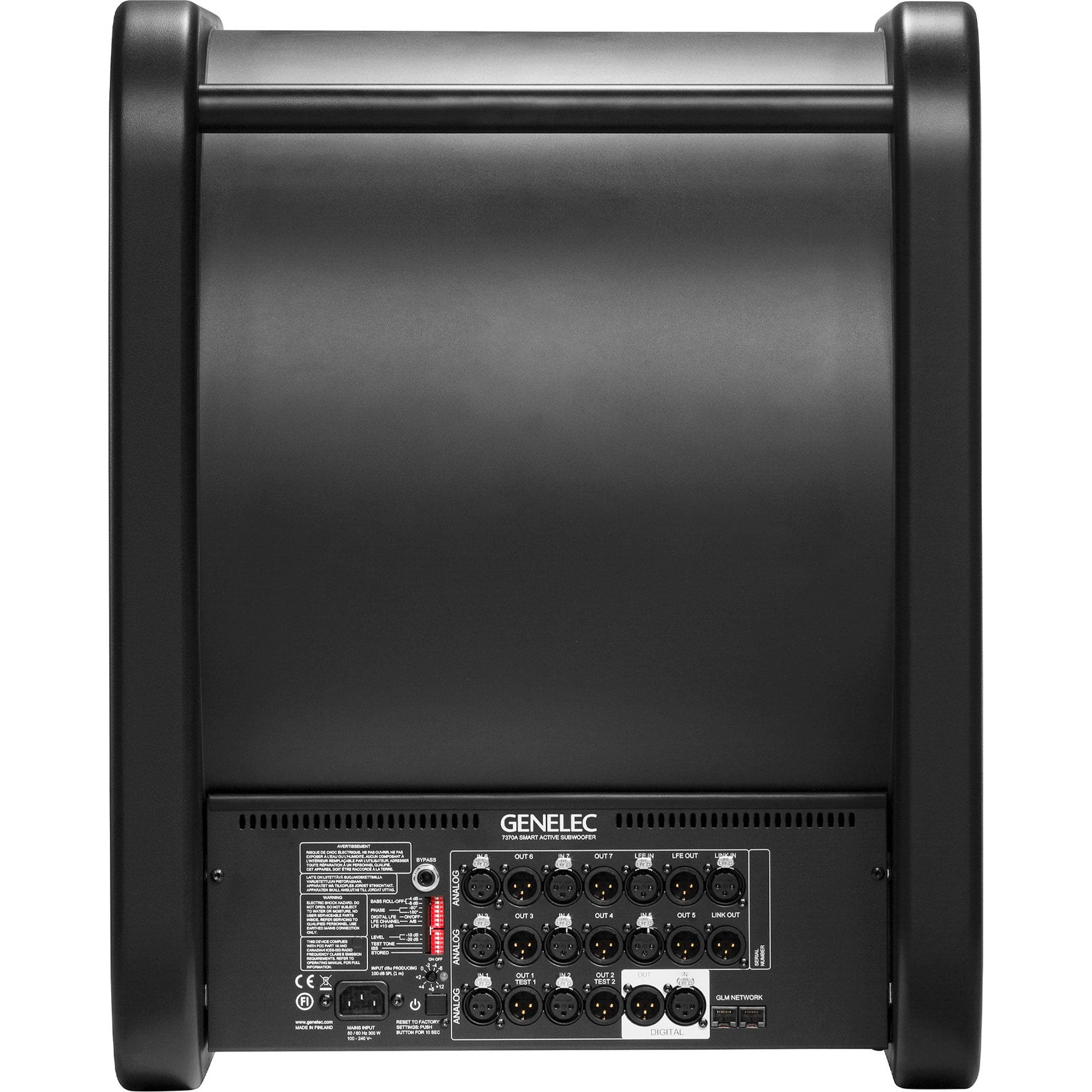

• Connectivity
• I/O:
  9 x 3-Pin XLR Balanced Female Analog Input
  9 x 3-Pin XLR Balanced Male Analog Output
  1 x 3-Pin XLR AES/EBU Female Digital Input (110 Ohms)
  1 x 3-Pin XLR AES/EBU Male Digital Output (110 Ohms)
• Computer Interface: 2 x RJ45 (Controller, Network)
• Digital Audio
• Max Sample Rate/Resolution: 192 kHz / 24-Bit
• Power
• AC Input Power: 100 to 240 VAC, 50/60 Hz
• Power Consumption:
  2 W (Standby)
  20 W (Idle)
  400 W (Maximum)
• General
• Dimensions (W x H x D): 21.9 x 24.6 x 19.5" / 555 x 625 x 496 mm
• Weight: 105.8 lb / 48.0 kg

Includes:

• Genelec 7370A SAM 400W 12" SAM-Series Studio Subwoofer
• Mains Cable
• GLM Network Cable (5m)
• Limited 2-Year Warranty
