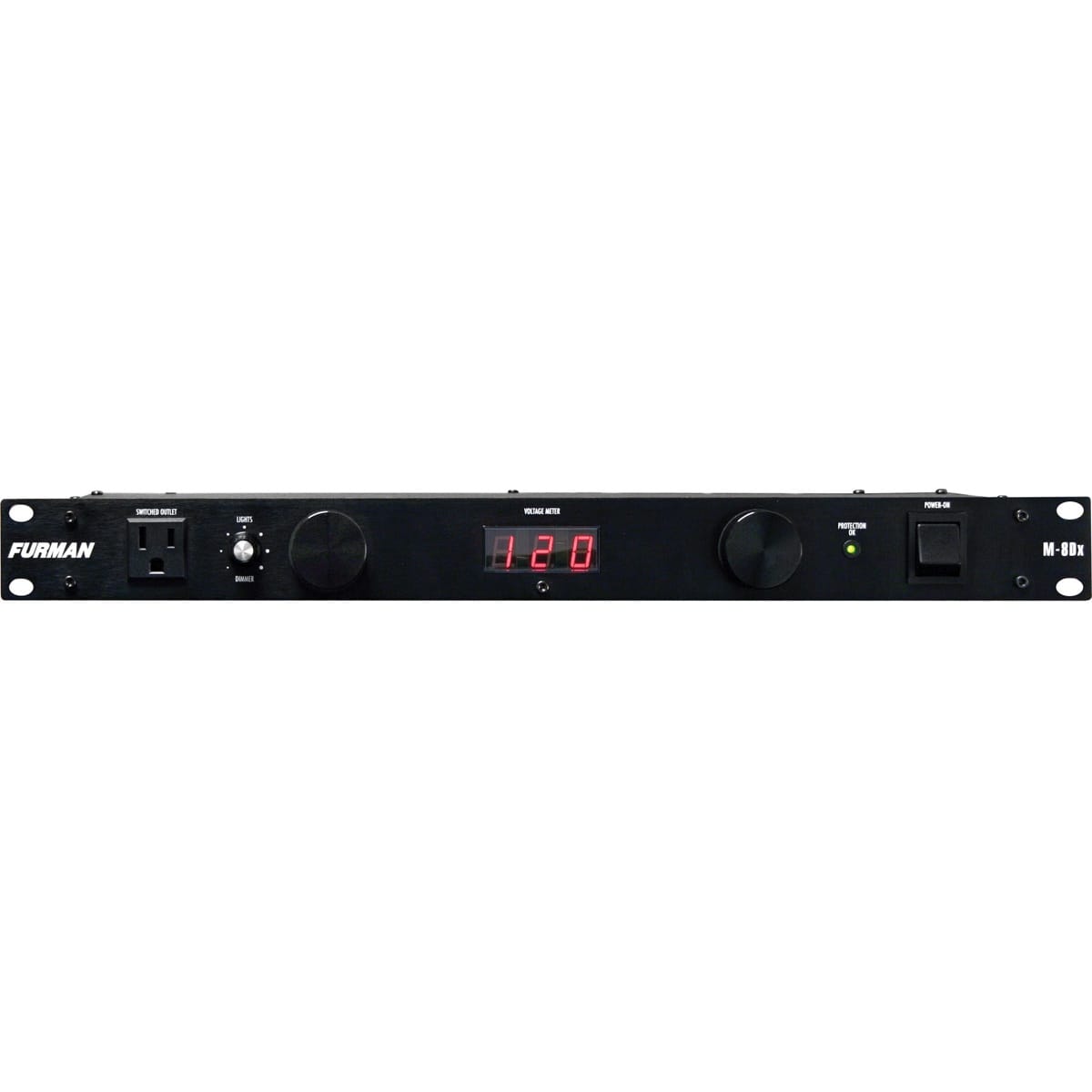

Furman M-8Dx Merit Series 9-Outlet Power Conditioner & Surge Protector with Voltmeter

8 Outlet Power Conditioner & Surge Protector with LED Voltmeter & Dual Lights, 1 Rack Space

The M-8Dx is the premium power conditioner in the Merit Series, offering a complete power management solution. It includes all the features of the M-8Lx: nine outlets, a 15-amp rating, standard surge protection, noise filtration, and two dimmable, pull-out light fixtures. What sets the M-8Dx apart is the addition of a bright red, three-digit LED voltmeter that displays incoming voltage. This feature allows you to monitor the AC power from your wall outlet, which is especially useful in bars, clubs, and other venues where power can be unreliable.

Install an M-8Dx into the top slot of your rack, and the eight switched outlets in the rear panel will power up and protect all your equipment up to a 15-amp load. Illuminate your rack with two retractable, front panel lights. Monitor voltage with the digital meter display.

INSTRUMENT RIGS

You've got a rack for your effects, preamps, tuner… You're going to plug that into the wall? One big spike and your rig is up in smoke. Standard level surge/spike protection from Furman defends your gear from the spikes and surges that are so common at gigs and practice spots. With standard level RFI/EMI filtration from Furman, you'll get a quieter tone without pops, crackles, and the local radio station coming out of your amp. Plus, dual pull-out lamps let you see your rack without turning the house lights on, while the digital voltmeter lets you monitor incoming voltage.

RECORDING

Can't track down where that noise is coming from? Your mix sounding flat? With standard level RFI/EMI filtration from Furman, you'll lower the noise floor caused by the dirty AC power coming into your console or DAW. Standard level surge and spike protection from Furman keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. You can even monitor voltage changes, as the digital meter allows you to keep an eye on the incoming line voltage. With a 15A capacity and nine total outlets, it's enough to power your whole home studio.

DJ EQUIPMENT

Bars, clubs, and other event venues have some of the worst power out there-from air compressors turning on and off to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Standard level protection and filtration from Furman keep the bad stuff out. The dual pull-out front panel lights also let you discreetly see your board and gear without distracting from the show on the dance floor.

PRO AUDIO

When you're out there gigging, you never know what kind of power you're going to get. The wear and tear on mobile rigs eventually takes its toll-that's why it's smart to plug into standard level protection and RFI/EMI filtration from Furman. It keeps your equipment safe and sounding clean, while the digital voltmeter lets you monitor incoming voltage. Whether you're setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.

Features:

• Noise Filtration
  AC noise filtering to reduce radio frequency and electromagnetic interference (RFI/EMI)
• Surge Protection
  Spike & surge protection ensures equipment stays safe and your power stays clean
• 9 Total Outlets
  8 rear panel outlets and 1 front panel convenience outlet
• Digital Voltmeter
  Digital voltmeter display incoming line voltage
• 15 Amp Rating
  15 amp rating, with circuit breaker
• "Protection OK" Indicator
  Front panel indicator LED lets you know that your equipment is being protected
• Wall Wart Spacing Indicator
  Rear outlets have been spaced to accomodate even the bulkiest of wall warts and adapters
• Front Panel Pull-out Lights
  Two retractable incandescent light fixtures with dimmer control for convenient rack illumination

Specifications:

• Maximum Output Current: 15 amps
• Line Cord: 6 ft., captive, 14 AWG, with 3-conductor Edison plug
• Lamps: Two 120V incandescent bulbs, 4 watts each
• Operating Voltage: 120VAC 60Hz
• Spike Protection Mode: Line to neutral
• Energy Dissipation: 170 joules
• Peak Impulse Current: 12,000 amps
• Maximum Continuous Opterating Voltage: 130 VAC RMS
• Let Through Voltage (@ 125 amps, 8/20uS waveform) 400 volts
• Noise Attenuation: Transverse mode: Greater than 26dB, 200Khz to 10 Mhz
• Dimensions: 1.75" H x 19" W x 7.5" D
• Weight: 5.8 lbs.
• Safety Agency Listing: cTUVus
• Warranty: Merit Series units are protected by a limited three year warranty covering defects in materials and workmanship.
