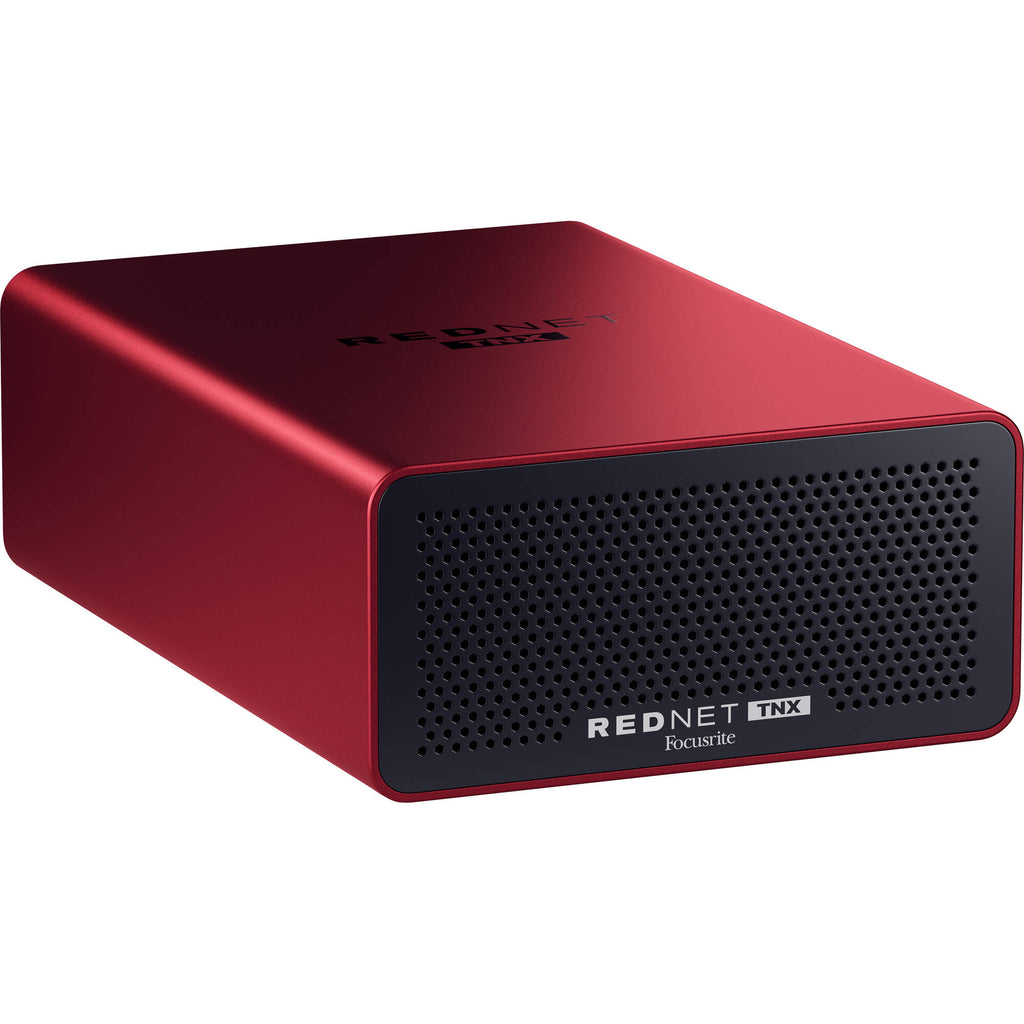

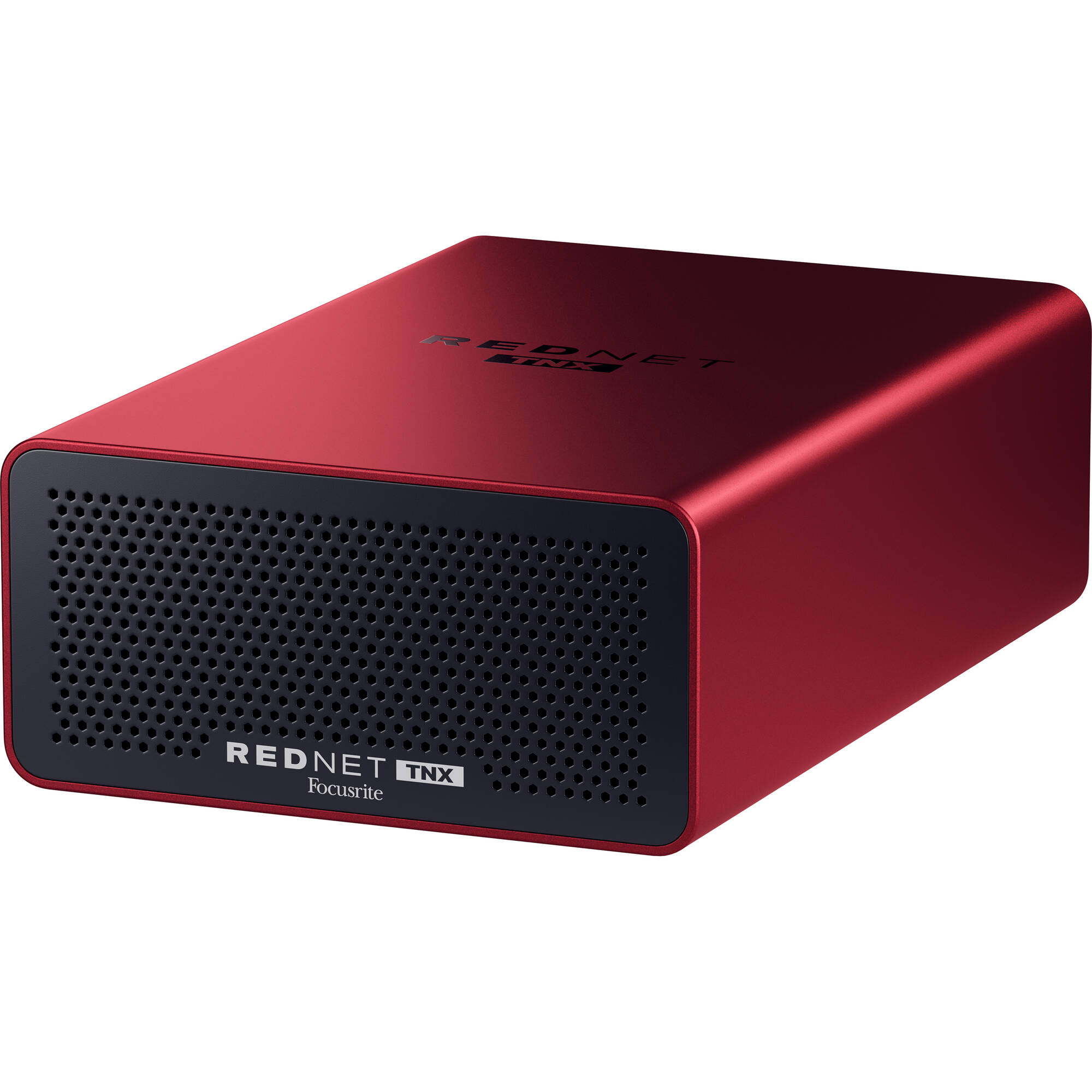

Focusrite RedNet TNX Portable Thunderbolt 3 and Dante Network Audio Interface

128-in/128-out Dante/Thunderbolt Network Audio Interface, 24-bit/192kHz, with 2 RJ-45 Switched/Redundant Ethernet Ports and Dante Ready Expansion Option - Mac/Win

Low-latency, flexible high-channel-count Thunderbolt and Dante interface

RedNet TNX is a portable Dante interface that delivers high-resolution, ultra-low latency Dante audio with 128x128 channels at 24-bit/192kHz straight out of the box. With Dante Ready, you can expand your system to 256x256 channels at 24-bit/96kHz - all via a single Thunderbolt connection for powerful and versatile audio workflows.

Designed for powerful workflows

Tap into the power of high-channel-count Dante workflows with 128x128 channels at up to 192 kHz with ultra-low latency - all via a single Thunderbolt connection. RedNet TNX brings simplicity and flexibility to large recording, post-production, and broadcast setups.

Ready for recording

For commercial recording studios and music production facilities, RedNet TNX delivers performance, flexibility, and scalability, with up to 256x256 channels of uncompressed, high-resolution audio at ultra-low latency.

Integrated control with flexible connectivity

RedNet TNX integrates with RedNet Control for centralised monitoring and management of all RedNet devices. Dual Ethernet RJ-45 ports support switched and redundant modes, ensuring flexible, reliable connectivity for critical applications.

Integrate within your setup

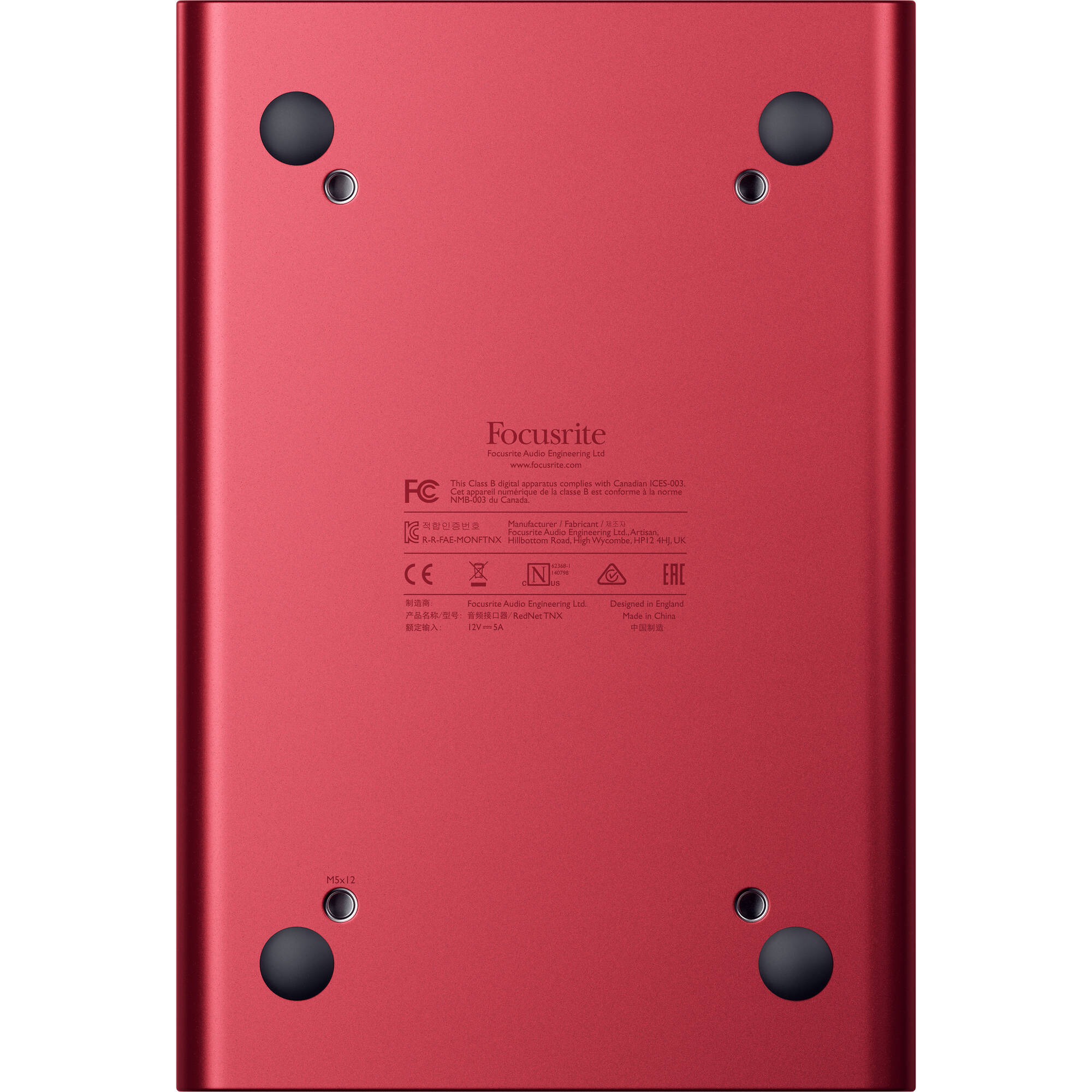

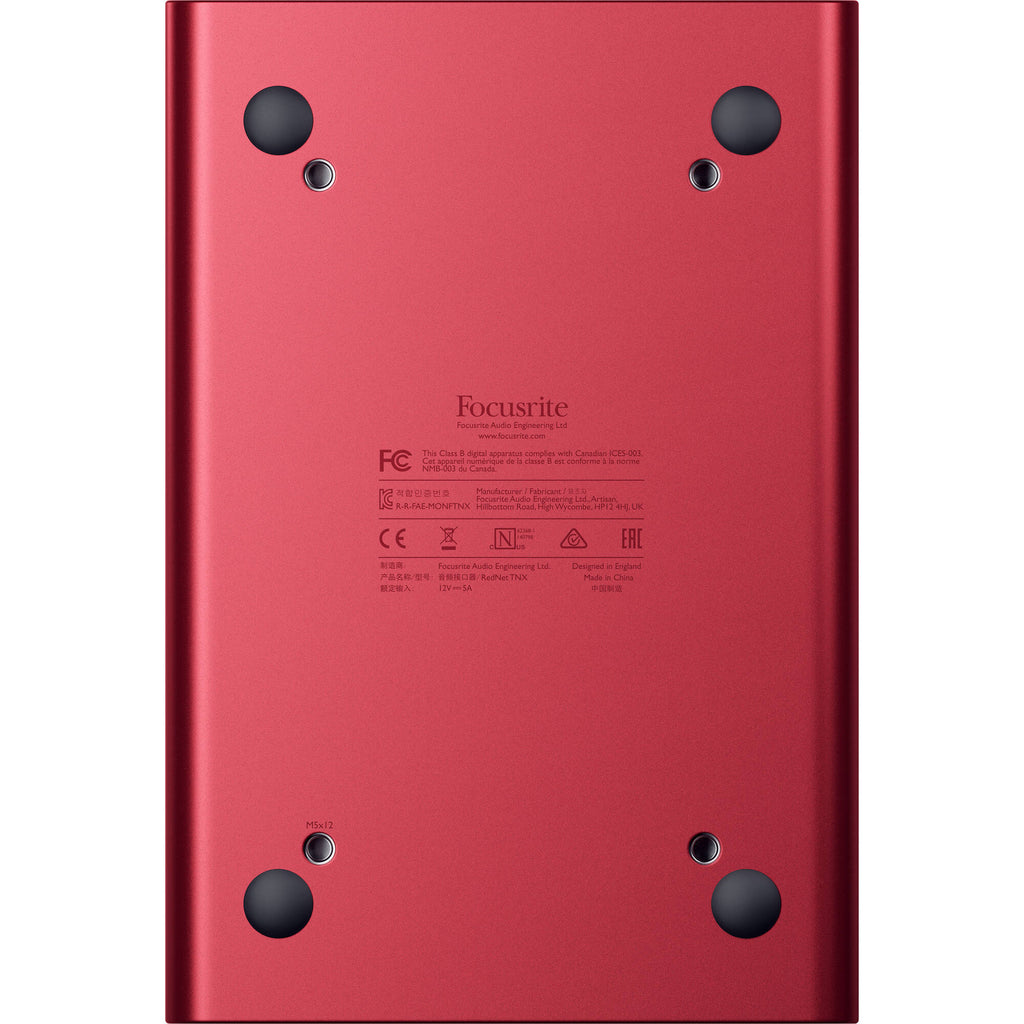

Each of the two Thunderbolt ports provides 15W of power and allows you to run multiple Thunderbolt devices in series. Secure RedNet TNX to a rack shelf using the exposed M5 x 12mm screw threads located underneath.

Upgradable with Dante Ready

RedNet TNX offers expandable connectivity with an optional upgrade to 256x256 audio channels at 24-bit/96 kHz with Dante Ready.

Backed by Focusrite

RedNet TNX is future-proof and designed for reliability. It's also backed by Focusrite's three-year warranty and award-winning 24/7/365 technical support for added peace of mind.

Features:

• Upgradable to 256x256 channels at 96kHz
• 2x Thunderbolt 3 ports
• Windows and macOS compatible
• AES67 and SMPTE ST 2110 compliant

Specifications:

• Simultaneous Inputs & Outputs
• 128x128 (all sample rates)
• 256x256 (up to 96kHz) with a paid upgrade
• Digital Performance
• Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit
• Dante Connectivity
• 2x Ethernet standard RJ45 connectors (compatible with Cat 5e and above)
• Driver Compatibility
• Multi-client ASIO and WDM (Windows)
• CoreAudio (Mac)

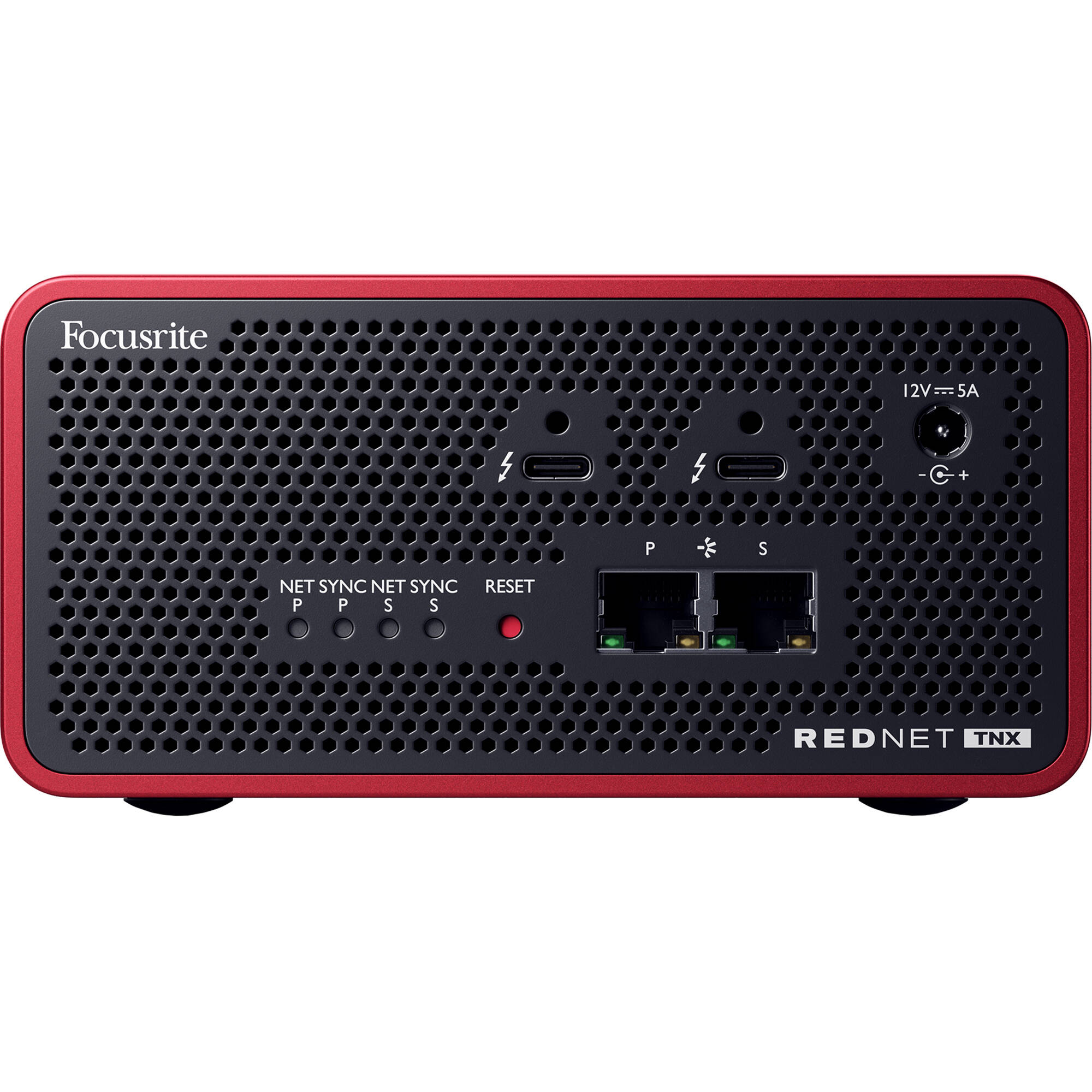

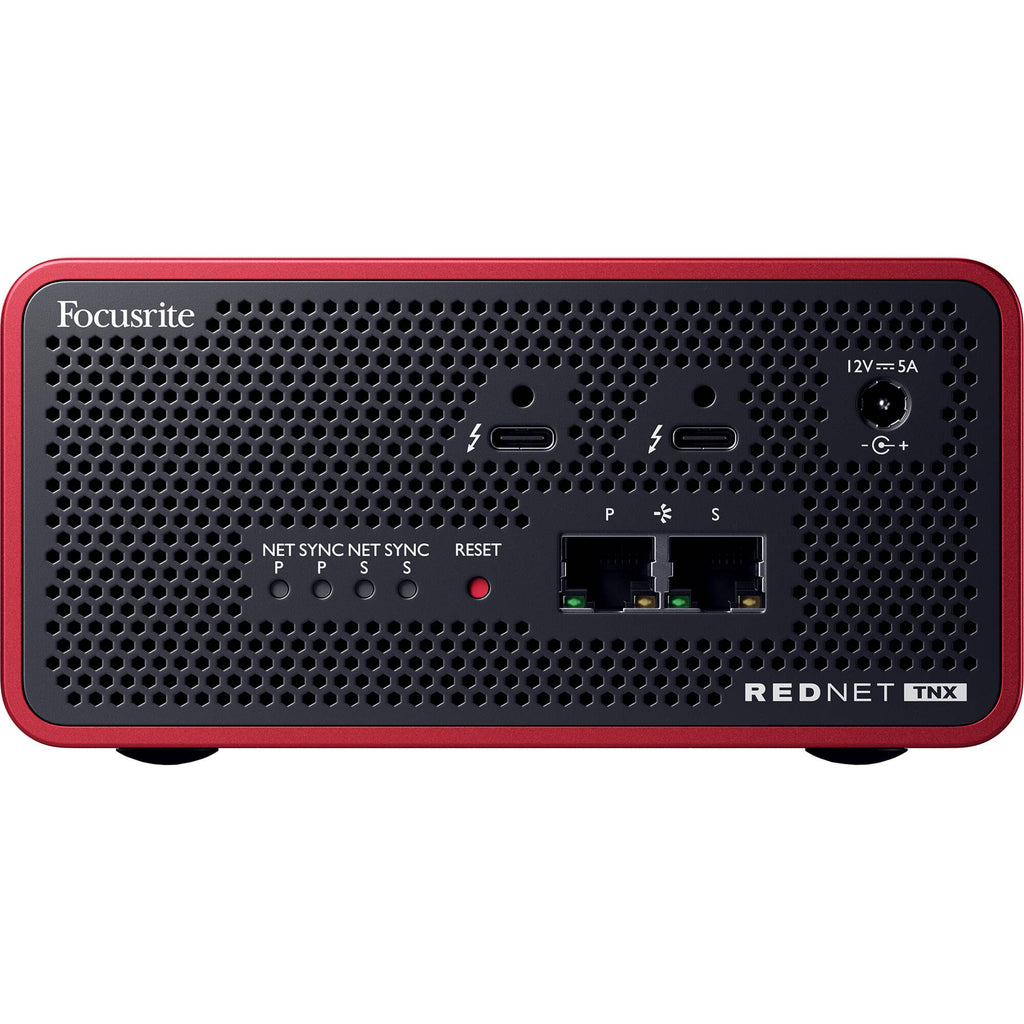

• Rear Panel
• 2x Thunderbolt 3 ports (Provide 15W of power)
• 2x Sonnet ThunderLok-B
• 2x Network Active LED indicators (Primary/Secondary)
• 2x Network Lock LED indicators (Primary/Secondary)
• 1x DC power inlet
• 1x Factory Reset button
• Heat Performance
• Max ambient temperature: 50 degrees Celsius/122 degrees Fahrenheit
• Miscellaneous
• Exposed threads for rack shelf/cradle mounting
• Dimensions
• Width: 144mm
• Depth: 212.4mm
• Height: 71.6mm
• Weight: 1.49kg
• Power requirements
• Powered by external DC power supply
• What's in the box?
• RedNet TNX unit
• 2m Thunderbolt 3 cable
• 2m cat6A Ethernet cable
• External DC power supply and cable
