Description

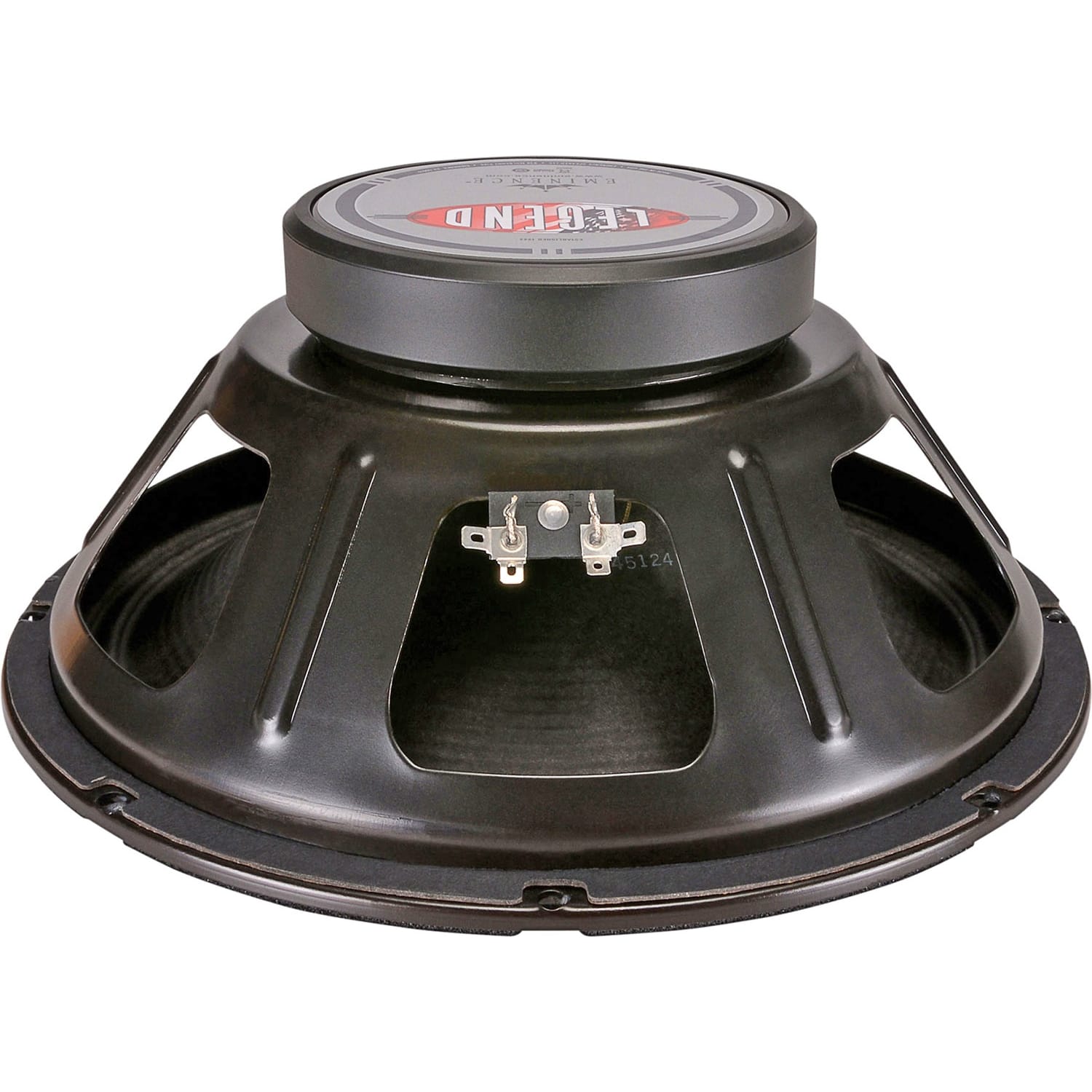

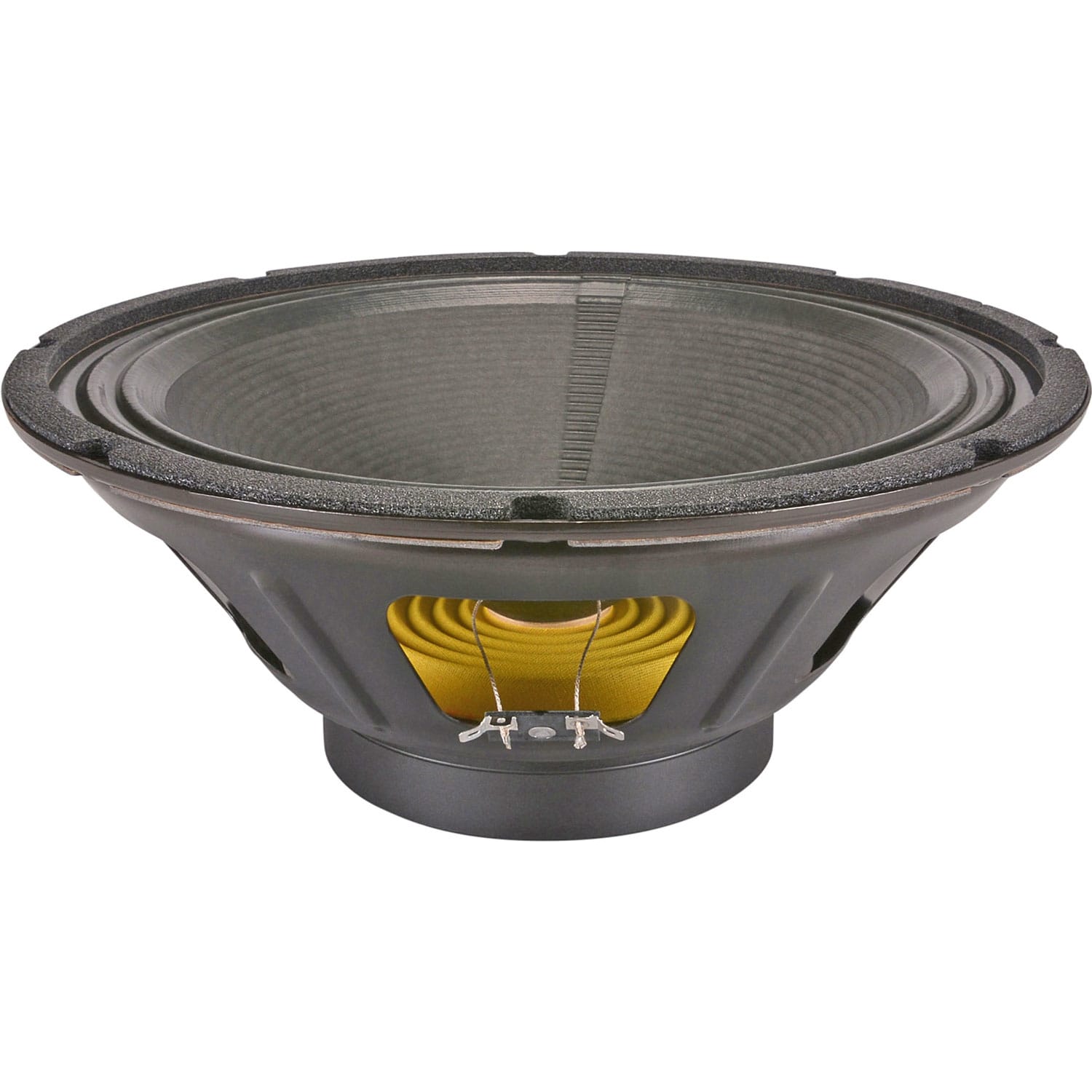

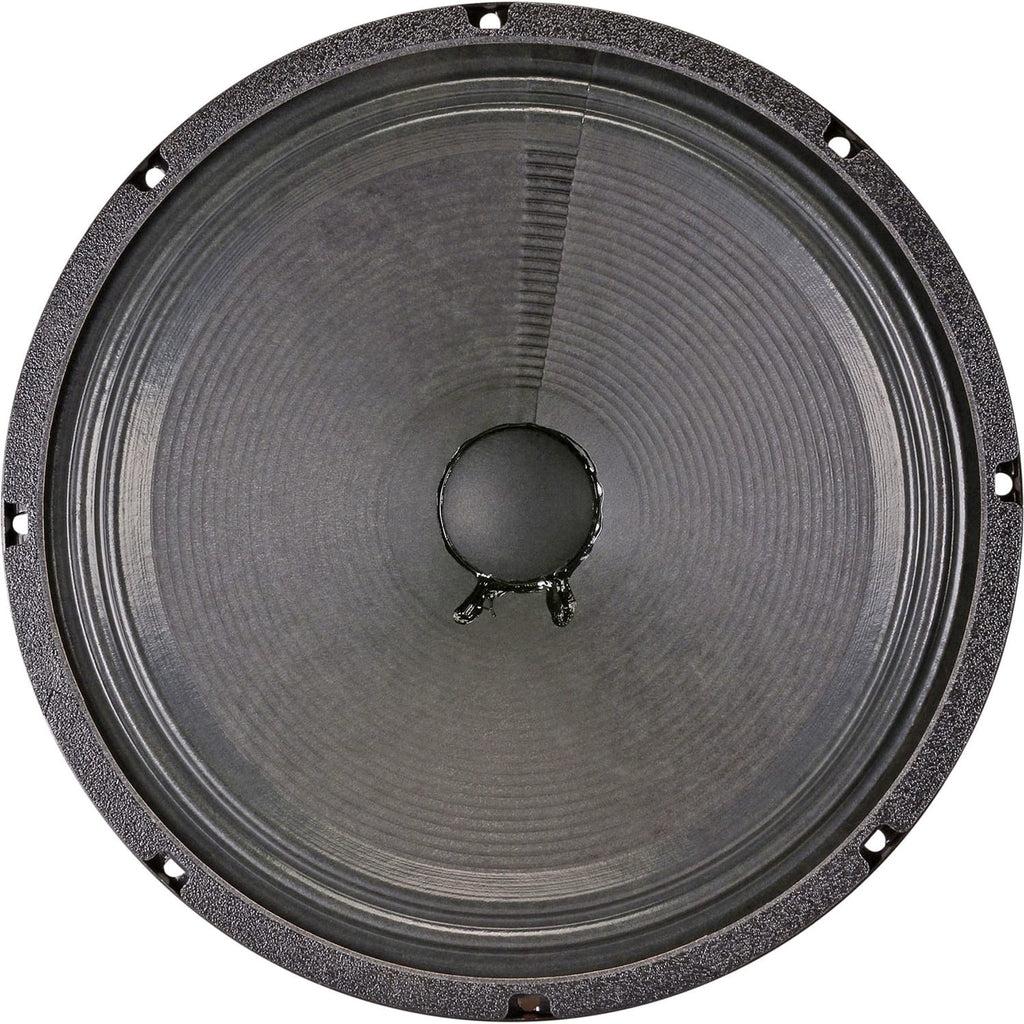

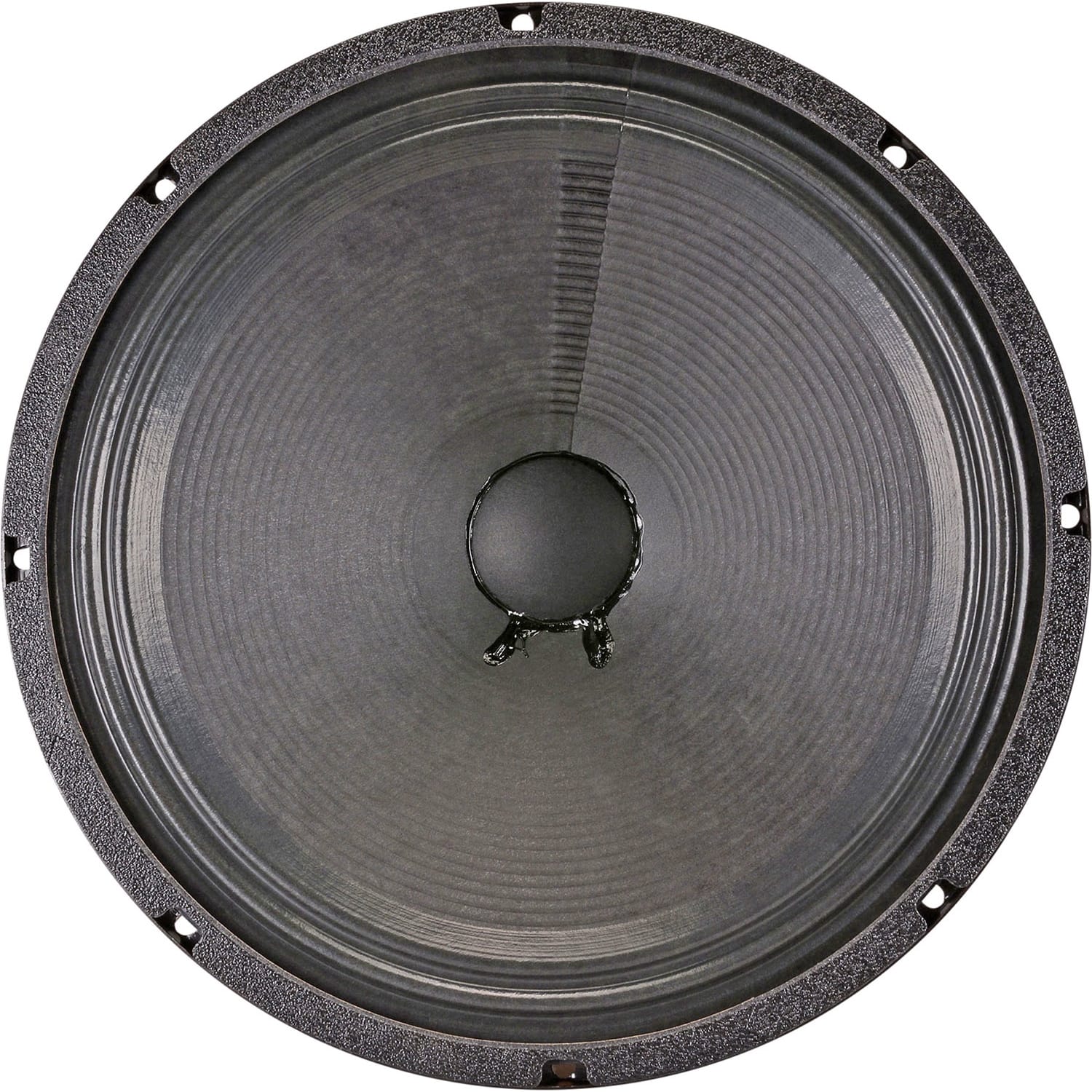

12" Guitar Driver, 8 Ohm, 75 Watt
Pure Vintage! Used in re-issues of some of your favorites. Nice smooth response curve. Superb classic Blues tones. For use as a replacement or upgrade. Made in the USA. 7-year manufacturer's warranty!
Features:
- Higher power, vintage, seamed-cone tonality for guitar
- Ideal vintage Alnico Jensen replacement
- Coloration: American growl, but with sparkle, definition, and edgy top end. Very vintage!
- Genre: Rock and Roll, Country, Blues
Specifications:
- SPECIFICATION
- Nominal Basket Diameter: 12", 304.8mm
- Nominal Impedance*: 8 ohms
- Power Rating**
- Watts: 75W
- Music Program: N/A
- Resonance: 94Hz
- Usable Frequency Range: 80Hz - 4kHz
- Sensitivity***: 100.0dB
- Magnet Weight: 34 oz.
- Gap Height: 0.31", 7.92mm
- Voice Coil Diameter: 1.5", 38.1mm
- THIELE & SMALL PARAMETERS
- Resonant Frequency (fs): 94Hz
- DC Resistance (Re): 7.44
- Coil Inductance (Le): 0.7mH
- Mechanical Q (Qms): 6.15
- Electromagnetic Q (Qes): 1.18
- Total Q (Qts): 0.99
- Compliance Equivalent Volume (Vas): 32.5 liters / 1.2 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 24.3cc
- Mechanical Compliance of Suspension (Cms): 0.09mm/N
- BL Product (BL): 10.9 T-M
- Diaphragm Mass Inc. Airload (MMs): 32 grams
- Efficiency Bandwidth Product (EBP): 80
- Maximum Linear Excursion (Xmax): 0.48mm
- Surface Area of Cone (Sd): 506.7 cm2
- Maximum Mechanical Limit (Xlim): N/A
- MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: N/a
- Vented: Acceptable
- Driver Volume Displaced: 119.9 cu.in. / 1.96 liters
- Overall Diameter: 12.03", 305.5mm
- Baffle Hole Diameter: 11.07", 281.1mm
- Front Sealing Gasket: Fitted as standard
- Rear Sealing Gasket: Fitted as standard
- Mounting Holes Diameter: 0.25", 6.4mm
- Mounting Holes B.C.D.: 11.59", 294.3mm
- Depth: 4.9", 125mm
- Net Weight: 7.8 lbs, 3.5 kg
- Shipping Weight: 9.9 lbs, 4.5 kgs
- MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice coil
- Coil Former: Polyimide former
- Magnet Composition: Ferrite magnet
- Core Details: Non-vented core
- Basket Materials: Pressed steel basket
- Cone Composition: Paper cone
- Cone Edge Composition: Paper cone edge
- Dust Cap Composition: Solid composition paper dust cap
