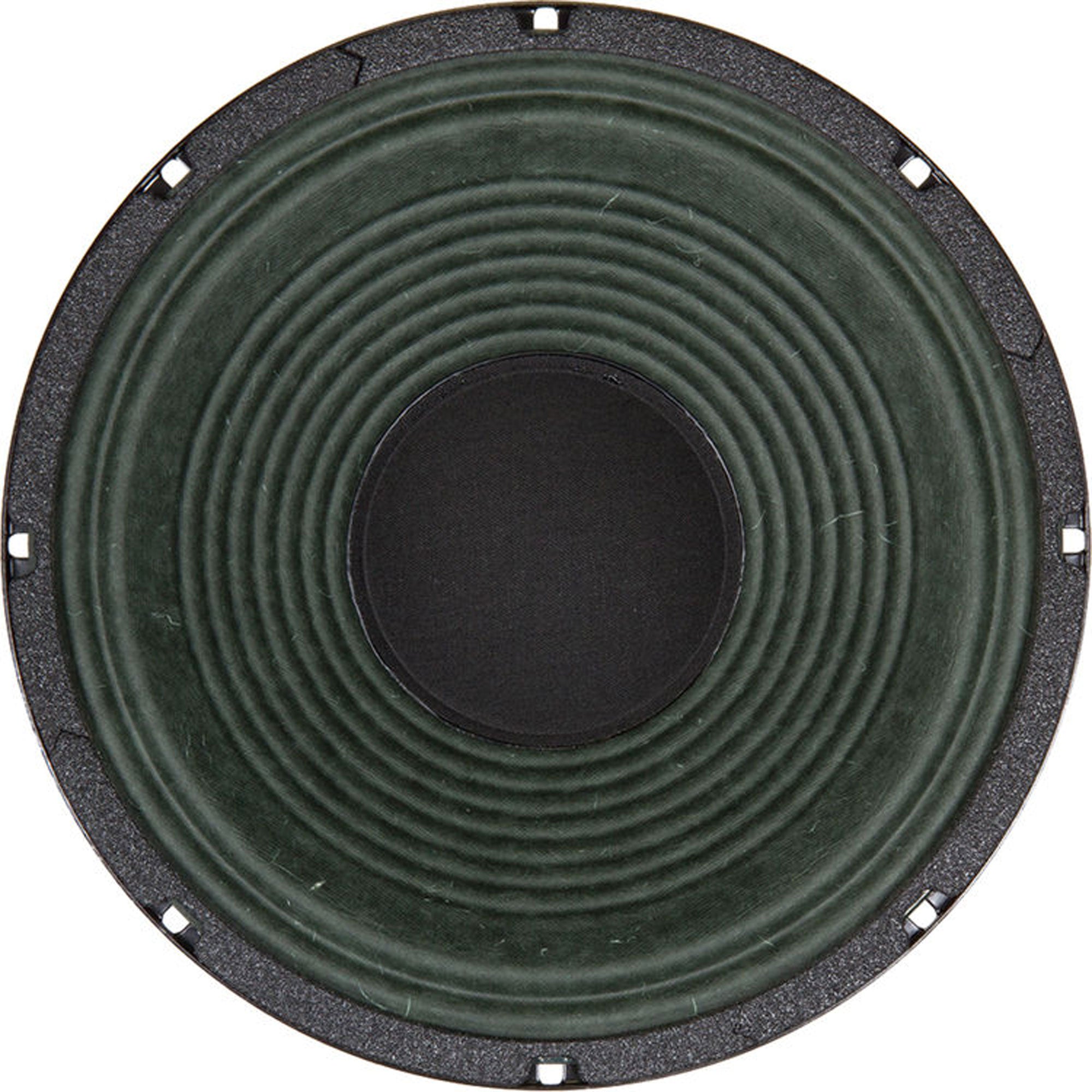

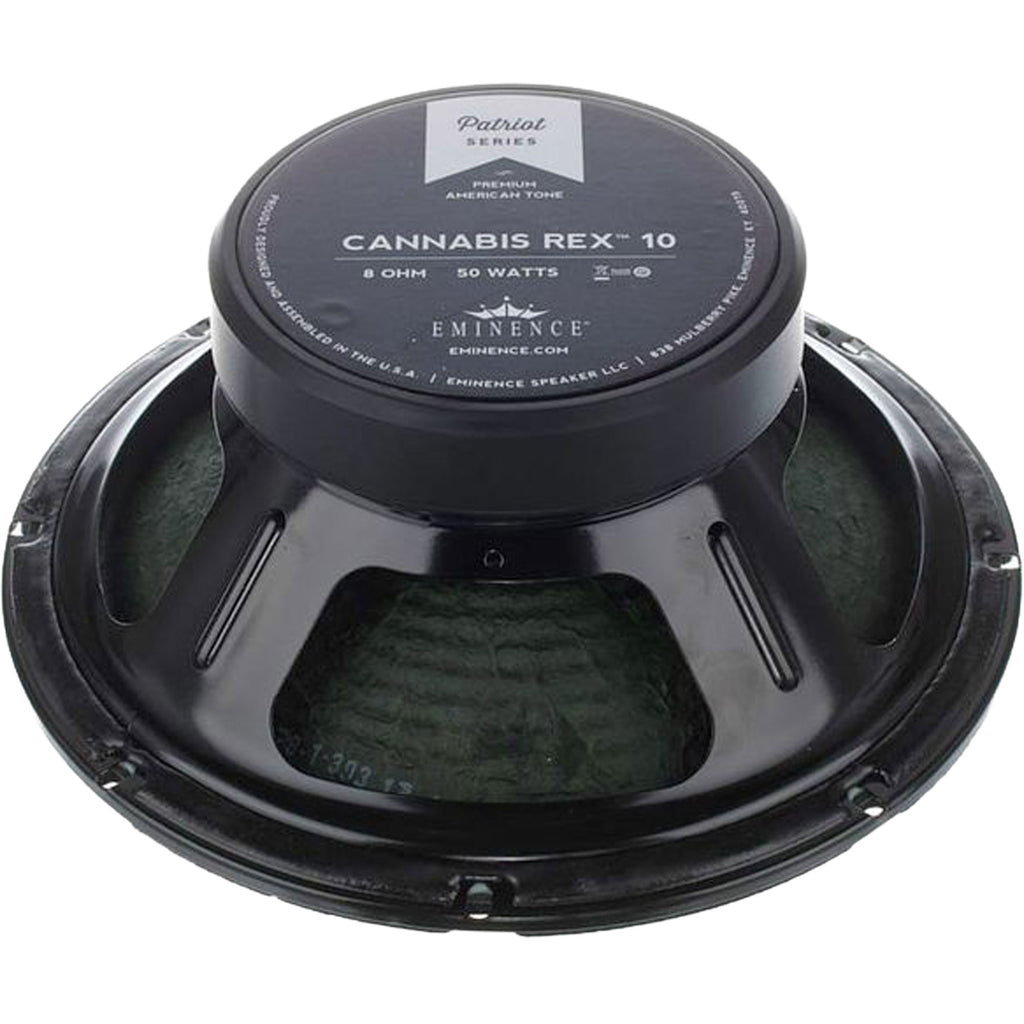

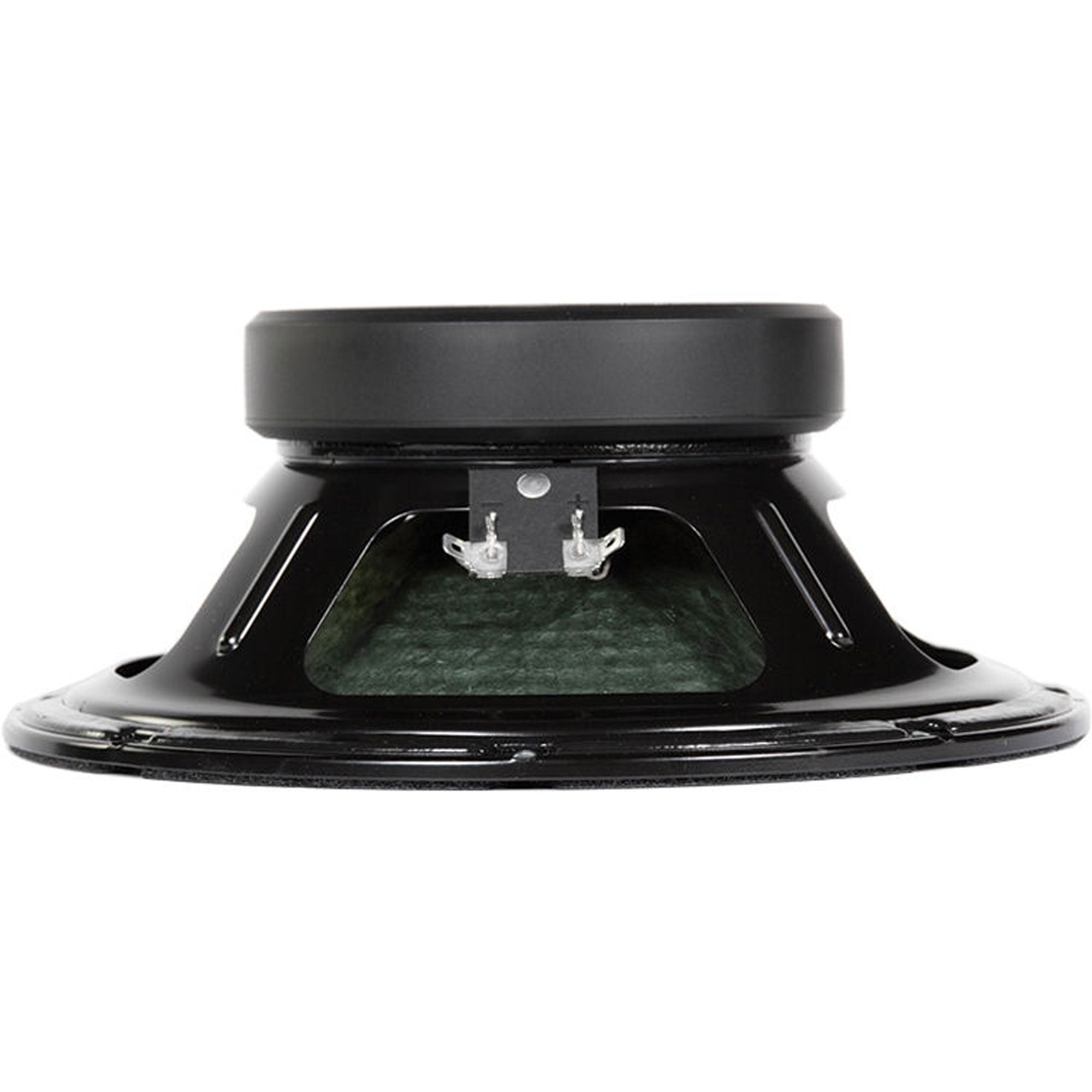

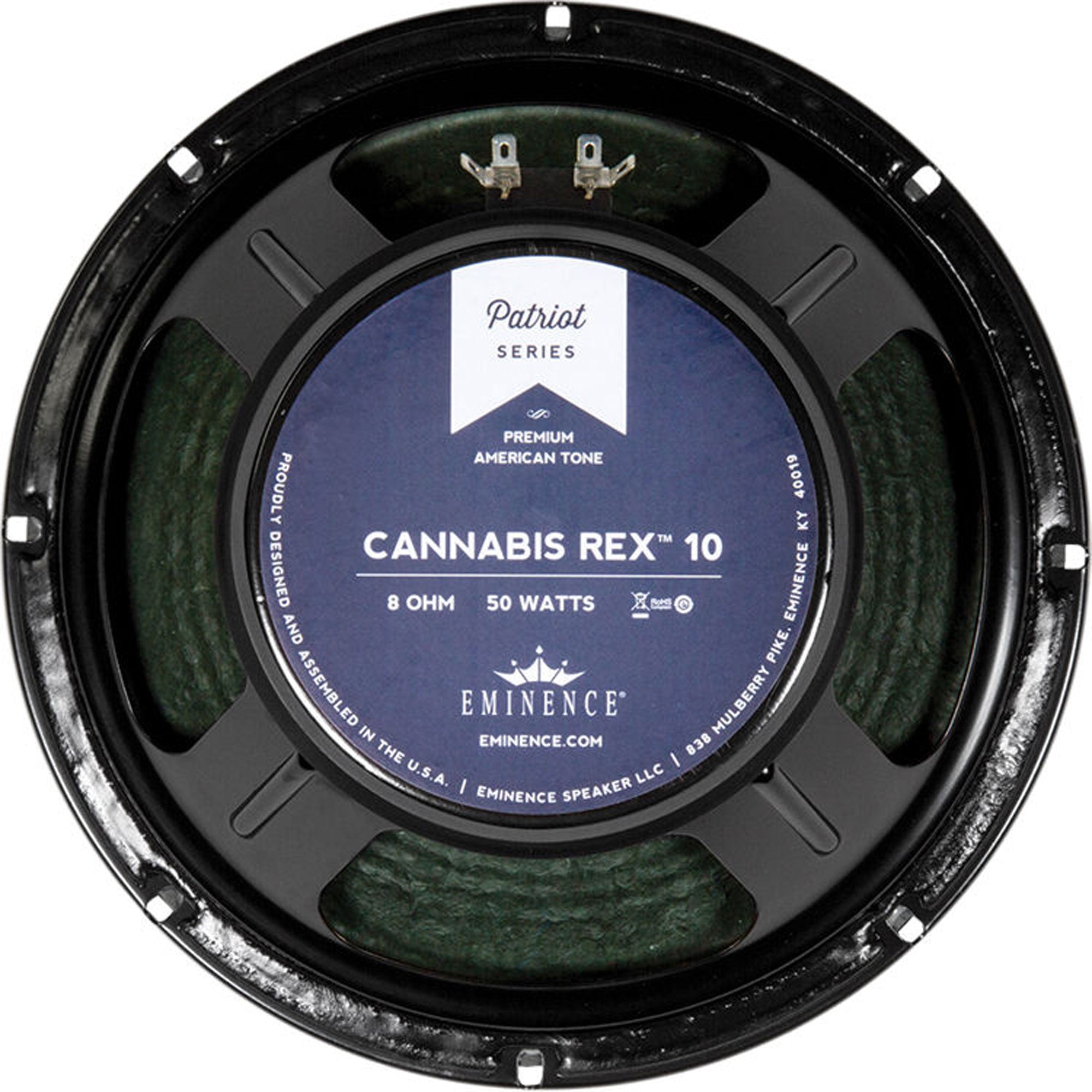

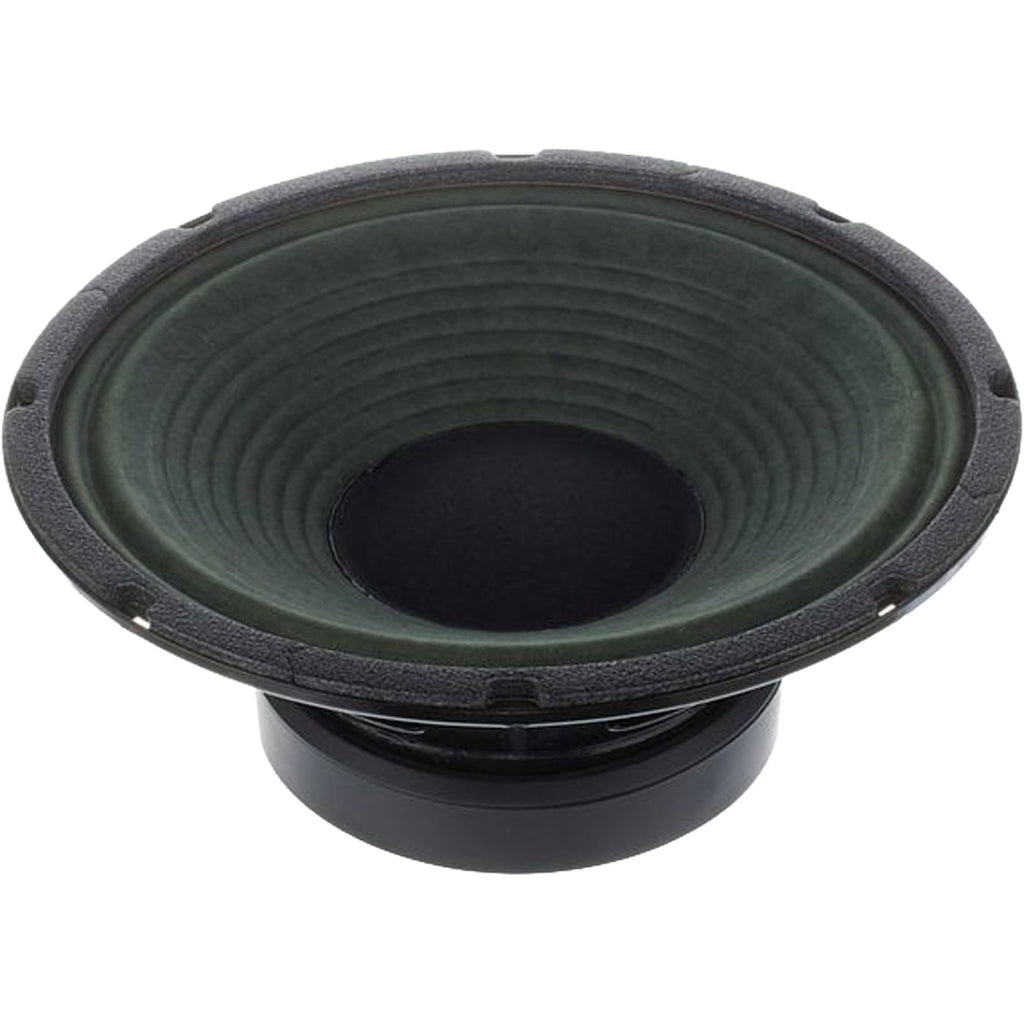

Eminence Cannabis Rex 10" Guitar Speaker, 8 Ohm

10" Guitar Speaker, 50W, 8 Ohms, Hemp Cone Construction, 80Hz-5.3kHz

10" Lead / Rhythm Guitar Speaker - American

The Eminence Cannabis Rex guitar speaker lets your laid-back style come through. Clean and full, with lots of body and sparkle. Smokey smooth with high-end definition. Country, Jazz or Classical guitarists take notice.

Characteristics

• Series: Patriots
• Model: Cannabis Rex 10
• Application: 10" Open or Closed Back
• Configuration: 1, 2, or 4x10"
• Low End Response: Aggressive
• Low End Shape: Fat/Round
• Mid-Range Response: Moderate
• Mid-Range Shape: Warm
• High-End Response: Moderate
• Volume/Power: Louder
• Overall Coloration*: A highly requested 10" version of Cannabis Rex. It's warm, smooth, clean, and full just like its big brother. Great to tame a bright amp and/or guitar.
• Break-up Modes: Slow
• Power Range: Up to 50 watts
• Instrument*: Lead/Rhythm Guitar
• Genre of Music*: Country, Jazz, Classical

Specifications

• SPECIFICATION
• Nominal Basket Diameter: 10", 254 mm
• Nominal Impedance*: 8 Ω
• Power Rating*
• Program Power: N/A
• Watts: 50 W
• Resonance: 130 Hz
• Usable Frequency Range: 80 Hz - 5.3 kHz
• Sensitivity*: 99.3 dB
• Magnet Weight: 38 oz.
• Gap Height: 0.313", 8 mm
• Voice Coil Diameter: 1.75", 44 mm
• THIELE & SMALL PARAMETERS
• Resonant Frequency (fs): 130 Hz
• DC Resistance (Re): 6.35 Ω
• Coil Inductance (Le): 0.49m H
• Mechanical Q (Qms): 15.4
• Electromagnetic Q (Qes): 0.6
• Total Q (Qts): 0.58
• Compliance Equivalent Volume (Vas): 13.02 liters / 0.46 cu.ft.
• Peak Diaphragm Displacement Volume (Vd): 0 cc
• Mechanical Compliance of Suspension (Cms): 0.07 mm/N
• BL Product (BL): 13.16 T-M
• Diaphragm Mass Inc. Airload (MMs): 20 grams
• Efficiency Bandwidth Product (EBP): 216
• Maximum Linear Excursion (Xmax): 0.79 mm
• Surface Area of Cone (Sd): 366.1 cm2
• Maximum Mechanical Limit (Xlim): 0 mm
• MOUNTING INFORMATION
• Recommended Enclosure Volume
• Sealed: N/a
• Vented: N/a
• Driver Volume Displaced: 0.039 cu.ft. / 1.1 liters
• Overall Diameter: 10.11", 256.8 mm
• Baffle Hole Diameter: 9.13", 231.9 mm
• Front Sealing Gasket: Yes
• Rear Sealing Gasket: Yes
• Mounting Holes Diameter: 0.23", 5.8mm
• Mounting Holes B.C.D.: 9.6", 243.8mm
• Depth: 4", 101.6 mm
• Net Weight: 7.3 lbs, 3.31 kg
• Shipping Weight: 8.4 lbs, 3.81 kgs
• MATERIALS OF CONSTRUCTION
• Coil Construction: Copper voice coil
• Coil Former: Paper former
• Magnet Composition: Ferrite magnet
• Core Details: Non-vented core
• Basket Materials: Pressed steel basket
• Cone Composition: Hemp paper cone
• Cone Edge Composition: Paper cone edge
• Dust Cap Composition: Zurette dust cap
