Description

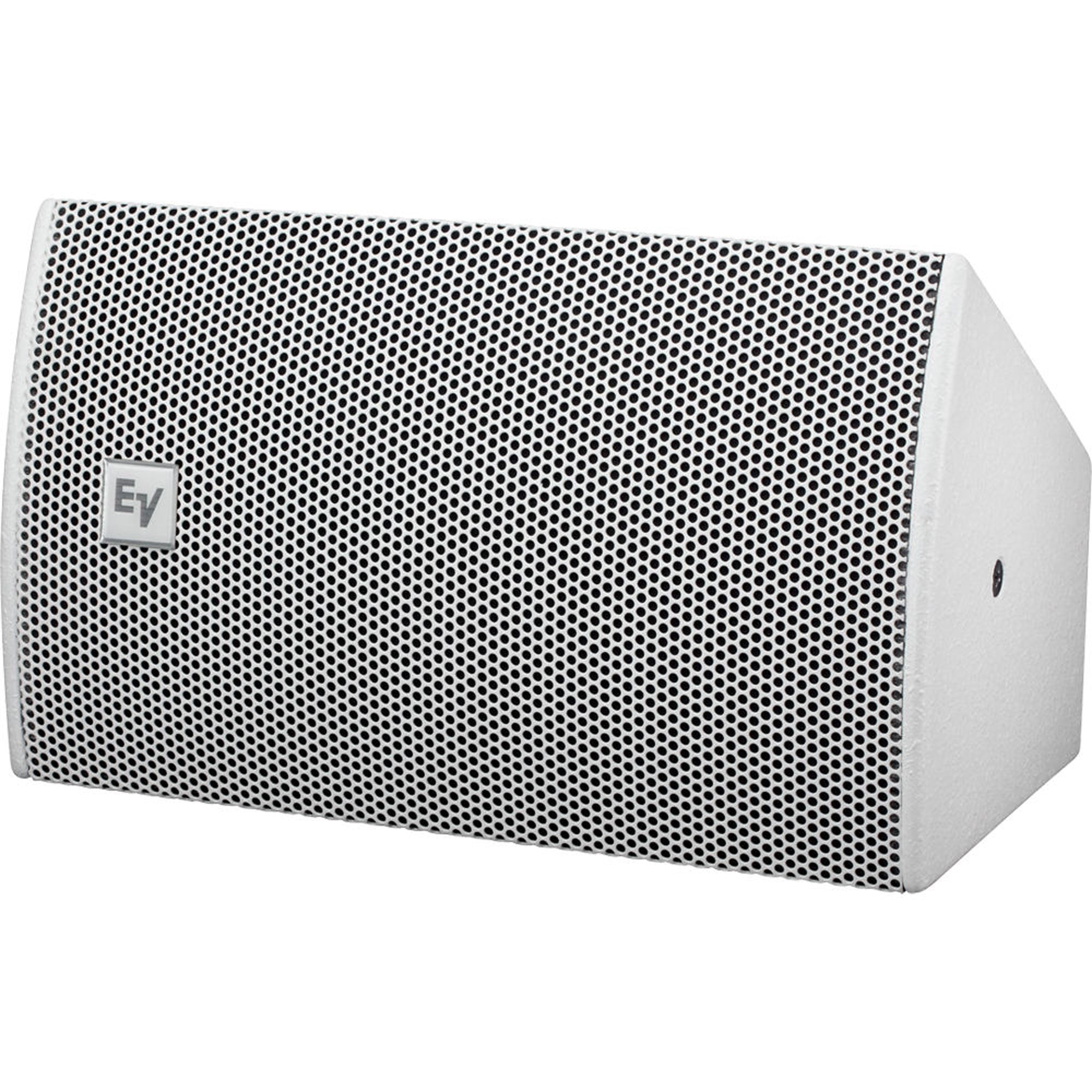

Ultracompact Loudspeaker System with a Single 8-Inch Woofer, White
The single 8-in woofer EVU-1082/95 offers the most compact enclosure (just under 10 inches high and 16 inches wide), yet system power-handling capacity and sensitivity are quite high for the size: 175/700watt (continuous/peak) and 95 dB 1 W/1 m sensitivity, for a max SPL of 123 dB.
Features:
- Designed for Club Sound, Concert Sound, House of Worship, Performance & Sports Venues, Stadium Systems, and other applications.
- 8-inch woofers allow ultracompact enclosures
- Ideal solution for delay, distributed, front-fill, under-balcony, and wall-mounted audio applications
- Asymmetrical enclosure shape provides an appropriate vertical aiming angle for both under-balcony and stage-lip applications
- Sophisticated, 18-dB-octave passive crossover/EQ networks
- Rear-mounted input panel equipped with a four-pin Phoenix/Euroblock screw-terminal connector
- Input panel accepts optional EVU-TK60 60-W 70.7/100-V input transformer (taps at 60, 30, 15, and 7.5 W)
- Six M8 threaded suspension points and supplied U-bracket
- Rear mounting points accept OmniMount brackets
- Available in black or white
Specifications:
- Axial Sensitivity: 95 dB
- Frequency Response (-3 dB): 110 - 16000 Hz
- Frequency Response (-10 dB): 65 - 20000 Hz
- Recommended High-Pass Frequency: 90 Hz
- Max. SPL/1m (calc); half space: 123 dB
- Coverage
- (Nominal -6 dB) H: 90
- Coverage
- (Nominal -6 dB) V: 50
- Rotatable Horn: Yes
- System Power Handling (Continuous/Program/Peak): 175/350/700 Watts
- Nominal Impedance (Passive): 8 Ω
- Suspension: (6) M8 threaded points
- Height: 247.2 mm (9.73")
- Width: 409.1 mm (16.11")
- Depth: 237.2 mm (9.34")
- Weight Net: 7.4 kg (16.31 lbs)
- Shipping Weight: 10.2 kg (22.49 lbs)
