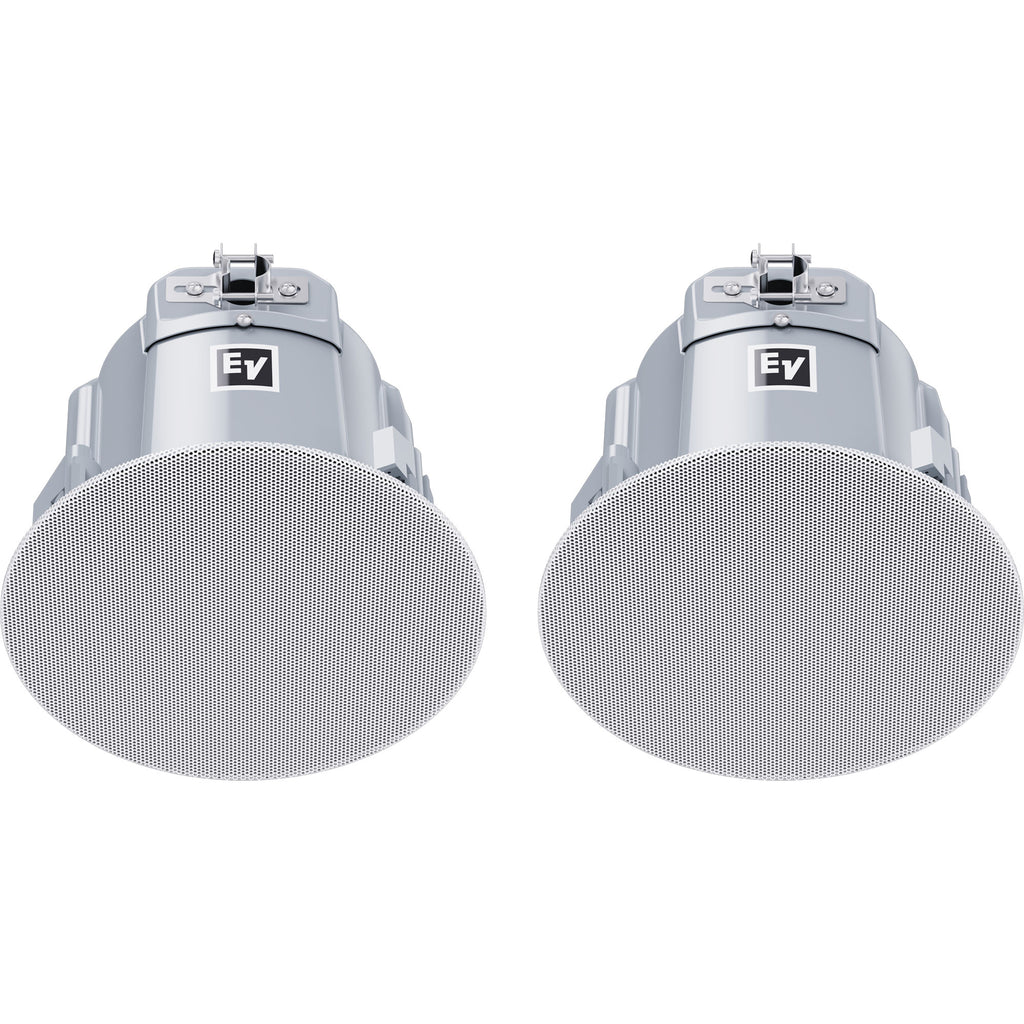

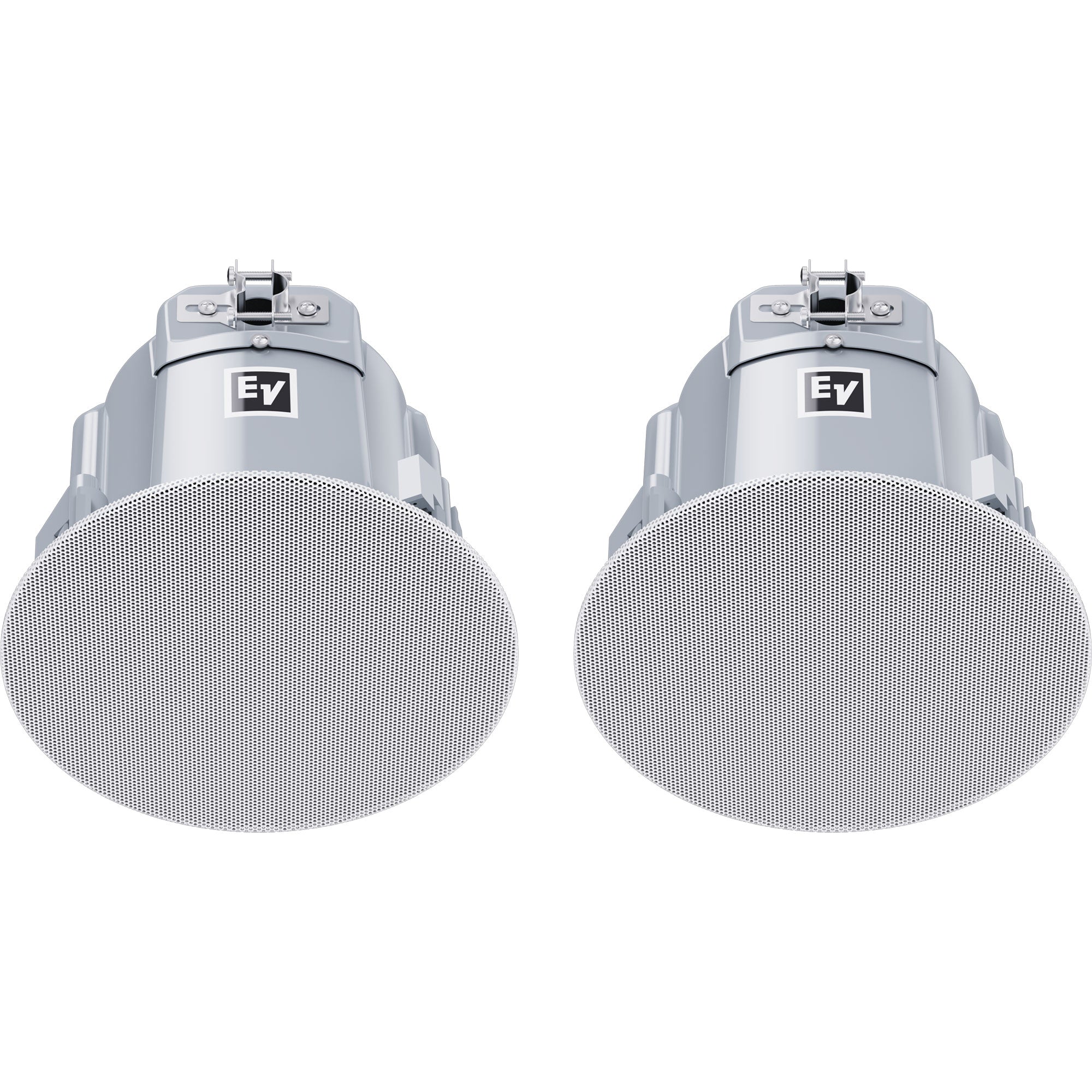

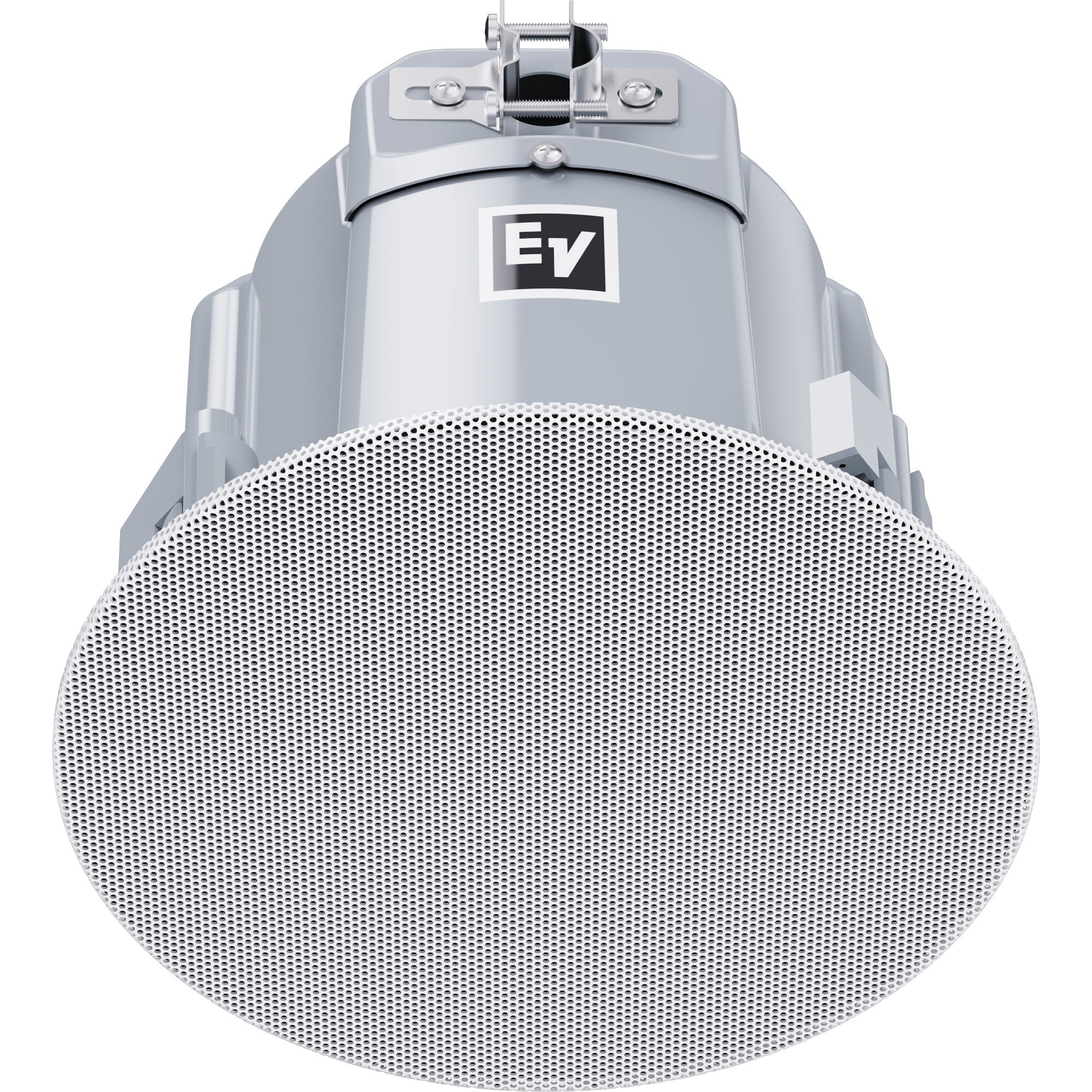

Electro-Voice EVID-EC4.2 4" Coaxial Ceiling Speaker (White, Pair)

200W Passive In-ceiling Speaker with 4" Full-range Driver, 70V/100V Transformer, and 8-ohm Bypass (Pair)

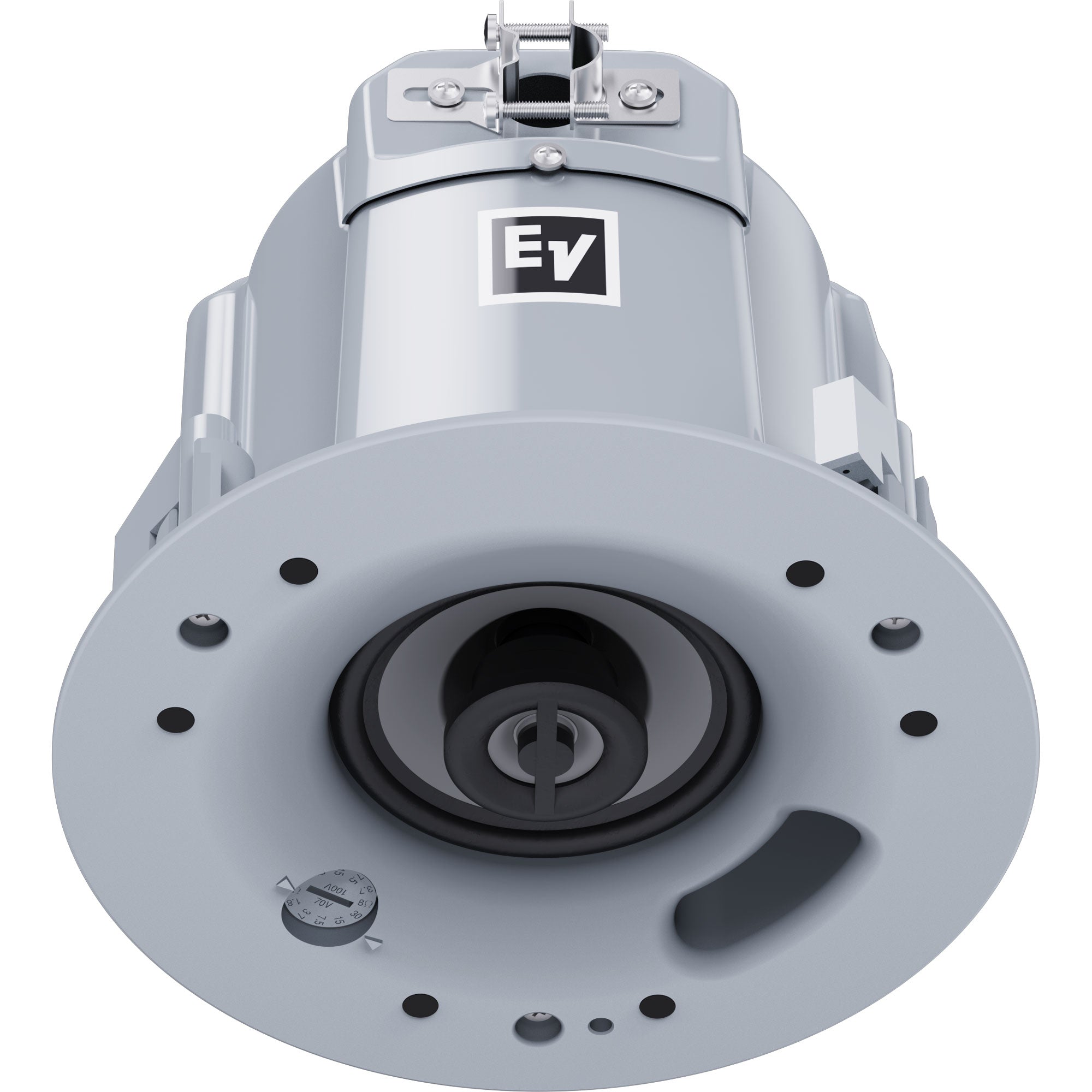

The Electro-Voice EVID-EC4.2 is a complete 4-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with firstclass aesthetics.

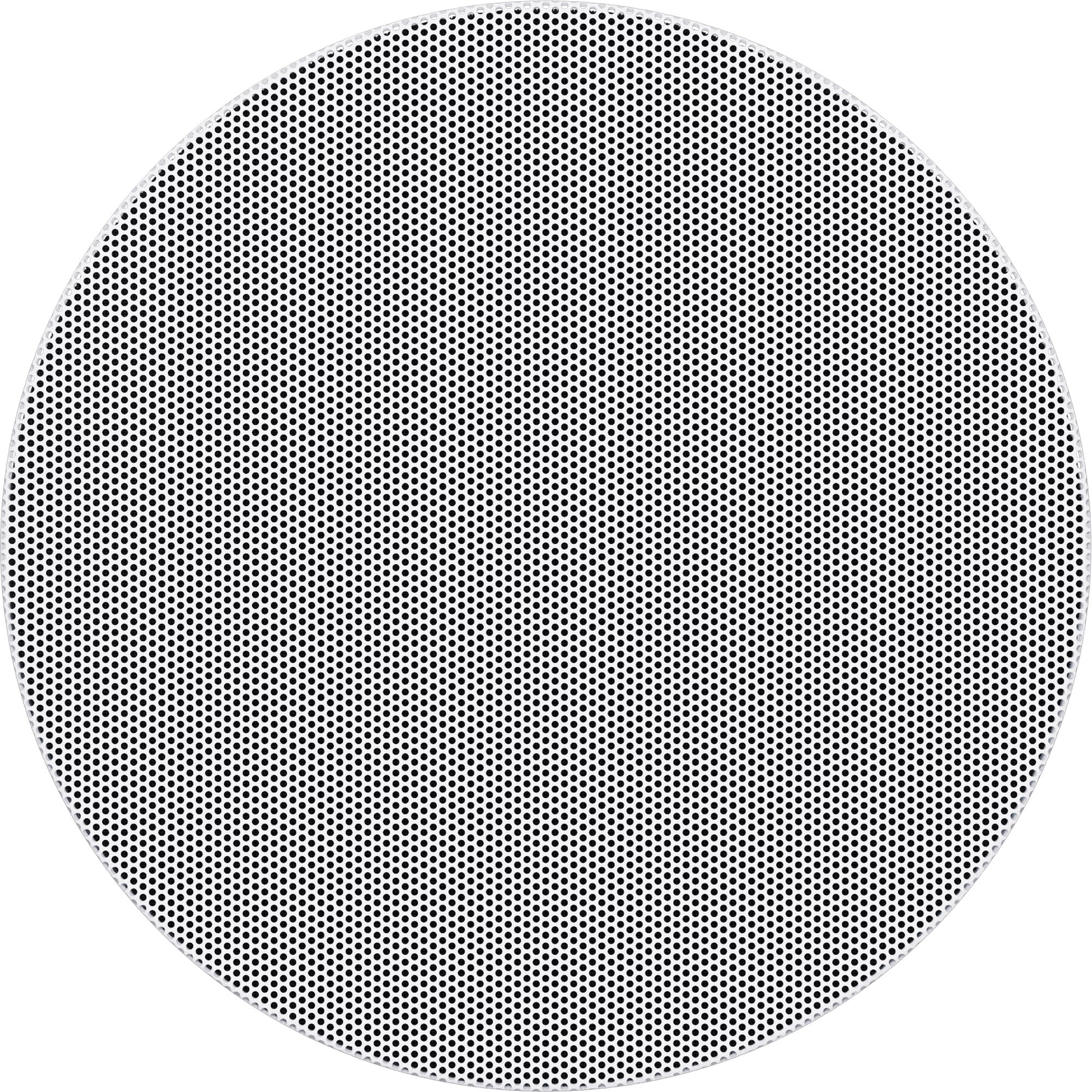

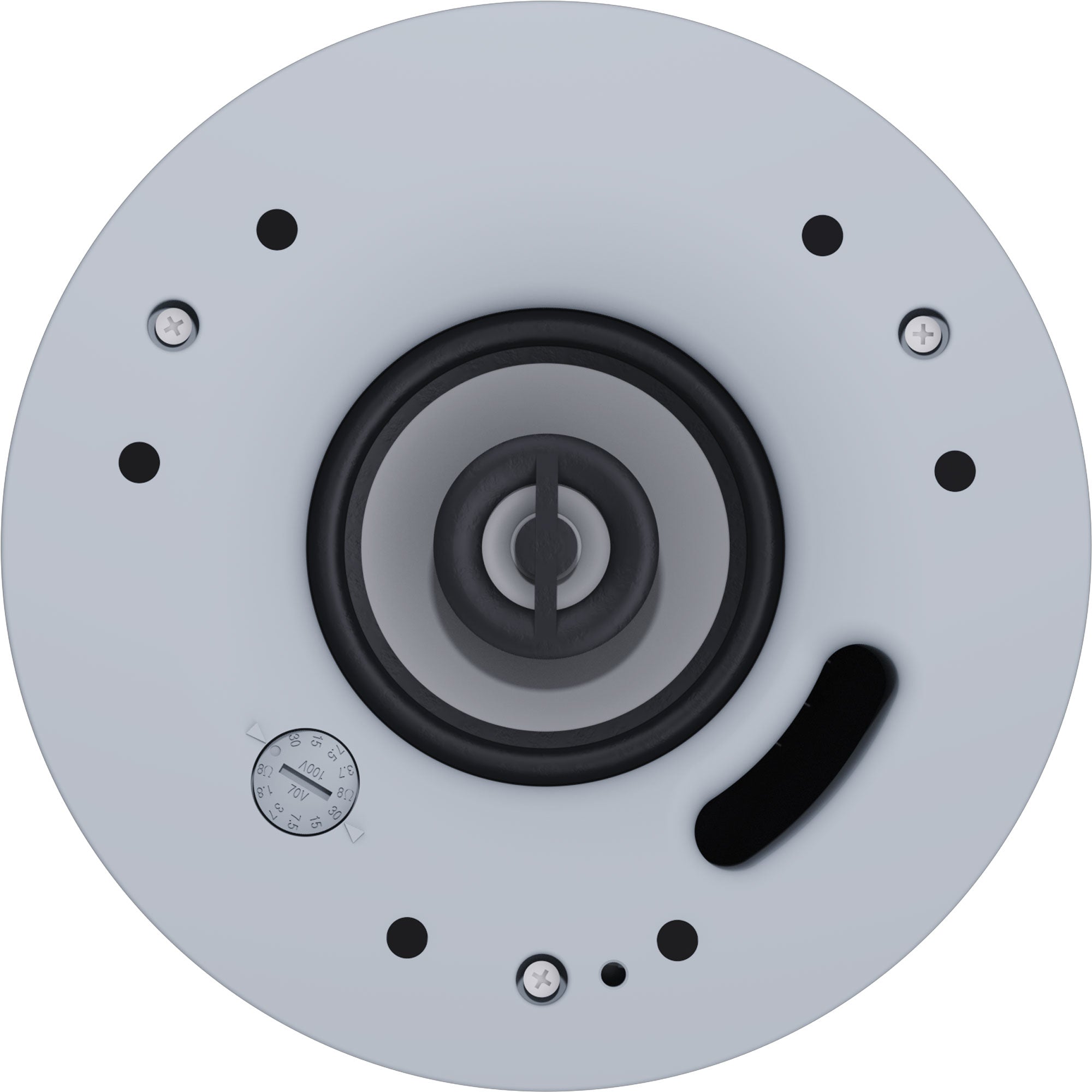

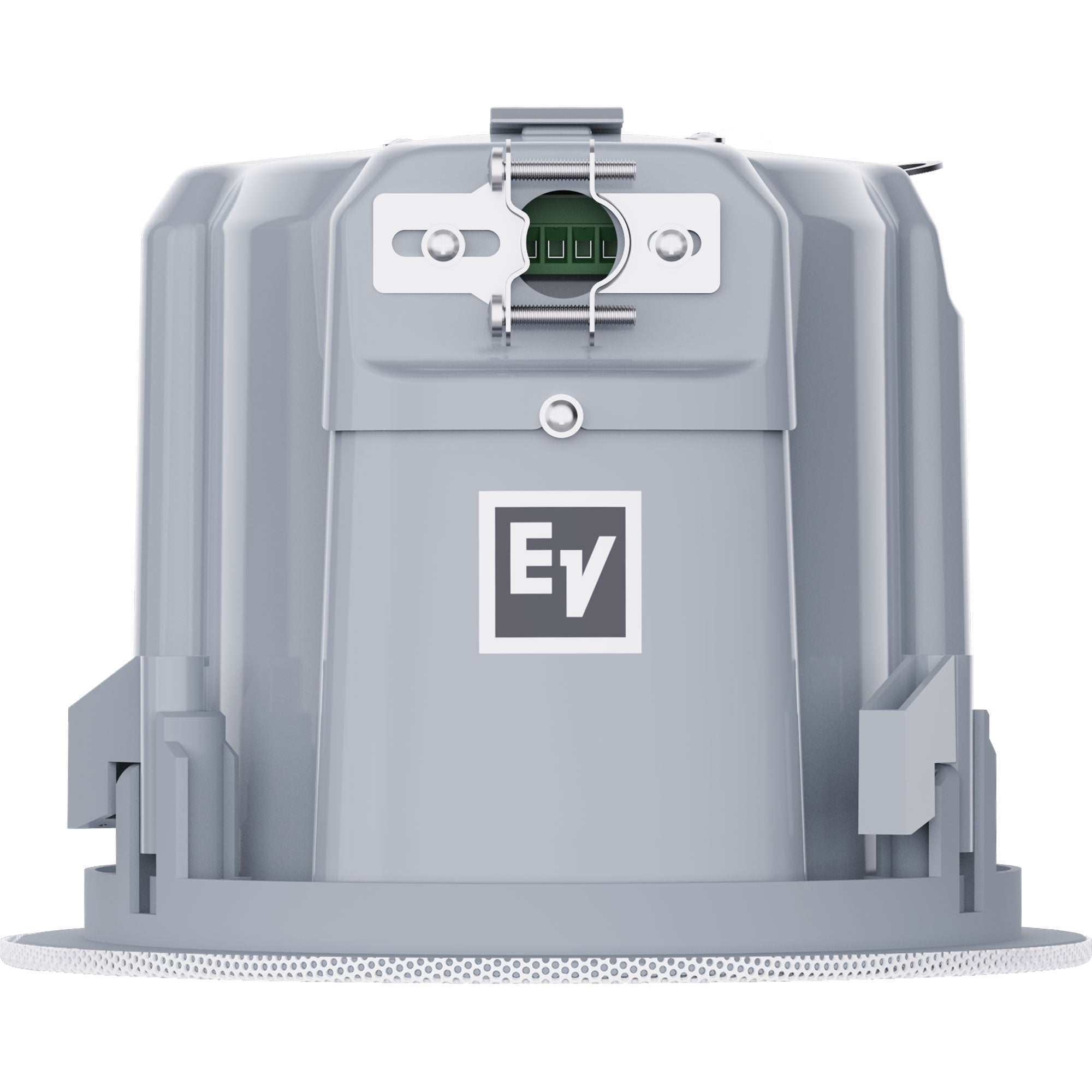

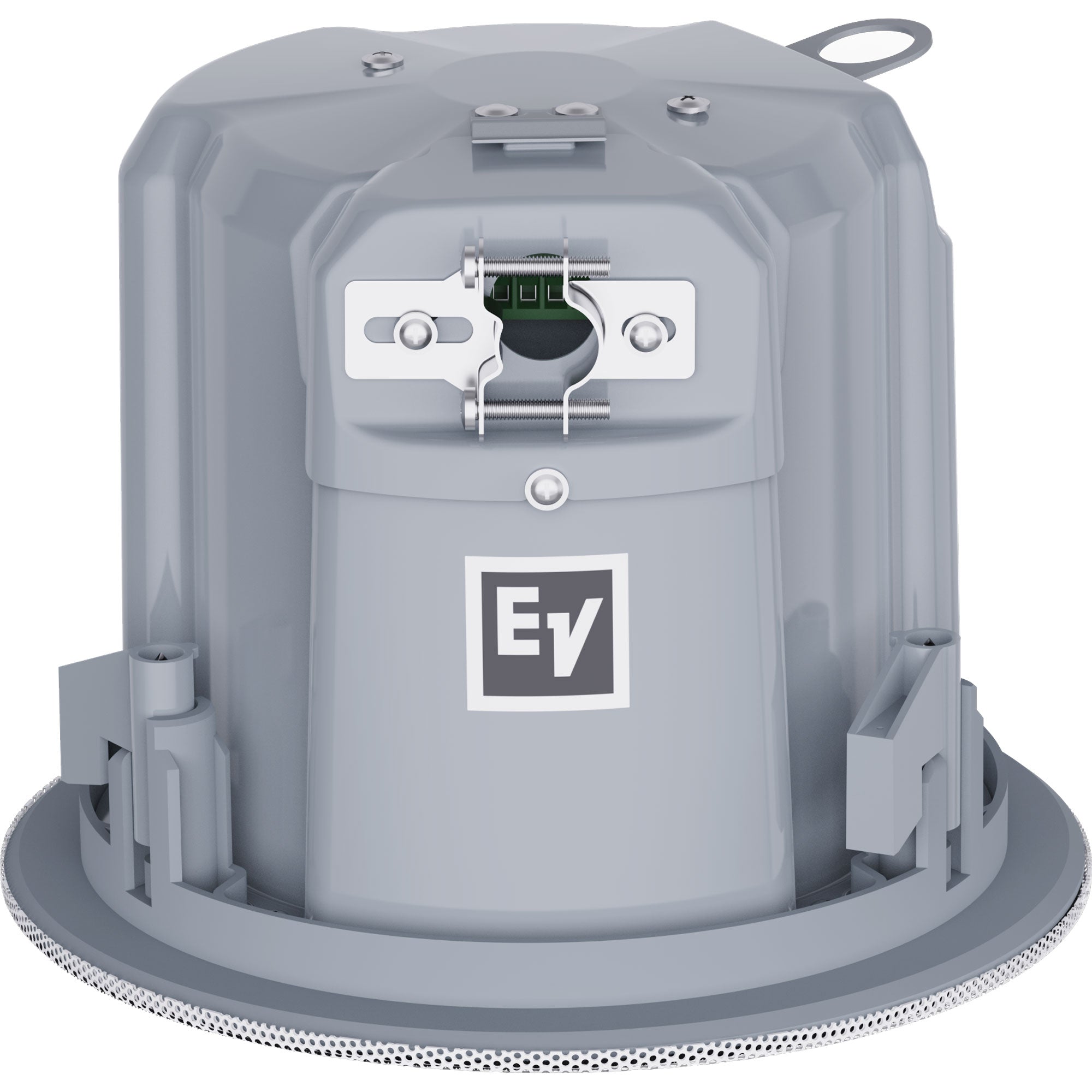

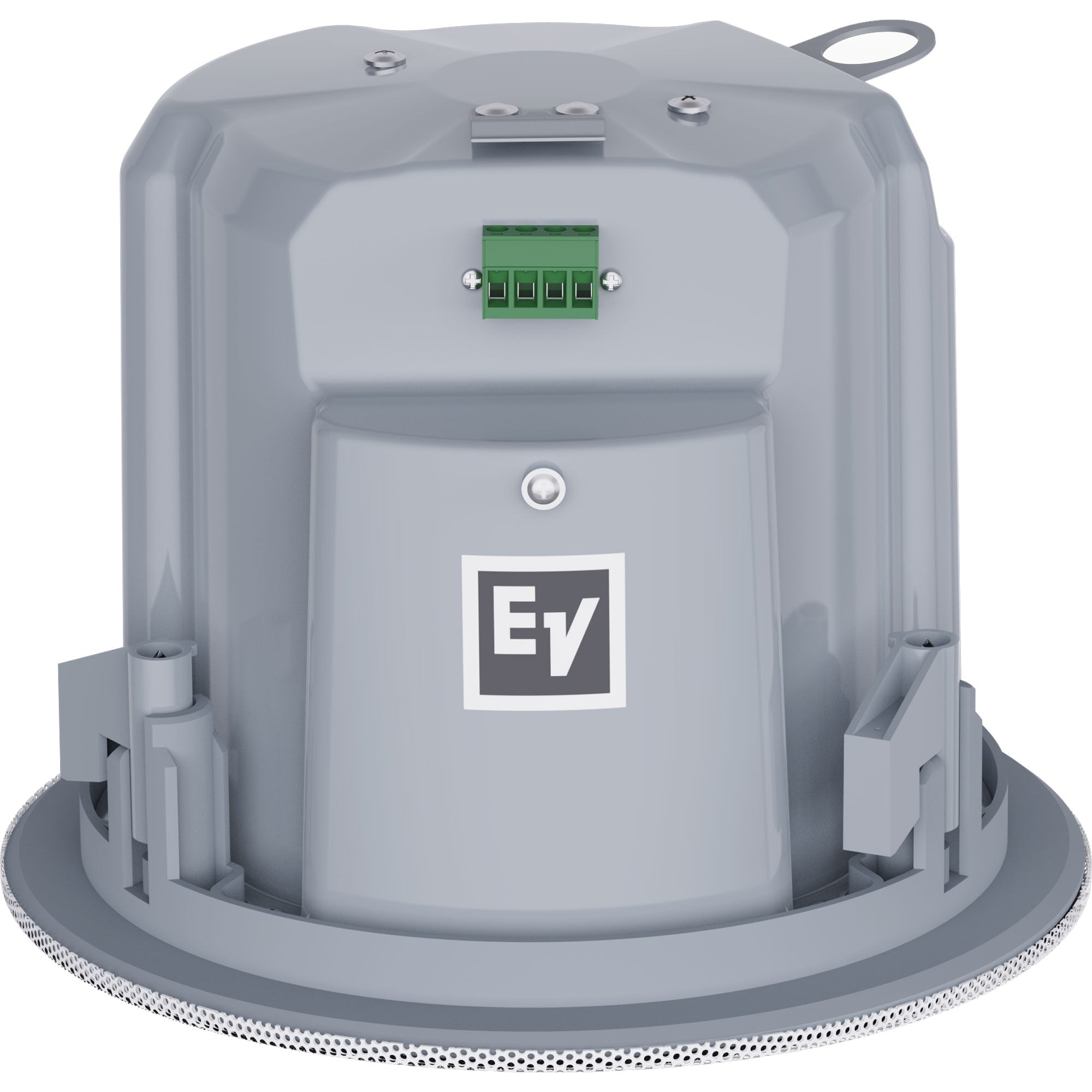

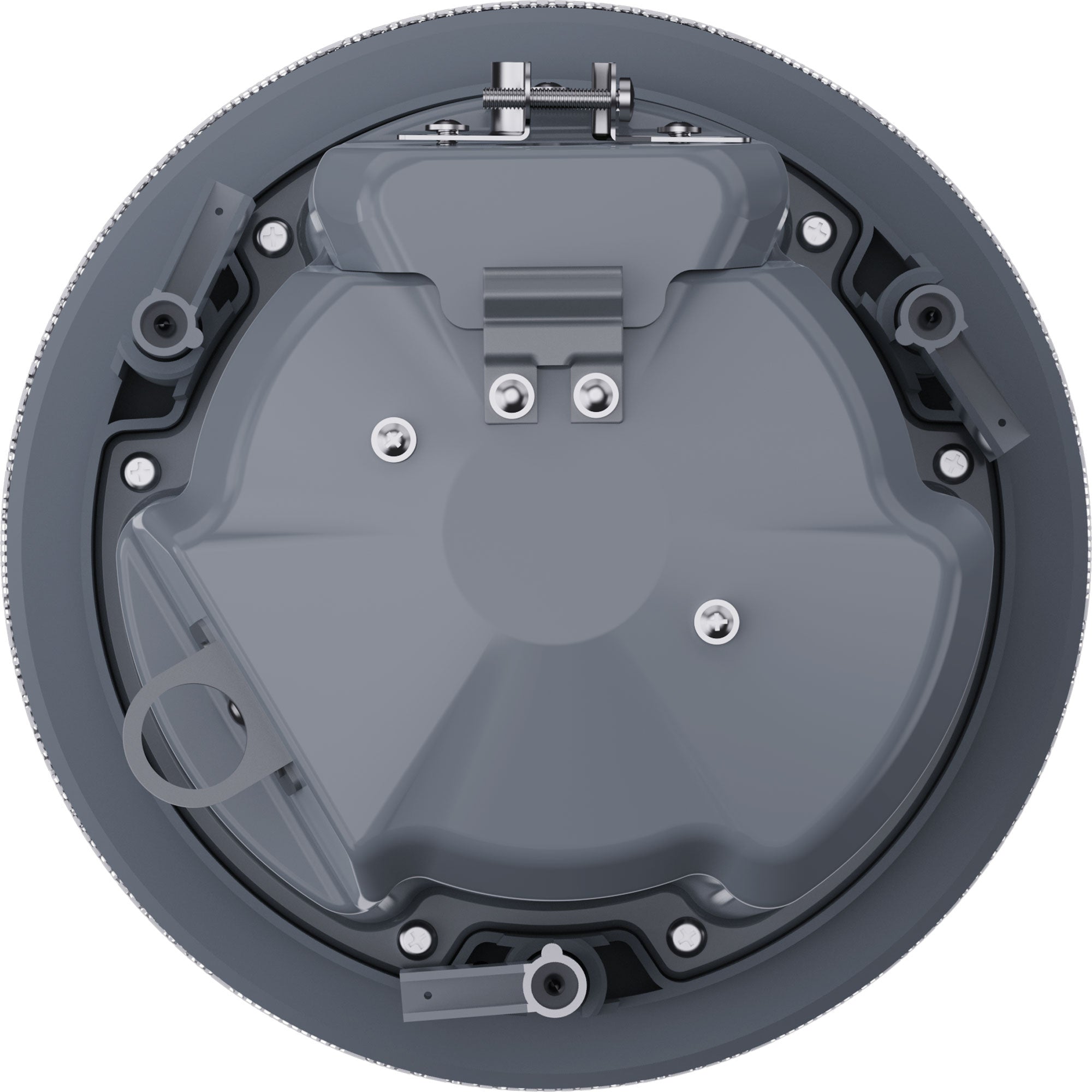

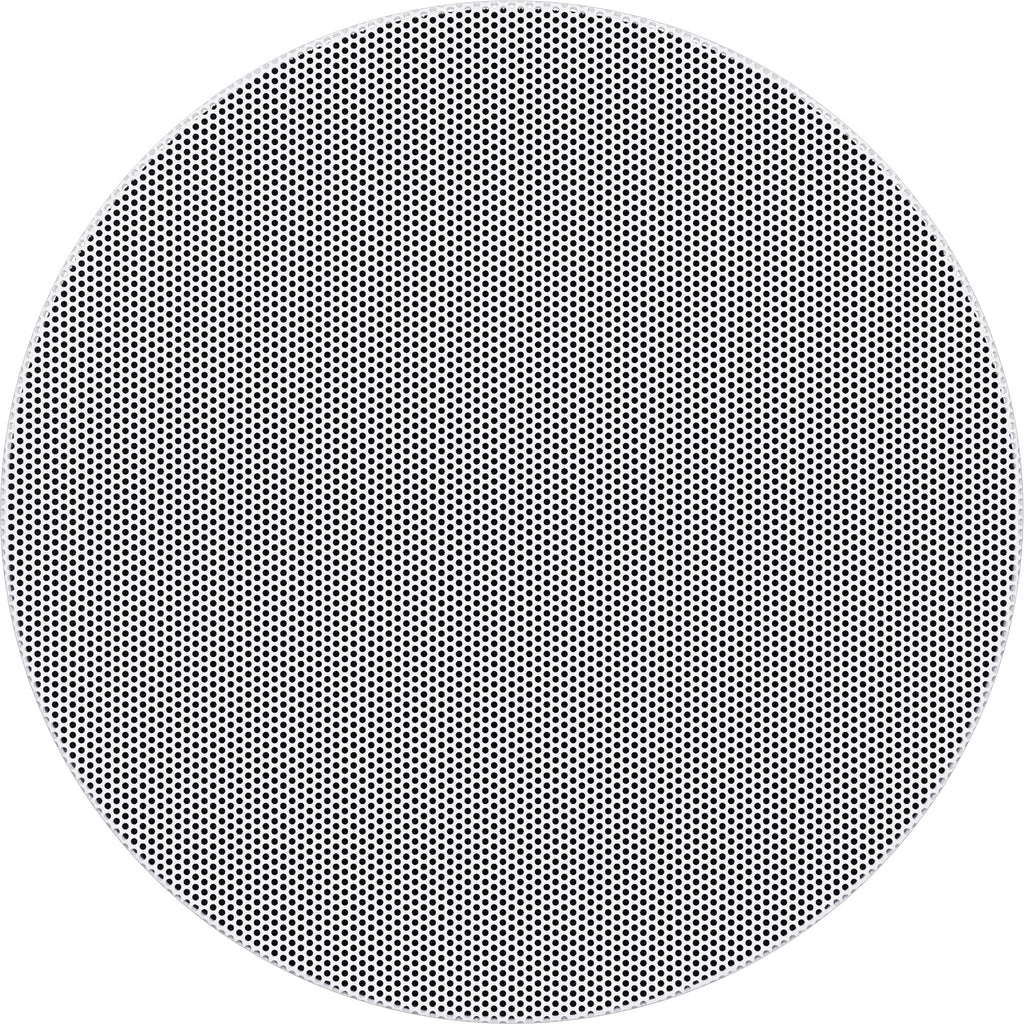

The EVID-EC4.2 utilizes a transformer that offers a selection of 1.25 (70-V only), 2.5, 5, 10 or 20 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminalcover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.

A mounting ring and a tile bridge are included for safe suspension of the EVID-EC4.2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.

The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers Parts included

Features:

• Bezel-less design with easy-attach grille
• Front baffle wattage tap adjustment
• Includes tile bridge and C-ring for easy installation
• UL 1480A, UL 2043, CSA C22.2 No. 205 and IEC 62368-1 certified

Specifications:

• Frequency range (-10 dB) (Hz) 1: 80 Hz - 2,0000 Hz
• Maximum SPL (continuous) (dB) 2: 106 dB
• Maximum SPL (peak) (dB) 2: 112 dB
• Sensitivity (1 W, 1 m) 3: 89 dB SPL 1 W, 1 m
• Coverage angle conical (°): 130°
• Power handling (continuous) (W) 4: 50 W
• Power handling (peak) (W) 4: 200 W
• Long term power handling (continuous) (W) 5: 40 W
• Long term power handling (peak) (W) 5: 160 W
• Nominal impedance (Ω) (Low Z): 8 Ω
• Recommended high pass (Hz) 6: 90 Hz
• Transformer taps 70 V line (W): 20 W; 10 W; 5 W; 2.5 W; 1.25 W
• Transformer taps 100 V line (W): 20 W; 10 W; 5 W; 2.5 W
• LF transducer size (in): 4 in
• HF transducer size (in): 0.75 in
• Material: Steel
• Grille material: Powder coated steel
• Connector type: 4-pin Euroblock
• Input + Pass through
• Wire size (AWG): 12AWG (maximum)
• Wire diameter (mm2): 3.3 mm2 (maximum)
• Color: White; Customized colors
• Color (RAL): RAL 9003 Signal white
• Mounting cutout (in): 7.20 in
• Mounting cutout (mm): 183 mm
• Dimensions (Ø x D) (in): 8.4 in x 6.5 in
• Dimensions (Ø x D) (mm): 212 mm x 163.4 mm
• Mounting depth (in): 6.2 in
• Mounting depth (mm): 158 mm
• Ceiling thickness (in): 0.5 in - 1.5 in
• Ceiling thickness (mm): 12.5 mm - 38 mm
• Weight (lb) 7: 5.7 lb
• Weight (kg) 7: 2.6 kg
• Shipping weight (lb) 8: 15.4 lb
• Shipping weight (kg) 8: 7 kg
• IP rating: IP34
• Weatherization: Indoor
• Operating temperature (°F): 32 °F - 122 °F
• Operating temperature (°C): 0 °C - 50 °C
• Safety agency ratings: UL 1480A, safe for use in airhandling spaces per UL 2043, CSA C22.2 No. 205 certified, IEC 62368-1
