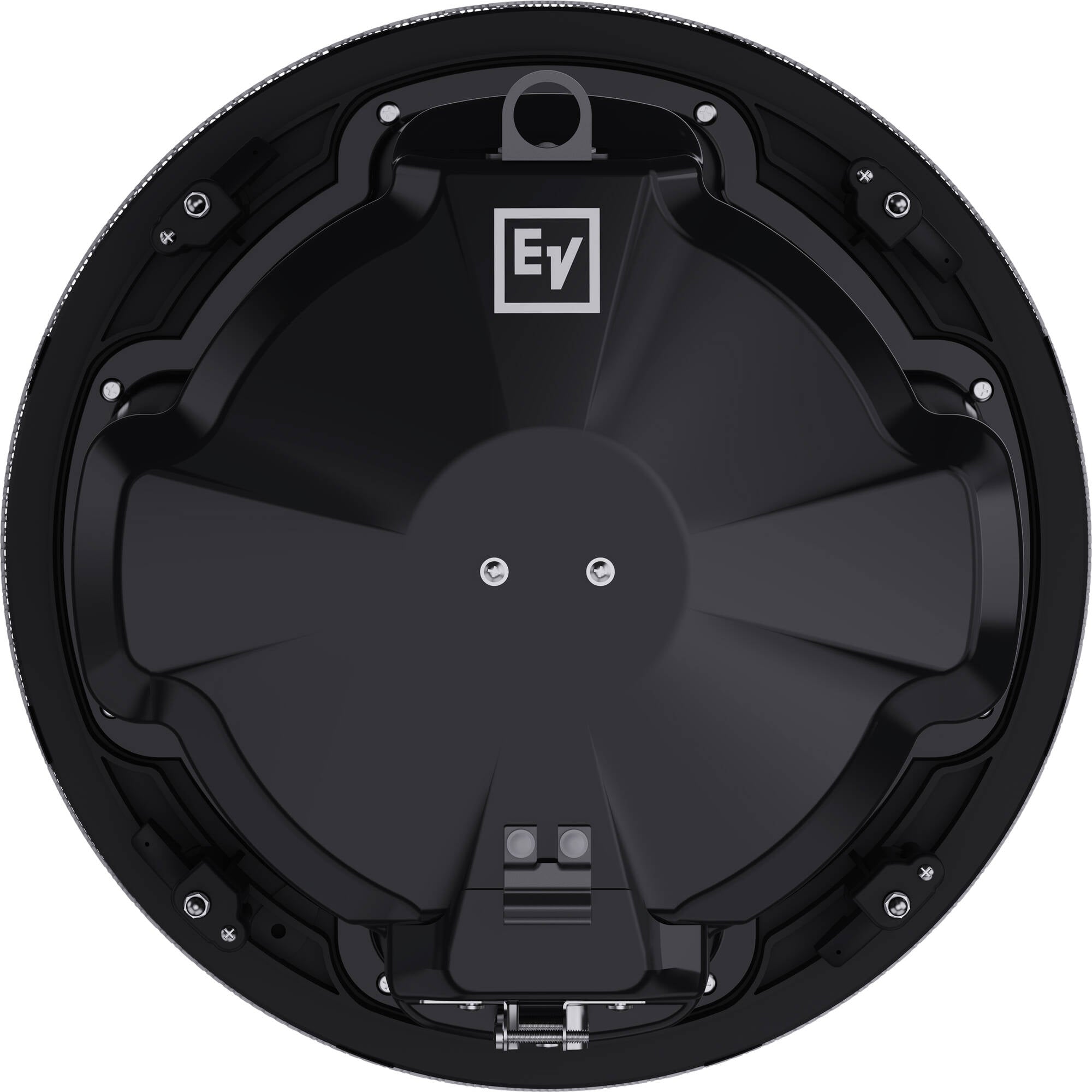

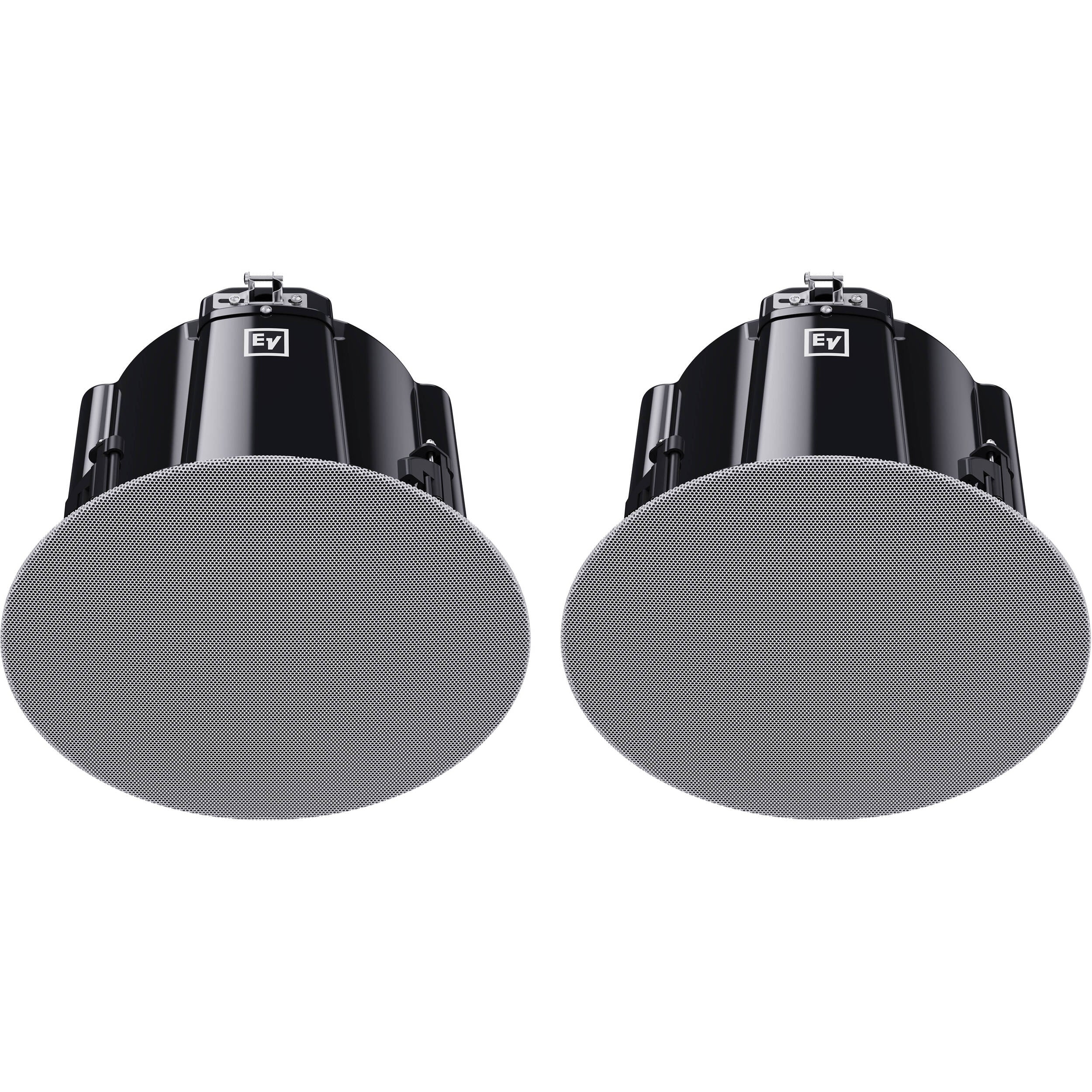

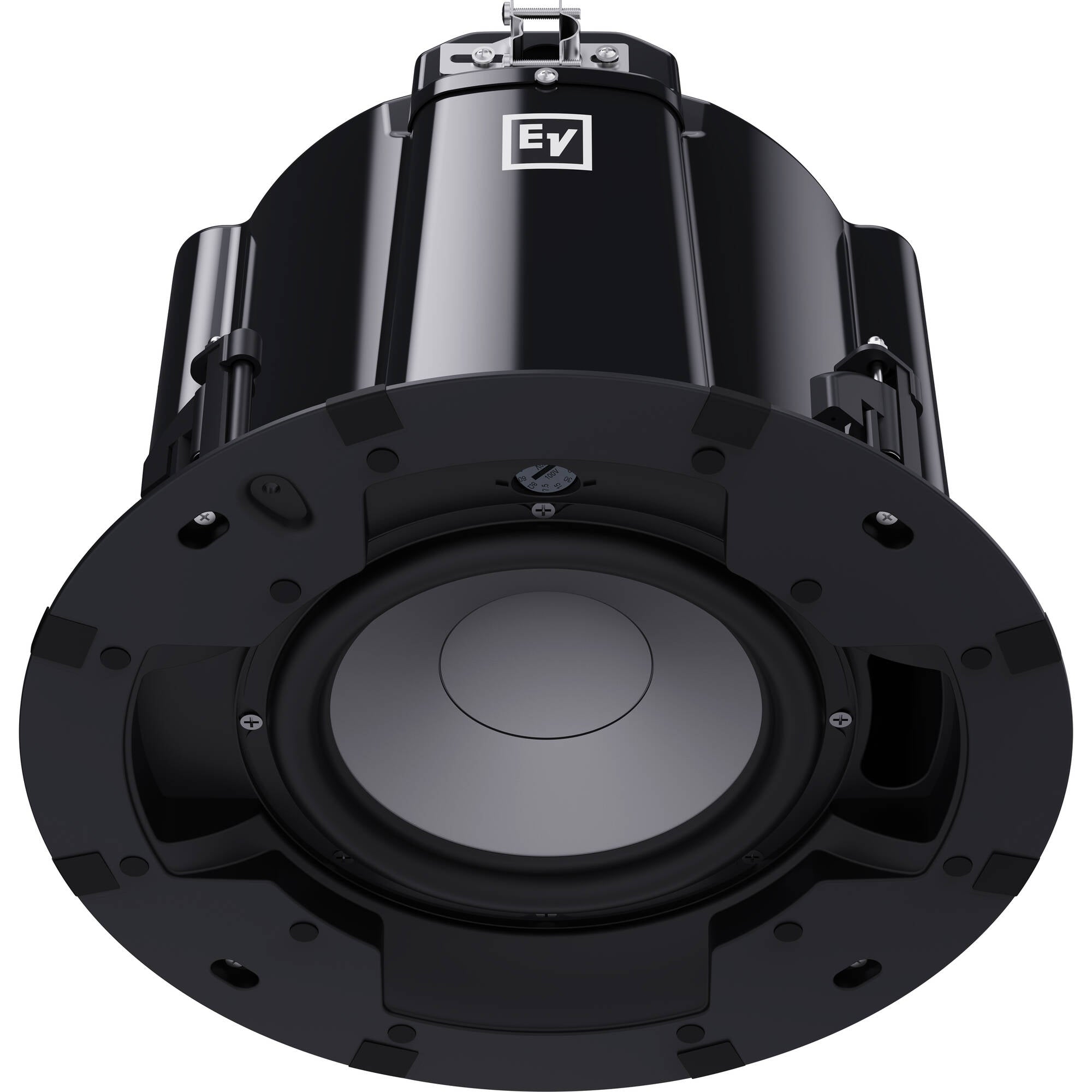

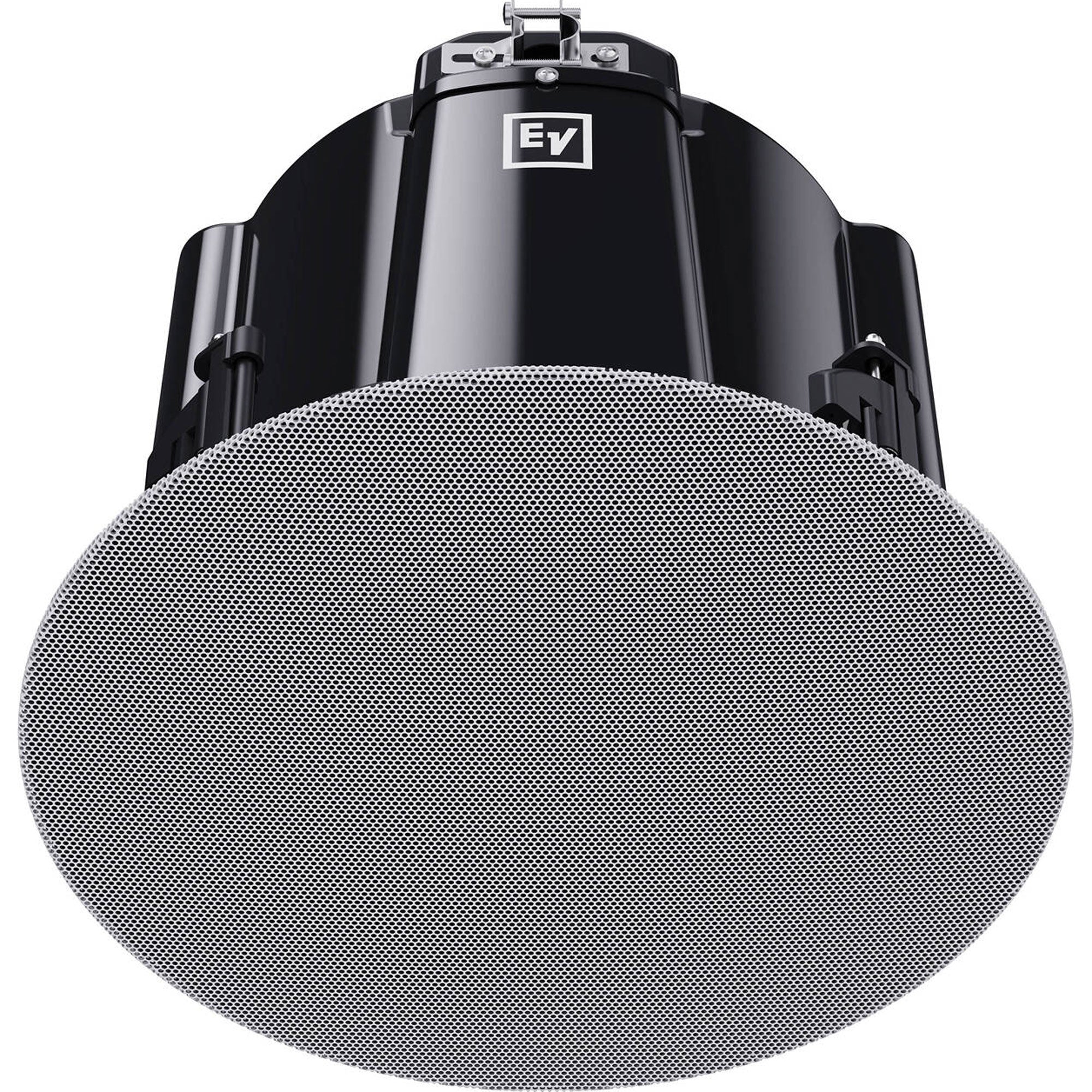

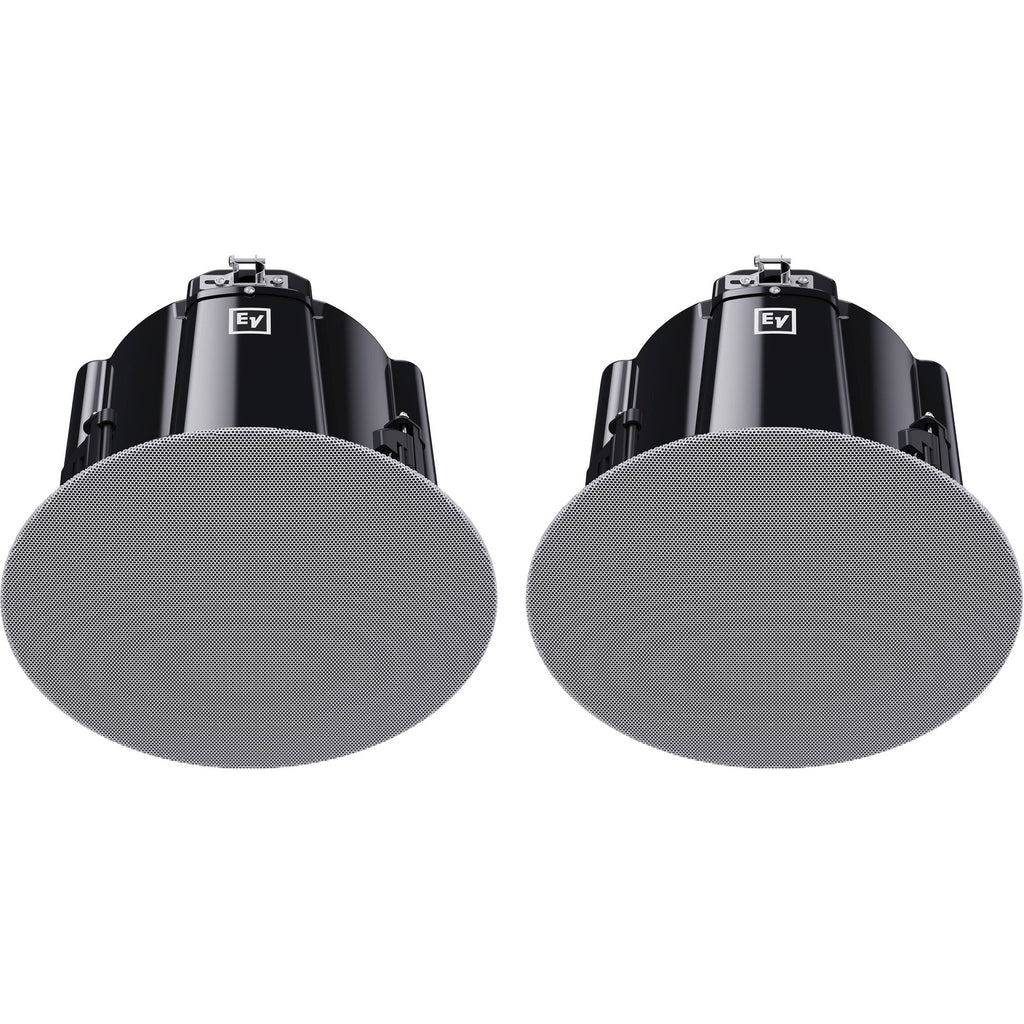

Electro-Voice EVID-C8.1S-G2 8" Ceiling Installation Subwoofer (White, Pair)

600W Passive In-ceiling Subwoofer with 8" Woofer, 70V/100V Transformer, and 8-ohm Bypass (Pair)

The Electro-Voice EVID-C8.1S-G2 is a complete 8-inch subwoofer that offers excellent sound quality and outstanding reliability with first-class aesthetics. It includes the EZ-Install system for quick and easy installations that are fast and reliable without compromising on safety. The subwoofer features a point-source design to improve off-axis response and overall uniform coverage.

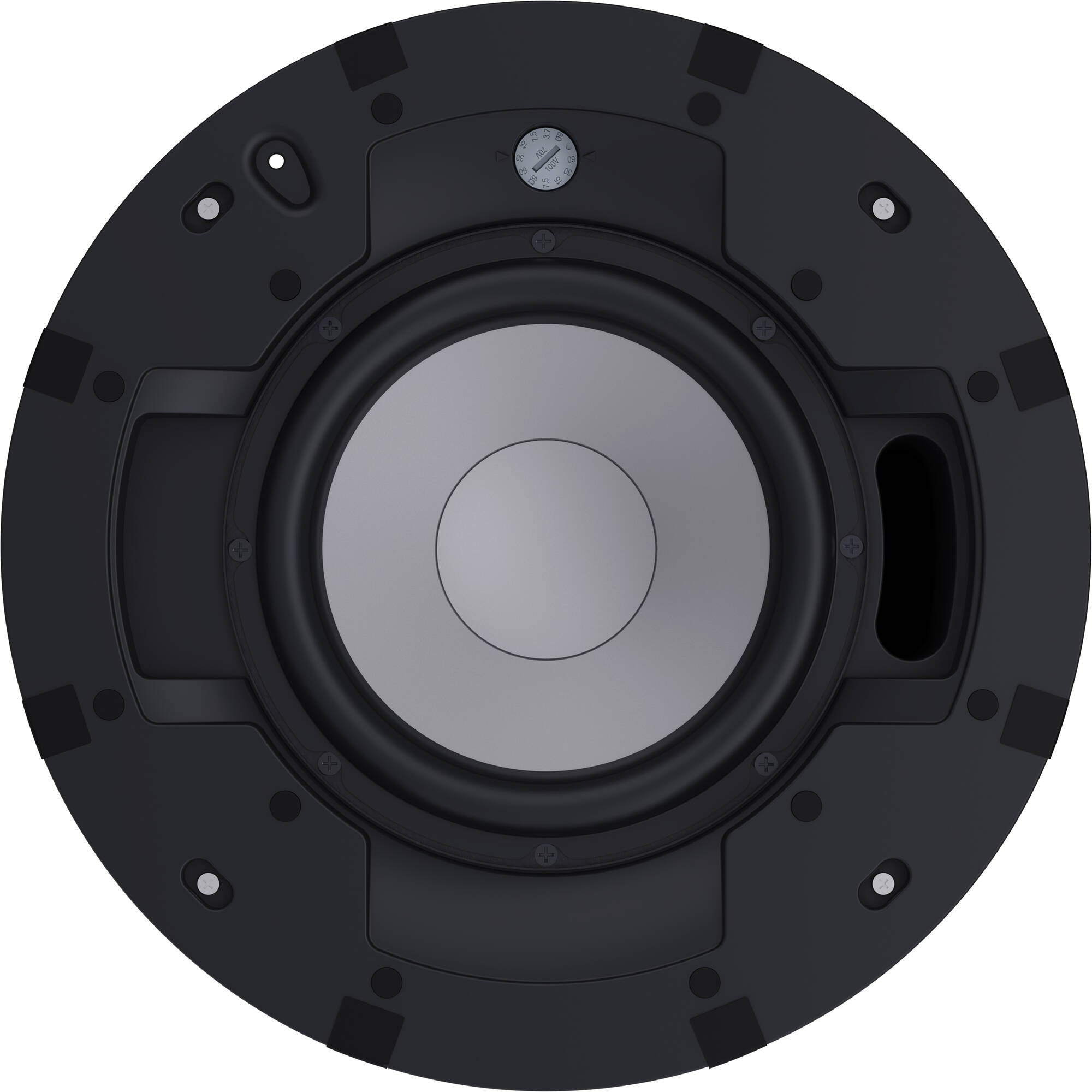

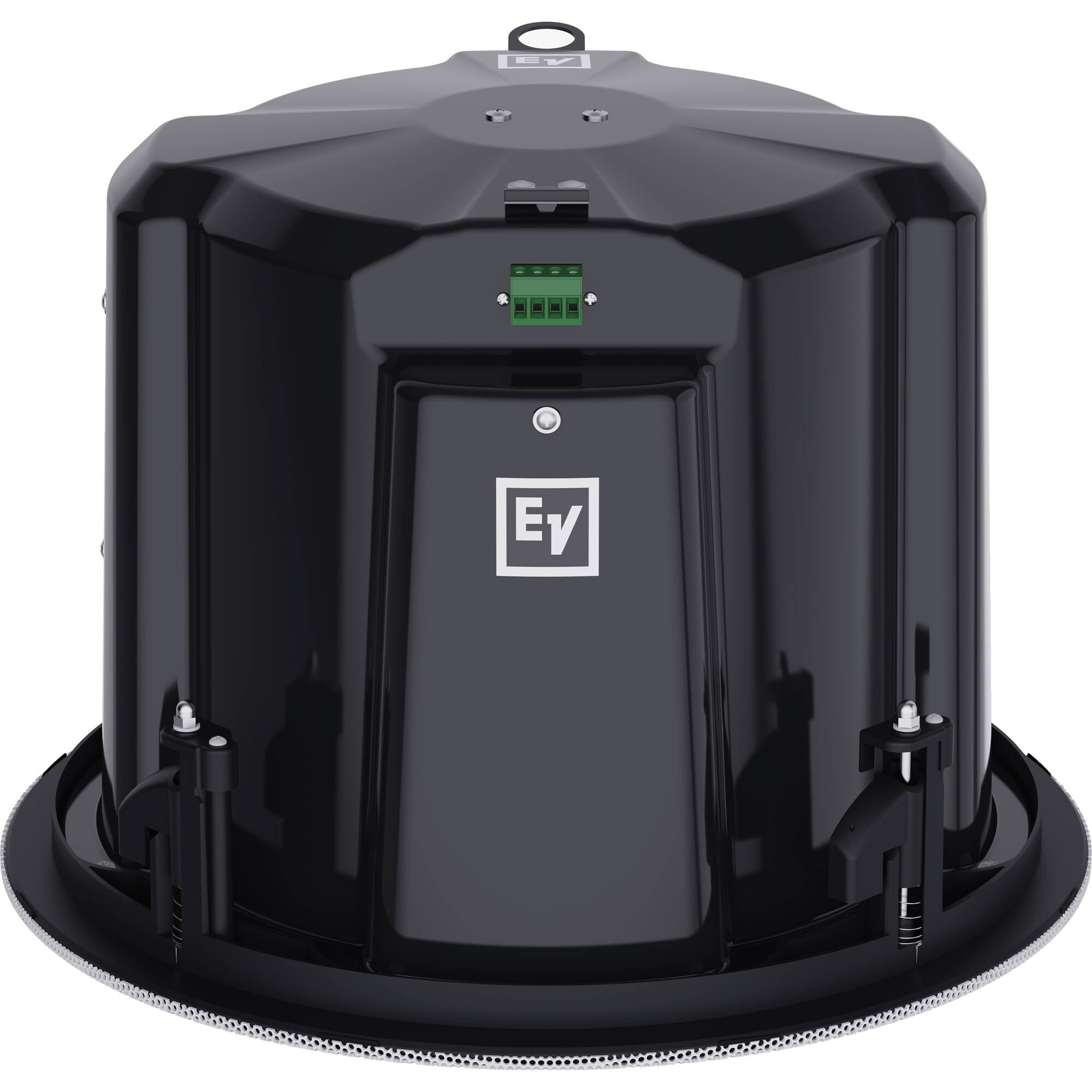

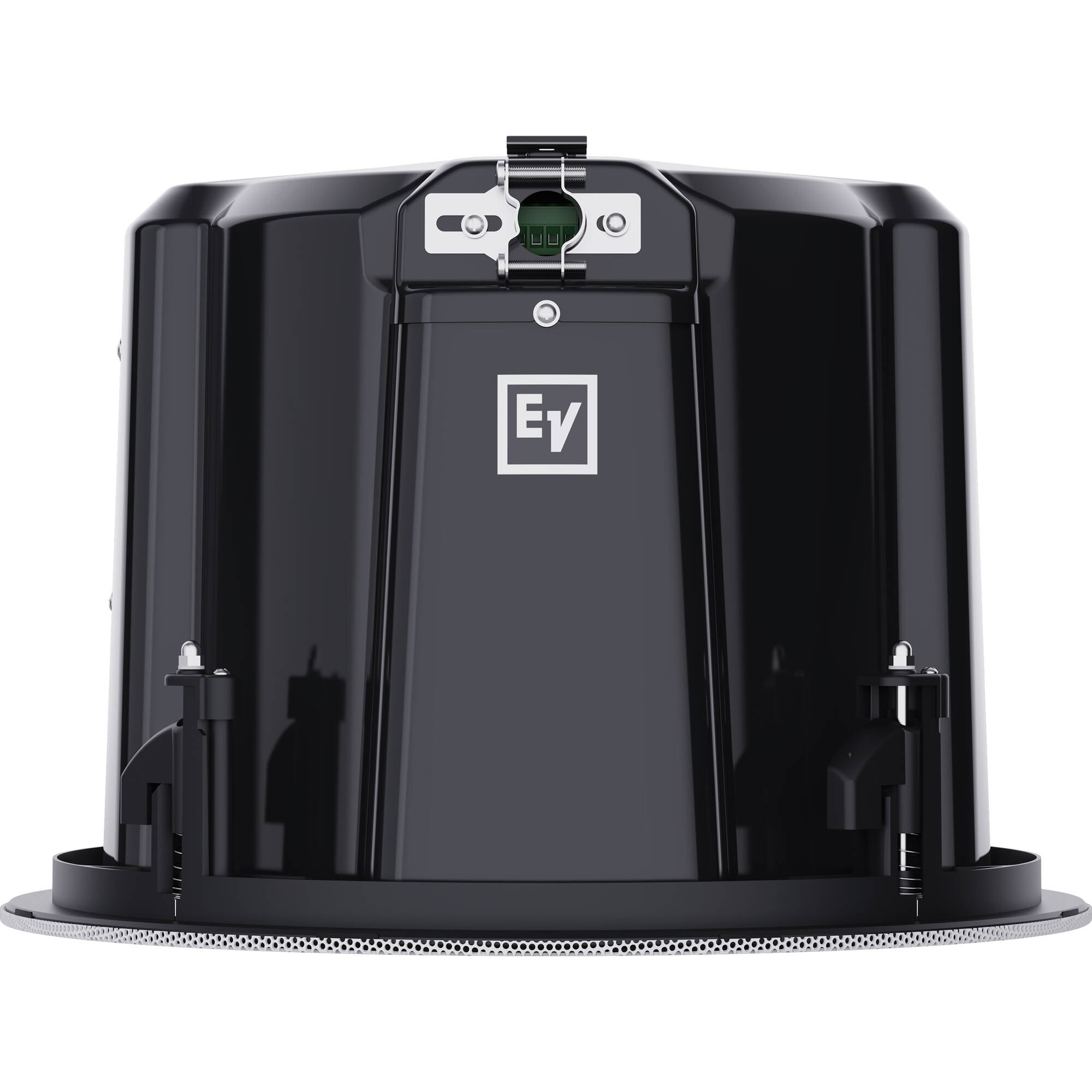

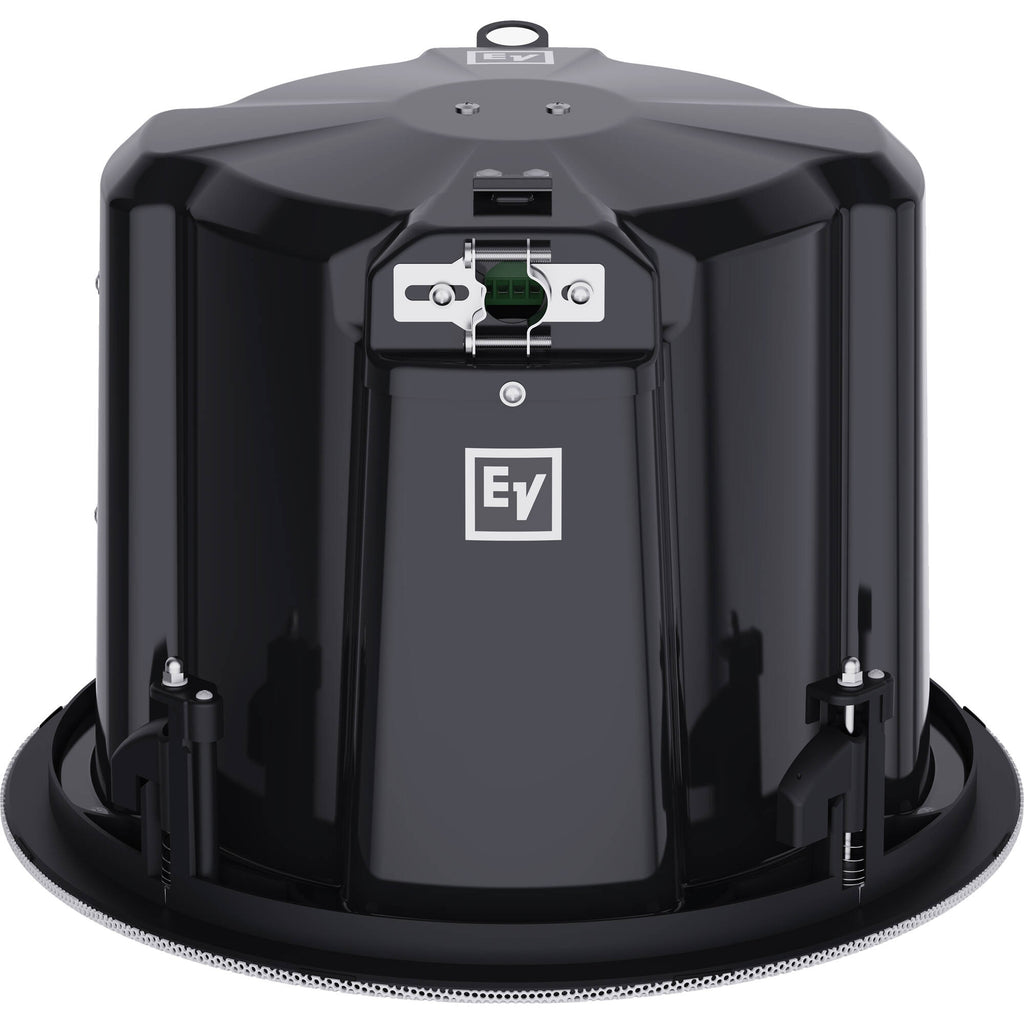

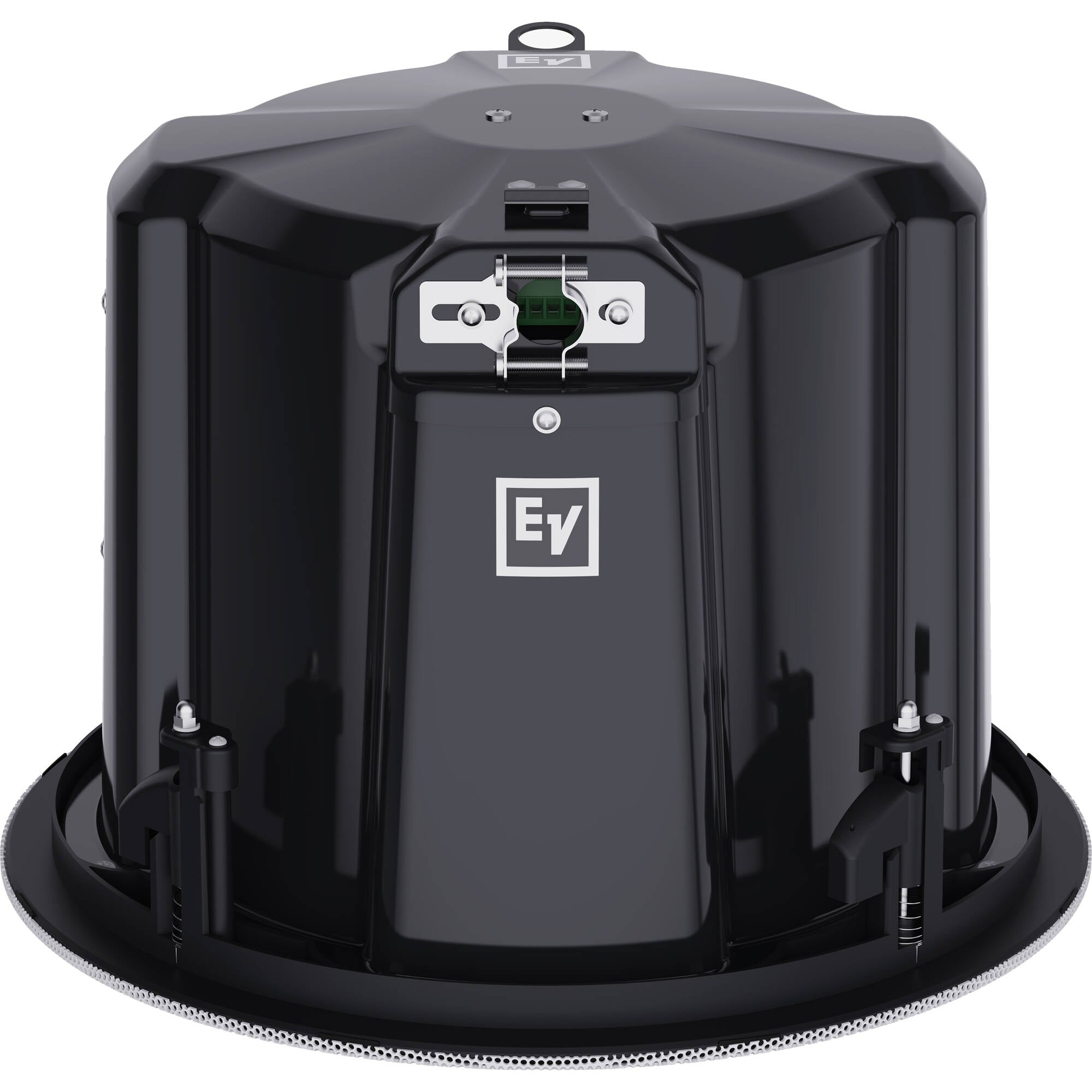

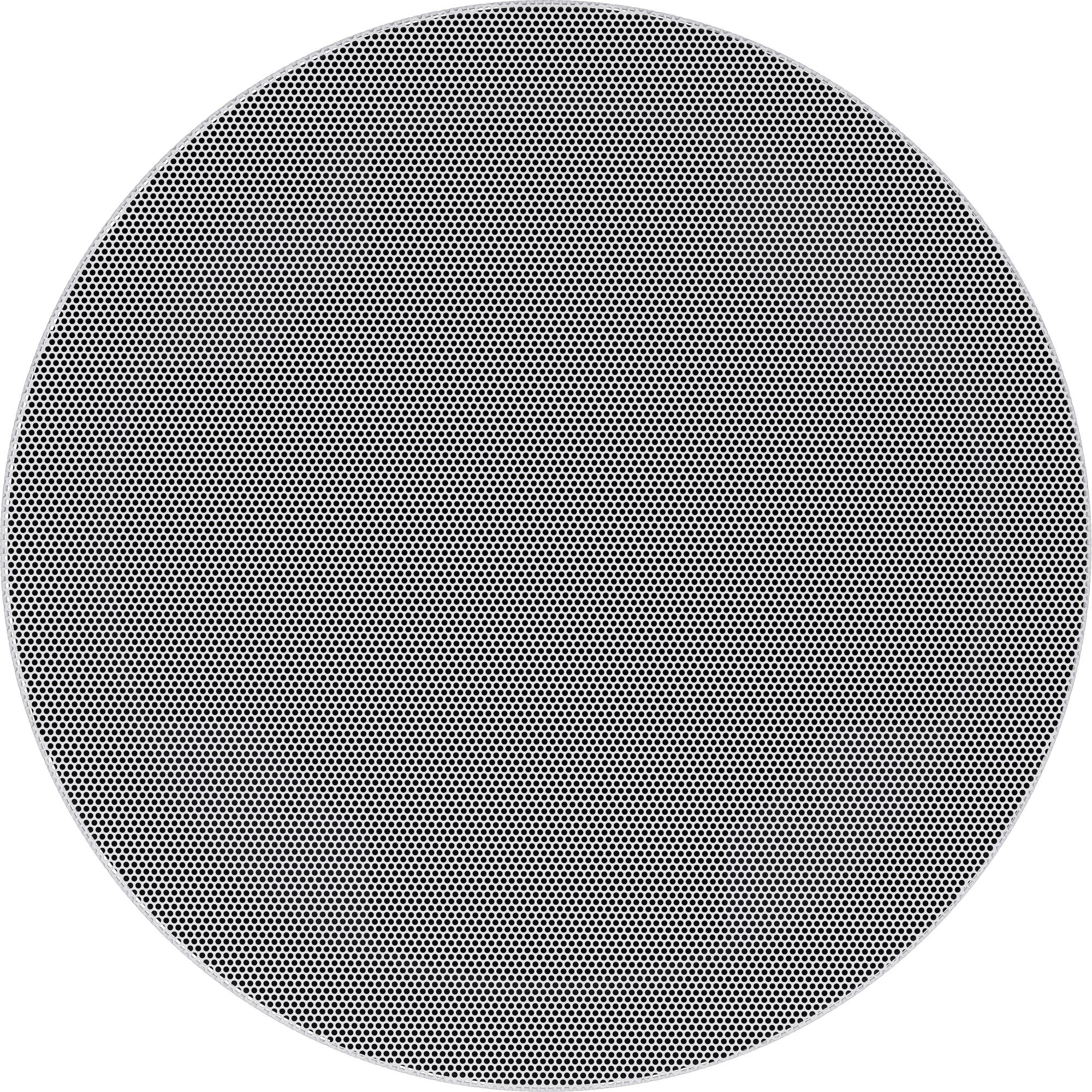

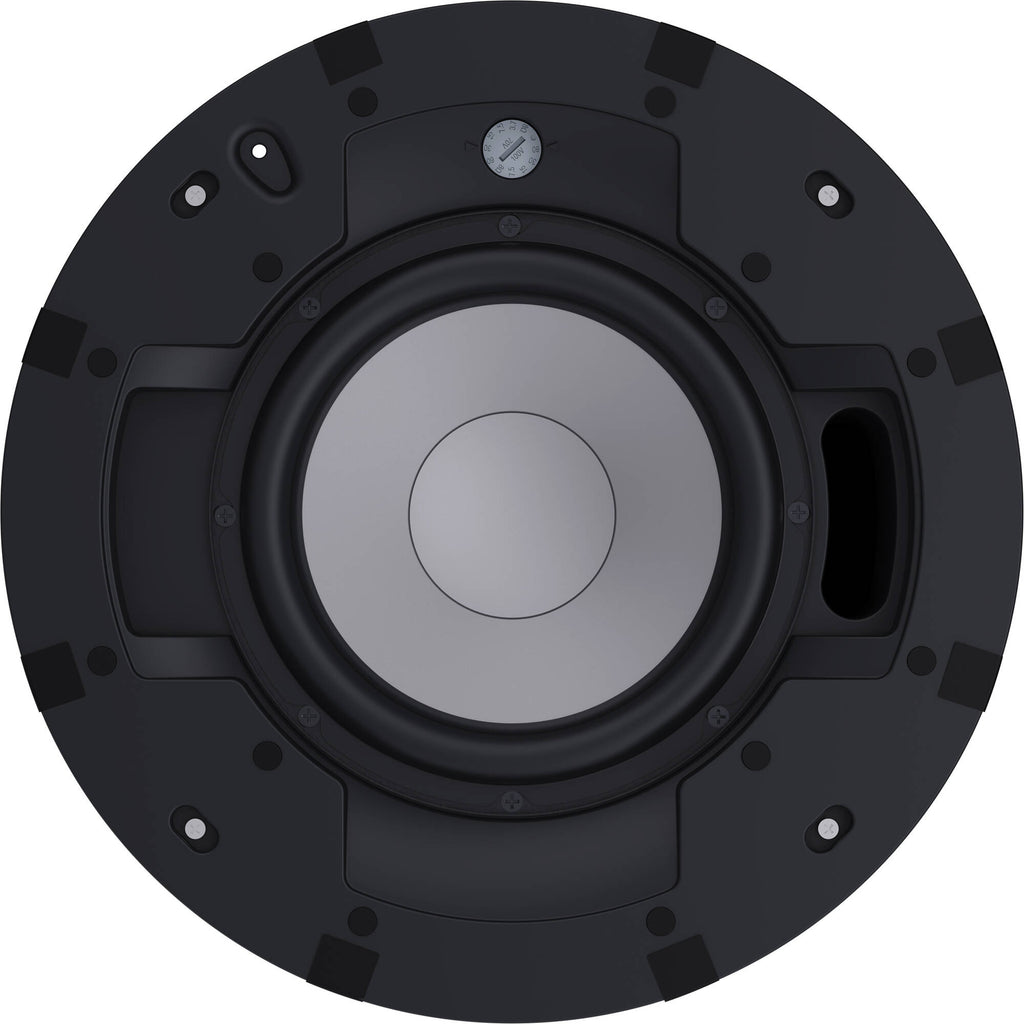

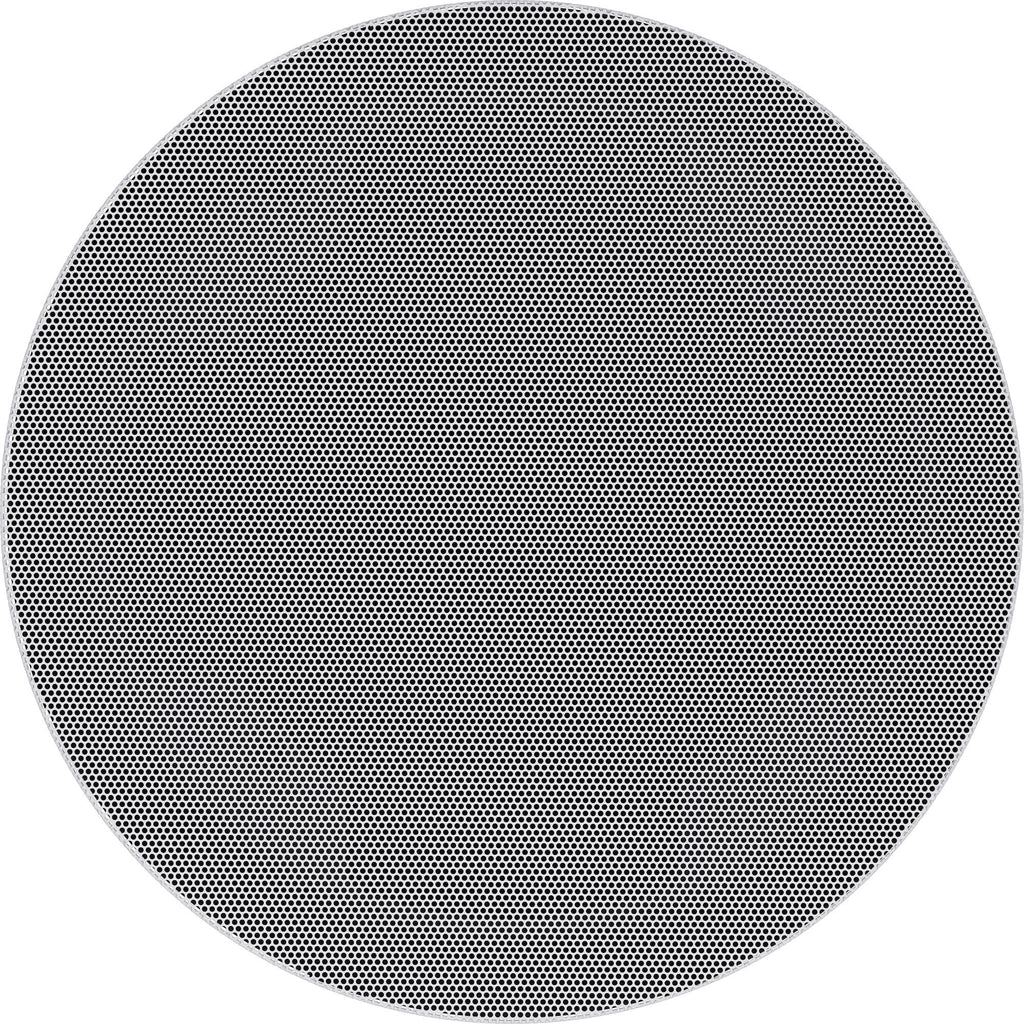

The EVID-C8.1S-G2 utilizes a transformer that offers a selection of 3.75 (70-V only), 7.5, 15, 30 or 60 watts delivered to the subwoofer system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminalcover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.

A mounting ring and a tile bridge are included for safe suspension of the EVID-C8.1S-G2 ceiling systems in a drop ceiling that uses mineral wool, or other fiberbased ceiling tiles.

The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.

Features:

• EZ-install system for quick, safe, and reliable installation.
• Bezel-less design with easy-attach grille.
• Front baffle wattage tap adjustment.
• Includes tile bridge and mounting ring for easy installation.
• UL 1480A, UL 2043 and CSA 22.2 205 certified.

Specifications:

• Frequency range (-10 dB) (Hz) 1: 45 Hz - 380 Hz
• Maximum SPL (continuous) (dB) 2: 113 dB
• Maximum SPL (peak) (dB) 2: 119 dB
• Sensitivity (1 W, 1 m) 3: 90 dB SPL 1 W, 1 m
• Coverage angle conical (°): 360°
• Power handling (continuous) (W) 4: 180 W
• Power handling (peak) (W) 4: 720 W
• Long term power handling (continuous) (W) 5: 150 W
• Long term power handling (peak) (W) 5: 600 W
• Nominal impedance (Ω) (Low Z): 8 Ω
• Transformer taps 70 V line (W): 60 W; 30 W; 15 W; 7.5 W; 3.75 W
• Transformer taps 100 V line (W): 60 W; 30 W; 15 W; 7.5 W
• LF transducer size (in): 8 in
• Material: Steel
• Grille material: Powder coated steel
• Connector type:
  4-pin Euroblock
  Input + Pass through
• Wire size (AWG): 12AWG (maximum)
• Wire diameter (mm2): 3.3 mm2 (maximum)
• Color: White; Customized colors
• Color (RAL): RAL 9003 Signal white
• Mounting cutout (in): 12.7 in
• Mounting cutout (mm): 322 mm
• Dimensions (Ø x D) (in): 13.9 in x 9.9 in
• Dimensions (Ø x D) (mm): 353 mm x 350.7 mm
• Mounting depth (in): 9.5 in
• Mounting depth (mm): 240 mm
• Ceiling thickness (in): 0.5 in - 1.5 in
• Ceiling thickness (mm): 12.5 mm - 38 mm
• Weight (lb) 7: 16 lb
• Weight (kg) 7: 7.25 kg
• Shipping weight (lb) 8: 40.8 lb
• Shipping weight (kg) 8: 18.5 kg
• IP rating: IP34
• Weatherization: Indoor
• Operating temperature (°F): 32 °F - 122 °F
• Operating temperature (°C): 0 °C - 50 °C
• Safety agency ratings:
  UL 1480A, safe for use in airhandling
  spaces per UL 2043, CSA
  22.2 205 certified, IEC 62638
