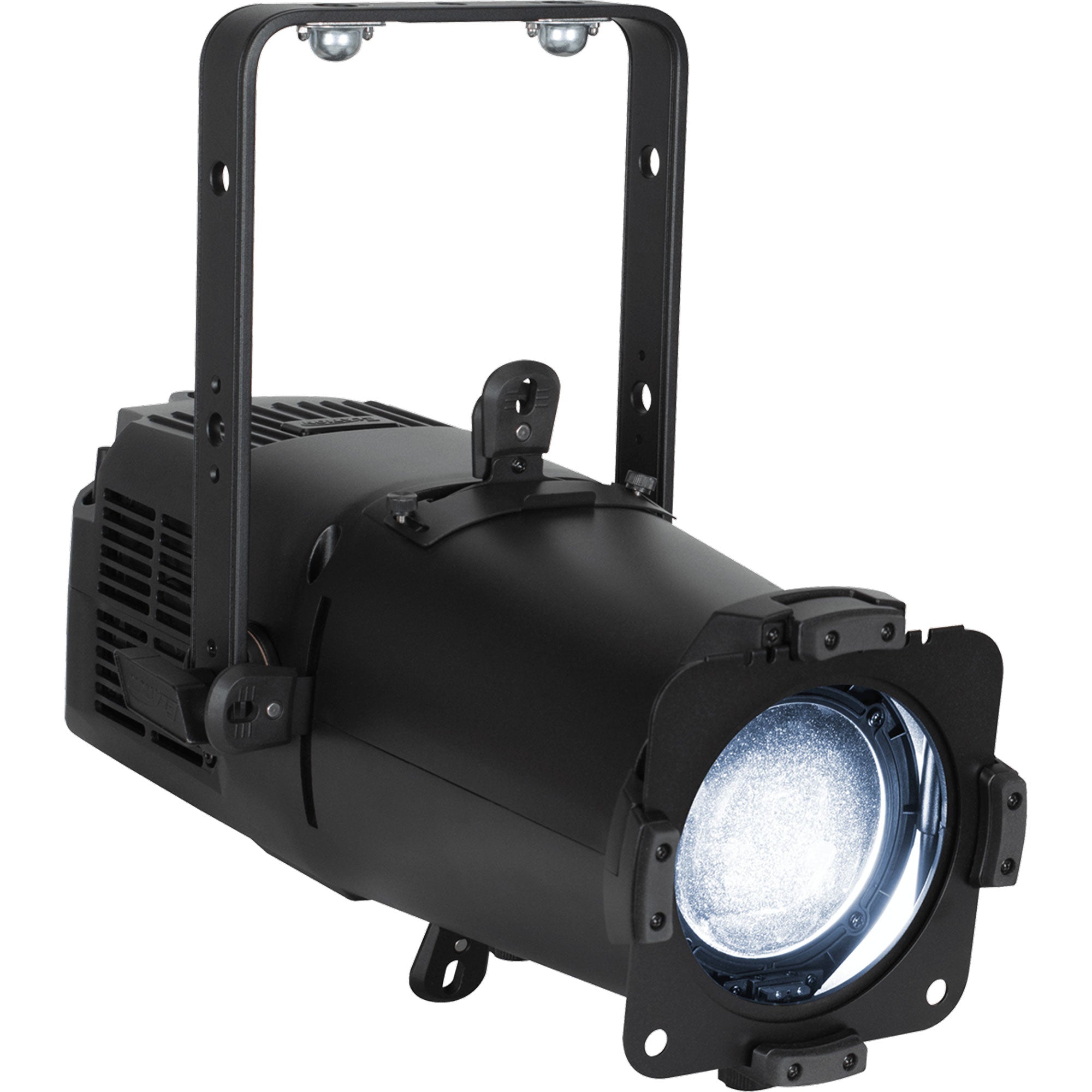

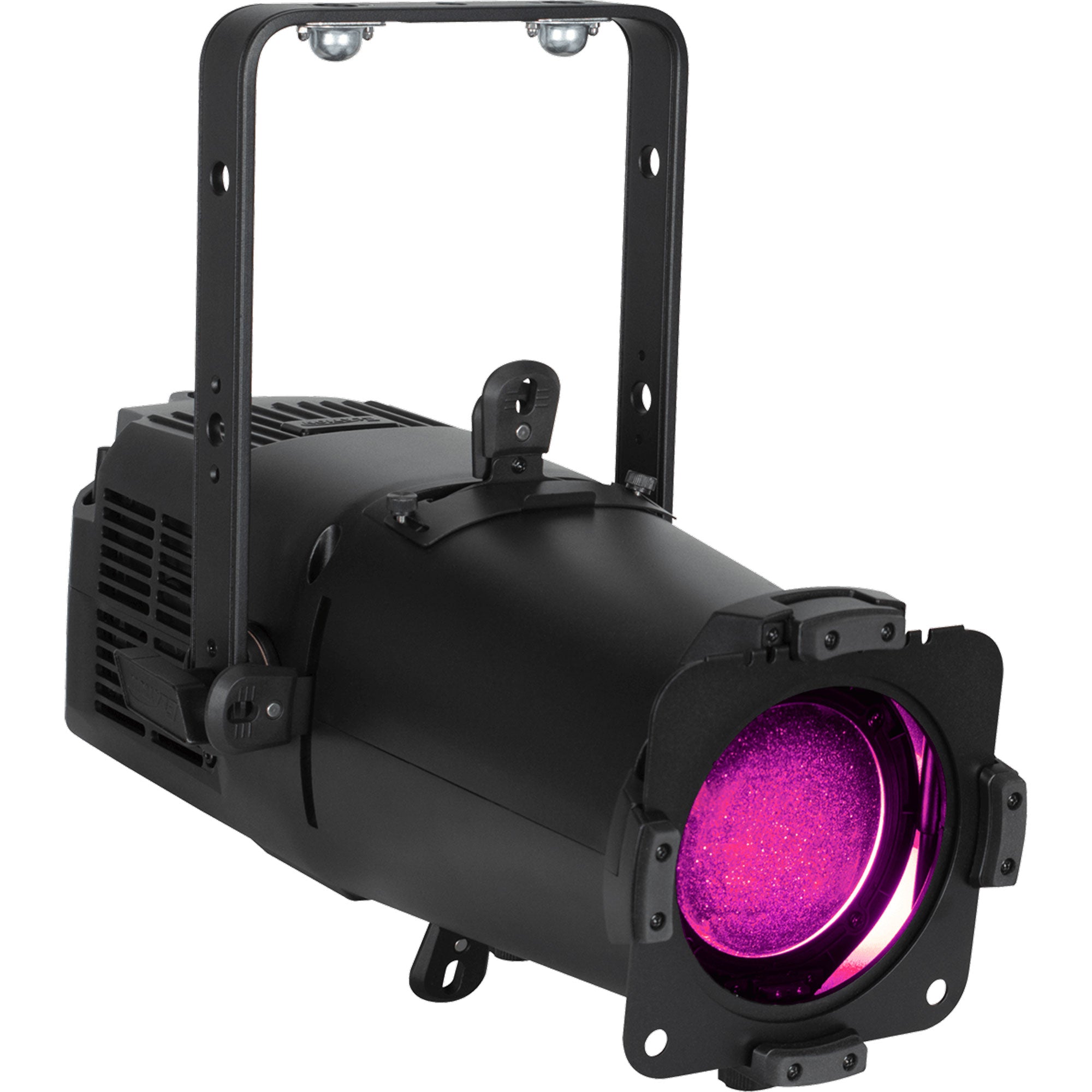

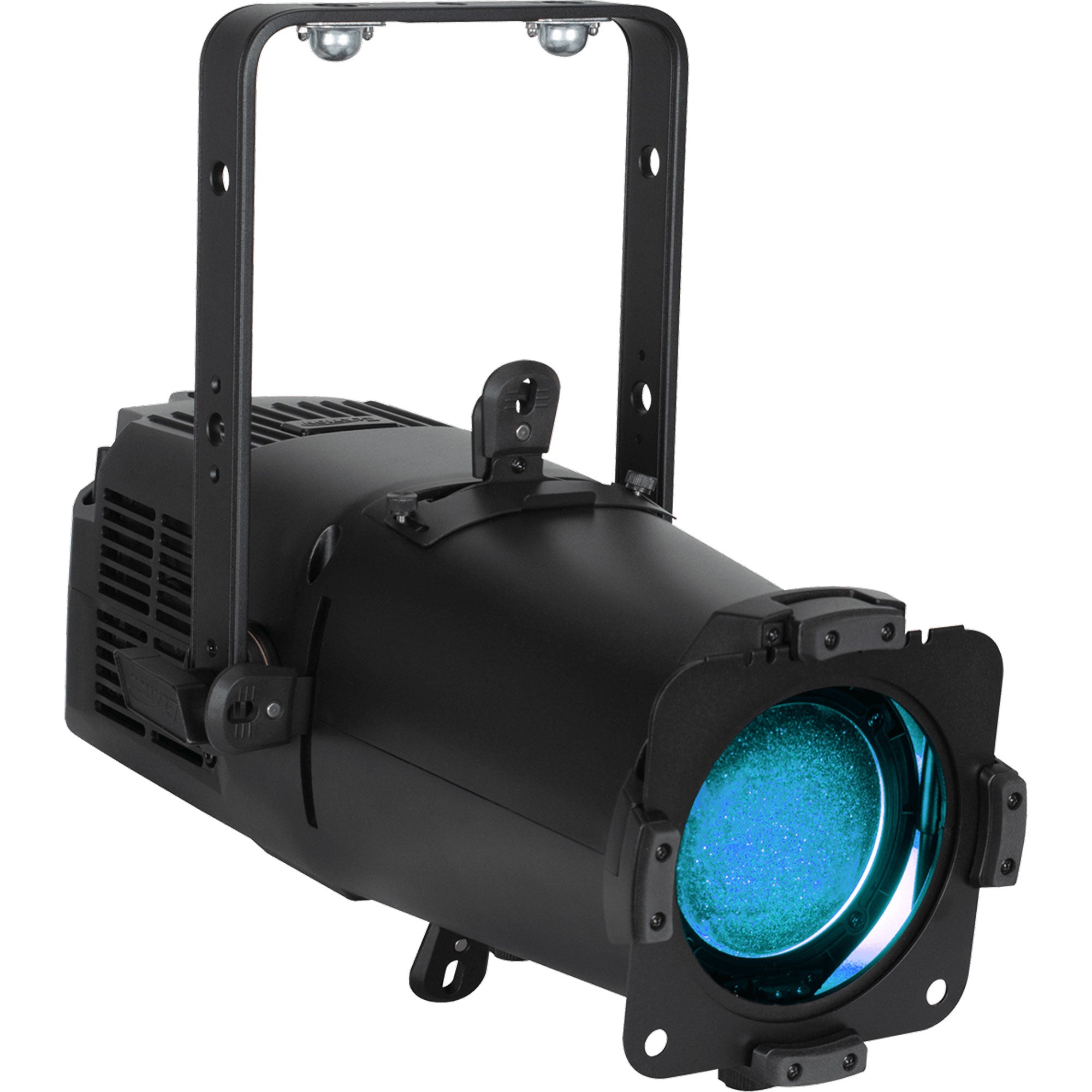

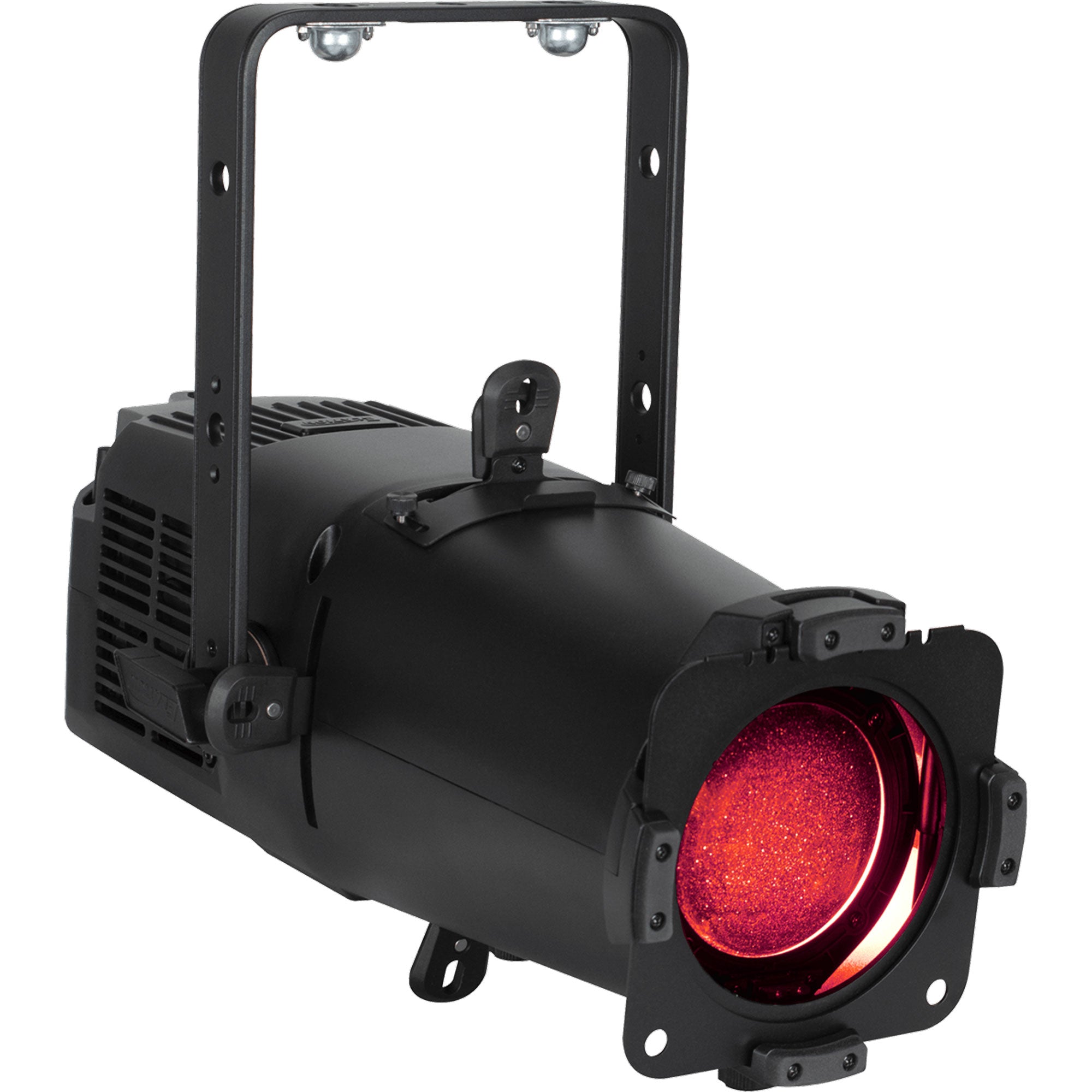

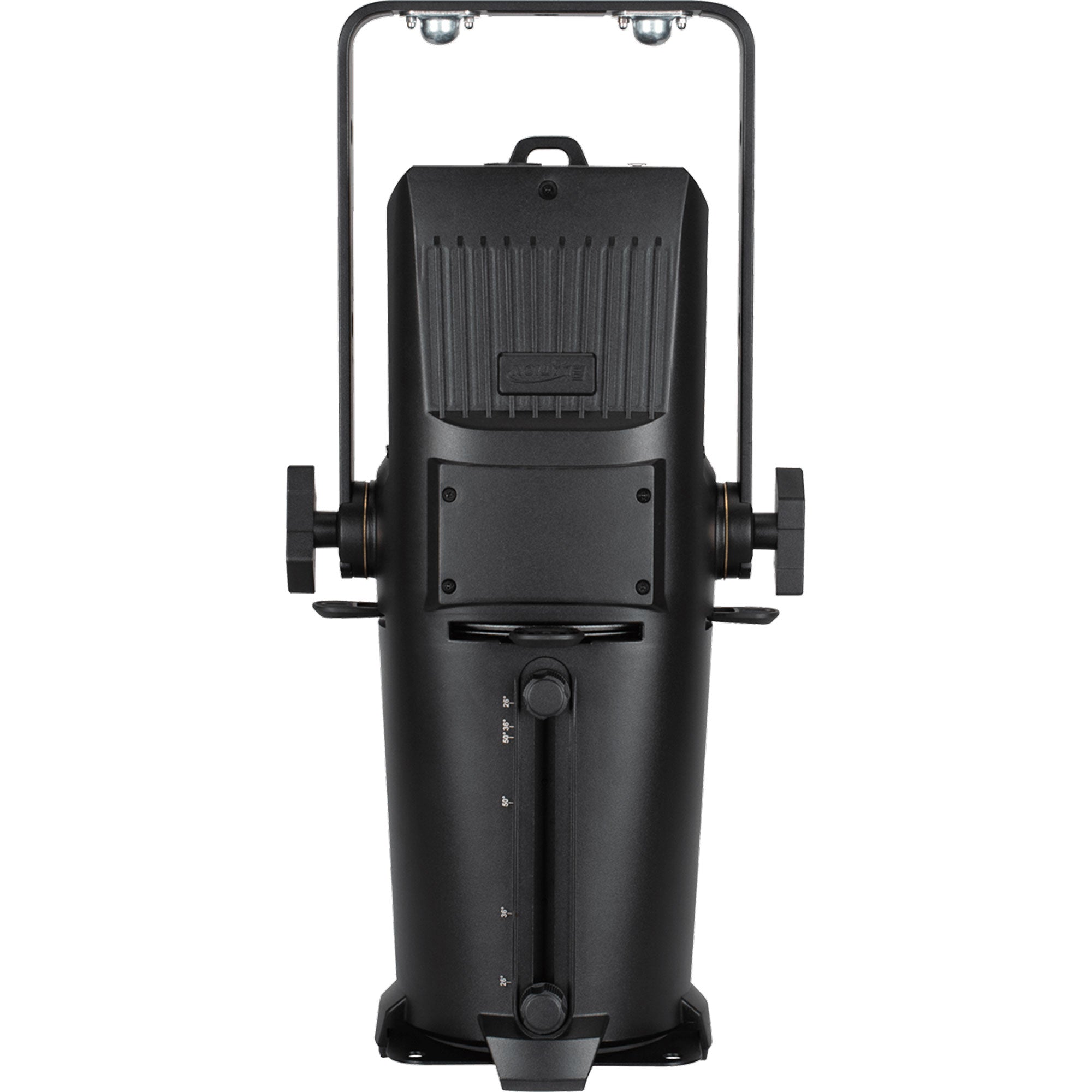

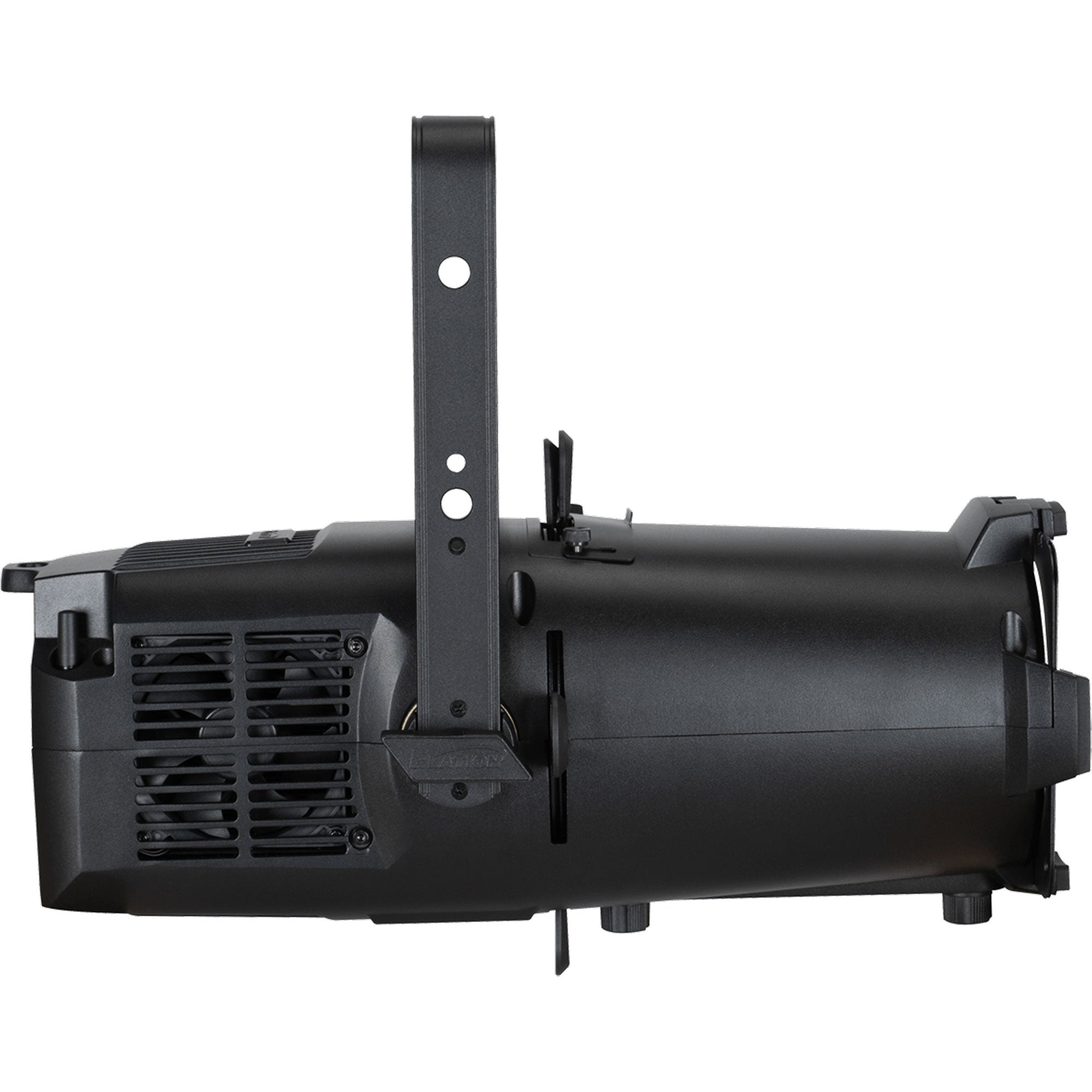

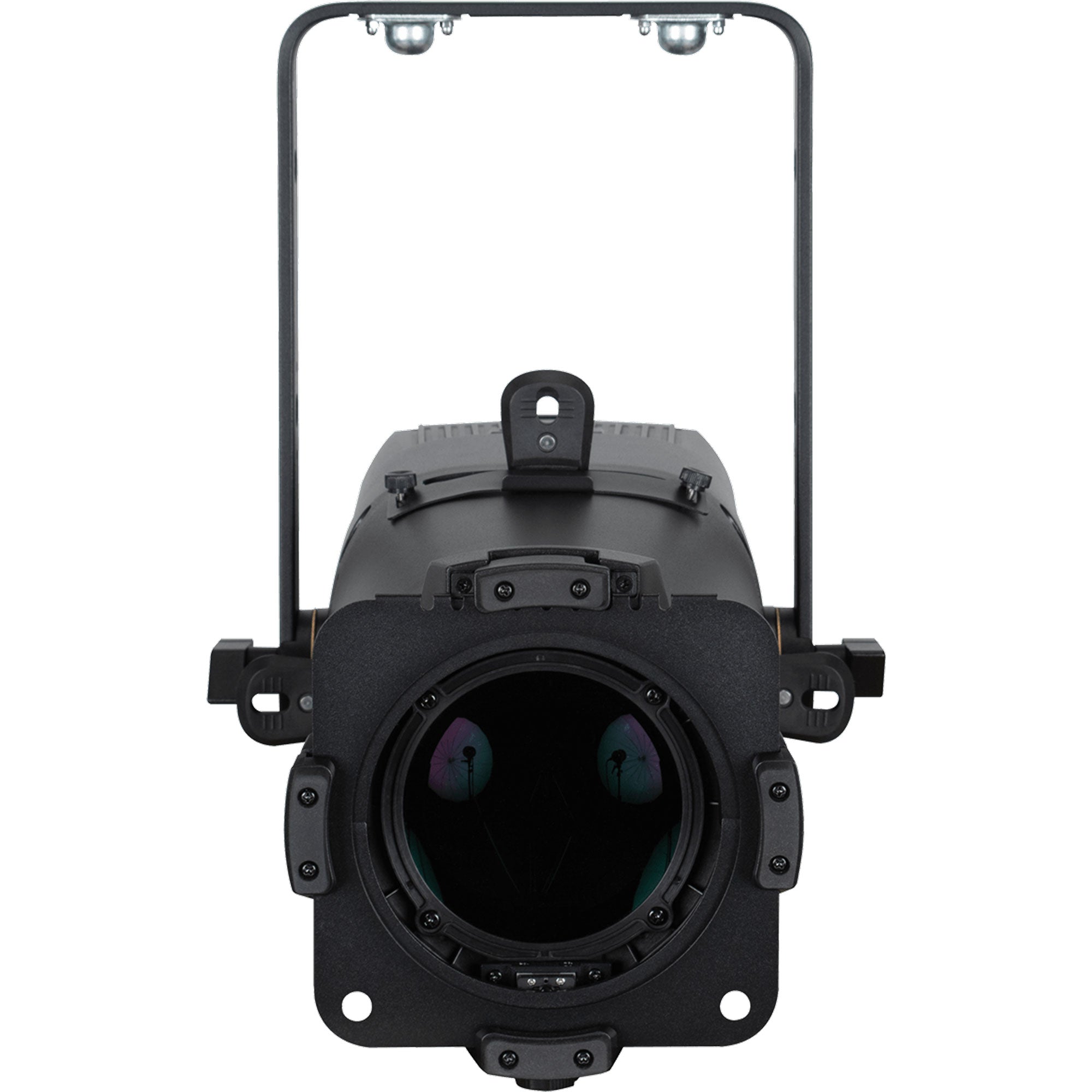

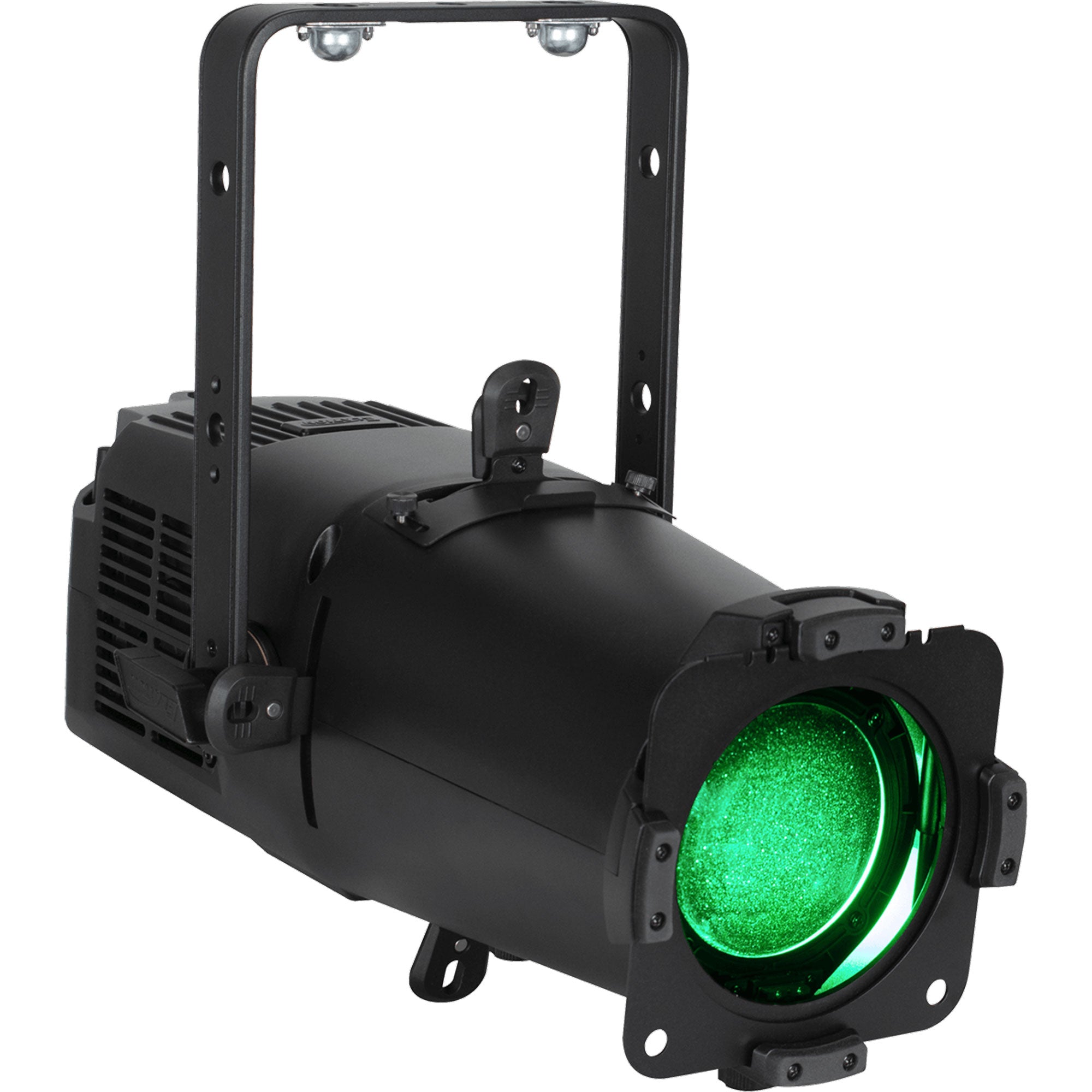

Elation KL PROFILE COMPACT 225W RGBMA LED Zooming Ellipsoidal Light Fixture

Designed for precision and performance, the KL PROFILE COMPACT brings unparalleled flexibility to any venue, utilizing a compact form factor that delivers exceptional results across diverse applications with vivid color and outstanding quality.

It's advanced optical engineering, combined with integrated 25–50-degree manual zoom and premium lens coatings, ensures sharp, flawless projections free from color shifts or aberrations, regardless of the zoom, focus, or framing position.

With it's advances control software the fixture offers a CRI of 94.9 and TLCI of 95 and achieves superb color accuracy with 16-bit variable CCT control. Coupled with the ultra-quiet Mute Mode for silent functionality, the KL PROFILE COMPACT redefines precision lighting for theaters, performance venues, and live events, allowing designers to perform brilliantly and broadcast their creative vision.

Features:

• 225W RGBMA LED Engine
• 5,880 Total Fixture Lumen Output (Sphere)
• Stand-Alone Control with Touch Encoder and OLED Display
• Smooth 16-bit Selectable Dimming Modes and Curves
• Remote LED Refresh Rate and Fan Speed Adjustment
• Manual Zoom Range from 25° to 50°
• RDM (Remote Device Management)
• NFC & Aria x2 Wireless Device Management

SPECIFICATIONS

• SOURCE
• 225W 6,000K RGBMA LED Engine
• 30,000 Hour Average LED Life*
• *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
• PHOTOMETRIC DATA
• Total Lumen Output:
• 5,880 (Integrating Sphere)
• TBA (Goniometer)
• CRI 94.9
• TLCI 95
• Zoom Range 25° - 50°
• EFFECTS
• Manual Zoom Focus
• 4 Manual Framing Shutters
• Variable Strobe Rate: 1- 20Hz
• Dim-to-Warm/ Red Shift Emulation
• Variable 16-bit Dimming Modes and Curves
• COLOR
• RGBMA Color Array
• CMY Emulation
• 16bit Fully Variable CCT 2400K - 8500K
• Green/Magenta Shift
• Virtual Gel Swatch Book
• GOBOS
• Accepts 1x Size 'M' Gobo (Metal Gobo Holder Included)

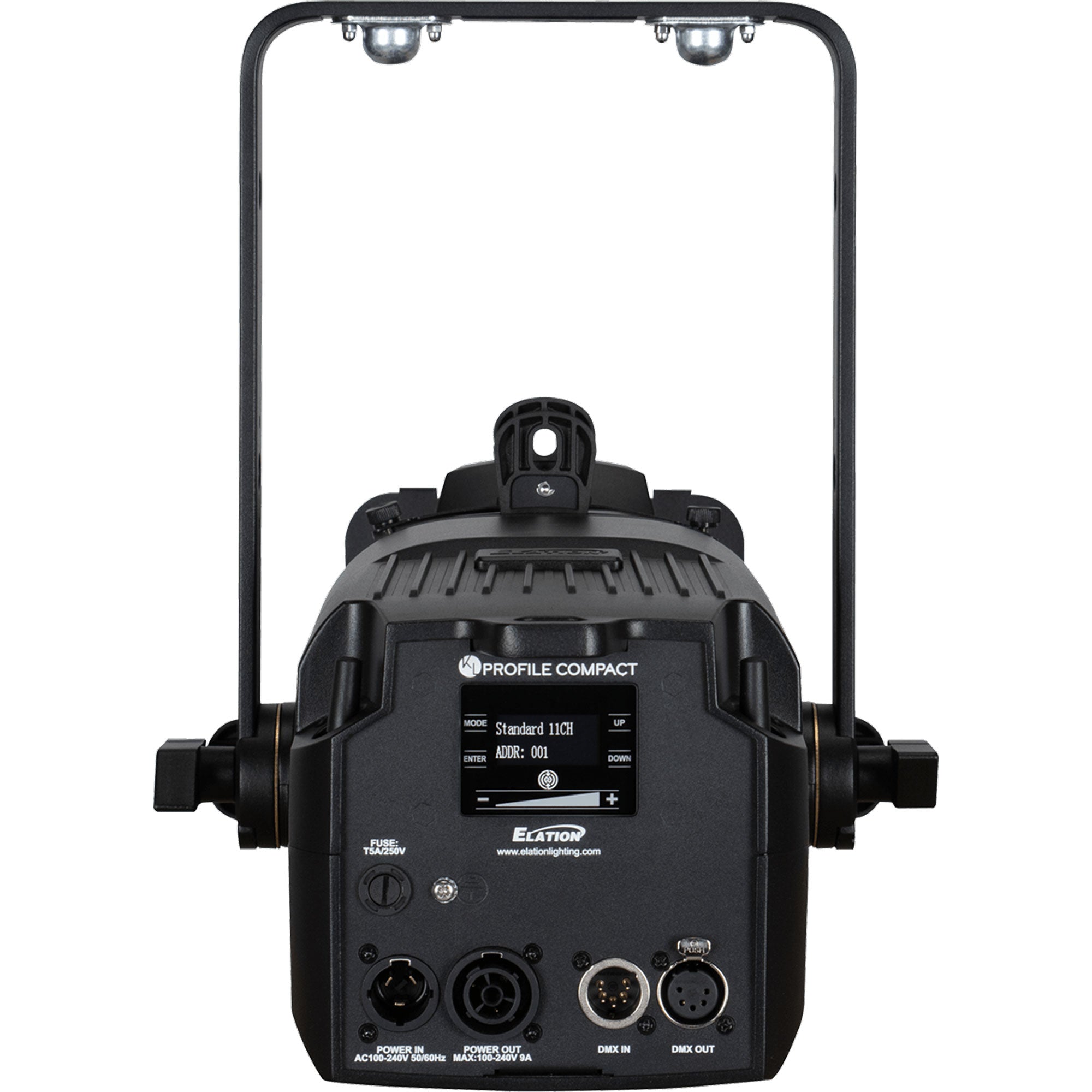

• CONTROL / CONNECTIONS
• 10 DMX Channel Modes (1, 3, 5, 6, 7, 10, 11 19, 9, 15)
• Manual and DMX Controlled Dimmer and Color
• Single Touch Bar Encoder
• 4 Button Control Panel, LED Display
• RDM (Remote Device Management)
• Aria x2 Wireless Device Management
• NFC Configuration
• IP65 5pin DMX and IP65 Locking Power Cable In/Out
• SIZE / WEIGHT
• Length: 18.6” (472mm)
• Length (Yoke 0°): 21.1" (536mm)
• Width: 10.3" (262mm)
• Height (Fixture Body): 10.1" (256mm)
• Height (Yoke 90°): 15.3" (394mm)
• Weight: 15.4lbs (7.0kg)
• 6.25" Front Accessory Slot
• ELECTRICAL / THERMAL
• AC 100-240V - 50/60Hz
• 290W Max Power Consumption
• Power Thru Capacity: 9A (4 units @115V, 10 units @240V)
• 5°F to 113°F (-15°C to 45°C)
• BTU/hr (+/- 10%) 988.9
• INCLUDED ITEMS
• Gel Frame
• Size 'M' Metal Gobo Holder
• Safety Cable
• IP65 Locking Power Cable
• OPTIONAL ACCESSORIES
• Omega Bracket
• APPROVALS / RATINGS
• CE | cETLus | FCC | UKCA | IP20
• FIRMWARE UPDATES
• Current Version: V1.03
• Click HERE for software update
• Specifications and documentation are subject to change without notice.
