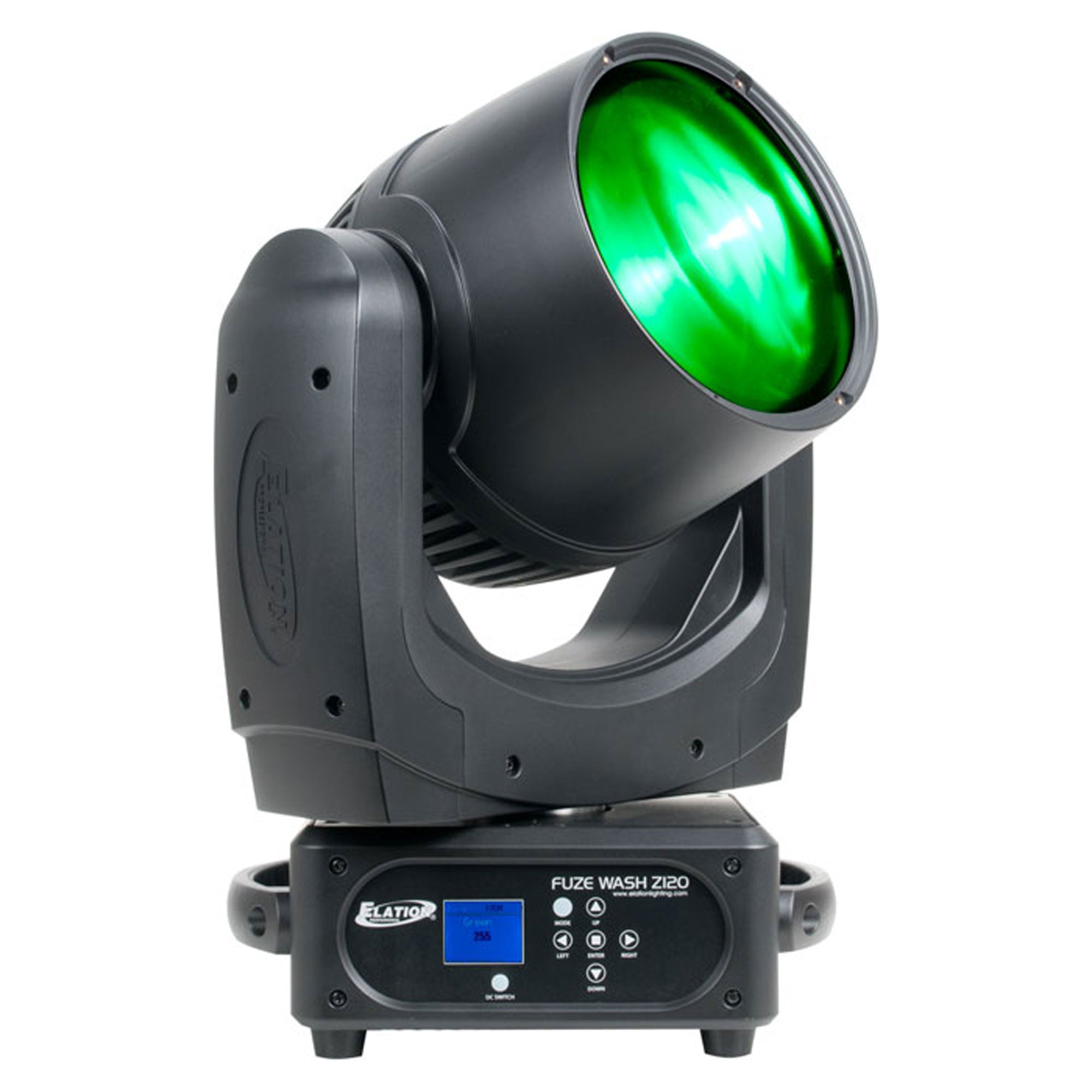

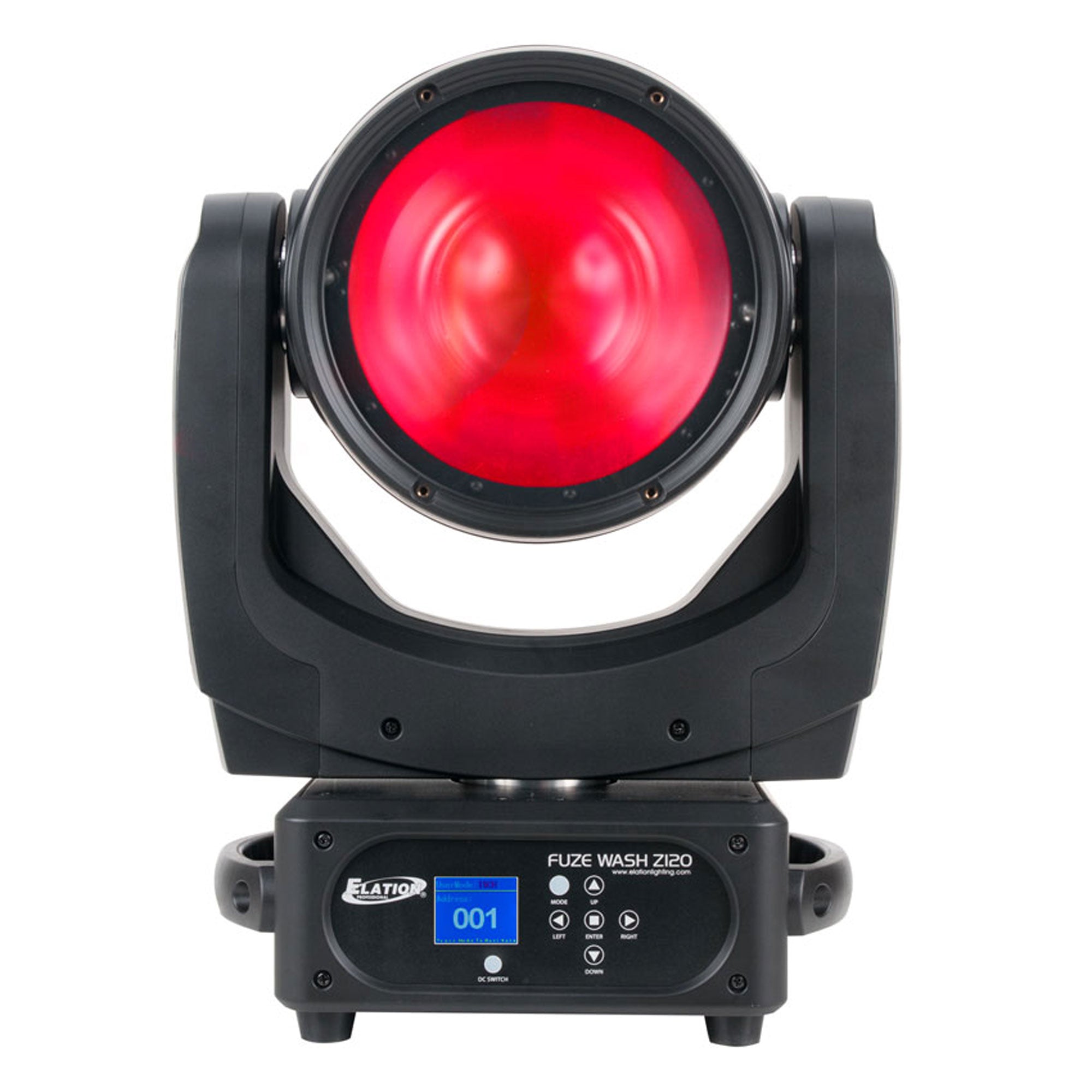

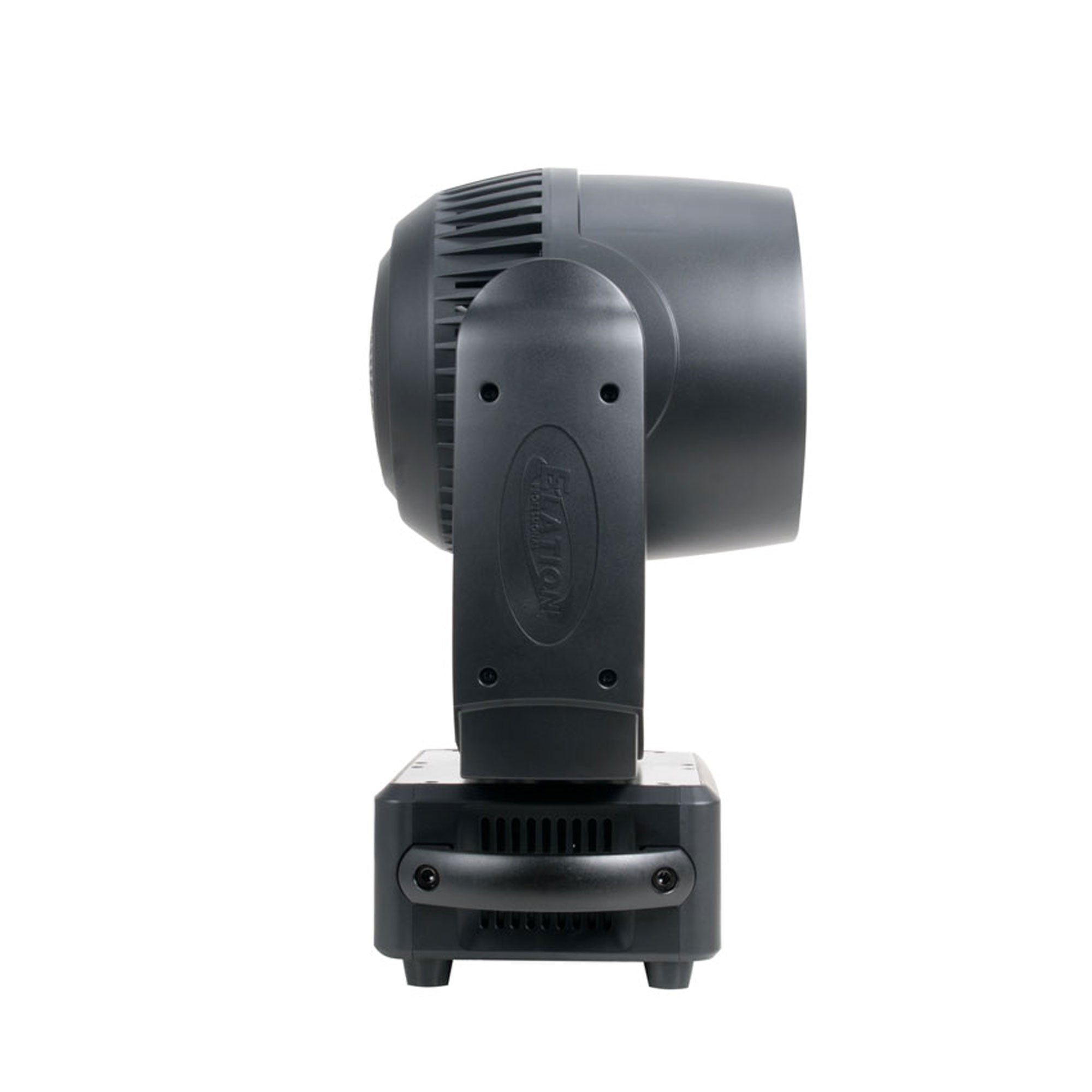

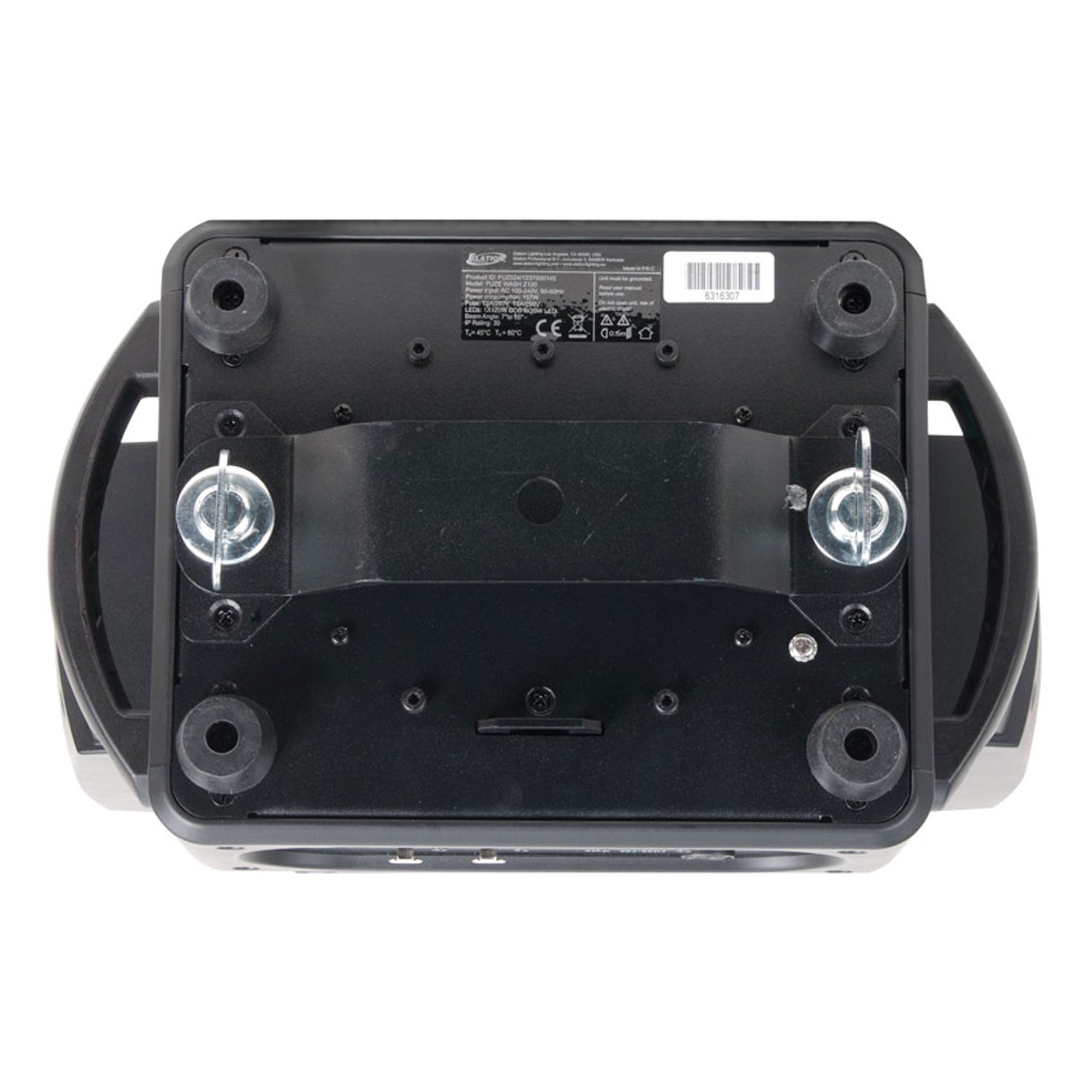

Elation FUZE WASH Z120 RGBW COB LED Moving Head Par Light Fixture (120W)

120 Watt Quad Color RGBW COB LED Moving Head Par Lighting Fixture

The FUZE WASH Z120 is a single source par moving head luminaire with a 120W Quad Color RGBW COB LED. Features 7° to 55° motorized zoom, pan and tilt, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, DMX and power in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).

Specifications:

• SOURCE
• 120W RGBW COB LED
• 100,000 Hour Average LED Life*
• *May vary depending on several factors including but not limited to:
• Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
• PHOTOMETRIC DATA
• 10,640 LUX 988 FC @9.8' (3m) (7° Full ON)
• 692 LUX 64 FC @9.8' (3m) (55° Full ON)
• COLOR
• RGBW
• EFFECTS
• RGBW Color Mixing
• 7° - 55° Beam Zoom Range
• Electronic Strobe, Dimming and Variable Dimming Curves
• 64 Color Presets and 14 Unique Color Macros
• CONTROL / CONNECTIONS
• 4 DMX Channel Modes (19 Total Channels)
• 7 Button Control Panel and LCD Menu Display
• RDM (Remote Device Management)

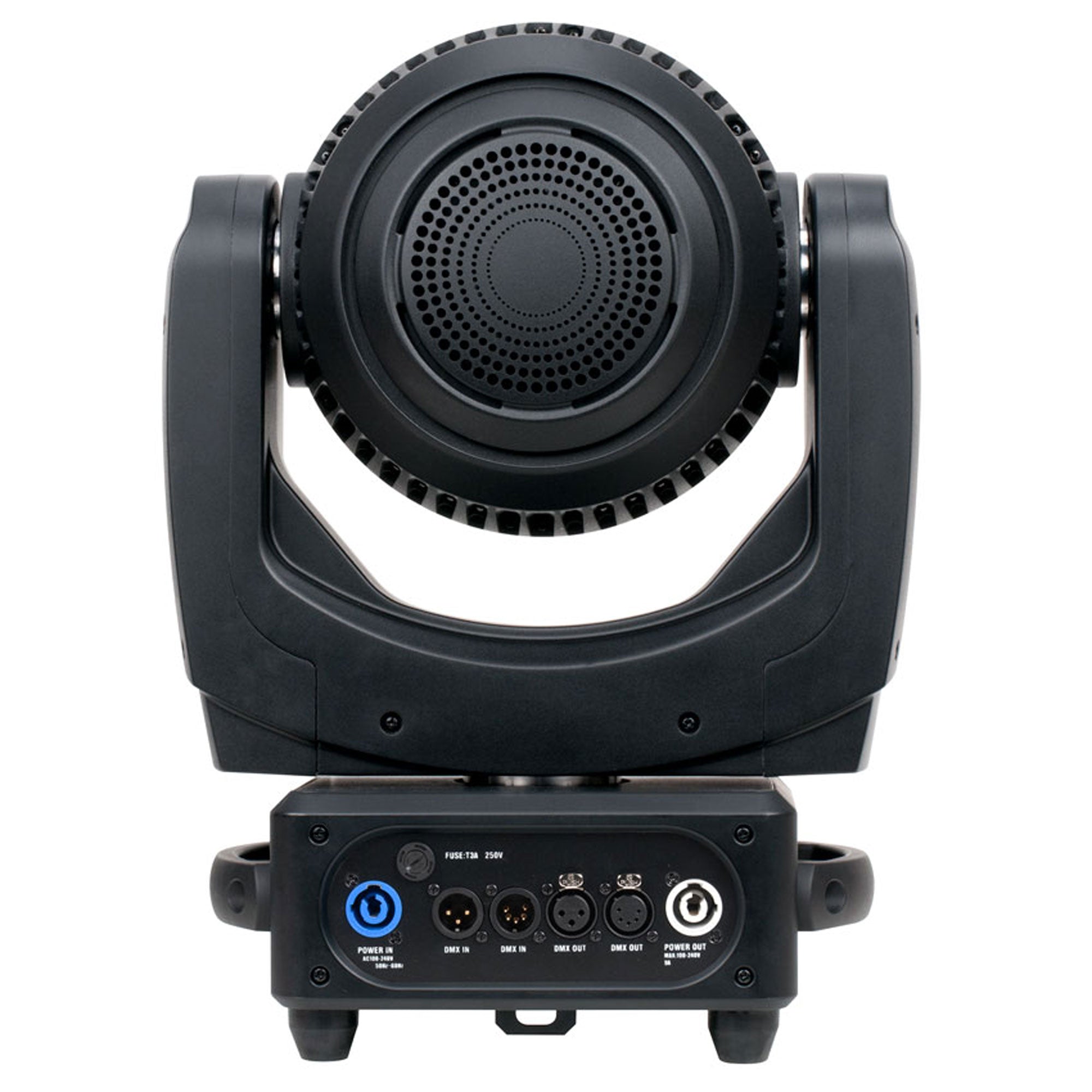

• 3pin/5pin DMX and Locking Power Cable In/Out
• With Wired Digital Communication Network
• SIZE / WEIGHT
• Length: 13.3" (338mm)
• Width: 9.0" (229mm)
• Vertical Height: 18.2" (466mm)
• Weight: 22 lbs. (10 kg)
• ELECTRICAL / THERMAL
• AC 110-240V - 50/60Hz
• 157W Max Power Consumption
• Multiple Unit Power Linking
• 5°F to 113°F (-15°C to 45°C)
• BTU/hr (+/- 10%) 535.37
• APPROVALS / RATINGS
• CE | cETLus | IP30
• OPTIONAL ACCESSORIES:

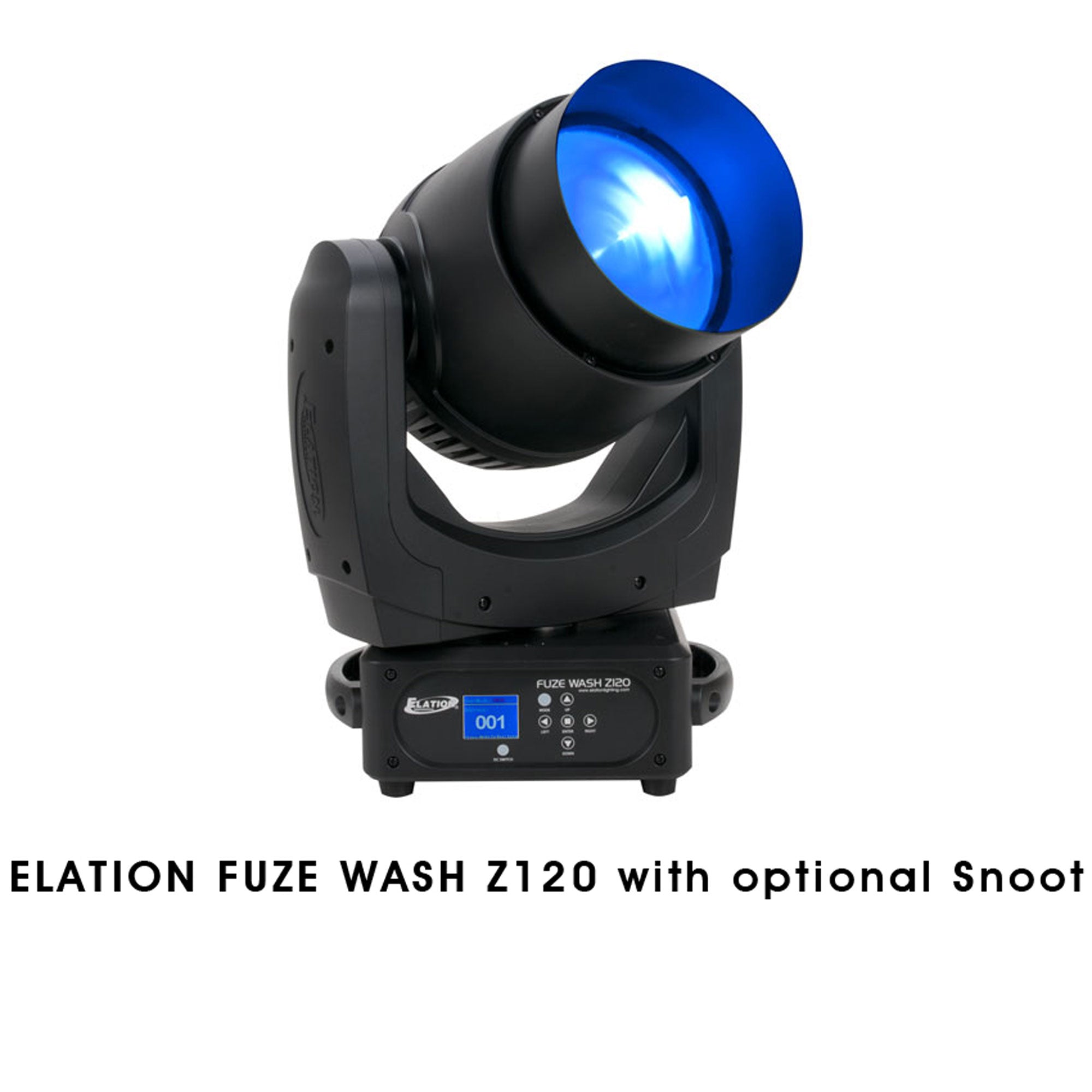

• FW120SNOOT - Snoot
• FIRMWARE UPDATES
• Current Version: V1.18
• Click HERE for software updates.
• Specifications and documentation subject to change without notice.
