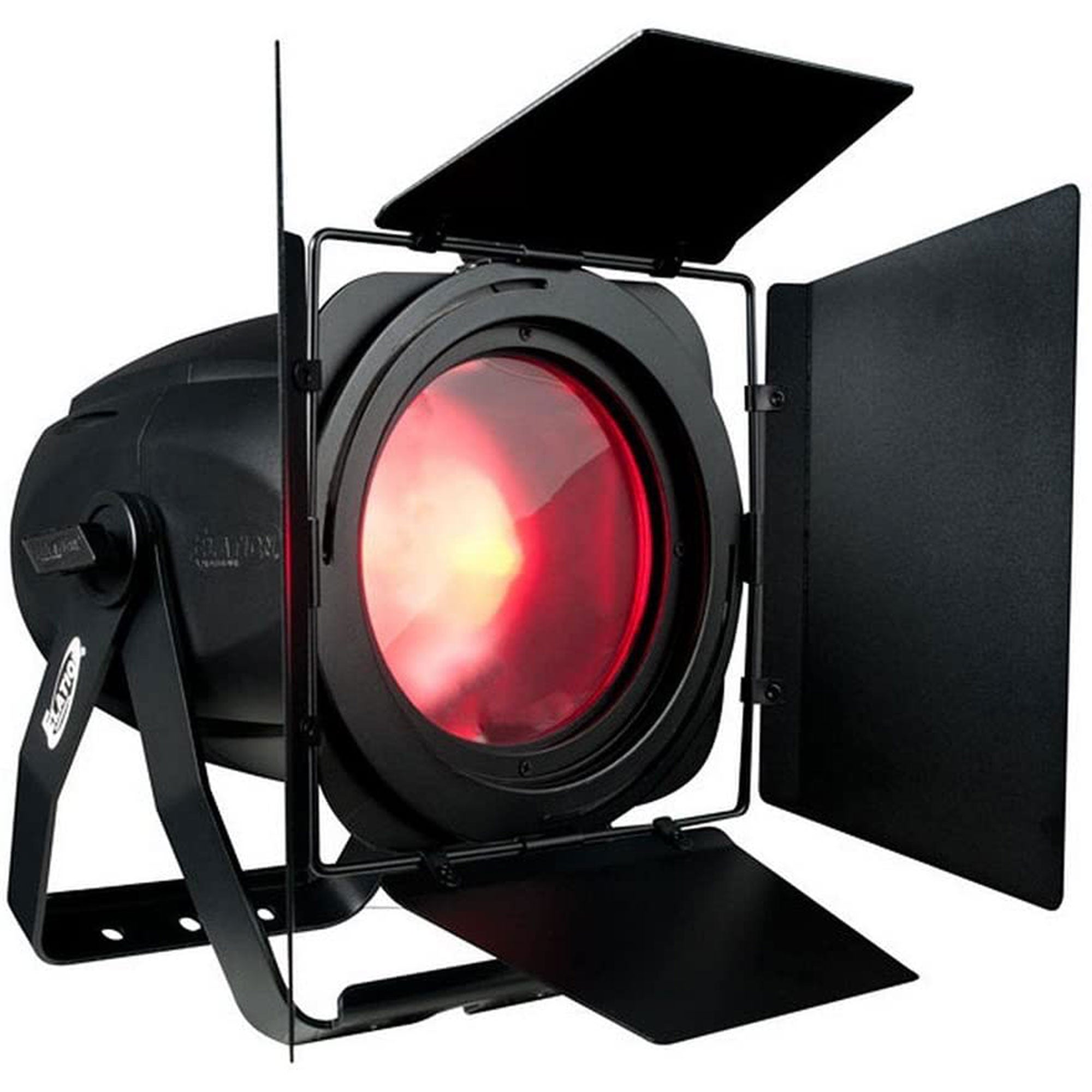

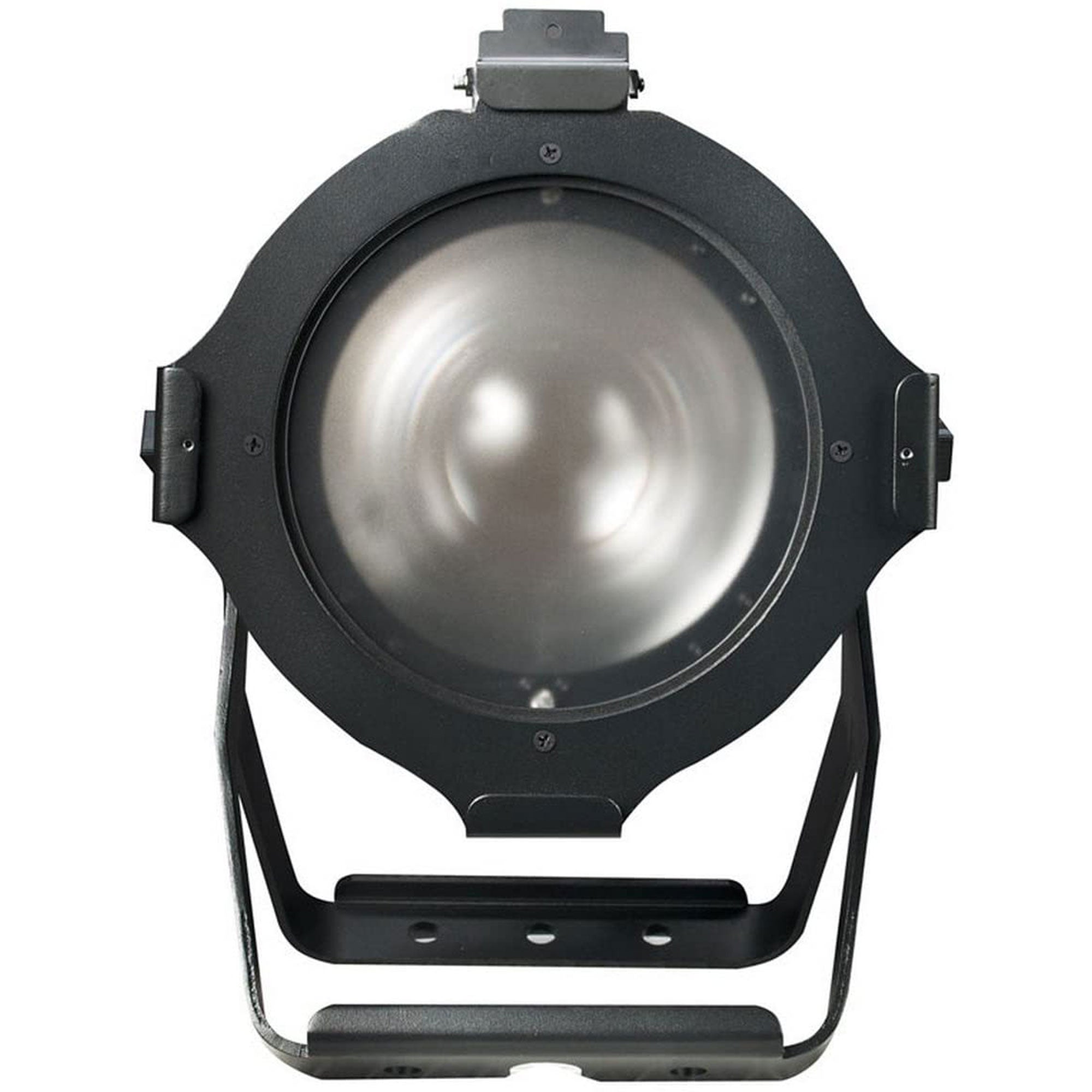

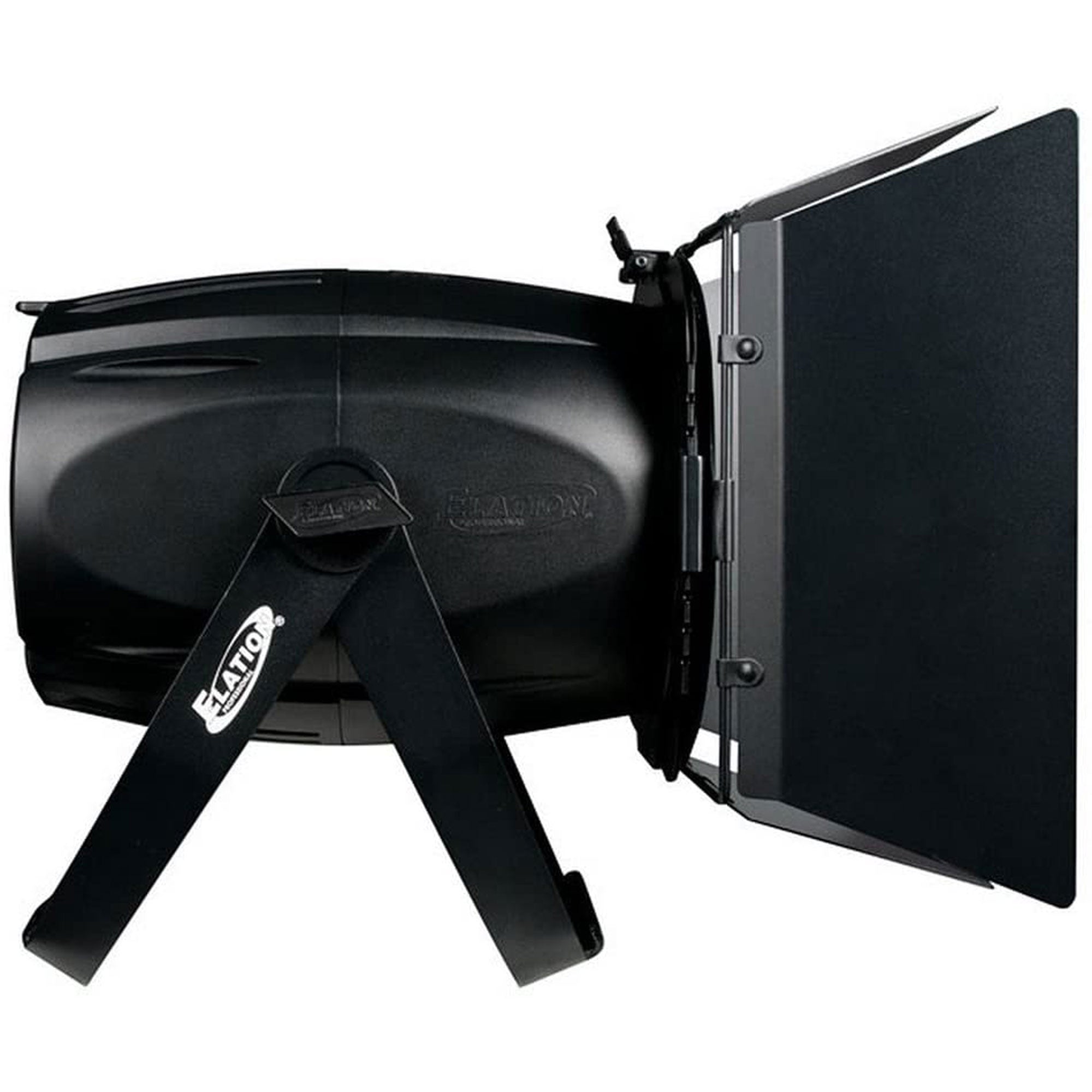

Elation FUZE PAR Z175 RGBW COB LED Par Light Fixture with Zoom

175 Watt Quad Color RGBW COB Par with Motorized Zoom

The FUZE PAR Z175 is a single source par with zoom. Featuring a 175W RGBW COB LED engine, 8° to 35° motorized zoom, an advanced cooling system, smooth RGBW color mixing, 64 color presets and 14 unique color macros, electronic strobe and 16-bit variable dimming curve modes, flicker free operation for TV and FILM, 3/5pin DMX and Locking Power Cable in/out connections, (4) button LCD control display panel, integrated dual rigging yokes, and a multi-voltage universal auto switching power supply (100-240v). Gel frame and barn doors included.

Specifications:

• SOURCE
• 175W RGBW COB LED
• 50,000 Hour Average LED Life*
• *May vary depending on several factors including but not limited to:
• Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
• PHOTOMETRIC DATA
• 15,026 LUX 1396 FC @6.6 ft (2m) (Full ON 8°)
• 3,481 LUX 323 FC @6.6 ft (2m) (Full ON 35°)
• EFFECTS
• 8° - 35° Motorized Zoom
• 64 Color Presets and Color Macro Programs
• Electronic Strobe
• 16-bit Variable Dimming Curve Modes
• COLOR
• RGBW
• CONTROL / CONNECTIONS
• 12 DMX Channel Modes (14 Total Channels)

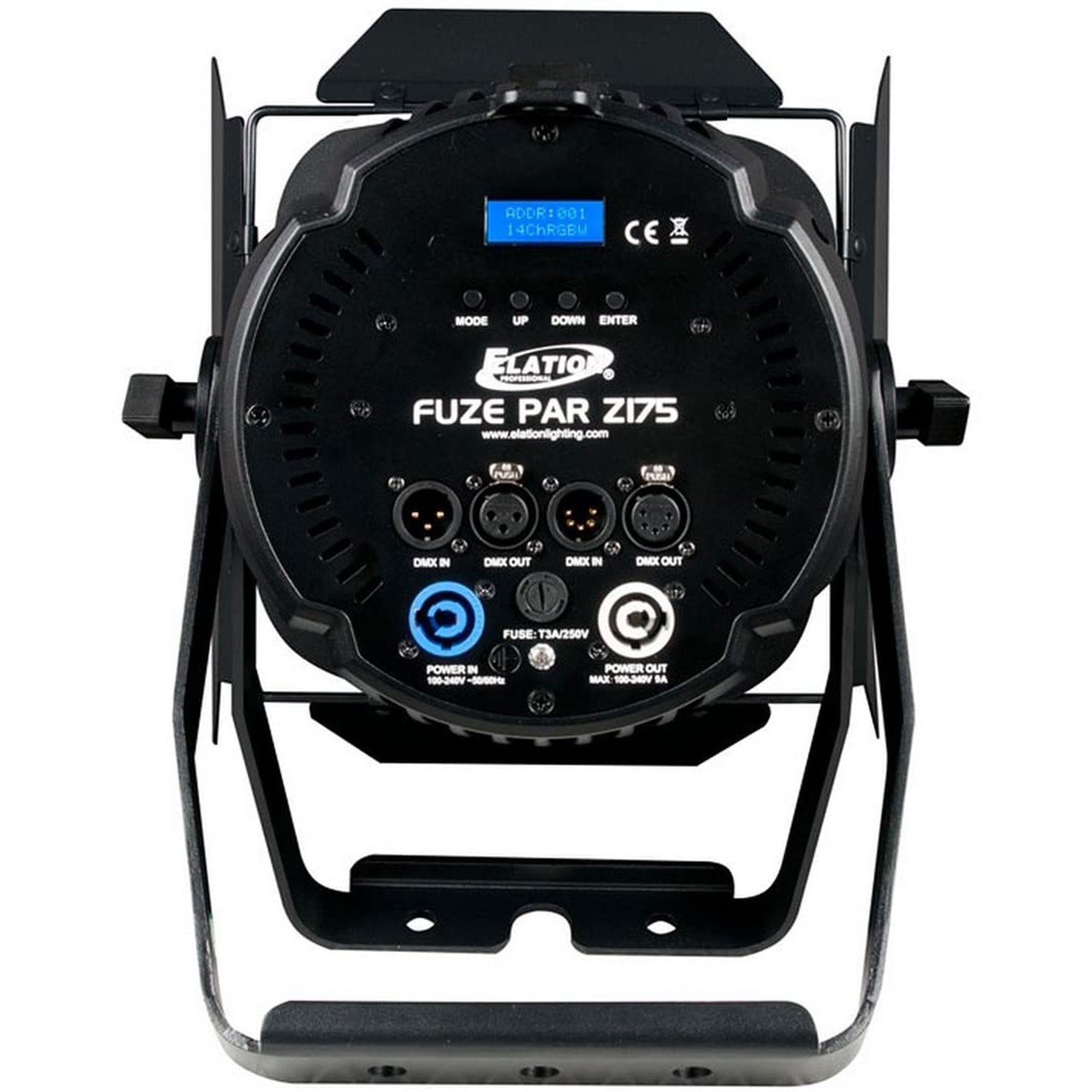

• 4 Button Control Panel and LCD Menu Display
• RDM (Remote Device Management)
• 5pin DMX and Locking Power Cable In/Out
• With Wired Digital Communication Network
• SIZE / WEIGHT
• Length: 18.2" (463mm)
• Width: 16.2" (411mm)
• Vertical Height: 17.0" (431mm)
• Weight: 20.0 lbs. (9.07kg)
• ELECTRICAL / THERMAL
• AC 100-240V - 50/60Hz
• 200W Max Power Consumption
• Multiple Unit Power Linking
• 5°F to 113°F (-15°C to 45°C)
• APPROVALS / RATINGS
• CE | cETLus | IP30
• FIRMWARE UPDATES
• Current Version: V1.07
• Specifications and documentation subject to change without notice.
