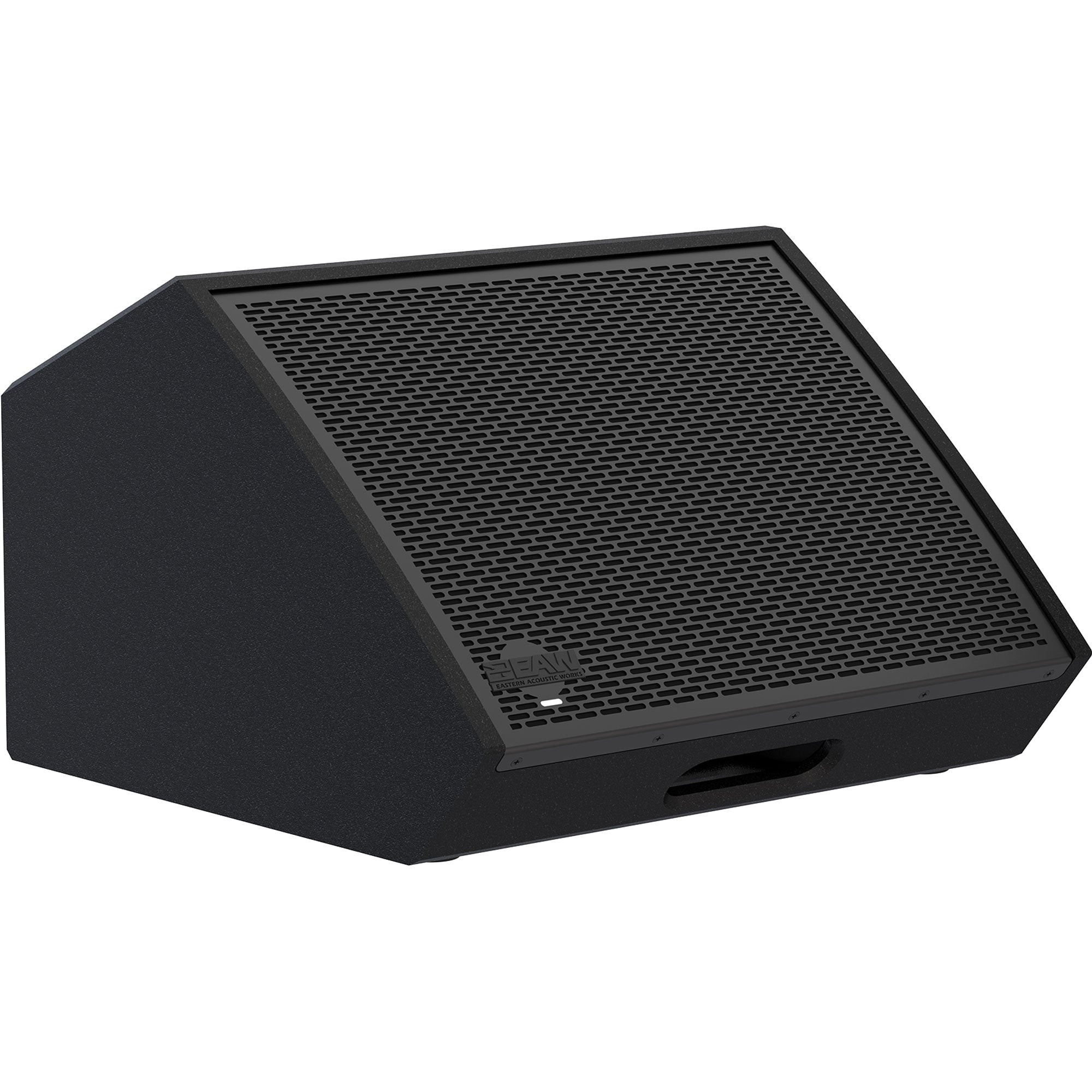

EAW Radius RSX12M 12" 2-Way Self-Powered Stage Monitor

2-Way Self-Powered Stage Monitor

Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW's signature acoustical design to deliver solutions for rental firms and system integrators. The RSX12M features onboard bi-amplified electronics (500W per channel) featuring signature EAW DSP including Focusing and DynO for pristine impulse response. RSX12M's coverage pattern is a uniform 105°x105°. EAWmosaic app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW's acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

Features

• Extremely approachable EAWmosaic iOS app delivers system prediction, control and monitoring from any location in the venue.

• Proven EAW acoustical design and DSP including Focusing and DynO provides a pristine impulse response at all output levels.

• Four pre-defined voicings provide a variety of tonal starting points while also offering maximum feedback stability.

• Integrated Dante networking (with loop-thru) on all models including Analog redundancy capability.

• Low latency of just 2.6 ms provides excellent transparency for vocal monitoring applications


Applications

• House of Worship

• Theatres, Auditoria and Performing Arts Centers

• Live Music Clubs

• Corporate AV Houses

• Live Production/Regional Rental Houses

• Dry Hire


Specifications

• Frequency Response: 55Hz -18kHz

• Max SPL: 129 dB

• Operating Mode: Bi-Amp LF/HF

• Subsystem:
  1 x 12 in cone, 2.5 in voice coil
  1 x 1 in exit, 1.77 in voice coil Horn-loaded compression driver
• Nominal Beamwidth:
  Horizontal 105
  Vertical 105
• Power Handling:
  LF: 500W
  HF:500W

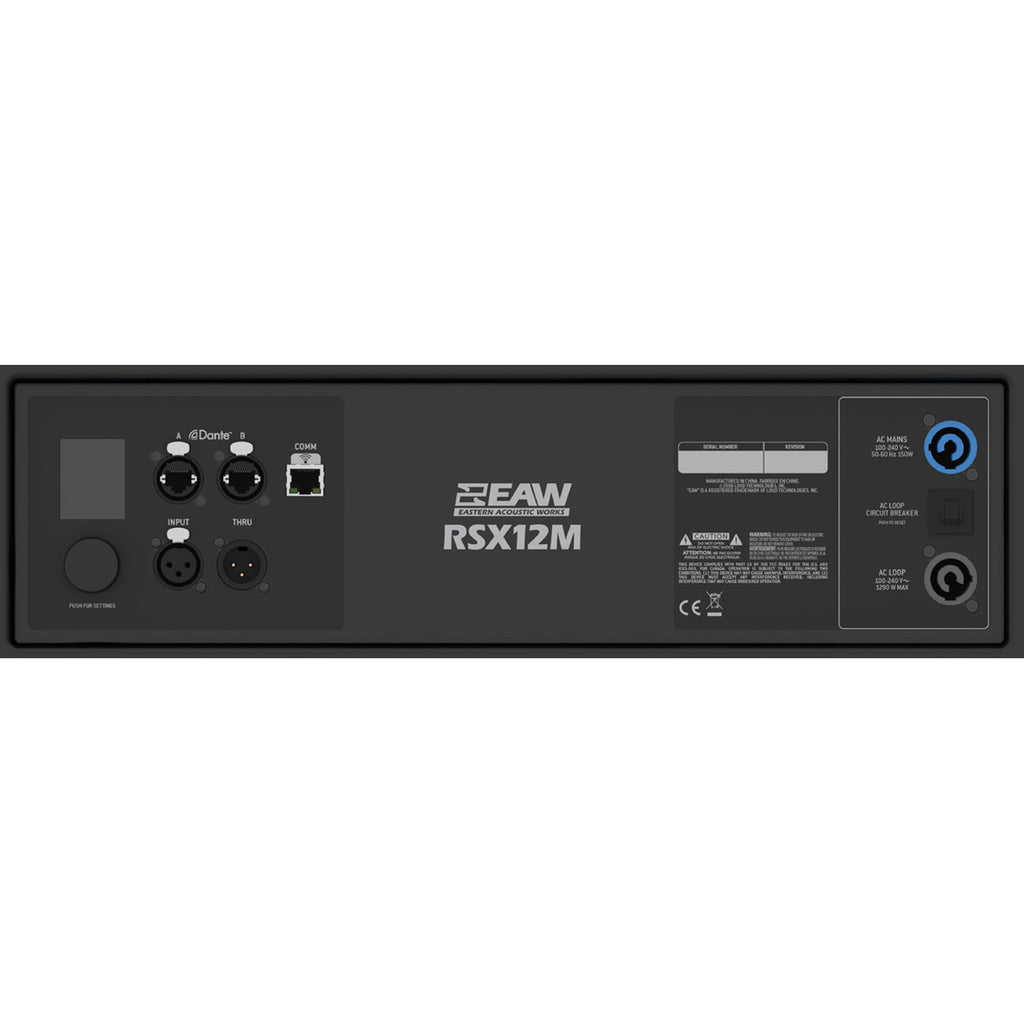

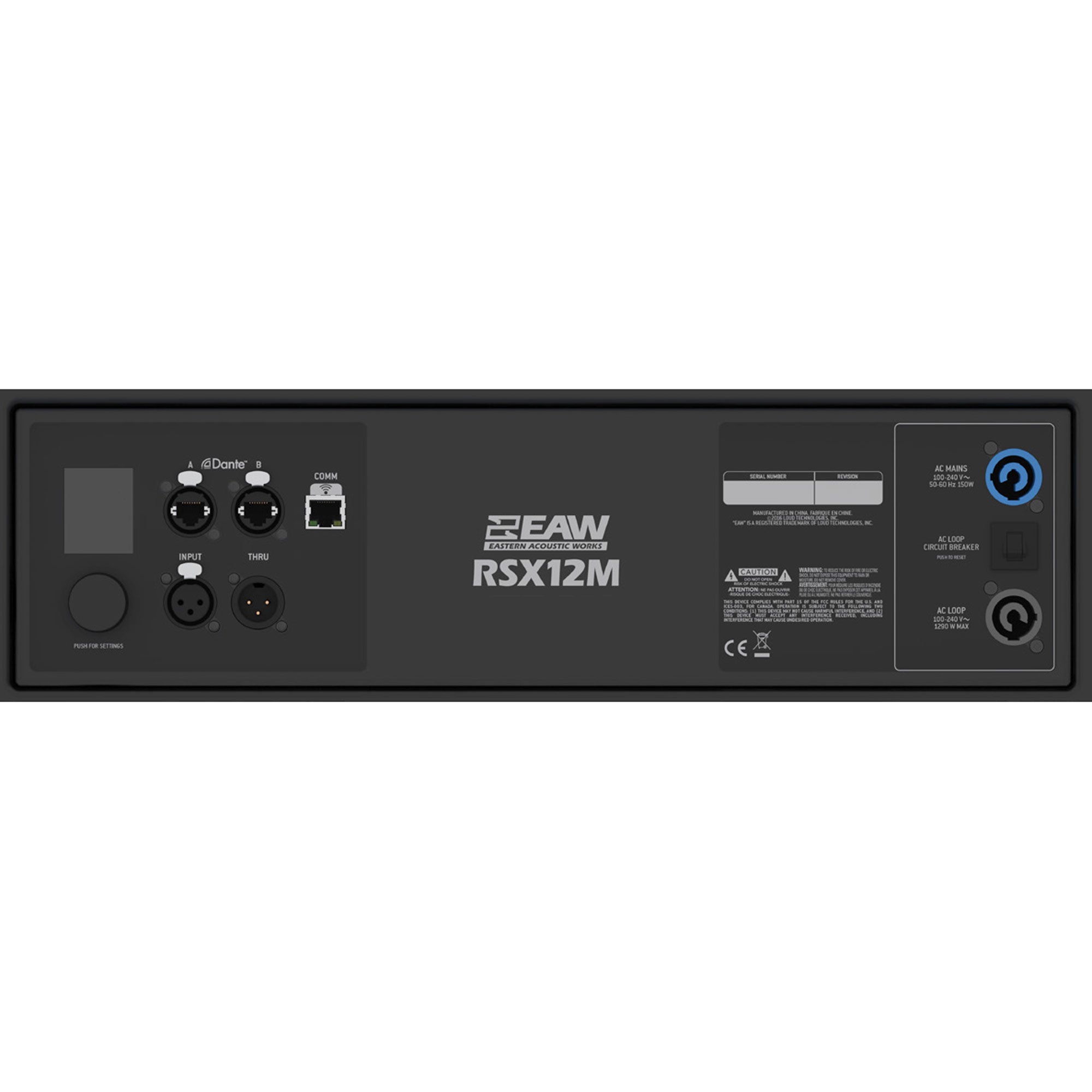

• Connections:
  Powercon AC Mains/Loop
  2x Neutrik etherCON
  RJ-45
  XLR Input/Loop
• Dimensions:
  Height: 13.1 in (333 mm)
  Width: 19.7 in (501.0 mm)
  Depth: 19.2 in (489 mm)
• Weight: 36 LBS (16.3 kg)
