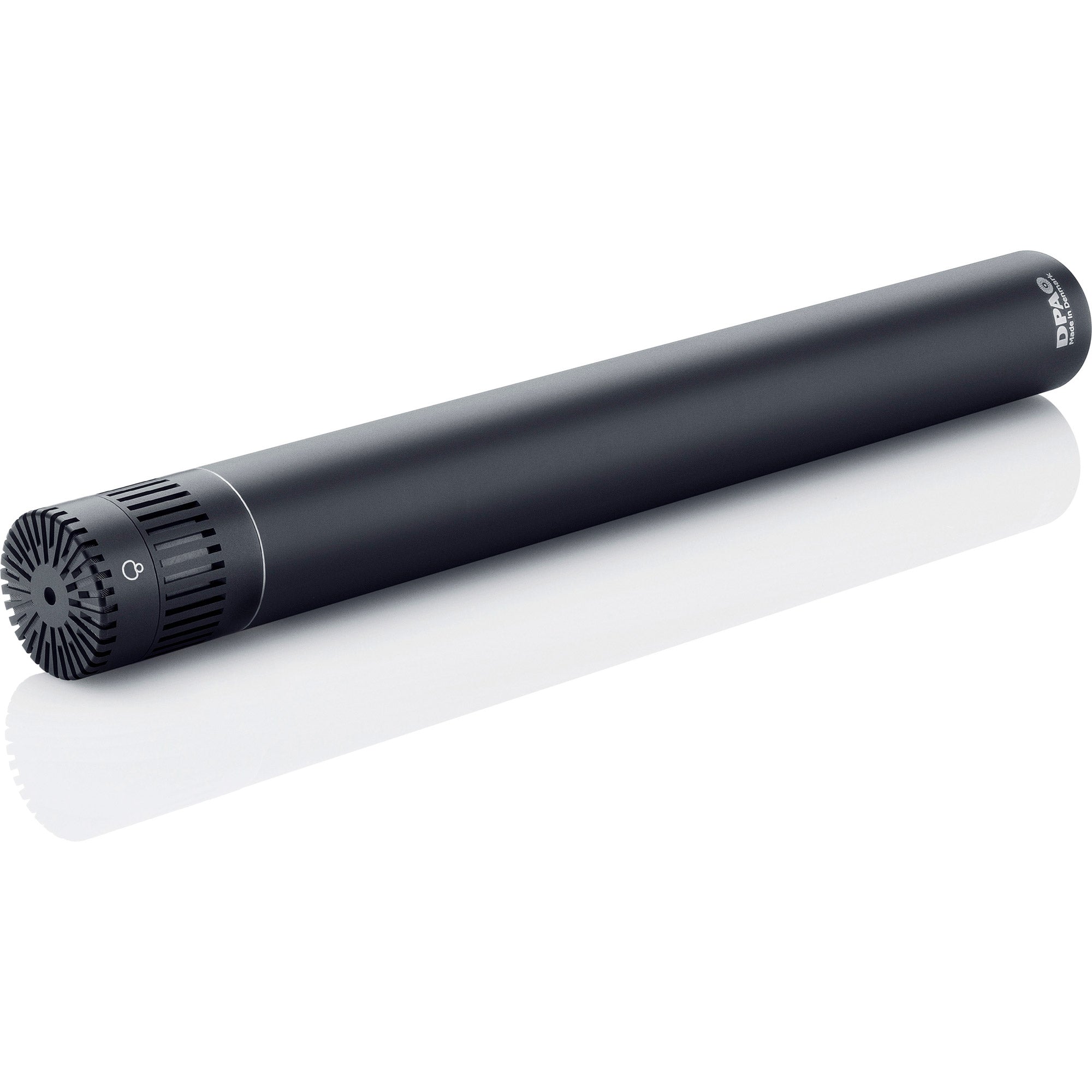

DPA 4018A Supercardioid Condenser Microphone

d:dicate Supercardioid Microphone

The 4018A is a highly directional, first-class supercardioid microphone and is a part of the modular DPA d:dicate Recording Microphones series.

With its remarkably well controlled supercardioid shape and uniform off-axis frequency response, the 4018A offers high separation without odd off-axis frequency peaks and dips. The supercardioid shape is frequency independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on the 4018A making it much more isolated.

Designed for a broad range of music recording and broadcast/ENG/film long-distance miking applications, such as booming, dialogue, interview and table or spot-recording use, the 4018A also offers superb expandability through modular accessories. The 4018A is ideal for use as spot or hanging mic for orchestra recording situations.

Features:

• Highly directional Supercardioid
• Uniform, frequency independent directionality
• Low noise and high sensitivity for distant positioning
• Excellent for spot miking orchestra sections or singers

Specifications:

• Directional pattern: Supercardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency range: 20 Hz - 20 kHz
• Frequency range, ± 2 dB, at 30 cm: 40 Hz - 18 kHz
• Sensitivity, nominal, ± 2 dB at 1 kHz: 12 mV/Pa; -38.4 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 16 dB(A) re. 20 µPa (max. 19 dB)
• Equivalent noise level, ITU-R BS.468-4: -
• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 78 dB(A)
• Total Harmonic Distortion (THD): < 1 % up to 137 dB SPL peak
• Dynamic range: Typ. 121 dB
• Max. SPL, peak before clipping: 157 dB
• Switchable attenuator, filters etc.: 0 dB / -20 dB
• Output impedance: 200 Ω
• Minimum load impedance: 2 kΩ
• Cable drive capability: 100 m (328 ft)
• Output balance principle: Impedance balancing with Active Drive
• Common Mode Rejection Ratio (CMRR): > 60 dB
• Power supply (for full specifications): 48 V Phantom power (±4 V)
• Current consumption: 2.8 mA
• Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
• Color: Matte black
• Weight: 158 g (5.6 oz)
• Microphone diameter: 19 mm (0.75 in)
• Capsule diameter: 19 mm (0.75 in)
• Microphone length: 170 mm (6.7 in)
• Output voltage, RMS: 7 V
• Polarity: +V at pin 2 for positive sound pressure
• Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
• Relative Humidity (RH): Up to 90%
• Matching tolerance: ± 1 dB
• Phase deviation for kit: < 10°
