DPA 4099 CORE+ Classic Touring Kit with 4 Microphones & Accessories in Cardboard Box (Loud SPL)

4-piece Instrument Microphone Bundle with 4 DPA 4099 CORE+ Instrument Microphones, Accessories, and Cardboard Box with Pouches - Classic (Loud SPL)

4099 Touring Kit

These kits, featuring 4099 CORE or CORE+ versions ensure the highest sound quality and bring more clarity and details to your music.

The 4099 CORE+ is the next-generation, high-performance instrument microphone. It delivers pristine, natural and undistorted sound with exceptional isolation and off-axis rejection for any live or studio setting. Fitted with MicroLock and a series of upgraded instrument clips, the 4099 CORE+ provides even better stability and flexibility on any type of instrument.

Features:

• CORE+ technology
• High SPL handling
• Wide dynamic range
• Supercardioid pick up pattern
• Superior gain before feedback
• MicroLock connector
• IP58 certified
• Advanced, flexible clip program

Specifications:

• Directional pattern: Supercardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range ±2 dB, at 20 cm (7.9 in): 80 Hz - 17 kHz with 2 dB soft boost at 10-12 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))
• Distortion, THD < 0.5%: 135 dB SPL RMS, 138 dB SPL peak
• Distortion, THD < 1%: 138 dB SPL RMS, 141 dB SPL peak
• Dynamic range: Typ. 118 dB
• Max. SPL, THD 10%: 145 dB SPL peak
• Rated output impedance: From MicroLock: 30 - 40 Ω. From DAD9099 or DAD9001: 100 Ω
• Cable drive capability: Up to 300 m (984 ft) with DAD9001/DAD9099 XLR Adapter
• Output balance principle: Signal balanced with DAD9099 or DAD9001 XLR Adapter
• Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR Adapter
• Power supply (for full performance):
  For wireless systems Min. 5 V - max. 10 V through DPA adapter
  With DAD9001 or DAD9099: P48 (Phantom Power). Will work from 12 V
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9099 or DAD9001 XLR Adapter
• Connector: MicroLock
• Weight:
  Microphone: 18 g (0.63 oz)
  Microphone Clip for Accordion (A-CLIP): 5 g (0.18 oz)
  Clamp Mount Microphone Clip (CM-CLIP): 16 g (0.56 oz)
  Microphone Stand Clip (MS-CLIP): 24 g (0.85 oz)
  Microphone Clip for Piano (P-CLIP): 20 g (0.71 oz)
  Universal Microphone Clip (U-CLIP): 15 g (0.53 oz)
  Instrument Microphone Clip for Guitar (GC4099): 12 g (0.42 oz)
  Instrument Microphone Clip for Sax and Trumpet (STC4099): 7 g (0.25 oz)
  Instrument Microphone Clip for Violin and Mandolin (VC4099): 10 g (0.35 oz)
  Instrument Microphone Clip for Bass (BC4099): 20 g (0.71 oz)
  Microphone Clip for Cello (C-CLIP): 18 g (0.63 oz)
• Microphone diameter: 5.7 mm (0.22 in)
• Microphone length: 50 mm (1.97 in)
• Cable length: 1.8 m (5.9 ft)
• Cable diameter: 1.6 mm (0.06 in) / 2.2 mm (0.09 in)
• Polarity: +V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
• Gooseneck length: 140 mm (5.5 in)
• Sensitivity selection tolerance (at 1 kHz): ±1 dB
• Colors: Black

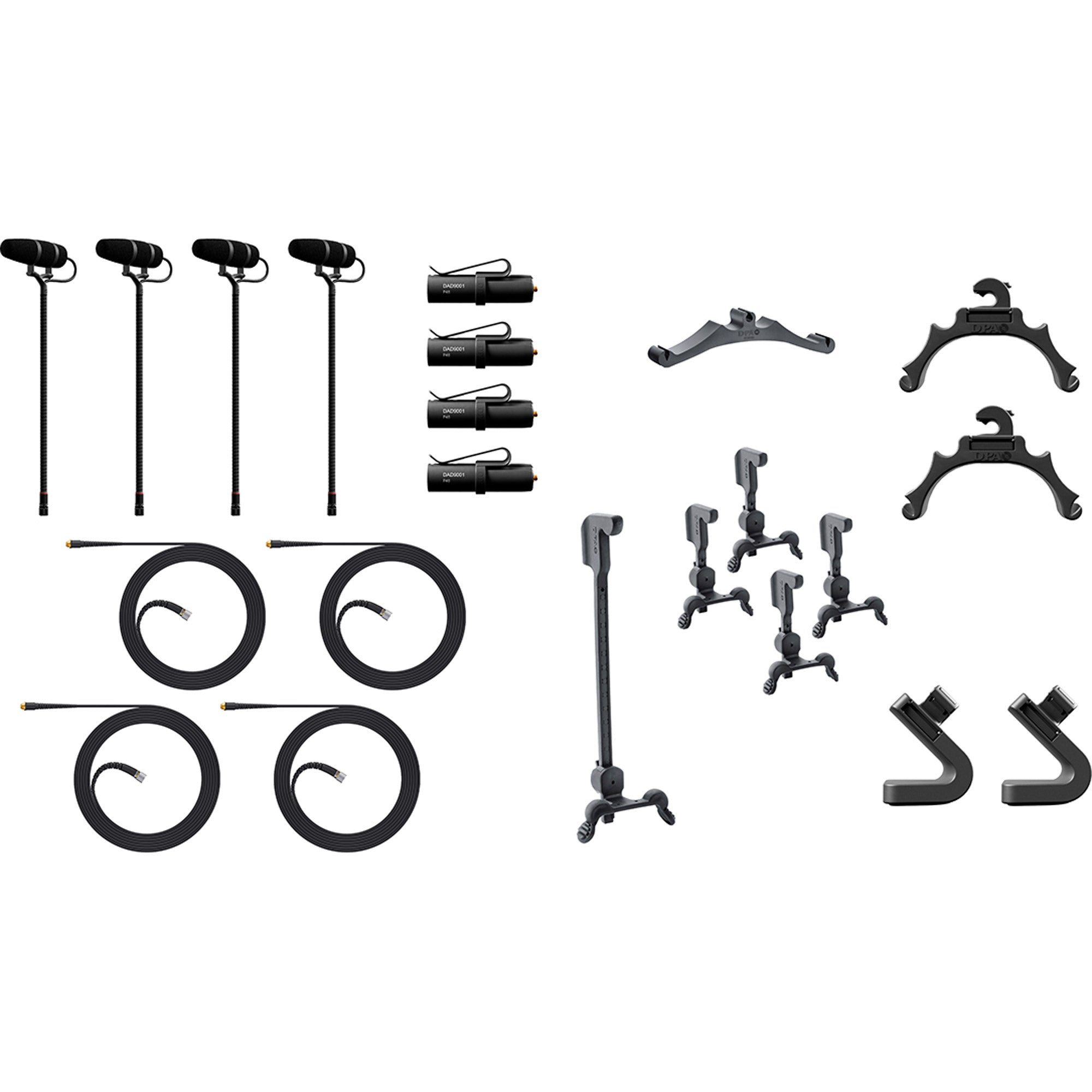

The 4099 Touring Kit contains:

• KIT-4099-DP-4C Classic Touring Kit
• 4 x 4099-DP-1 Instrument Microphone, Loud SPL
• 4 x MicroLock Extension Cable, 1.6 mm / 0.06 in
• 4 x DAD9001 MicroLock to 3-pin XLR with Belt Clip
• 1 x Microphone Clip for Bass
• 2 x Microphone Clip for Cello
• 1 x Microphone Clip for Guitar
• 2 x Microphone Clip for Piano
• 4 x Microphone Clip for Violin
