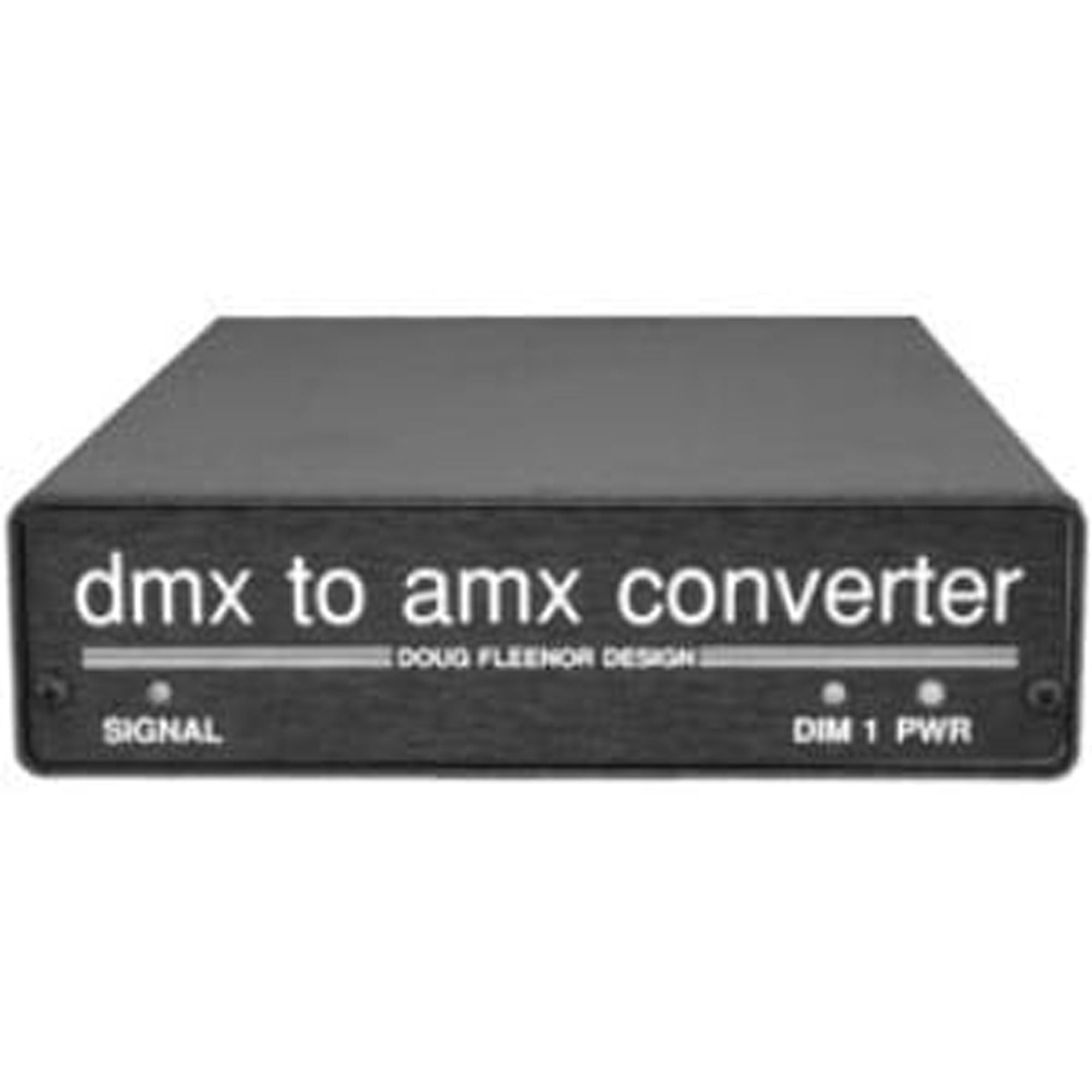

Doug Fleenor DMX1AMX DMX to AMX Converter

DMX to AMX Converter (DMX Console to AMX Dimmers), One Output (192 Channels)

The DMX to AMX Converter is available in one AMX output from a single DMX input. Custom units with any number of DMX inputs and AMX outputs are also available. These custom units are seamless; they handle the problems of two DMX inputs covering one AMX output and CD-80 6K/12K modules without gaps in the DMX numbering.

Specifications:

• Input signal:
  250 Kilobaud (CMX's 153.6 Kilobaud is optional)
  0.2 volts minimum, 12 volts maximum
• Input circuit:
  EIA-485 receiver with 22 K-Ohm pull up on +Data
  22 K-Ohm pull down on -Data

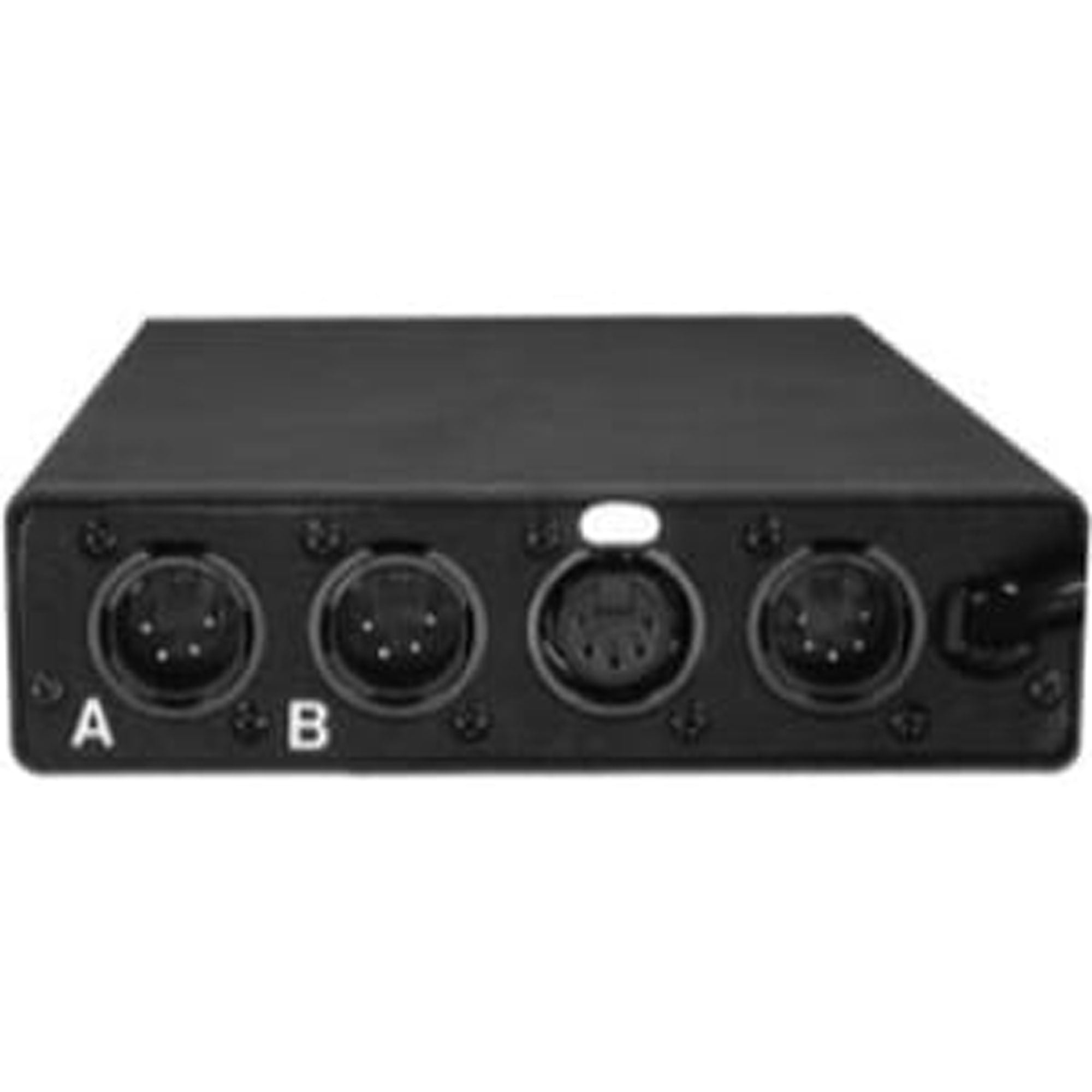

• Input connector: Gold plated 5 pin male (Neutrik D-1 series)
• Input pass through:
  Gold plated 5 pin female (Neutrik D-1 series)
  All five pins are passed through
• Output signal:
  Data clock: 8 uS (micro seconds)
  Reset clock: 50 uS followed by 15 uS delay
  Frame rate: 60 uS period. Analog data precedes rising edge of clock by 10 uS
  Analog level: 0 to 5.3 volts
• Output circuit:
  Clock: EIA-485 driver
  Analog data: NPN active pull up, 200 ohm passive pull down, 24 ohm series resistor
• Output connector(s): Gold plated 4 pin male (Neutrik D-1 series)
• Output Pinout:
  Pin Function
  1 COMMON
  2 CLOCK+
  3 ANALOG DATA
  4 CLOCK-
• Power input: 100 - 120 volts, 50/60 hertz, 12 watts (208 - 240 volt optional)
• Color: Black front, back, top, and sides. Clear iridite aluminum bottom.
• Size and weight: 9" deep, 1.6" high, 5.6" wide, 2.5 pounds
  (19" rack adapter available)
