Key Features
- Real-Time Analyzer Microphone
- Flat Frequency Response
- Omnidirectional Polar Pattern
- Electret-Condenser Element
- 20 Hz to 20 kHz Frequency Response
Description

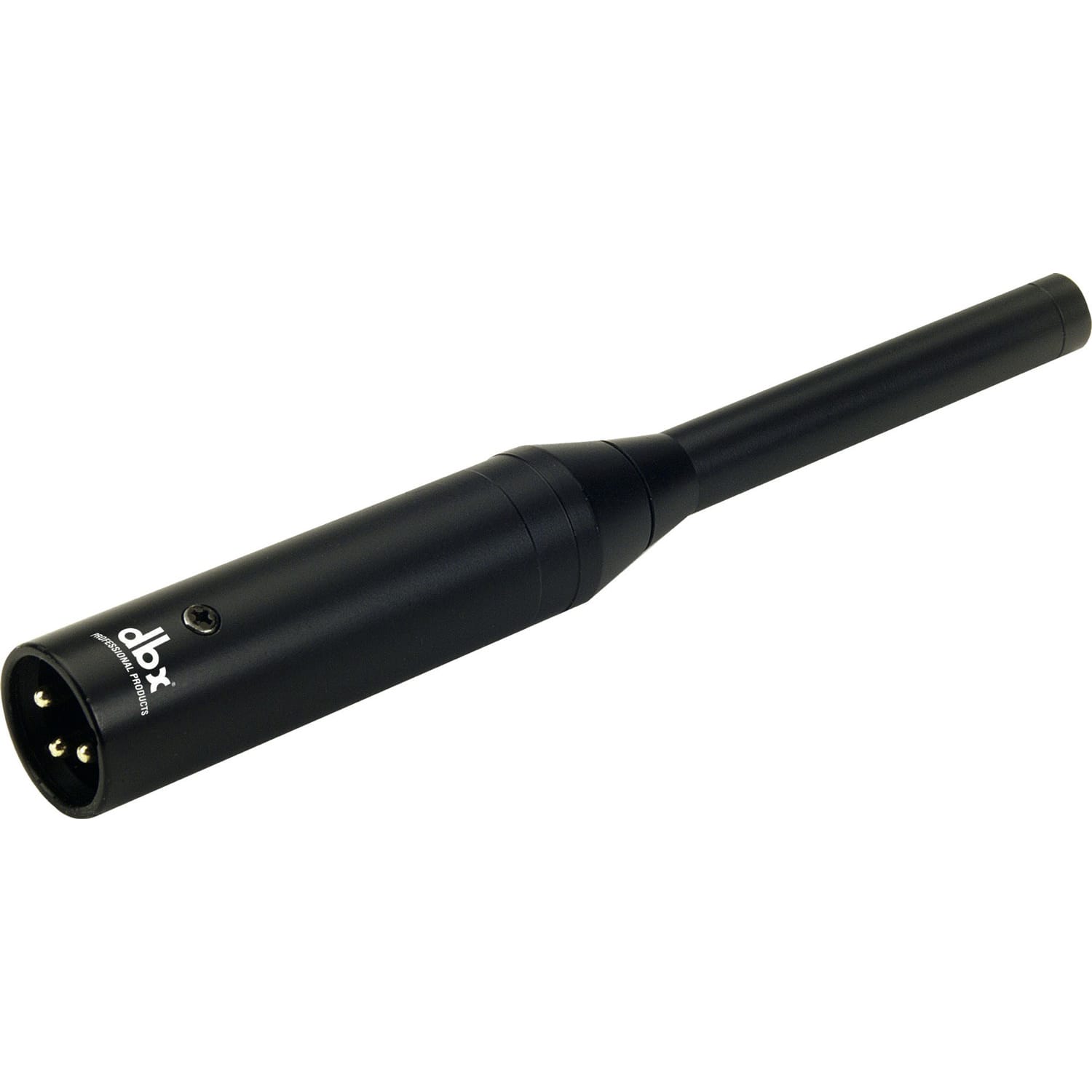

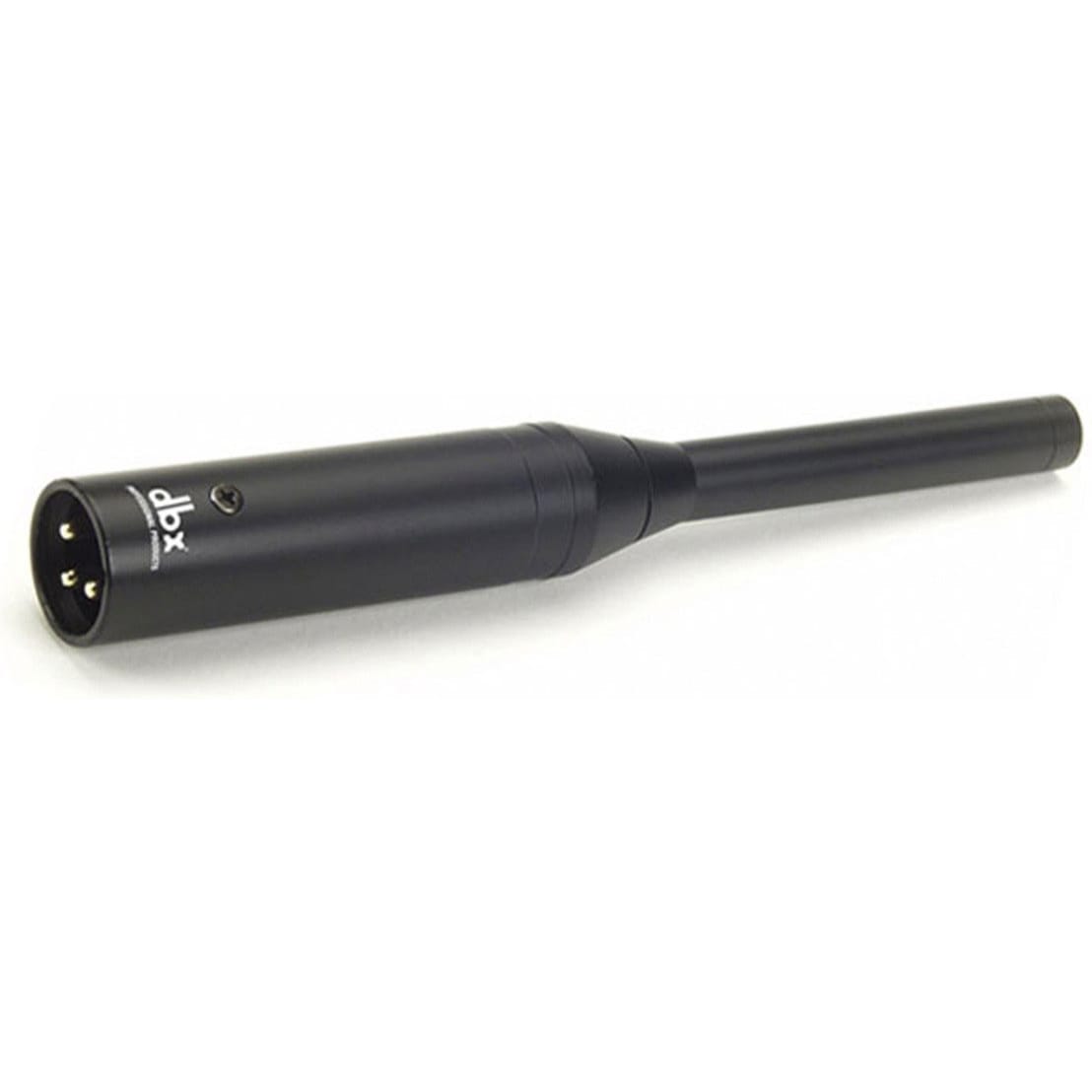

Real-Time Analyzer Microphone for DriveRack
The optional RTA-M real time audio analyzing mic is the perfect accessory tool for the DriveRack PA series (DriveRack PA, DriveRack PX, DriveRack PA+, DriveRack PA2) and 260. Used in conjunction with the System Setup Wizard and Auto EQ Wizard the RTA-M is ideal for optimizing the sound quality of even the most difficult of acoustic environments.

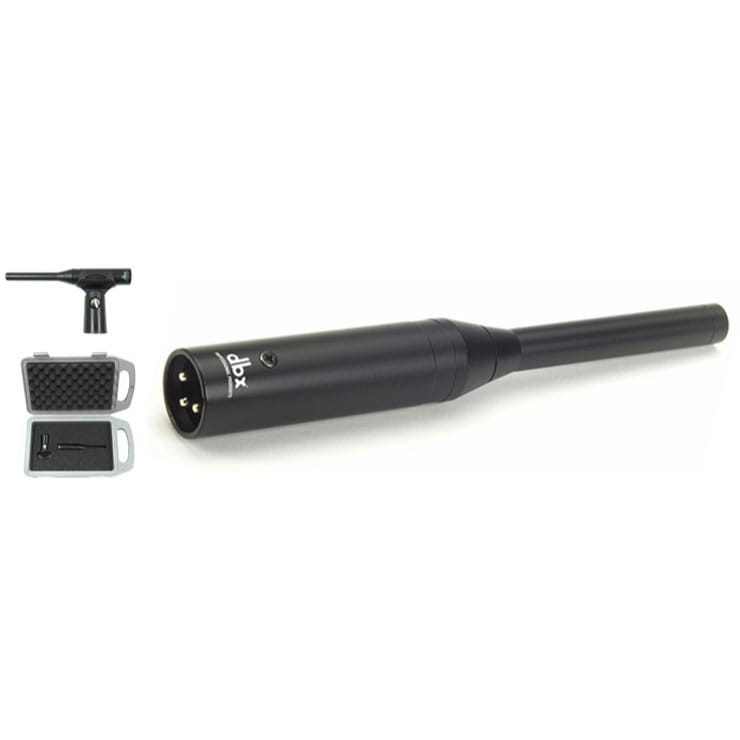

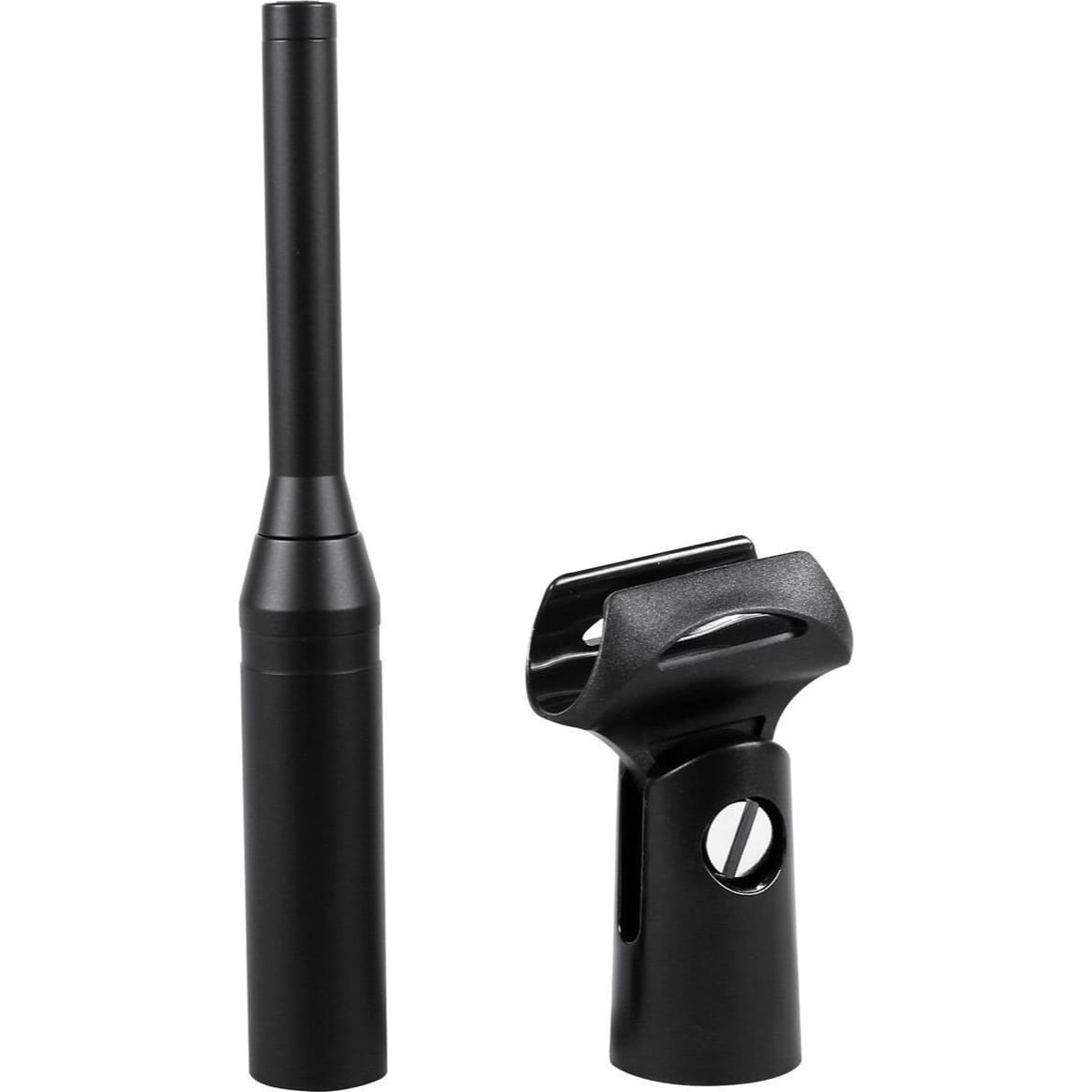

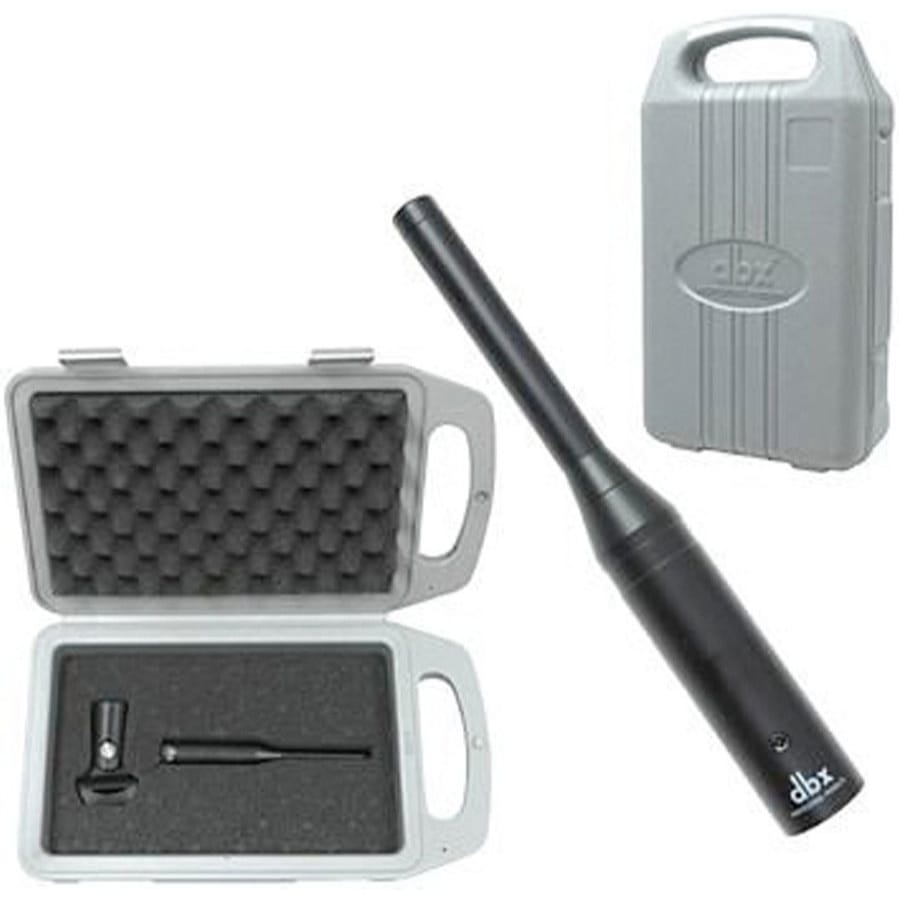

The RTA-M is an omni-directional, flat frequency measurement microphone specially designed for the Driverack series to pick up all frequencies from 20 Hz to 20 kHz , ensuring accurate "pinking"/real-time analysis of your audio. It runs on phantom power (supplied by the Driverack units) and comes with a clip and case.
Specifications:
- Polar Pattern: omnidirectional
- Element: back electret-Condenser
- Frequency Response: 20 Hz - 20 kHz
- Impedance: 250 30% (at 1,000Hz)
- Sensitivity: -63 dB +-3 dB ( 0 dB=1V/ microbar 1,000 Hz indicated by open circuit )
- Operating Voltage: phantom power 9V-52VDC
