Cloud 46-120MK2 4 Zone Integrated Mixer Amplifier (4 x 120W)

Cloud SKU: CLD 46120MK2NA
MPN: 46-120MK2

Price:
Sale price$3,654.00
Stock:
In Stock & Ready to Ship

Description

The Cloud 46-120MK2 is a four-zone, 2U rackmount mixer amplifier rated at 120 watts per zone. It combines music-source selection, microphone inputs, paging connectivity, and zone-level control for restaurants, bars, shops, fitness facilities, offices, and other multi-area installations. This listing is for the 46-120MK2, not the higher-power 46-240.

Manage music and microphones across four zones

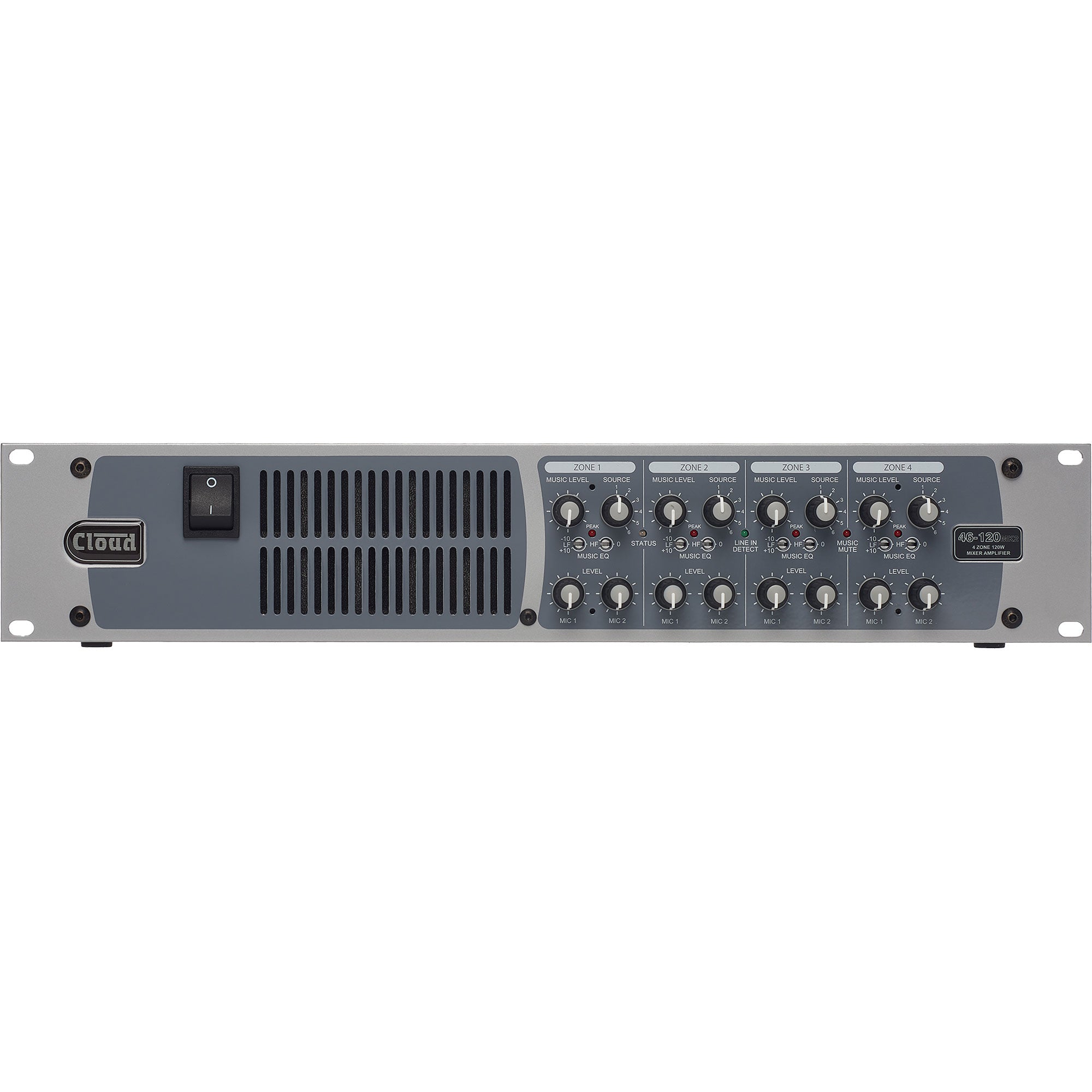

Six stereo line inputs, including four balanced inputs, let you connect multiple program sources. Two balanced microphone inputs provide priority options for announcements. Front-panel controls adjust music source, music level, and microphone levels in each zone.

Choose the correct speaker-output configuration

The transformerless Class D outputs can be configured for 4/8-ohm low-impedance speakers or 70/100 V distributed speaker systems. Match each output configuration and speaker load to Cloud’s installation instructions.

Power sharing for 70/100 V installations

In Hi-Z mode, Zones 1 and 3 share a maximum combined 240 watts, and Zones 2 and 4 share another maximum combined 240 watts. Allocate speaker tap totals within each pair to suit the areas being served. For example, 40 watts in Zone 1 can leave 200 watts available for Zone 3.

This does not mean all four zones can deliver 240 watts simultaneously. Power sharing applies to the specified pairs in 70/100 V operation, not the 4/8-ohm modes.

Remote control and installation integration

Compatible Cloud RL-1 remote plates provide music-level control, while RSL-6 plates provide source selection and level control. Ethernet and RS-232 connections support system control, and two Facility Ports accommodate compatible remote input modules. Plan the required remote plates, modules, paging microphones, and wiring for your installation; confirm supplied accessories before ordering.

Features

  • Four Class D amplifier zones, rated at 120 W per zone
  • Configurable 4/8-ohm or 70/100 V speaker outputs
  • Hi-Z power sharing between Zones 1/3 and Zones 2/4
  • Six stereo line inputs, four balanced
  • Two balanced microphone inputs with priority options
  • Per-zone limiters plus thermal and short-circuit protection
  • Utility output with microphone and music gain control
  • Two Facility Inputs with configurable zone routing
  • Ethernet and RS-232 ports
  • Two zone-assignable auxiliary outputs
  • Digital paging interface for compatible Cloud PM paging microphones
  • Remote music-mute input with normally open or normally closed operation
  • Automatic standby and universal power supply
  • 2U rackmount format
Details
  • Manufacturer:  Cloud
  • MPN: 46-120MK2
  • Model Number: 46-120MK2
