Clear-Com FSII-TCVR-19-US FreeSpeak II 1.9 GHz Active Transceiver Antenna

FreeSpeak II Active Transceiver Antenna for use with FreeSpeak II 1.9GHz Wireless Beltpacks

1.89GHz-1.93GHz* Band Active Transceiver Antenna allows users to freely roam around a facility while staying connected to the base station. Each Active Antenna can create a coverage zone of up to 1,475 feet. One Active Antenna supports up to 5 beltpacks with the ability of adding more if roaming or more beltpack support is required. Up to 10 remote Active Antennas can be strategically placed to cover a wide area. Each active transceiver antenna is IP65 rated for water and dust resistance and has a mount for microphone stands, allowing use and placement in virtually any environment. Unique to the FreeSpeak II system, both 1.9GHz and 2.4GHz beltpacks and active transceiver antennas can co-operate on the same system, increasing both the quantity of users as well as the cell roaming area.

Features:

• Up to 10 Active Antennas can be connected to one system
• Up to 1,475 ft of coverage area per antenna
• 1.9GHz and 2.4GHz antennas can co-operate on the same system
• IP65 rated for water and dust resistance

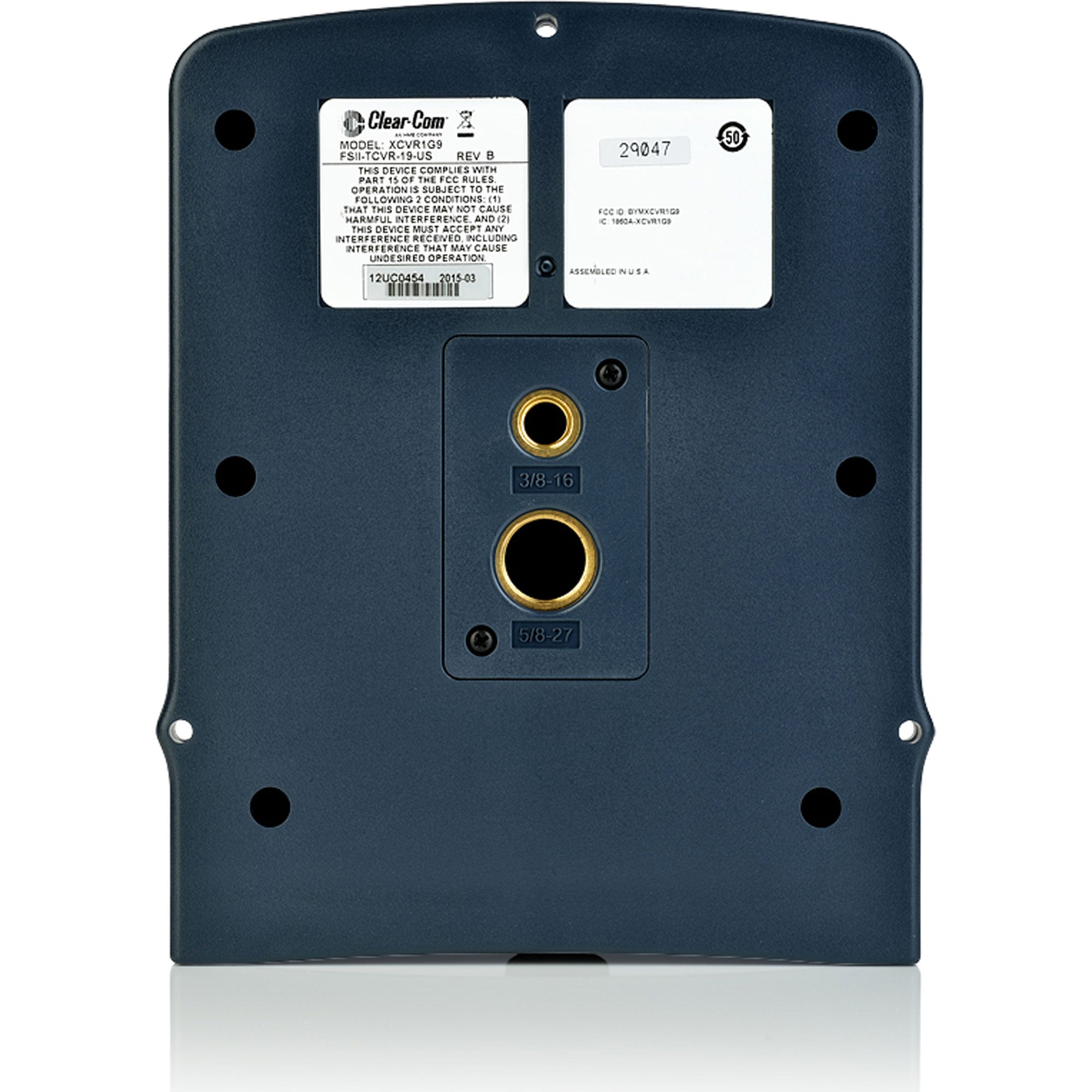

• Microphone stand mounting

Specifications:

• Frequency Spectrum: 1.88-1.93MHz for EU and US Cellular auto roaming technology
• Modulation: GFSK, TDMA frame 10ms Full and Long slot
• Output power (EU): 18-22dBm, (US): 18-20dBm
• Environmental
• Operating: 32º-125ºF (0º-50ºC) Storage: 32º-150ºF (0º-70ºC)
• Humidity: Between 20% and 90%, Non-Condensing
• Dimensions
• 2 x 5.5 x 6.75in (52 x 134 x 173mm) (DxWxH)
• Weight
• 7.0oz (0.19kg)
