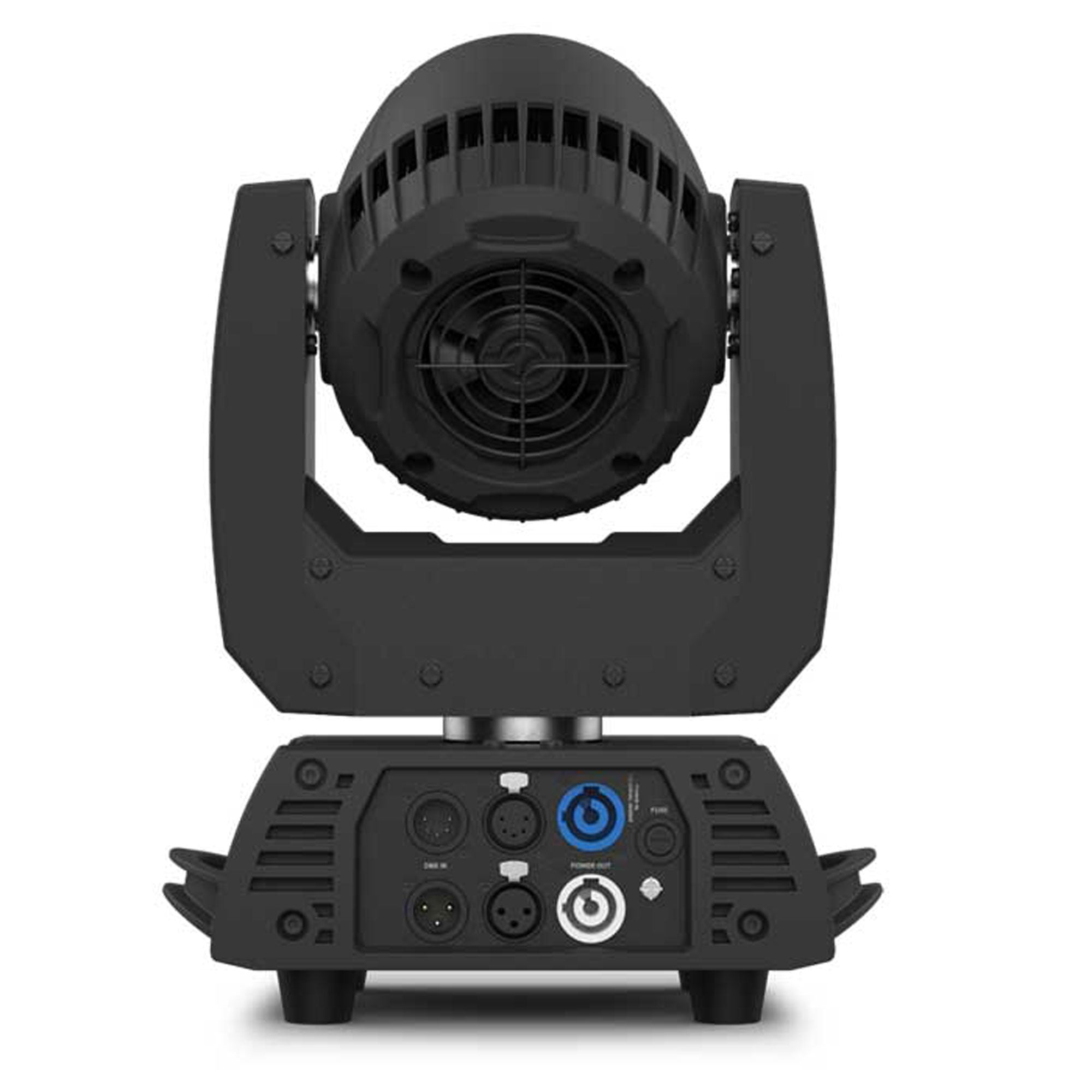

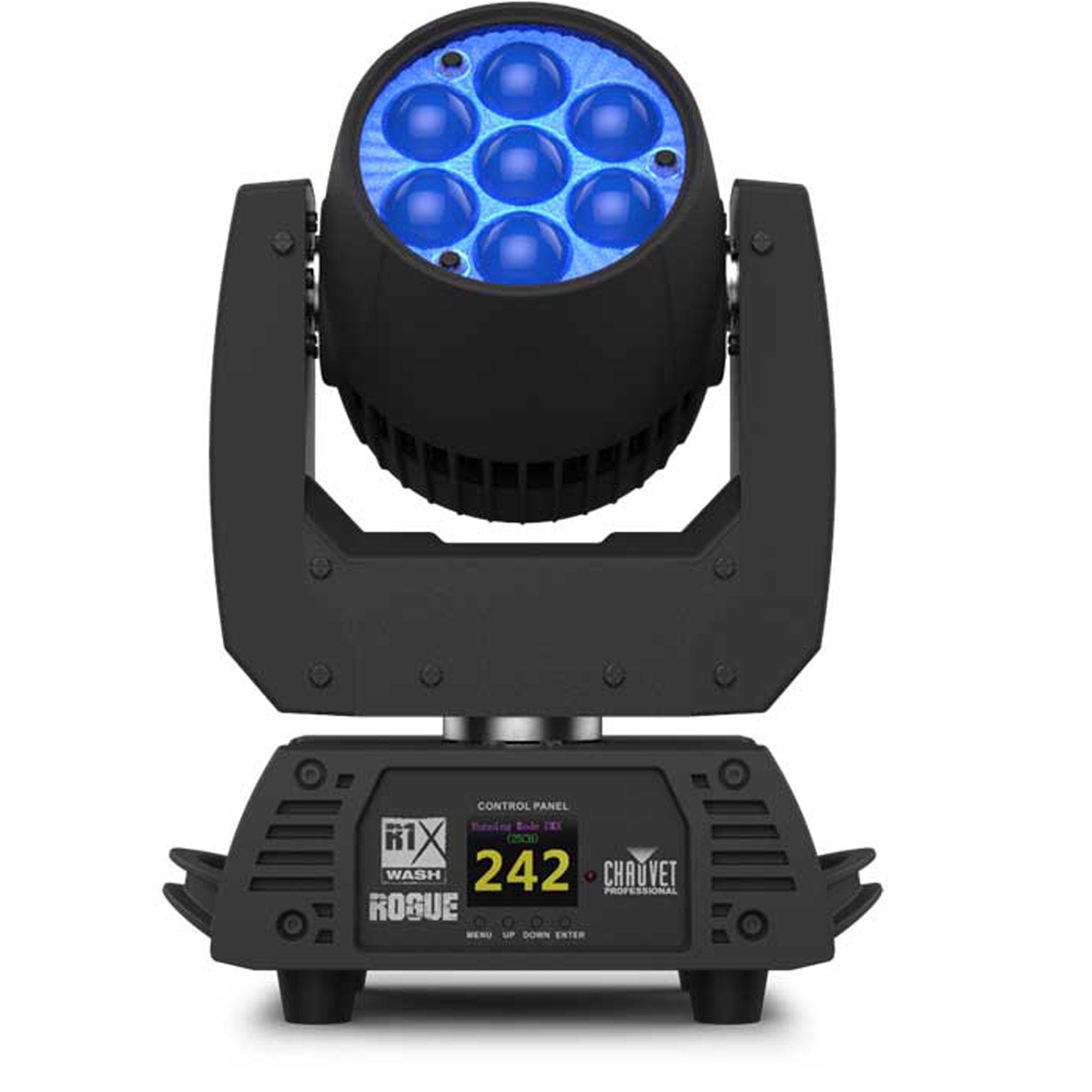

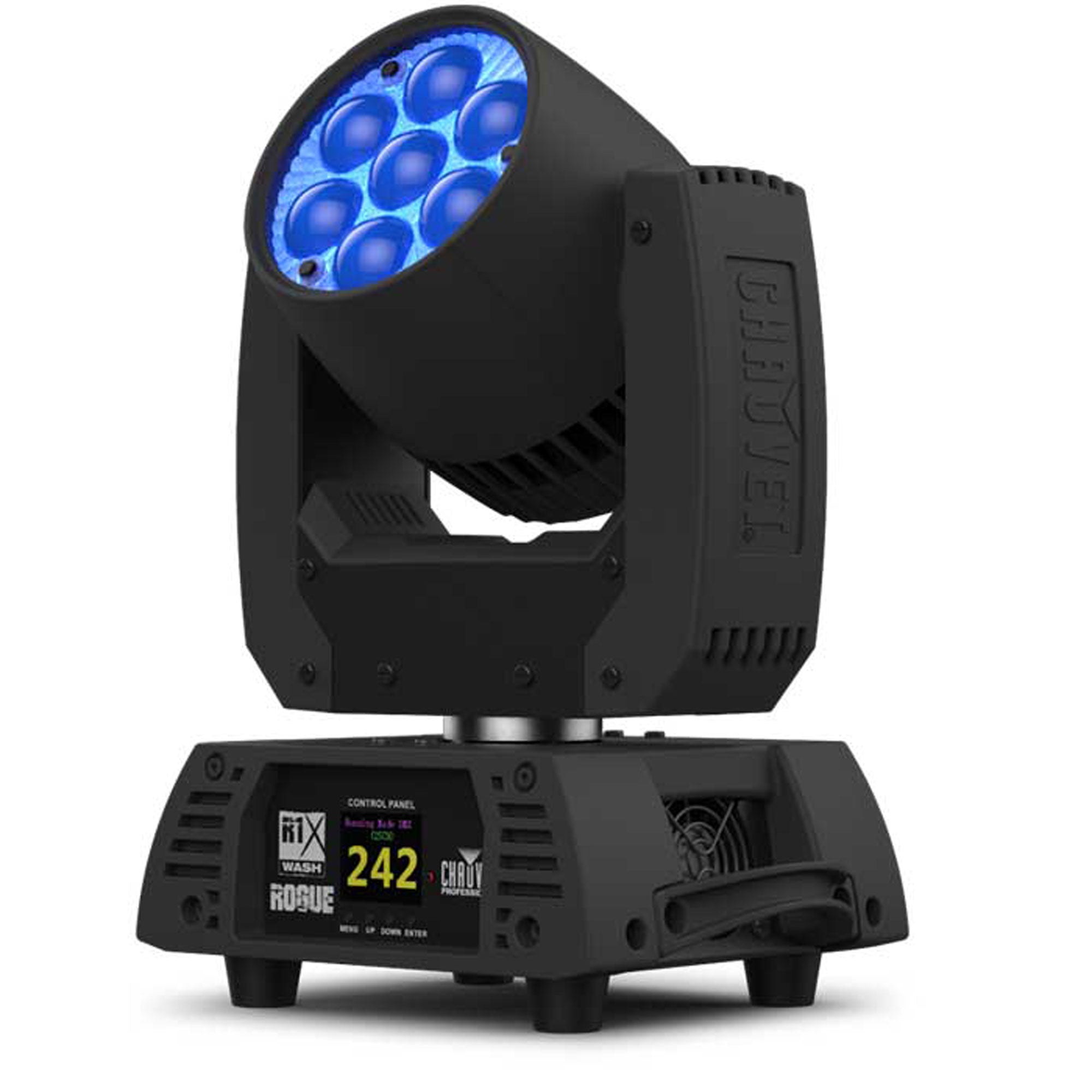

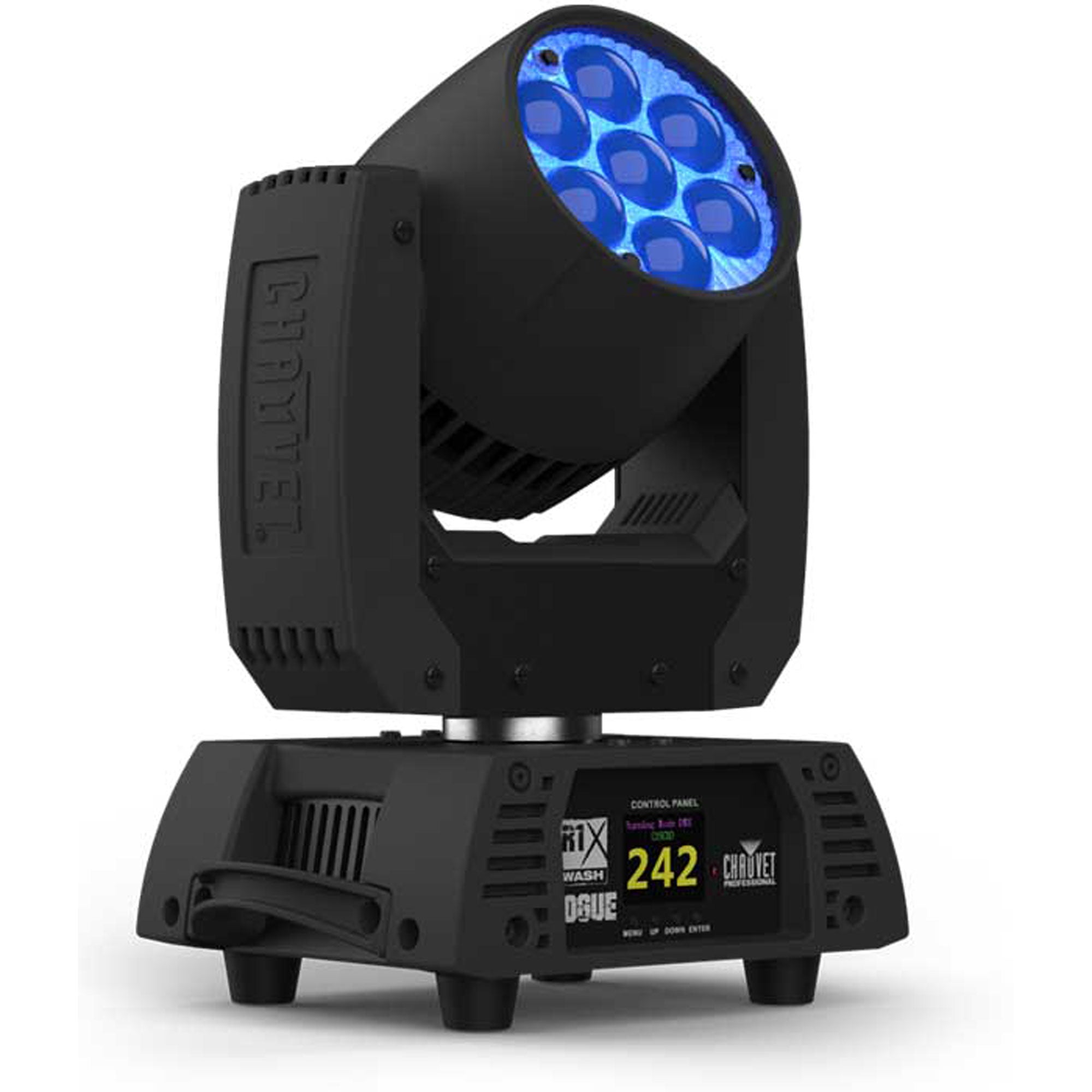

Chauvet Professional Rogue R1X Wash RGBW LED Moving Head Wash Light

Quad-color (RGBW) LED Moving-head Wash Lighting Fixture with 7 x 25W LEDs, Motorized Zoom (11-48 Degrees), and 6 Selectable Dimming Curves

Rogue R1X Wash distinguishes itself by offering a combination of performance features unique to its price class. Powered by seven RGBW 25 W quad-LEDs, this bright and versatile moving wash zoom fixture features a unique "bubble" lens design for excellent color rendering and stunning visual effects. Other standout features include an incredible 7.9° to 62.7° zoom range, incredibly fast and smooth pan and tilt movements, simple and complex DMX channel profiles, plus 3-pin and 5-pin DMX connectors. Versatility, value and performance make this fixture a welcome addition to any touring rig or permanent installation.

AT A GLANCE

• Fully featured RGBW LED yoke wash fixture with zoom

• 16-bit dimming of master dimmer as well as individual colors for smooth control of fades

• 7 RGBW LEDs, 25 W each

• 3- and 5-pin DMX input/output connections

• Unique lens design for excellent color blending

• Fast, smooth pan and tilt movement

• RDM enabled for remote addressing and trouble shooting

• Selectable LED maximum output to match legacy Rogue R1 Washes

• Selectable PWM settings for camera operation

• 6 distinct dimming modes for advanced control

• User-selected calibrated white for 7500 K at full output

• Omega mounting bracket, fits all Rogue and Maverick fixtures

• Easy to read OLED display with simple, effective menu options

• Simple and complex DMX channel profiles for programming versatility


SPECIFICATIONS

• Optical

• Light Source: 7 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy

• Color Temperature (range): 2800 to 10000 K Beam Angle: 8° to 30°

• Beam Angle: 7.9° to 35.5°

• Field Angle: 11.5° to 50.8°

• Cutoff Angle: 19.3° to 62.7°

• Zoom Range: 7.9° to 62.7°

• Lumens - Source: 4,000

• Lumens - Output: 2,455

• Illuminance (11°): 2,872 lux @ 5 m

• Illuminance (50.8°): 279 lux @ 5 m

• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

• Dynamic Effects

• Pan and Tilt: 540°/230°

• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt

• Dimmer: Electronic

• Shutter/Strobe: Electronic

• Zoom: Motorized

• Strobe Rate: 0 to 20 Hz

• Standalone Color Mixing: Yes

• Color Temperature Presets: Yes

• Built-in Automated Programs: Yes

• Customizable Programs: No

• Recall Custom Programs: No

• Construction / Physical

• Dimensions: 7.36 x 10.43 x 13.94 in (187 x 265 x 354 mm)

• Weight: 13.6 lb (6.2 kg)

• Exterior Color: Black

• Housing Material: High-impact flame-retardant polymer

• Connections

• Power Connection: Edison (Local) plug to Neutrik powerCON

• Power Input: Neutrik powerCON

• Power Output: Neutrik powerCON

• Data Connectors: 3- and 5-pin XLR

• Cable Length (power): 5 ft (1.5 m)

• Control

• Control Protocol: DMX, RDM

• DMX Channels: 14, 15, 19 or 21

• Modes/Personalities: 4 personalities (14, 15, 19, 21)

• Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking: 5 units @ 120 V; 8 units @ 208 V; 10 units @ 230 V

• Power and Current: 303 W, 2.34 A @ 120 V, 60 Hz

• Power and Current: 297 W, 1.35 A @ 208 V, 60 Hz

• Power and Current: 299 W, 1.20 A @ 230 V, 50 Hz

• Certifications / Qualifications

• CE, MET, FCC, UKCA

• IP Rating: IP20, dry location

• What's Included

• Rogue R1X Wash

• Neutrik powerCON power cord

• Omega bracket with mounting hardware

• Optional Accessories

• Professional Clamps: CTC-50HC, CTC-50HCN

• Safety Cable: SC-07

• Neutrik powerCON cables

• DMX Cables

• Flight Case: CP6CASER1W
