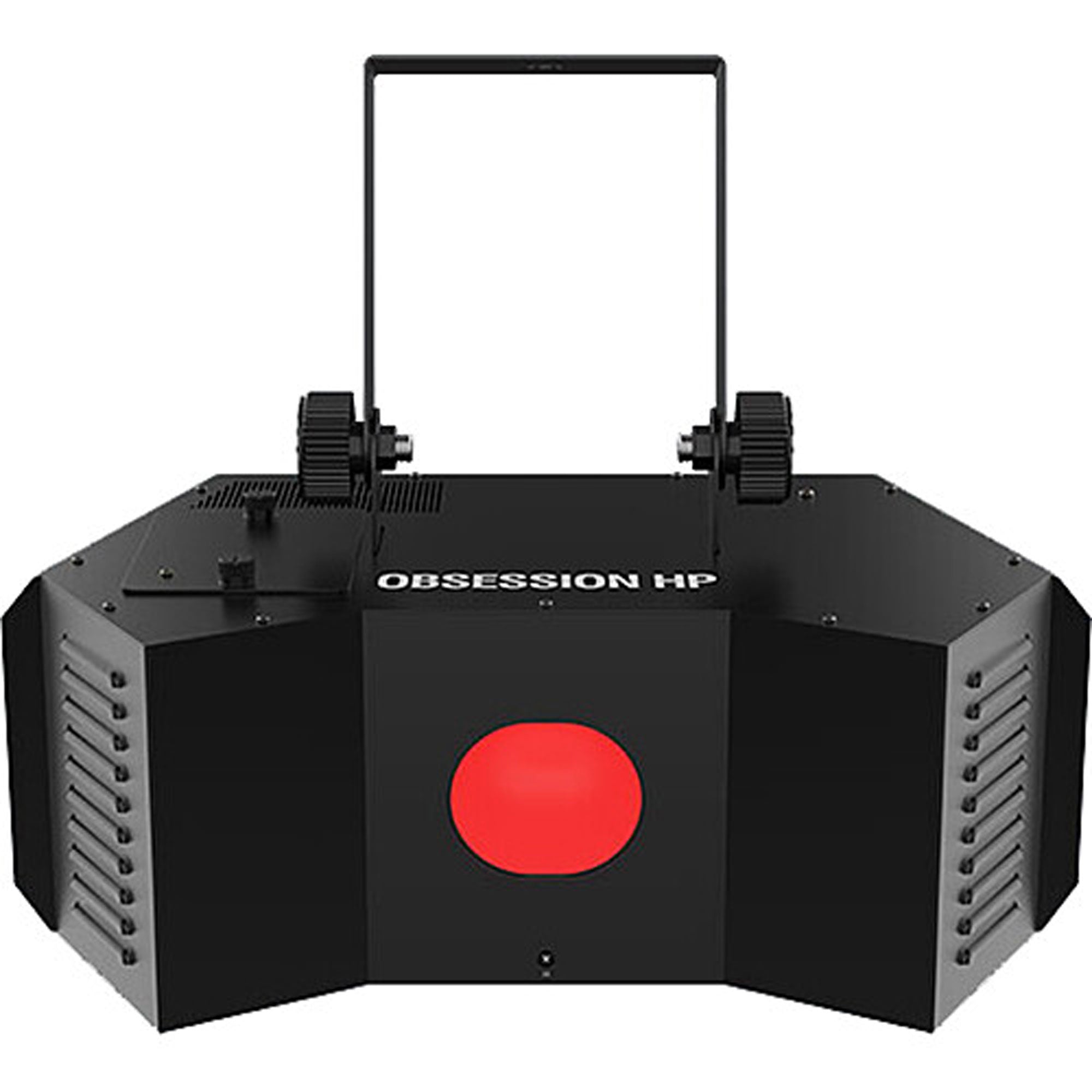

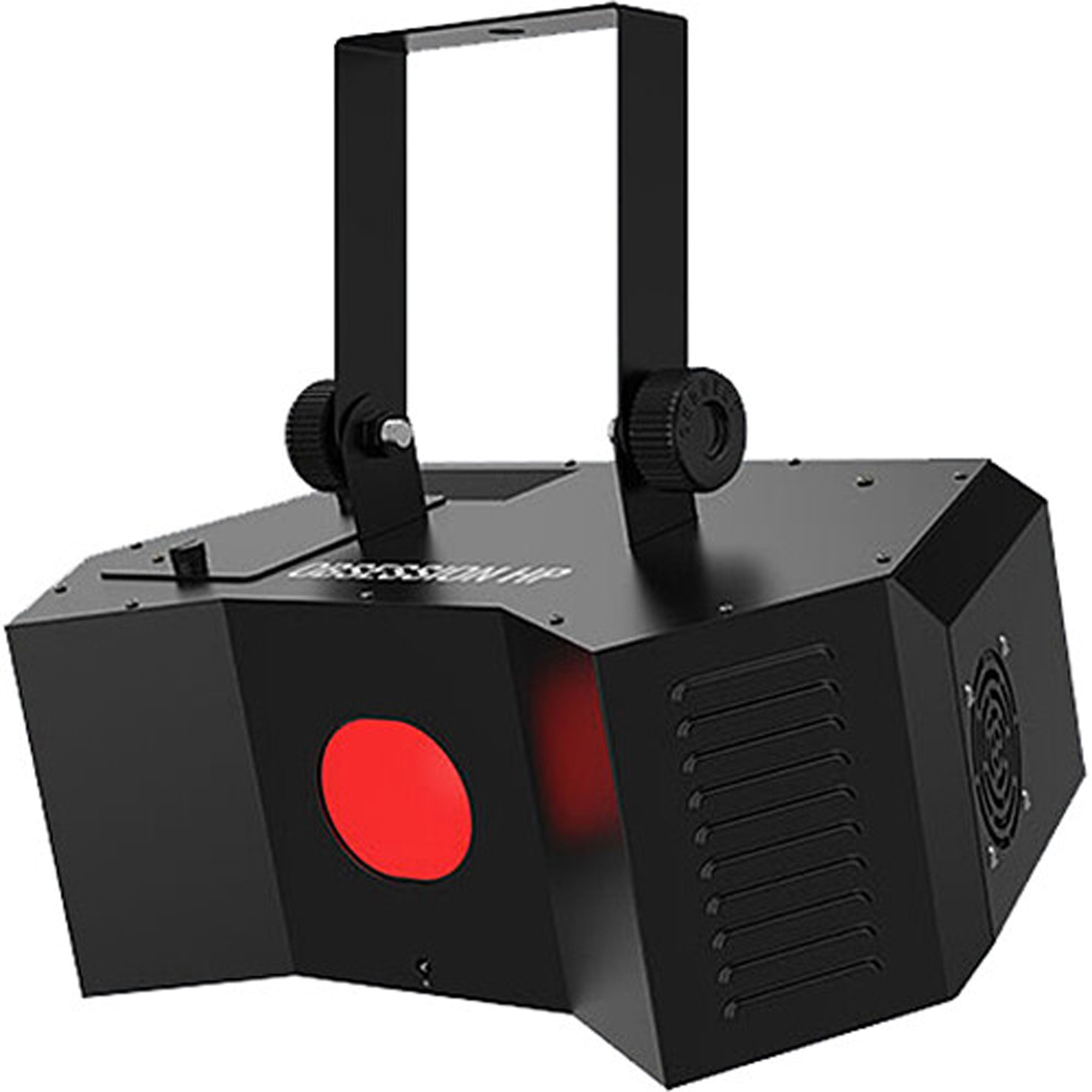

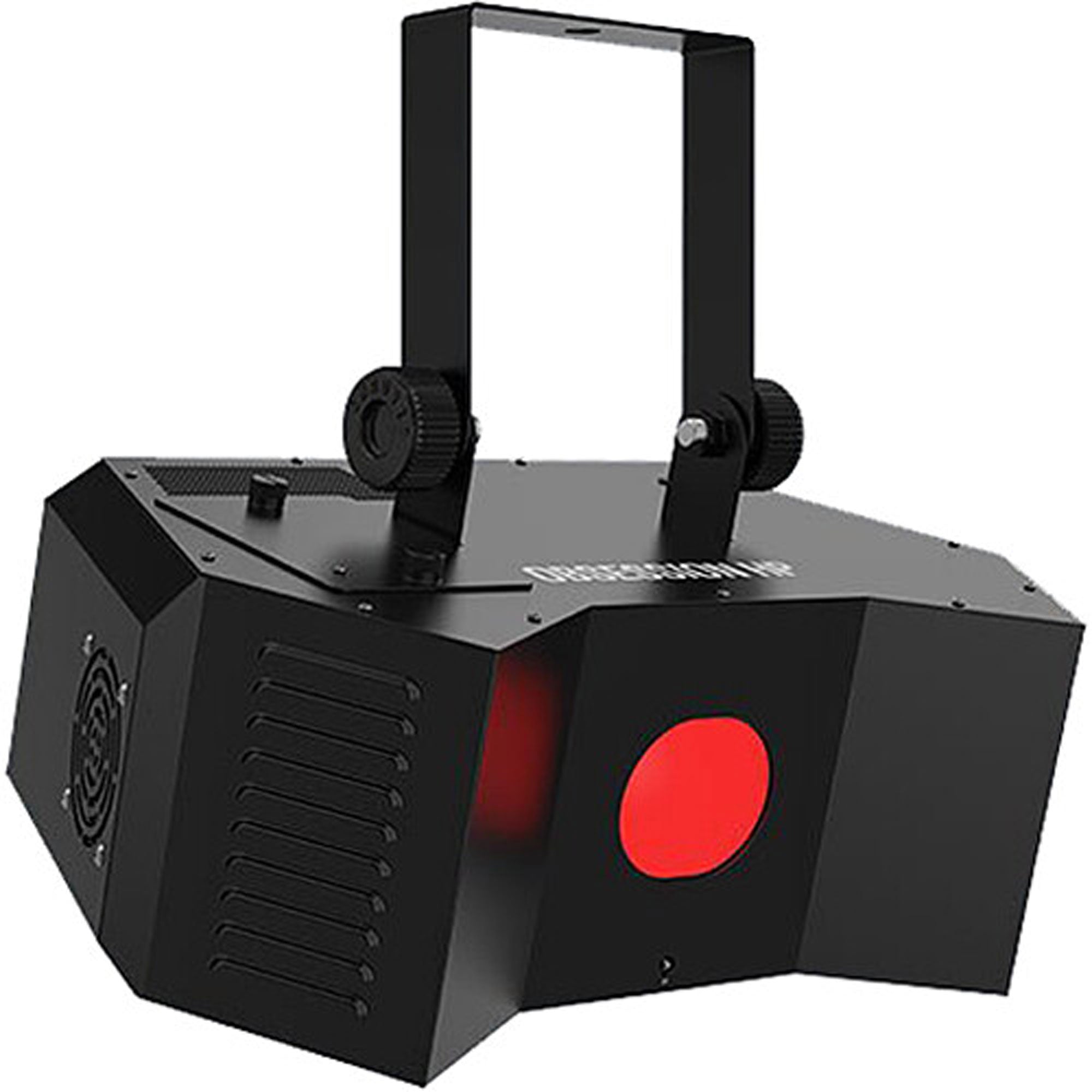

Chauvet DJ Obsession HP Compact 100W LED Effect Light with Multicolored Rotating Gobos

100-Watt LED Lighting Fixture with DMX Control and Separate Color/Gobo Wheels

Thrill your patrons with an animated gobo light show using the Chauvet DJ Obsession HP, a compact LED effect light with a high-powered 100W LED that projects multicolored rotating gobos. The Obsession HP is highly customizable thanks to the interchangeable gobos and the onboard mirror dish. Separate color and gobo wheels allow you to easily generate complex lighting looks.

Two Obsession HPs can be synchronized using Master/Slave mode for an outstanding effects show. Multiple units can be power-linked, saving precious time during setup and breakdown. DMX control offers two channel modes and provides access to auto programs, dimming, shutter (strobe effects), color wheel, gobo wheel, gobo rotation, and mirror rotation.

Features:

• Compact LED effect light fitted with a 100W LED projects multicolored, rotating gobos
• Increase design flexibility and effects with interchangeable gobos
• Easily generate complex looks using the rotating gobo wheel plus mirror dish
• Generate a synchronized show in Master/Slave mode with up to 2 units
• Separate color and gobo wheels allow for creative programming
• Quickly and easily change gobos using the easy-access gobo door
• Compatible with IRC-6 for flexible control over all features
• Save time running cables and extension cords by power linking multiple units
• Compatible with the optional CHS-40 VIP gear bag
• Includes 10 popular holiday gobos

Specifications:

• Light
• Lighting Type: Effects / Projector
• Light Source: 1 x White LED - 100 W
• Light Source Life Expectancy: 50,000 Hours
• Colors:
  White
  Red
  Green
  Blue
  Yellow
  Amber
  Magenta
• Beam Angle: 116°
• Shutter / Strobe: Electronic
• Dimming: Electronic, 0 to 100%
• Performance
• Operating Modes: Automatic, DMX, Master/Slave, Sound-Active, Standalone
• Macros / Programs: None
• Effects: None
• Strobe Rate: 0 to 20 Hz
• Gobos: 7 x Removable Gobo
• Gobo Size:
  Outer Diameter: 0.7" / 18.6 mm
  Max Image Size: 0.5" / 12 mm
  Max Thickness: 0.2" / 5 mm
• PWM Frequency: 4 kHz
• Control
• Control Protocols: DMX512
• DMX Channel Modes: 2 Mode(s): 2 / 8-Channel
• Remote Control: IR Remote (with Optional Equipment)
• Display / Controls: LCD / 4-Button

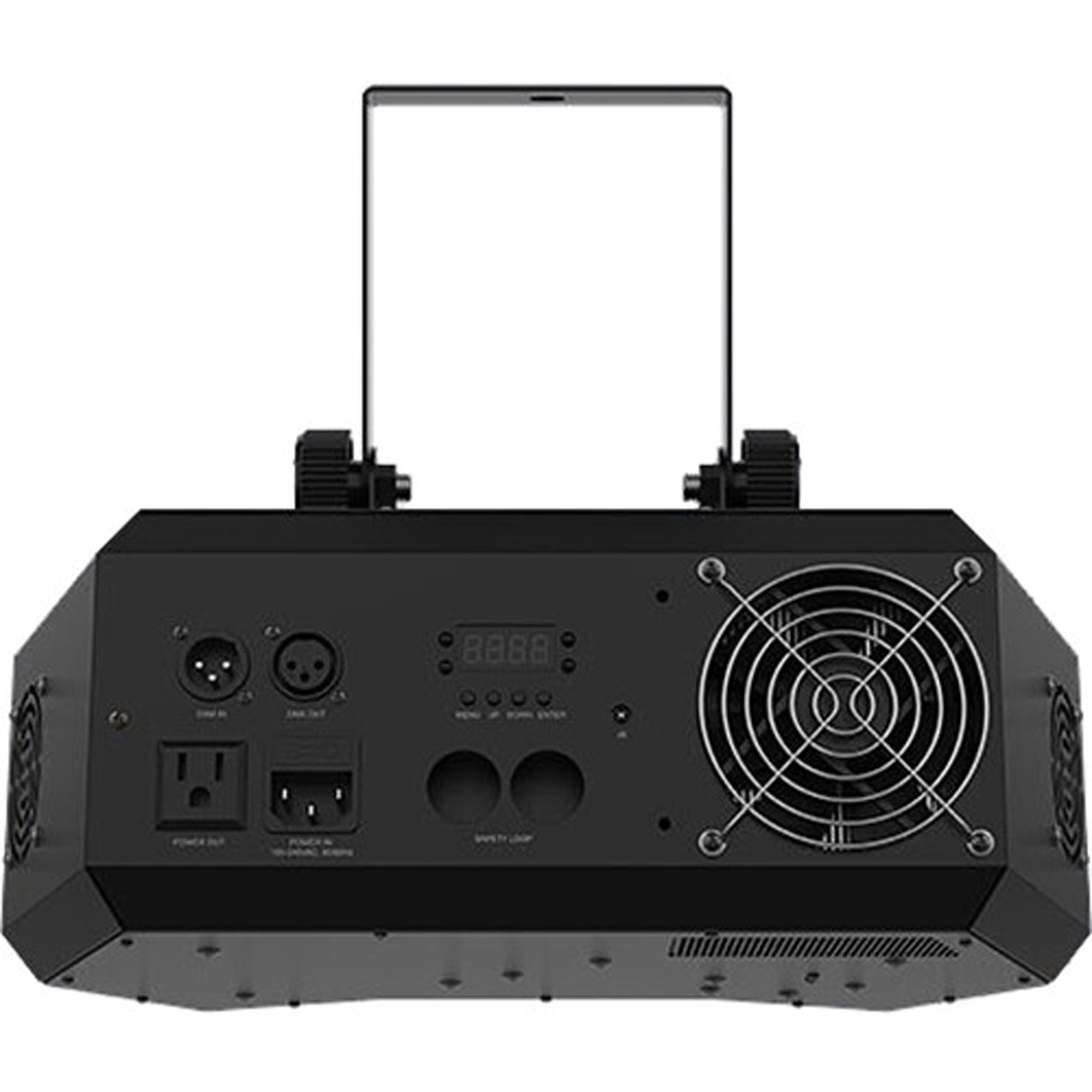

• Connectivity
• I/O: 2 x XLR 3-Pin DMX Input/Output
• Power
• AC Input Power: 100 to 240 VAC, 50/60 Hz
• AC Power Connector:
  Input: 1 x IEC
  Output: 1 x Edison
• Power / Current Consumption:
  120 VAC, 60 Hz: 176 W / 2.2 A
  230 VAC, 50 Hz: 171 W / 1.3 A
• Power Linking:
  3 Units at 120 VAC
  6 Units at 230 VAC
• Environmental
• IP Rating: None
• Operating Temperature: 104°F / 40°C
• Physical
• Mounting: Mounting Bracket
• Duty Cycle: None
• Exterior Color: Black
• Dimensions: 15 x 12 x 8.26" / 38.1 x 30.5 x 20.98 cm
• Weight: 10.2 lb / 4.6 kg

Includes:

• CHAUVET DJ Obsession HP Compact LED Gobo Projector
• Gobo Wheel with 10 Holiday Gobos
• Power Cord
• Limited 2-Year Warranty
