Key Features
- For Uplighting, Venues, Special Events
- 9 x RGBAW+UV 10W LEDs
- 0 to 100% Dimming with Selectable Curves
- 23° Beam Angle, 46° Field Angle
- Built-In D-Fi Wireless DMX
- Magnetic Diffuser & Glare Shield
- Adjustable Kickstand, IP54 Rated
- Rechargeable Battery: 3 Hours
- Selectable Run Time: 3, 5, 8, 12 Hours
- Includes 24 VDC Power Supply
Description

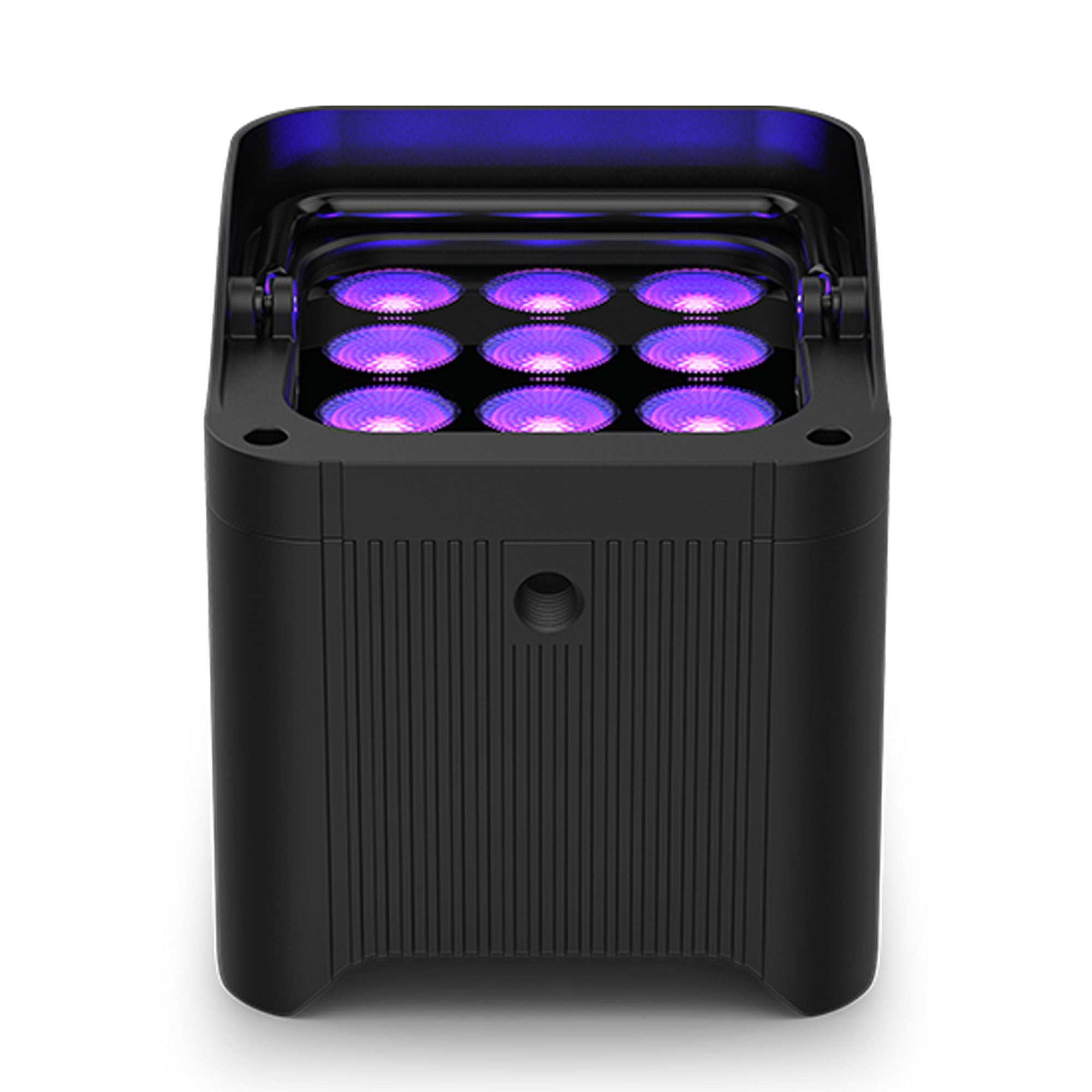

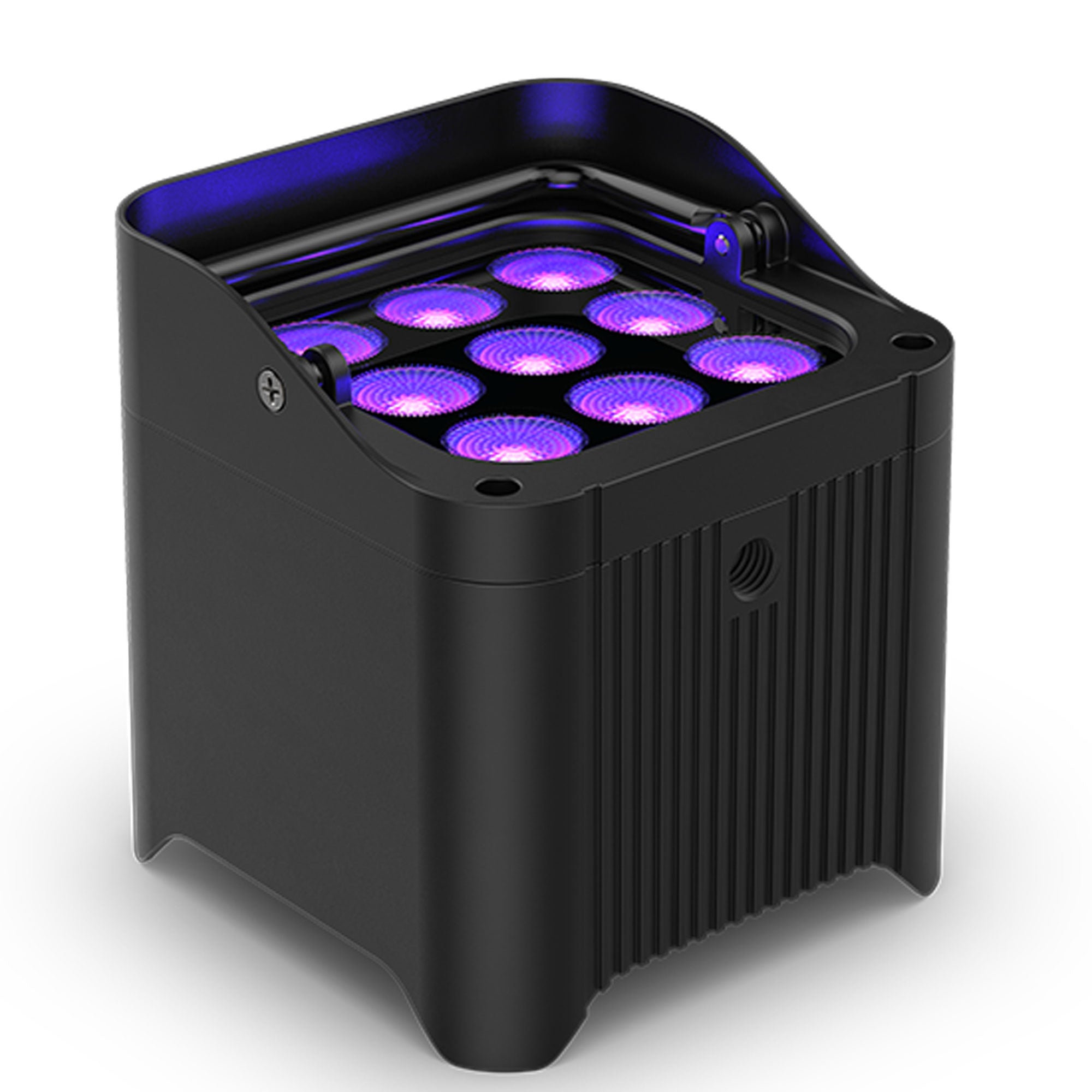

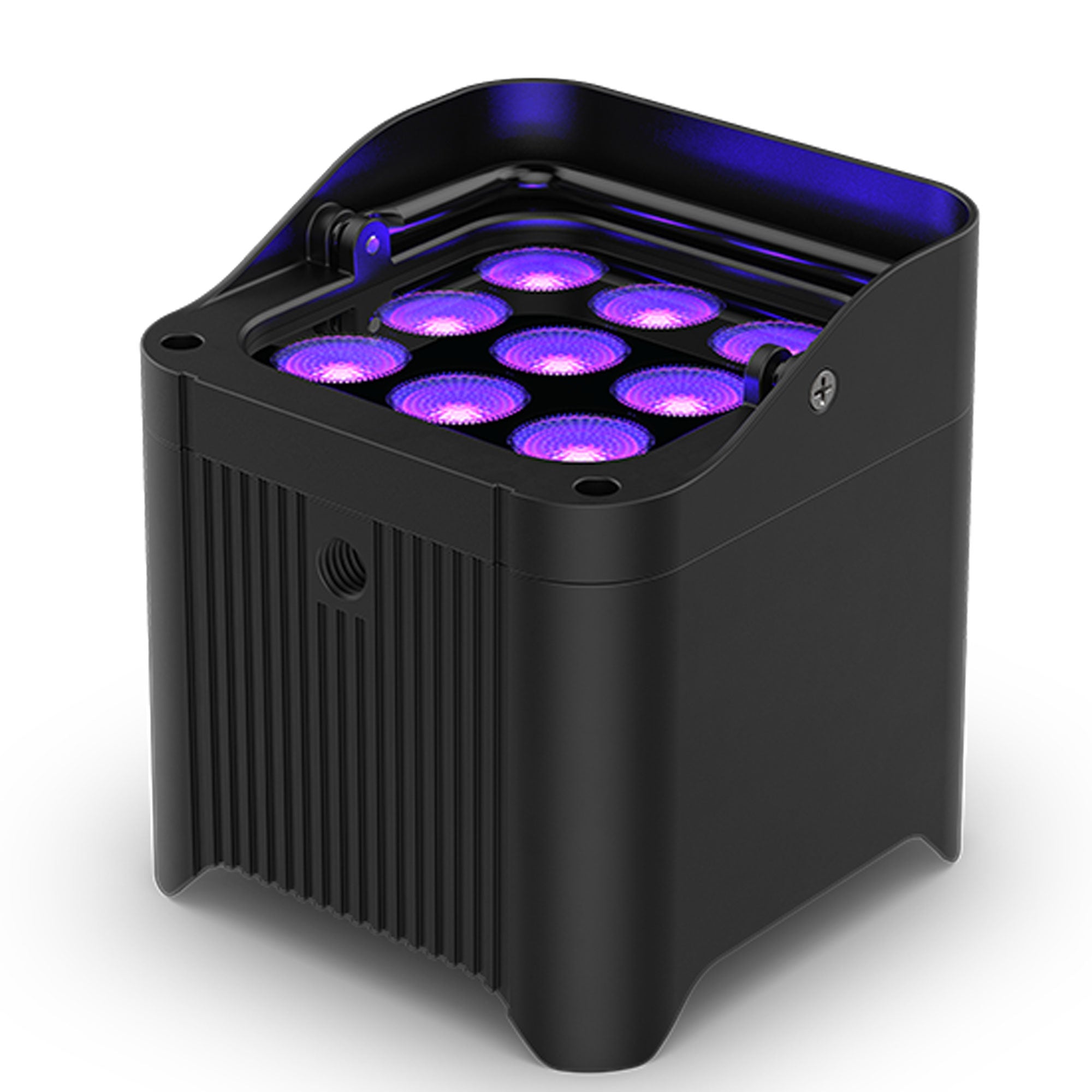

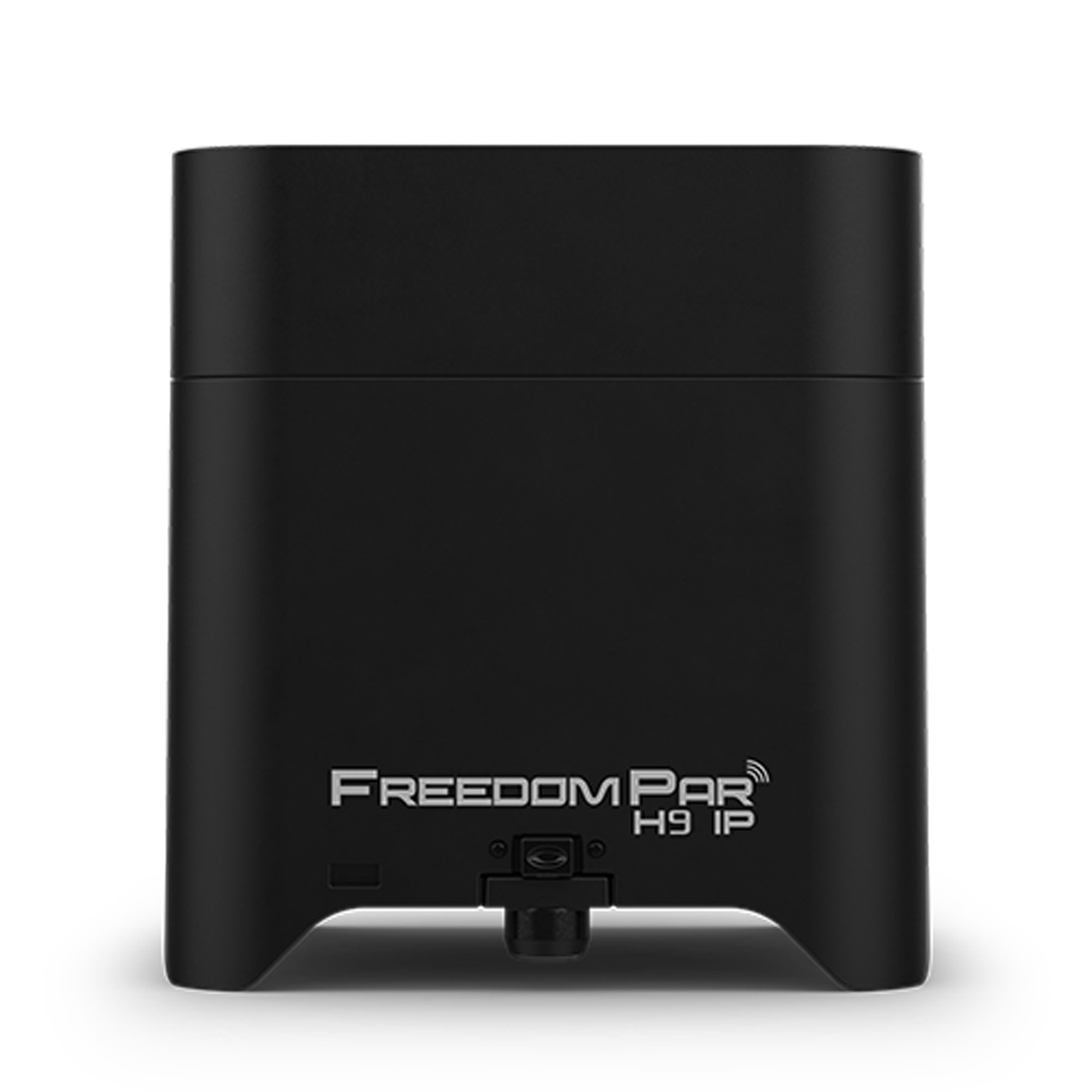

Battery Powered, Wireless Hex-color LED PAR Light with DMX, D-Fi, and RF Remote Control, TRUSST Compatibility, OLED Screen, and Magnetic Diffuser
The freedom to take 100% TRUE wireless, battery-operated, hex-color lighting outdoors just got better! The hallmark built-in D-Fi transceiver for wireless DMX control isn't the only thing inside the hex-colored (RGBAW+UV) Freedom Par H9 IP. This light also has a built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes. The light's IP rating and robust housing repels mother nature for temporary outdoor situations to give you Freedom lighting power rain or shine. A more compact form factor and new secondary optics to provide perfect color blending with nearly no artifacts also propels this par. The OLED display allows for full-text to easily change the fixture's settings and adjustable run times ensure the fixture will last the length of almost any event.
Highlights
-
100% TRUE wireless, battery-operated, hex-color LED uplight with built-in D-Fi transceiver
-
Robust housing repels mother nature for temporary outdoor situations
-
New secondary optics provide perfect color blending with nearly no artifacts
-
Magnetic diffuser pops on or off with ease and widens the coverage area
-
Adjustable run times ensure the fixture will last the length of the event
-
OLED display allows for full-text and to easily change fixture's settings
-
Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
-
Adjust the projection angle using the spring-loaded kickstand
-
Built-in glare shield protects light spillage and eye fatigue
-
Extend the fixture's lifespan with the onboard charge and discharge protection circuitry
-
Achieve smooth LED fading with built-in dimming curves
-
Compact and lightweight design easily fits inside sticks of TRUSST
Specifications
-
DMX Channels: 6, 8 or 16
-
Max Unobstructed Distance: 600 ft (183 m)
-
Light Source: 9 LEDs (hex-color RGBAW+UV, 10 W, (5.7A), 50,000 hours life expectancy
-
Strobe Rate: 1 to 25 Hz
-
Beam Angle: 23°
-
Field Angle: 46°
-
Recharge Time: 3 hours
-
Operating Frequency: 2.412 to 2.484 GHz
-
Illuminance: 1249 lux @ 2 m
-
Lumens: 1,258
-
IP Rating: IP54
-
Input Voltage: 24 VDC, 1.5 A (external power supply: 24 VDC, 50/60 Hz)
-
Power and Current: 50 W, 0.7 A @ 120 V, 60 Hz50 W, 0.4 A @ 230 V, 50 Hz
-
Weight: 4.6 lbs (2.1 kg)
-
Size: 4.7 x 4.7 x 4.9 in (120 x 120 x 126 mm)
-
Approvals: CE, UKCA, RoHS, FCC
-
Beam Angle (with diffuser): 40°
-
Field Angle (with diffuser): 79°
-
Illuminance (with diffuser): 432 lux @ 2 m
-
Run Time (adjustable): 3, 5, 8, or 12 hrs
-
Startup Temperature: 4 °F to 113 °F (-20 °C to 45 °C)
-
Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C)
-
Bracket Mounting Hole: M12
-
Optional Controllers: RFC, RFC-XL, FlareCON
What's Included
-
Freedom Par H9 IP
-
External power supply
-
Magnetic diffuser
-
Quick reference guide
- Manufacturer: Chauvet
- MPN: FREEDOMPARH9IP
- Model Number: Freedom Par H9 IP
- UPC: 781462223755
