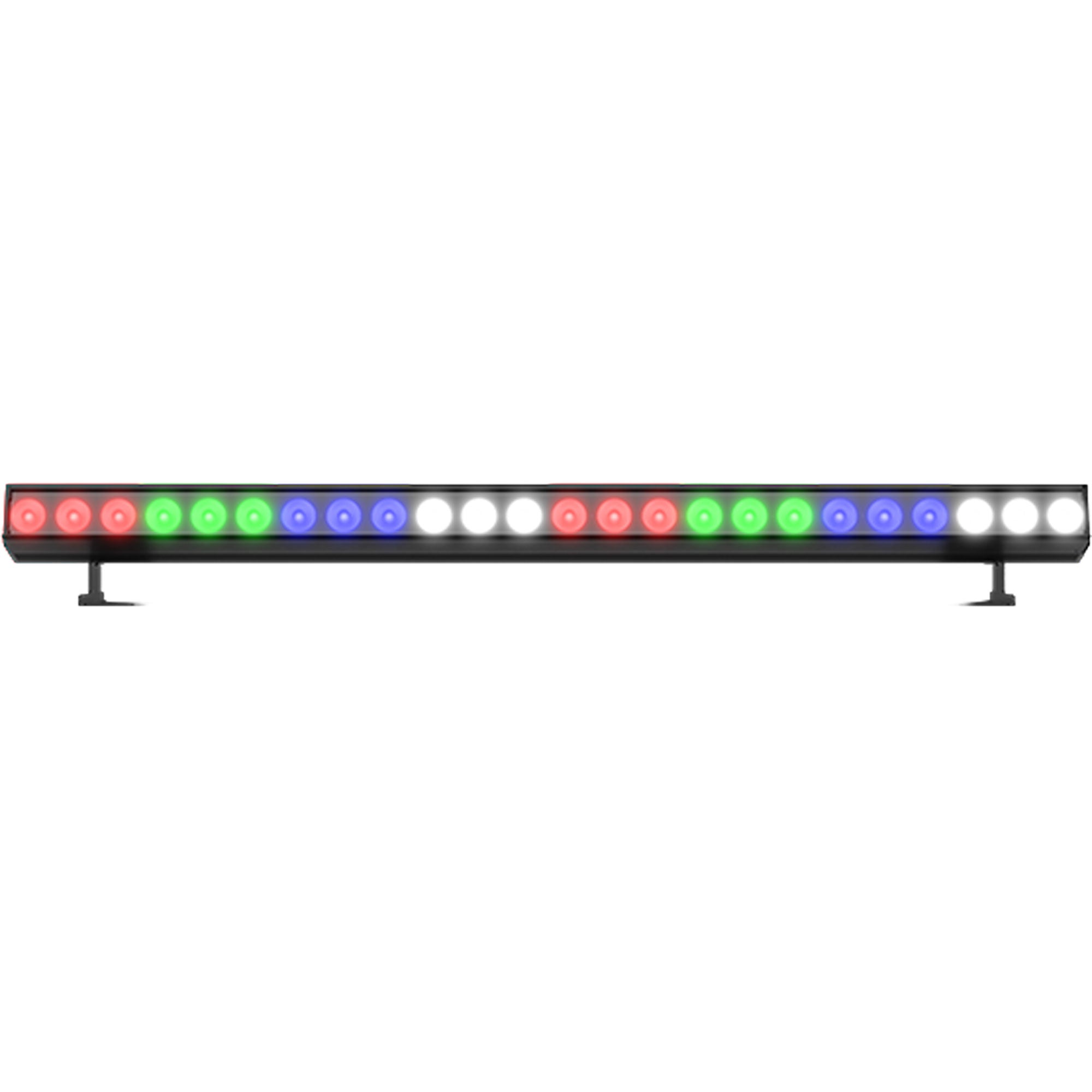

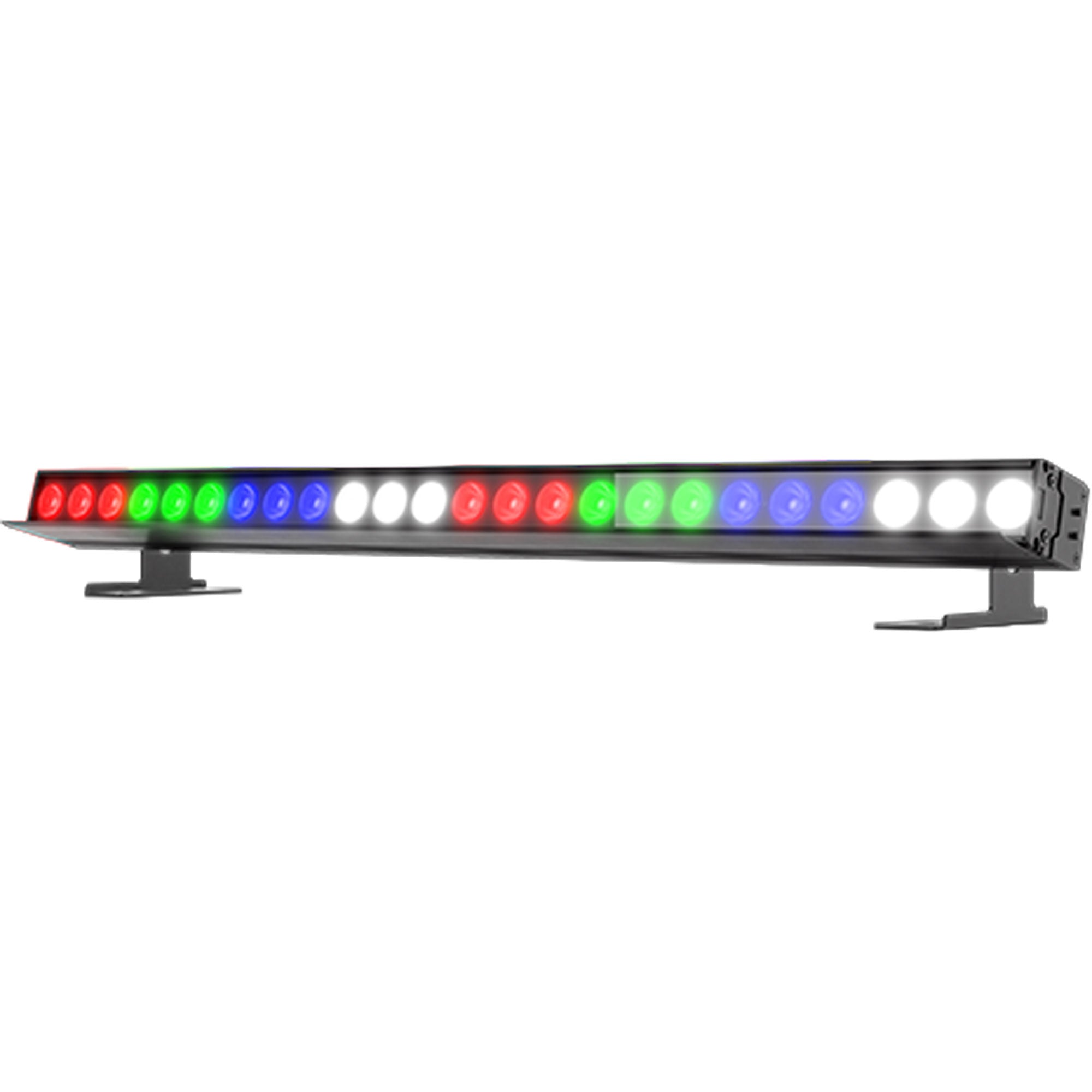

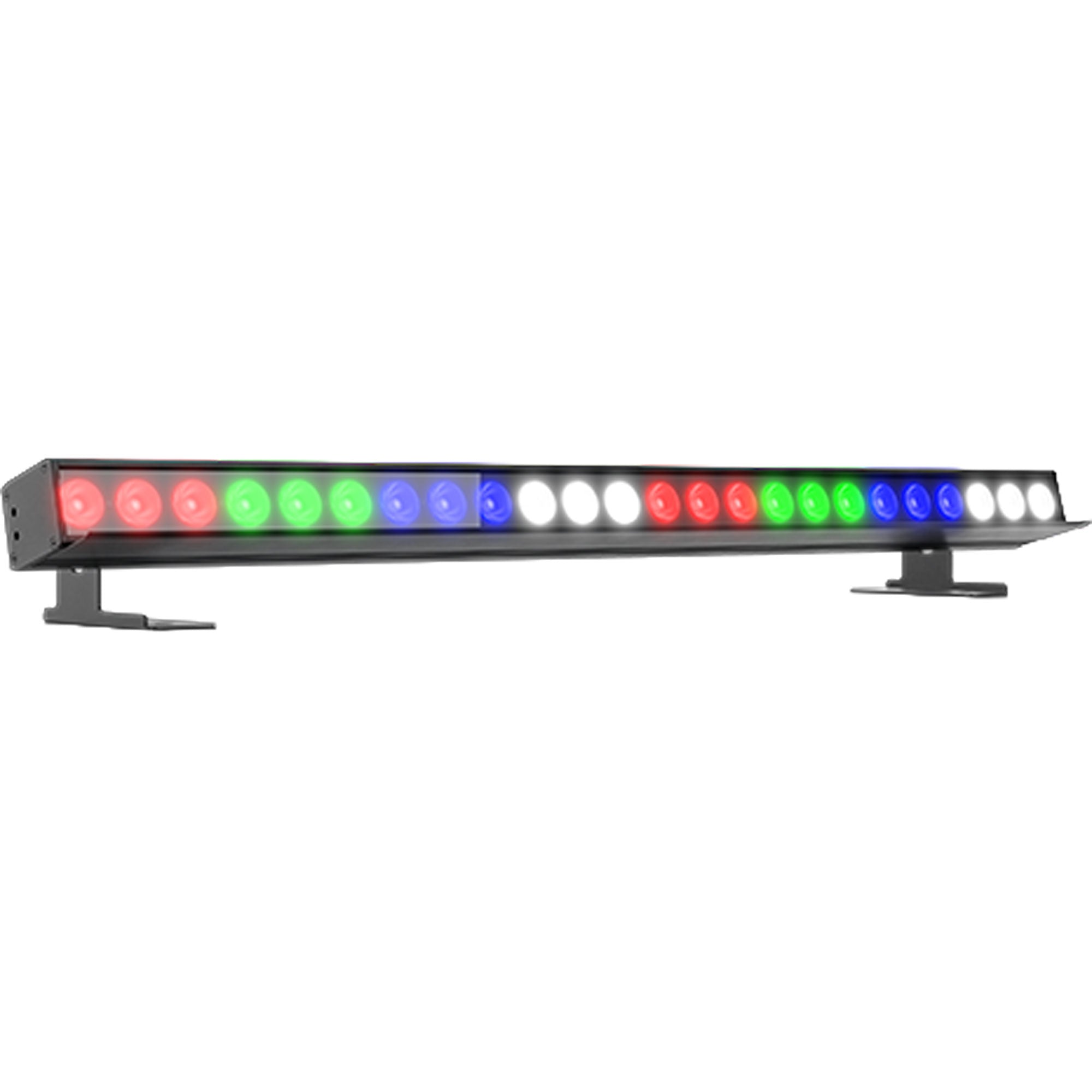

Chauvet DJ EVE B-160Q 8-Zone RGBW LED Linear Lighting Fixture

Put color in motion across 8 zones of control, pick the perfect warm or cool white from color temperature presets, or mix custom colors with this versatile full-color RGBW LED batten designed to consistently match the colors of the EVE range of fresnels, ellipsoidals and PARs.

Features

• Full-color linear batten designed for mobile and installation applications
• Up to 8 controllable zones allow for dynamic chase effects
• Pre-set color temperature ranges eliminate the need for manual color blending
• Flicker-free operation suitable for on-camera use
• D-Fi USB compatibility for wireless master/slave or DMX control

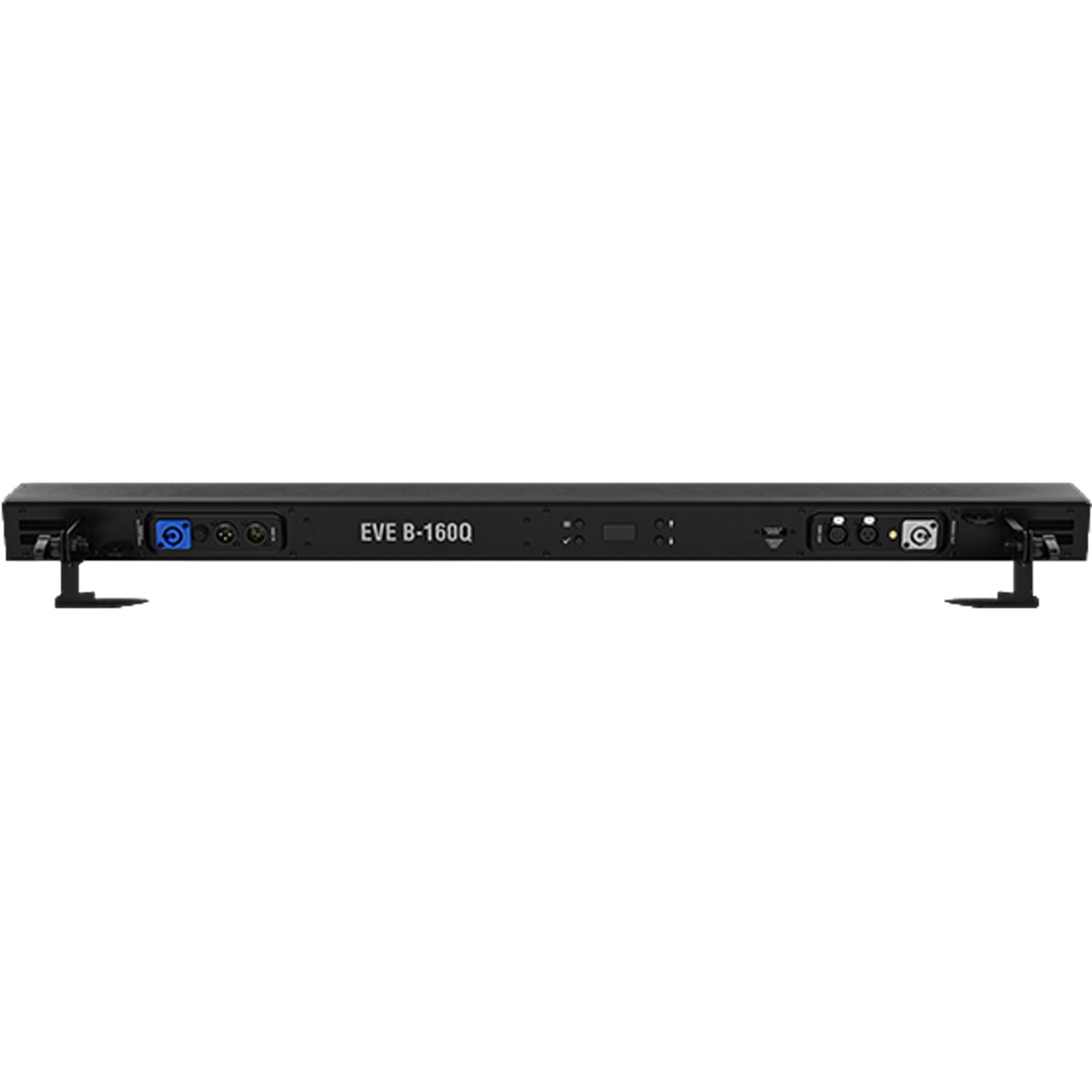

• PowerCON-compatible power input/output connections for power linking

Specifications

• DMX Channels: 3, 4, 11, or 39
• DMX Connectors: 3- and 5-pin XLR
• Light Source: 24 LEDs (quad-color RGBW) 6.5W, (3.2A) 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 15°
• Field Angle: 30°
• Illuminance: 8,300 lux @ 2 m
• Lumens: 3,909
• Power Linking: 7 units @ 120 V; 11 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 105 W, 1.6 A @ 120 V, 60 Hz
• Power and Current: 102 W, 1.0 A @ 230 V, 50 Hz
• Weight: 10.4 lb (4.7 kg)
• Size: 39.4 x 5.9 x 7.6 in (1000 x 151 x 194 mm)
• Approvals: CE, MET, RoHS
• Beam Angle (w/ filter): 24°
• Field Angle (w/ filter): 52°
• Cable Length: 5 ft (1.524 m)

What's Included

• EVE B-160Q
• Power cord
• Quick Reference Guide
