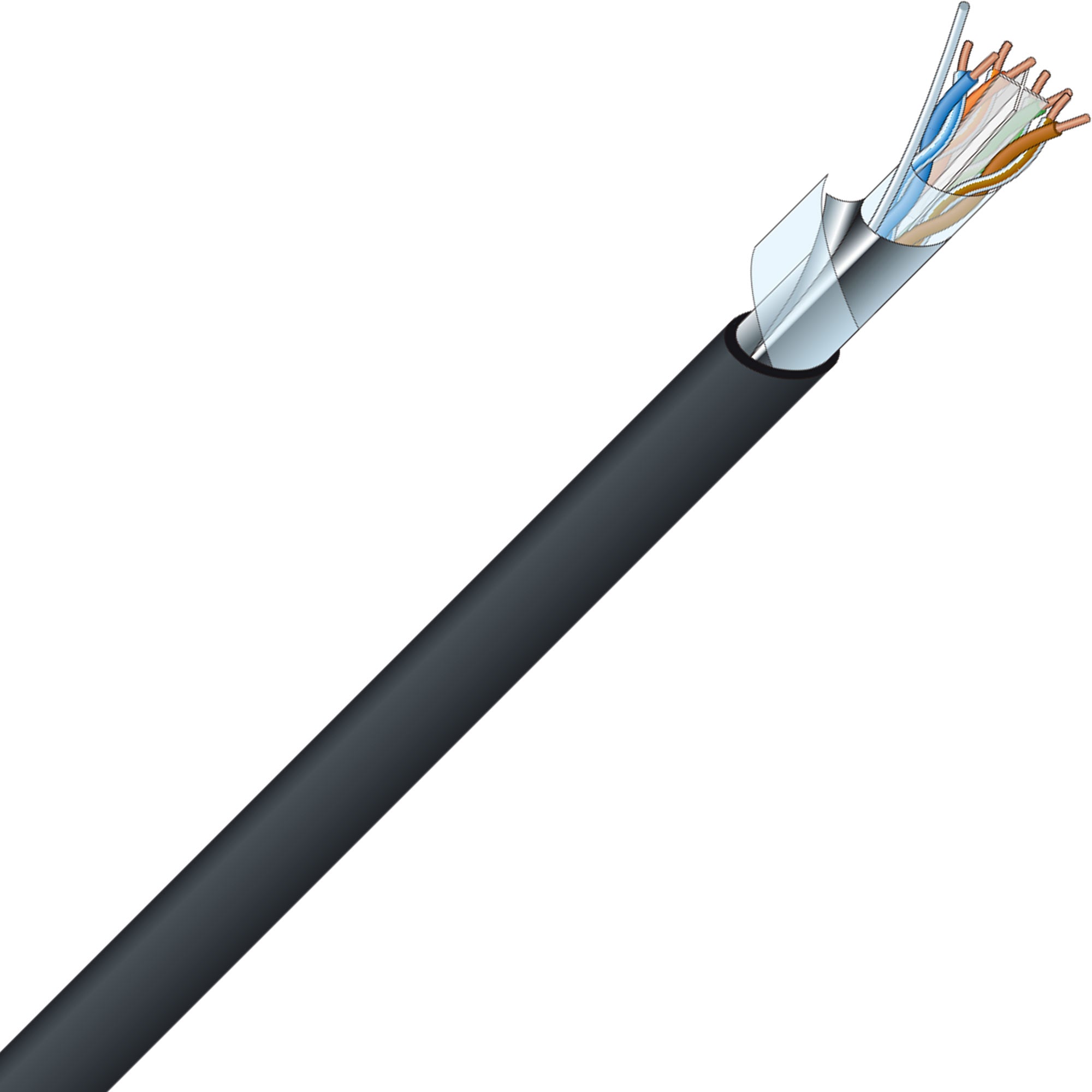

Canare RJC6A-4P-F Cat6a Standard STP (F/UTP) Shielded Ethernet Cable (Black, By the Foot)

The Canare RJC6A-4P-F is a black Category 6A shielded Ethernet cable with 24 AWG solid conductors and an overall foil shield. Sold by the foot, it lets you order the length you need for your network cabling project without purchasing a full spool.

Its F/UTP construction uses an overall foil shield to help reduce electromagnetic interference, with a drain wire included. Length markings on the PVC jacket make it easier to measure cable as you plan and cut your runs.

Ordering by the Foot

Enter the total number of feet needed as your order quantity. For example, a quantity of 50 equals 50 feet of cable. Your order ships in one continuous length.

Key Features

• Category 6A Ethernet cable with F/UTP overall foil shielding
• 24 AWG solid conductors
• 100% overall foil shield coverage to help reject EMI
• Drain wire included
• Black PVC jacket with length markings
• Sold by the foot in a continuous length

Specifications

• Model: RJC6A-4P-F
• Cable category: Cat6A
• Shield type: Overall foil (F/UTP)
• Conductor size: 24 AWG, solid
• Nominal outside diameter: 7.5 mm
• Nominal cable weight: 5.2 kg per 100 m
• DC resistance: 9.4 ohms per 100 m
• Impedance: 100 ohms
• Jacket: Black PVC with length markings
