Canare L-3.3CUHD 75 Ohm Coaxial Cable for 12G-SDI 12G-SDI UHD Video (Black, By the Foot)

Canare SKU: CAN L33CUHD
MPN: L-3.3CUHD

Price:
Sale price$1.00
Stock:
2153 In Stock & Ready to Ship

Key Features

  • 12G-SDI 4K UHD Capable
  • Transport 4K Signals up to 60m
  • Use with BCP-D33UHD BNC Connectors
  • Great for Broadcast & Cinema
  • Sold by the Foot
  • Shipped in a Continuous Length

Description

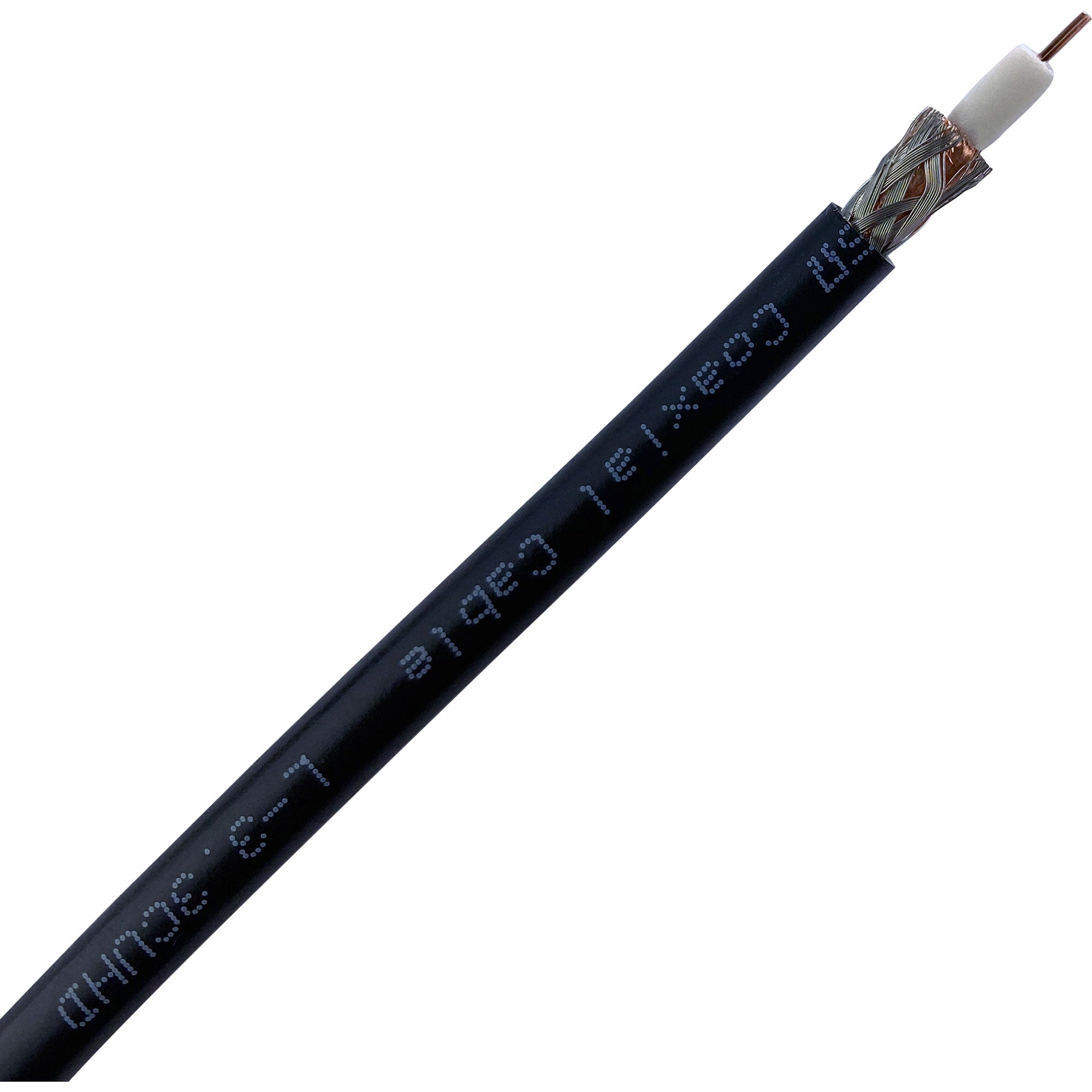

Black Canare L-3.3CUHD 75-ohm 12G-SDI video coax, by the foot

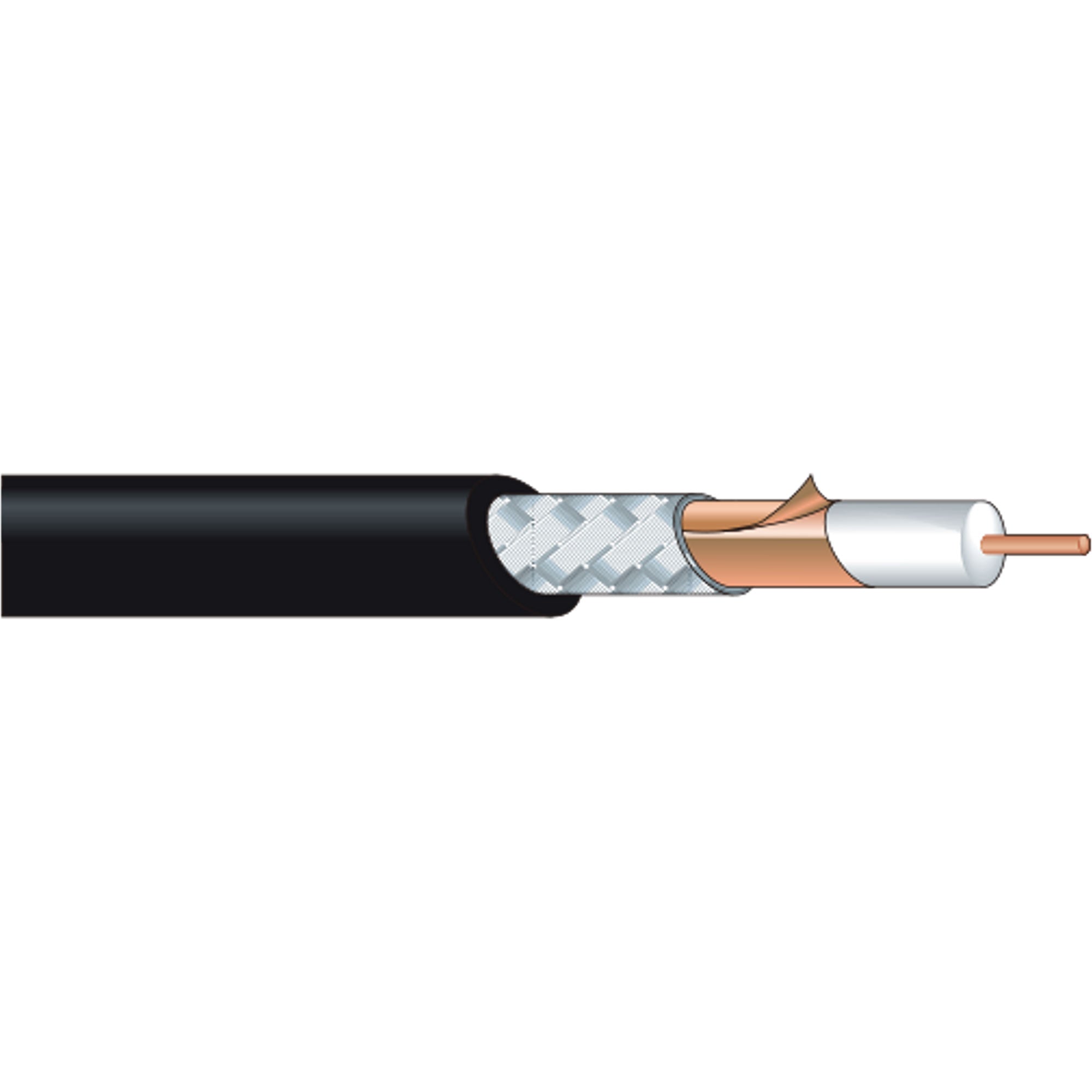

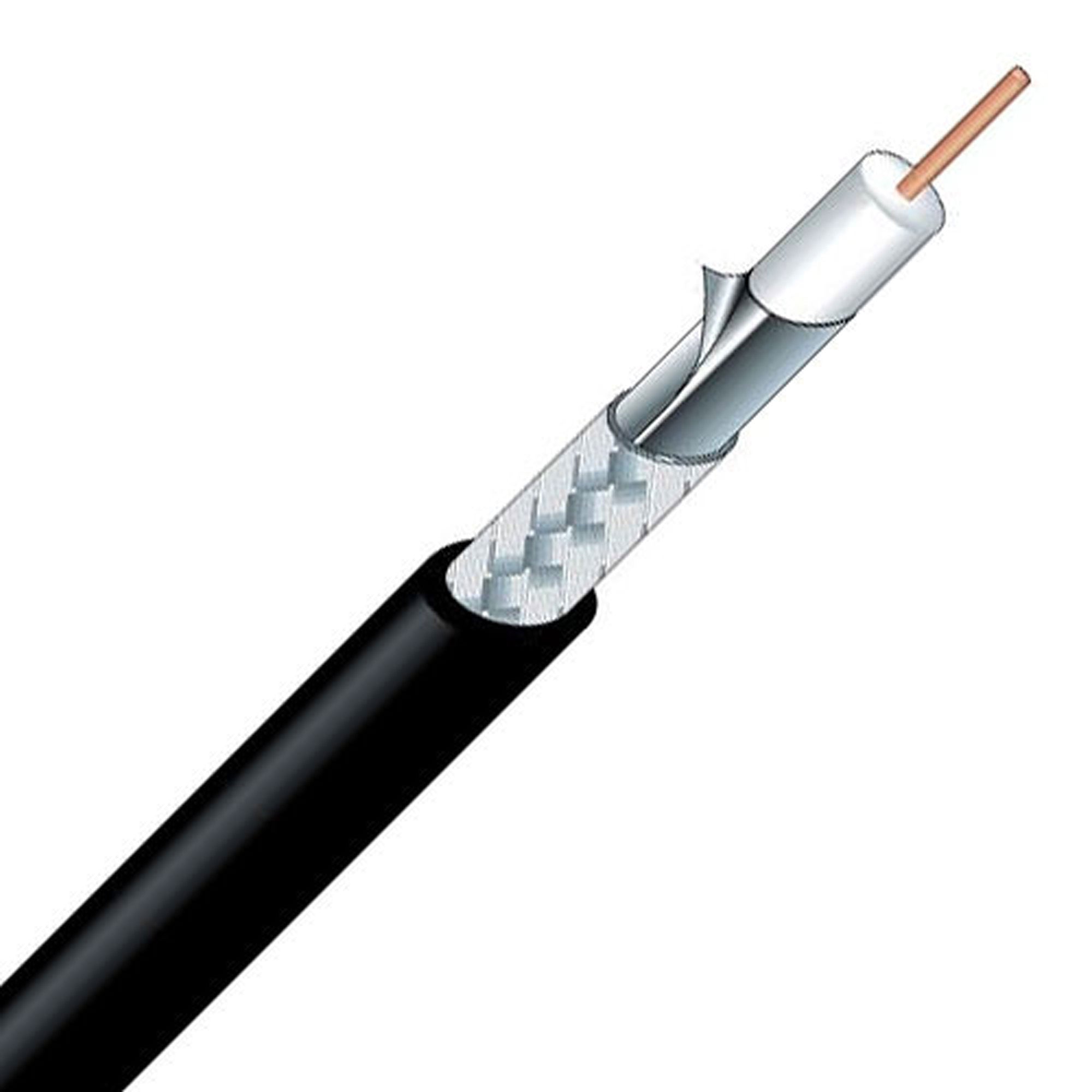

Black Canare L-3.3CUHD is precision 75-ohm coaxial cable designed for 12G-SDI digital video wiring. Its nominal 21 AWG center conductor, highly foamed multilayer polyethylene insulation and copper laminated tape plus braided shield provide a compact cable for suitable broadcast-facility, studio and AV-system connections. This listing is bulk, unterminated cable, not a finished BNC lead.

Continuous-length ordering

Quantity 1 = 1 foot; quantity 100 = one continuous 100-foot length. Allow extra for routing, service loops and connector preparation. The listed manufacturer standard lengths of 328, 656 and 984 feet (100, 200 and 300 m) are packaging references, not the purchase unit here or guaranteed signal distances. Connectors and termination tools are selected separately.

Connector fit and termination

Use true 75-ohm connectors specified for L-3.3CUHD and the required SDI bandwidth. Match the connector's center-contact, dielectric and jacket dimensions to this exact cable; a nominal BNC size or jacket fit alone does not establish compatibility. The listed cable outside diameter is 5.5 mm (0.217 inch), center-conductor diameter 0.75 mm (0.030 inch) and insulation diameter 3.3 mm (0.130 inch).

Follow the selected connector manufacturer's strip dimensions and approved crimp tooling. Avoid nicking the center conductor, deforming the foamed dielectric or leaving shield strands where they can short to the center contact. Preserve the coax geometry through the termination, avoid sharp bends and crushing, and test the completed cable at the intended video format. Confirm manufacturer bend-radius and pulling limits before installation.

Plan the SDI run, not just the cable length

L-3.3CUHD is designed for 12G-SDI, but usable distance depends on transmitter output, receiver equalization, connectors, intermediate connections and installation quality. The previous source copy contained conflicting 190-foot and 328-foot 12G-SDI distance claims, so neither is treated here as a guaranteed reach. Confirm current model-specific attenuation and distance guidance with your equipment requirements and test the complete link before committing to a critical run.

The source references SMPTE 259M, 292M and 424M for lower-rate SDI applications. Cable selection alone does not guarantee every resolution, frame rate or 4K/8K transport configuration. Confirm the actual SDI rate and the equipment's supported format.

Features

  • Black jacket; compact nominal 5.5 mm outside diameter.
  • 75-ohm precision coax designed for 12G-SDI digital video.
  • Highly foamed multilayer PE insulation.
  • Copper laminated tape with braid shielding; listed braid coverage 92%.
  • Listed UL 1666 riser flame-test reference; confirm current product listing and suitability for the installation route. Do not assume a plenum, outdoor or direct-burial rating.
  • Continuous-length by-the-foot ordering for custom assemblies.

Mechanical and electrical specifications

  • Model: Canare L-3.3CUHD; color Black.
  • Nominal center-conductor gauge: 21 AWG.
  • Nominal cable O.D.: 5.5 mm (0.217 inch).
  • Center-conductor O.D.: 0.75 mm (0.030 inch).
  • Insulation O.D.: 3.3 mm (0.130 inch).
  • Listed weight: 4.1 kg (9.04 lb) per 100 m.
  • Shield: copper laminated tape plus braid; listed coverage 92%.
  • Inner-conductor resistance: 41.4 Ω/km.
  • Outer-conductor resistance: 14.9 Ω/km.
  • Nominal capacitance: 55 pF/m.
  • Characteristic impedance: 75 Ω.
  • Listed attenuation at 6 GHz: 68.5 dB/100 m (328 feet).

The source's center-conductor composition notation is corrupted, and its shield-metal descriptions conflict. Detailed strand notation and an unverified braid-metal claim are therefore omitted. Confirm current manufacturer construction data when those details are required. Nominal cable specifications and factory-test references do not certify the performance of a finished assembly.

Details
  • Manufacturer:  Canare
  • MPN: L-3.3CUHD
  • Model Number: L-3.3CUHD
