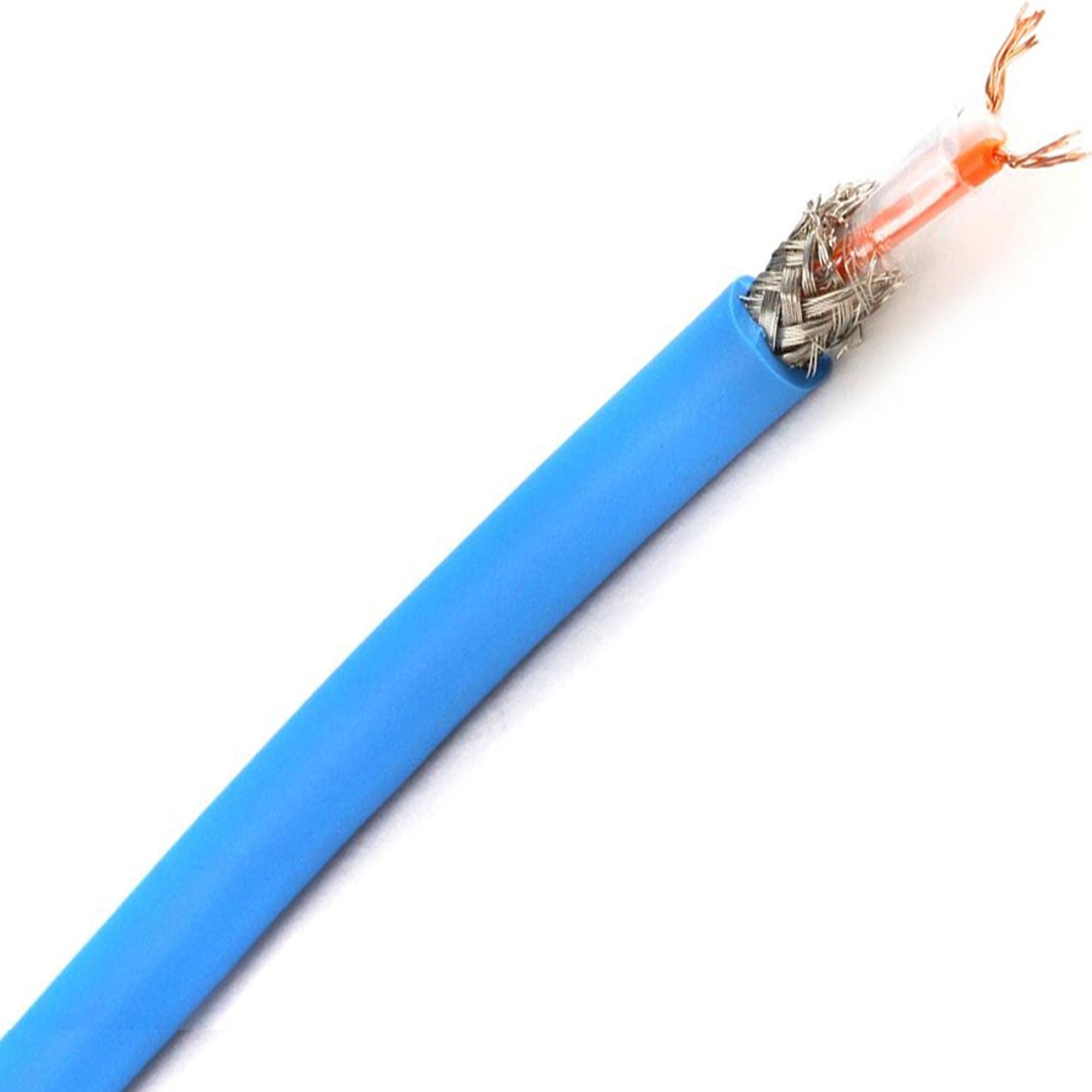

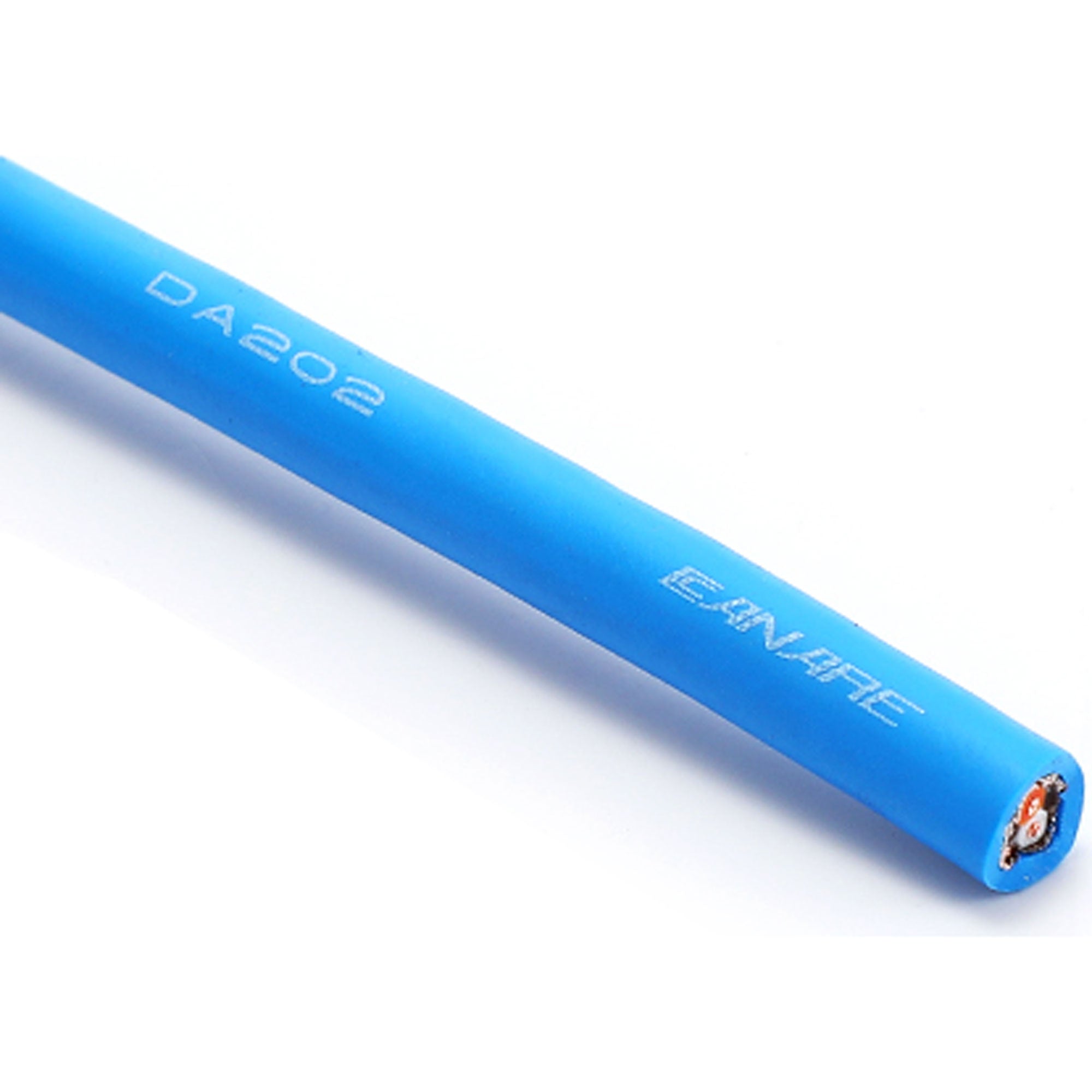

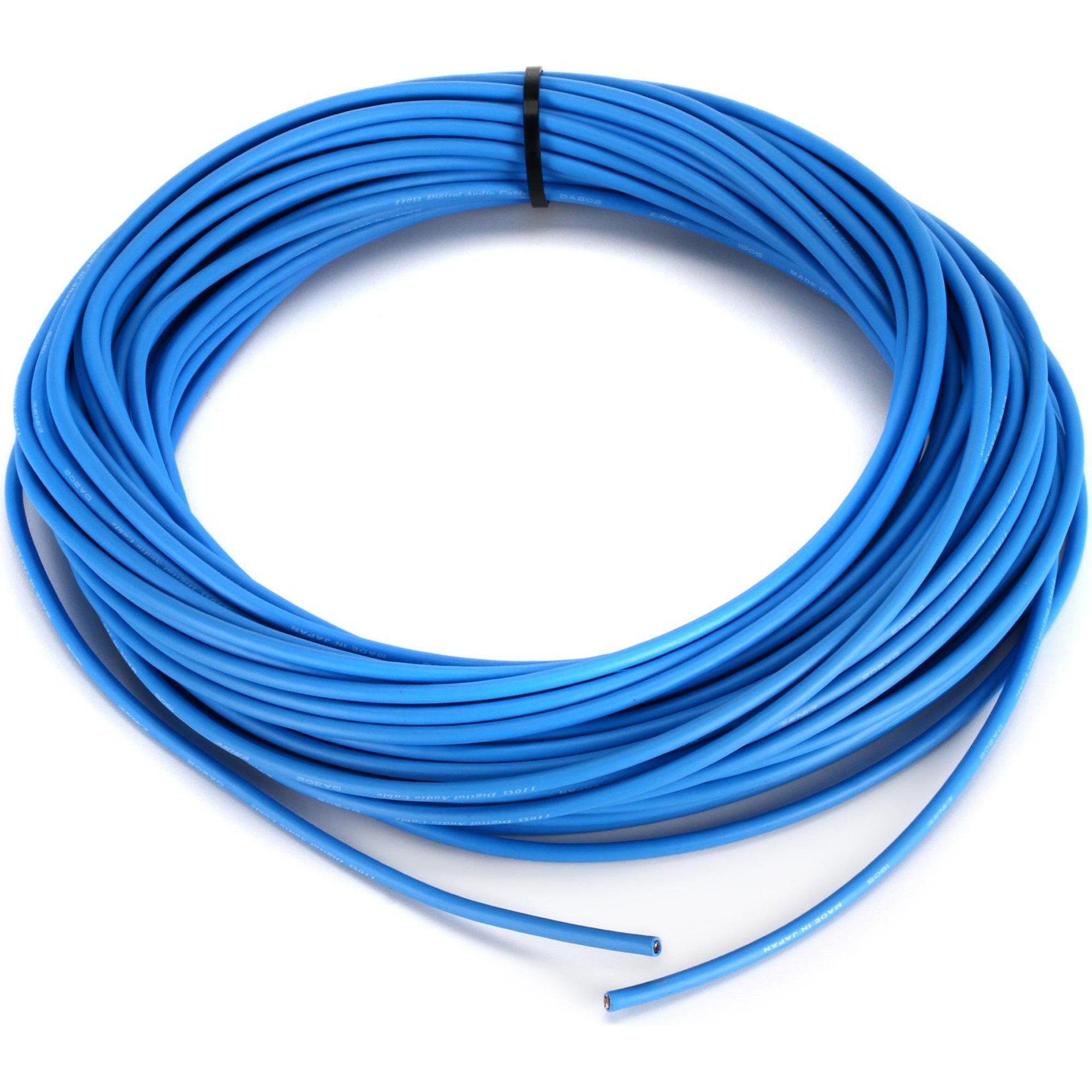

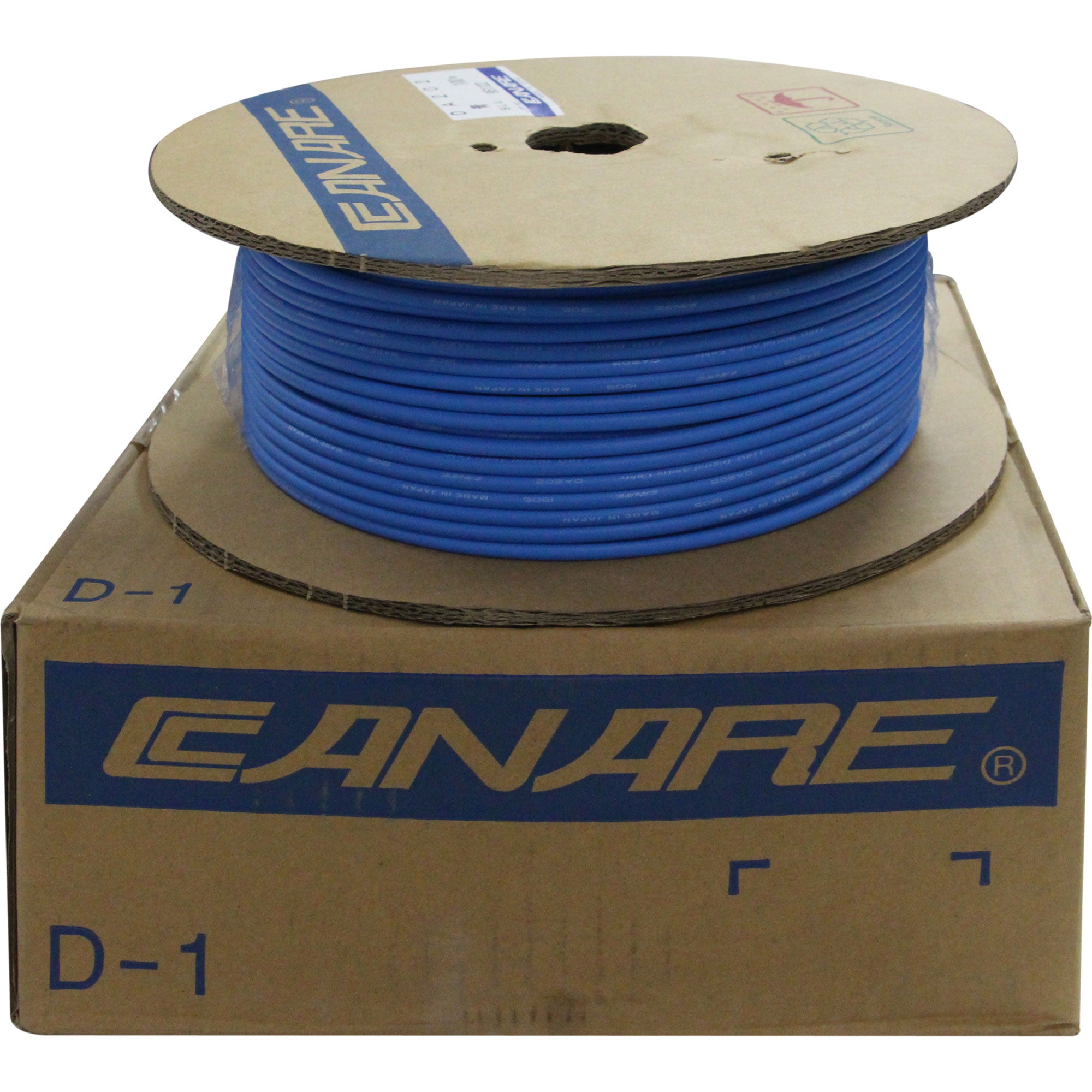

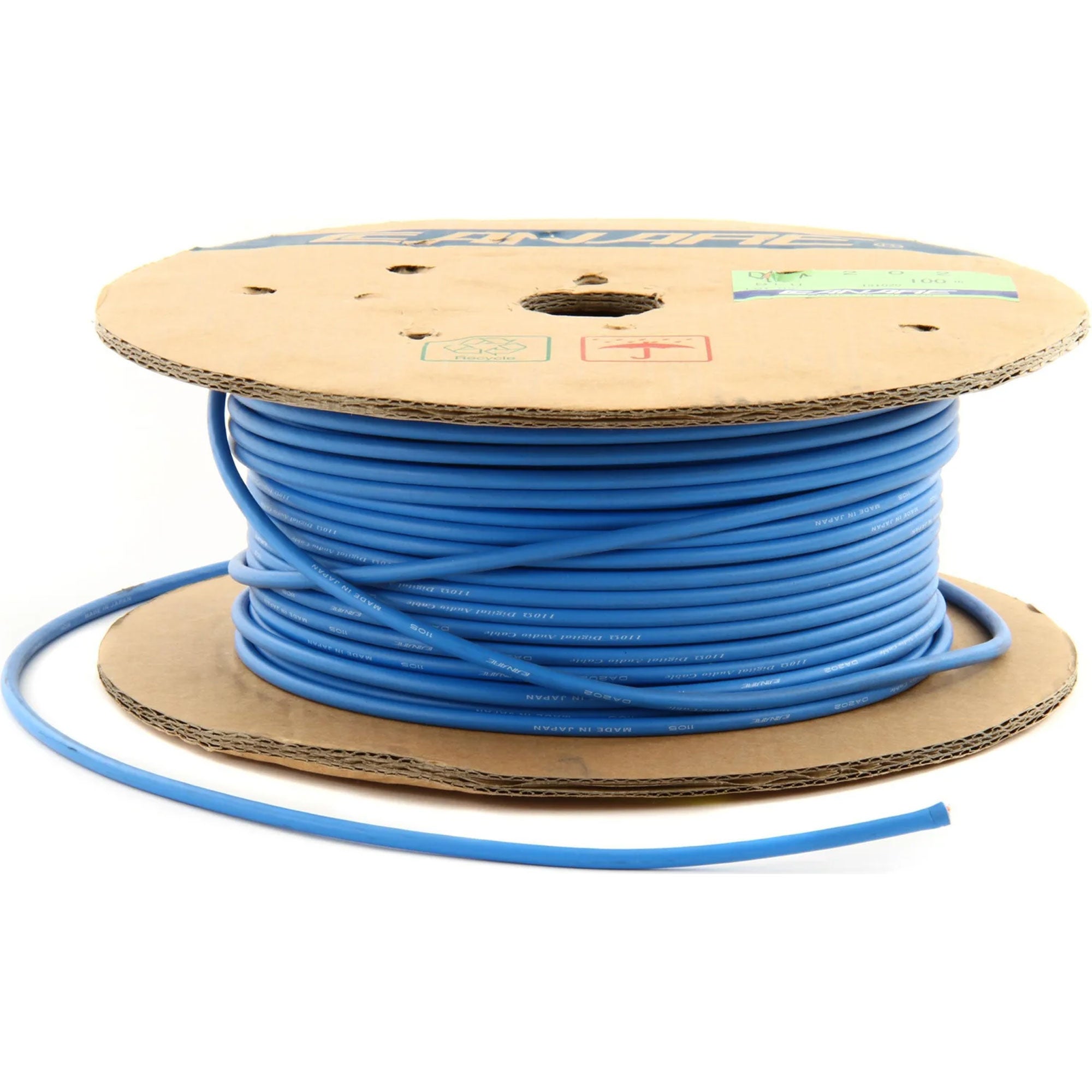

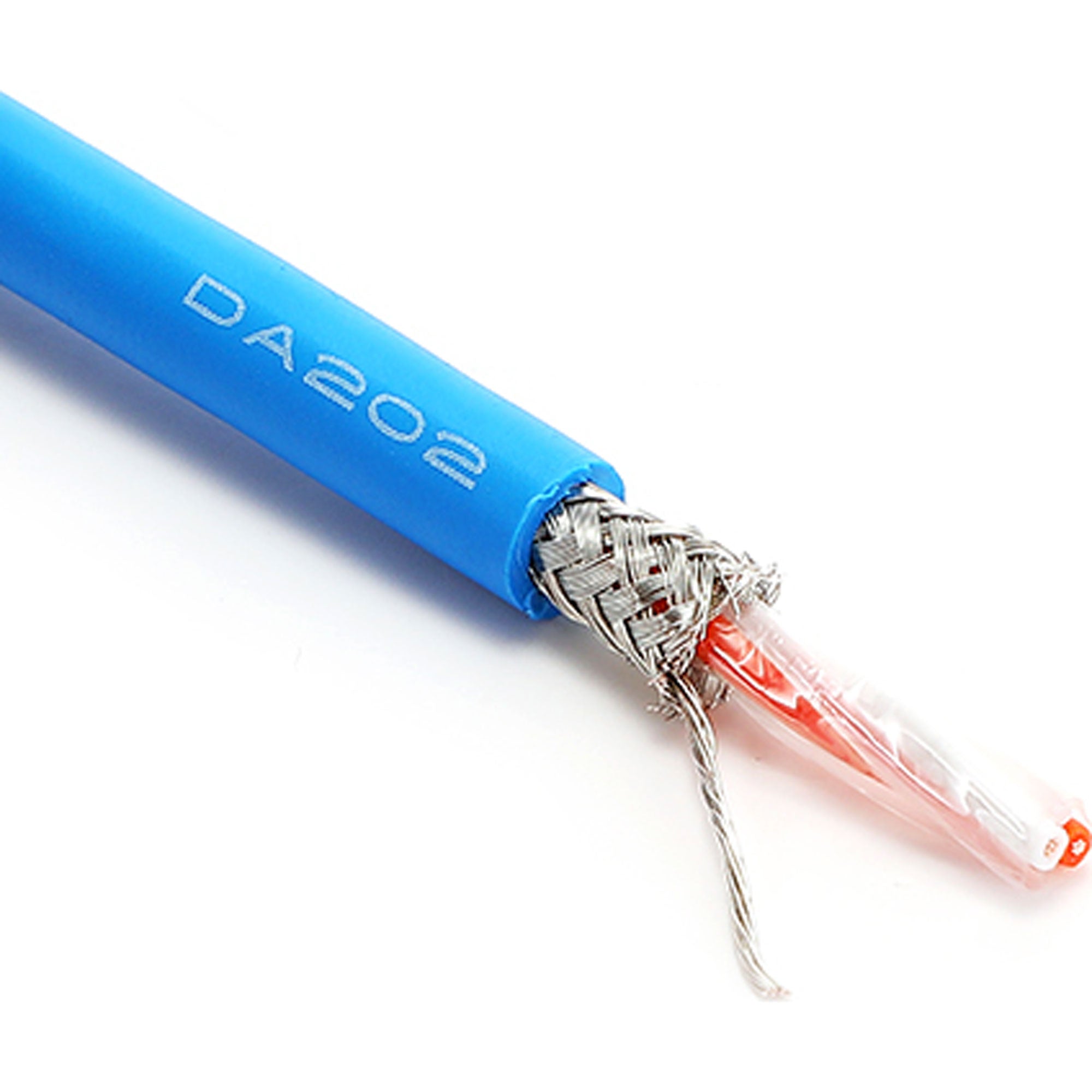

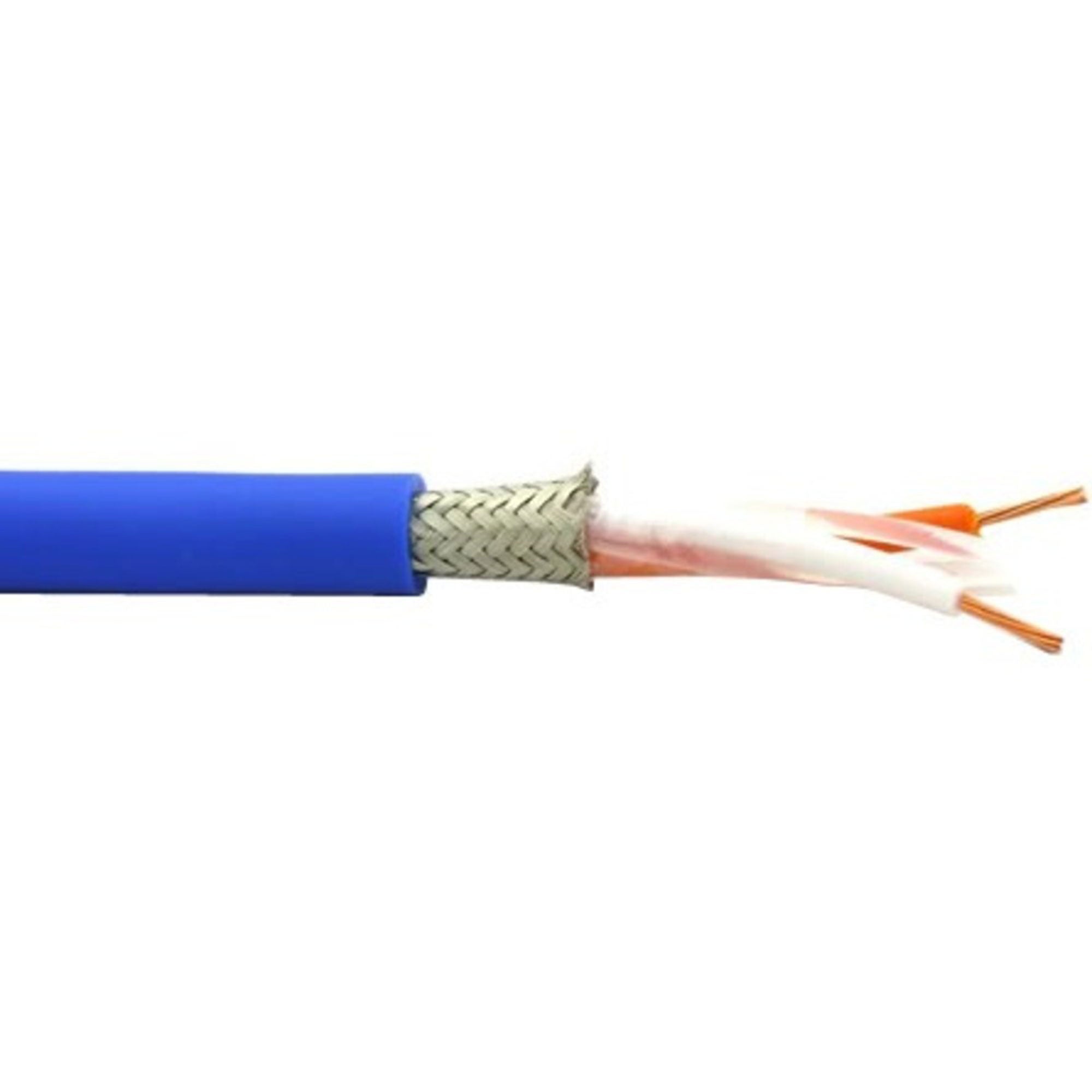

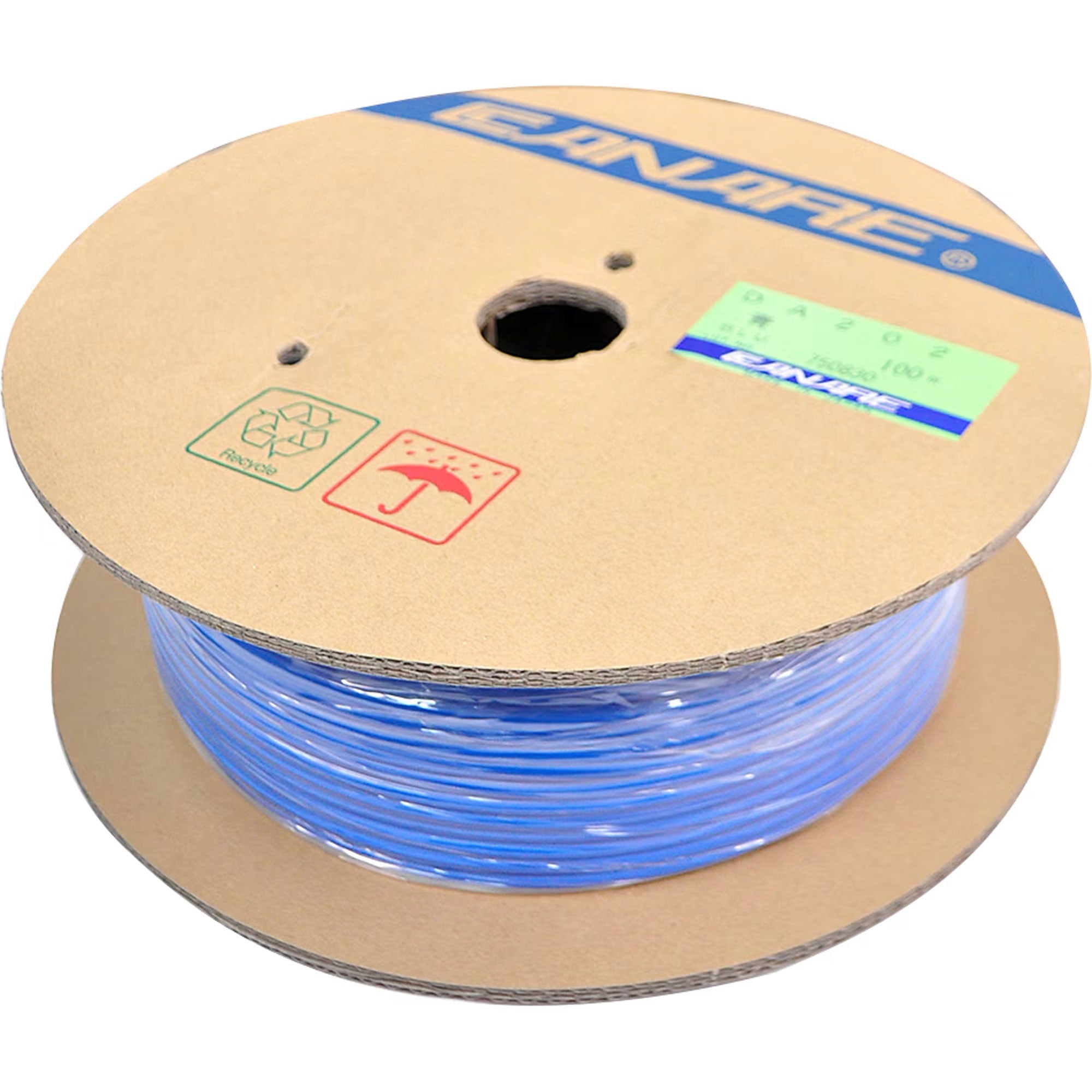

Canare DA202 110 Ohm AES/EBU Digital Audio Cable (Blue, 328'/100m)

110 Ohm AES/EBU Digital Audio Cable, 25 AWG - Full 328'/100m Roll

Mini version of DA206. 25 AWG conductors allow use with common IDC Punch Down Block, Digital Audio "110 ohm Type" Patchbays. Integral Drain Wire for easy ground wiring. Maximum recommended AES/EBU Length: 590ft (180meters). Jacket color: BLUE.

Features:

• PE rod configuration ensures consistent 110 ohm impedance with large or small bends in cable during installation.
• DA202 ideal for digital audio paths up to 180 m*.
• DA202 contains a drain wire.

Specifications:

• MECHANICAL SPECIFICATIONS
• Std. Lng. ft. (m): 328 (100), 656 (200)
• Wt. Std. Lng. lbs. (kgs): 8 (4)
• Nom. O.D. in. (mm): .197 (5.0)
• PVC Jacket Nom. Thick. in. (mm): .034 (0.8)
• Brittle Point F° (C°): -56 (-49)
• No. of Cond.: 2 ORG WHT
• Insul. Type* Thick mil: IPE 16.9
• Cond-AWG (Qty./mil) Cross Sec. Area mm²: AC-#25 (7/7.09) 0.18
• Pitch of Quad in. (mm): - (32)
• Shield Coverage: >95% Braid
• ELECTRICAL PERFORMANCE
• Cond. D.C.R. ohm/1000ft (ohm/100m): <32.3 (<10.6)
• Shield D.C.R. ohm/1000ft (ohm/100m): <6.8 (<2.2)
• Nom. Cap. pF/ft (pF/m): - (45)
• Nom. Imp. ohm: 110
• Nom. Atten. @3MHz dB/100m: 5.0
