Description
Deliver High Definition Video From Source to Display

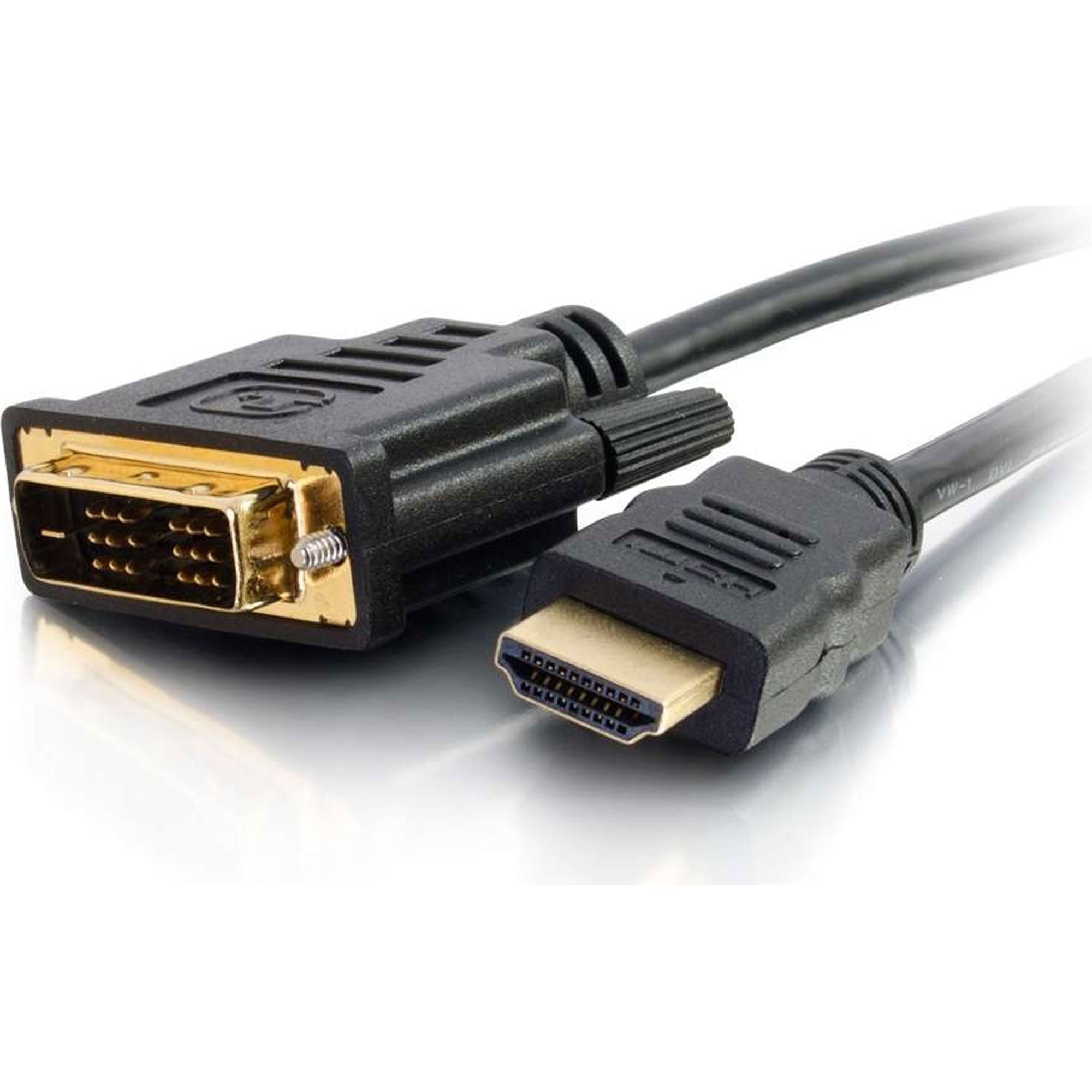

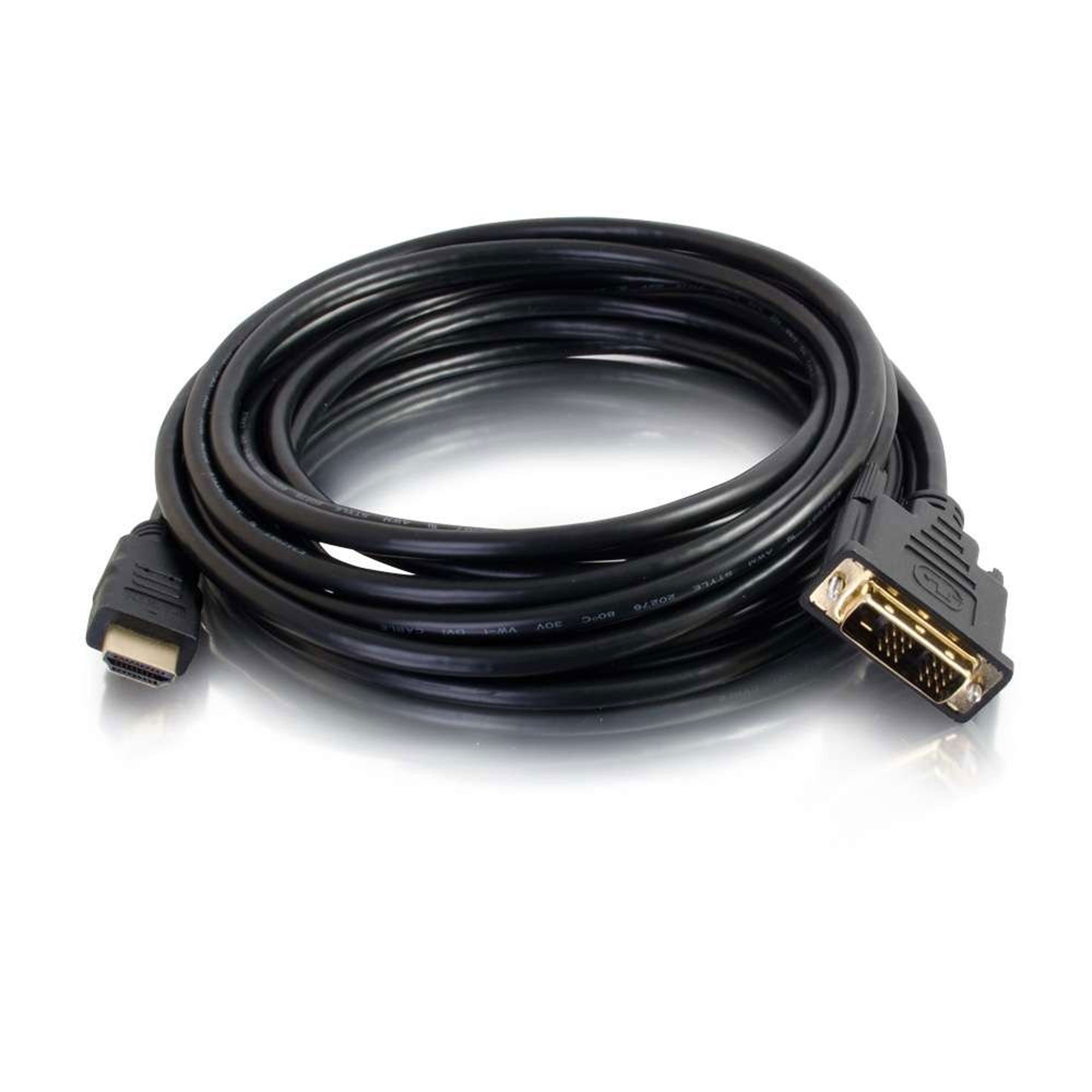

The C2G HDMI to DVI-D Digital Video Cable is perfect for source to display connectivity for desktop or home theater applications requiring connectivity between HDMI and DVI-D devices. This cable connects an HDMI source device to a DVI-D display or a DVI-D source device to an HDMI display. This fully-functional, high bandwidth cable is tested to perform at industry standards and is backed by a lifetime warranty.
Features:
- Bi-directional adapter cable, HDMI to DVI or DVI to HDMI
- Supports up to a 1080p resolution
- Gold plated connector
Specifications:
Product Specifications
- Color: Black
- Length: 3.00 Meter
- Jacket Rating: Standard Non-Rated
- UPC: 757120425175
- Warranty: Lifetime
- Vendor: C2G
- Weight: 0.320 LB
Electrical Characteristics
- Nominal Velocity of Propagation - 10.2Gbps
- DC Resistance - 300V
- Dielectric Strength - AC 500V/minute
- Insulation Resistance - 100Ω
- Nominal Attenuation - 1-825MHz - 8dB
Physical Characteristics
- Voltage Rating - 30V
- Minimum Bend Radius - 60°
- Temperature Rating - 80°C
- Operating Temperature Range - -20° - 80°C
- Storage Temperature Range - -25° - 85°C
- Approvals - RoHS Compliant
- Package Type - Polybag
- Conductor 1 (4 pair)
- Conductor Type - 30AWG (7/0.10), Tinned Copper
- Insulation - Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D. - 0.78mm
- Drain Wire - 30AWG (7/0.10), Tinned Copper
- Shield - Aluminum Foil, 100% Coverage
- Conductor 2 (1 pair)
- Conductor Type - 30AWG (7/0.10), Tinned Copper
- Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.55
- Conductor 3 (3 conductors)
- Conductor Type - 30AWG (7/0.10), Tinned Copper
- Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.55
- Overall Cable
- Drain Wire - 30AWG (07/0.10), Tinned Copper
- Foil Shield - Aluminum Foil, 100% Coverage
- Braided Shield - 16/4/0.12, Al/Mg
- Jacket - PVC, Black, O.D. - 6.0 ± 0.2mm
- Connectors

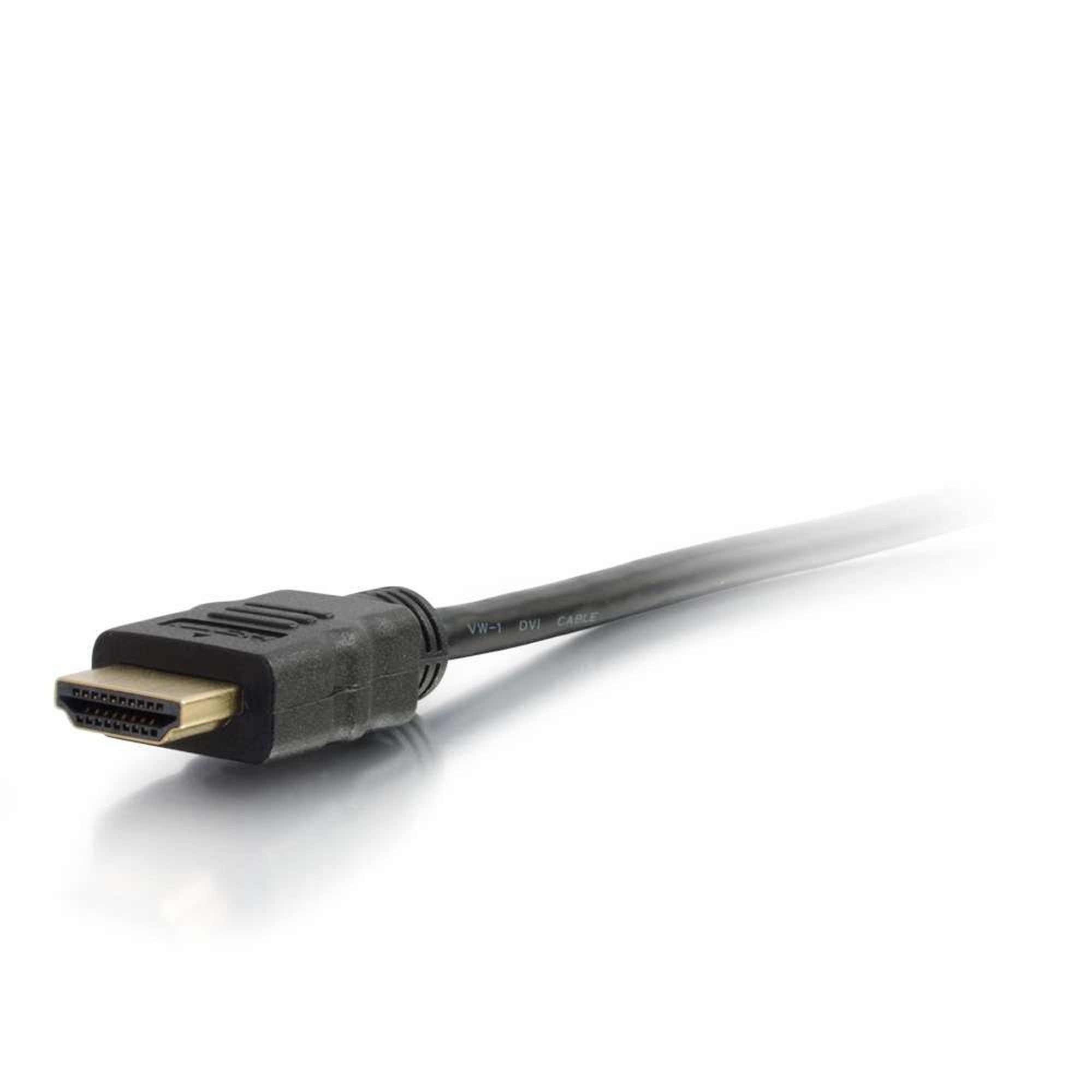

- Connector Type - HDMI - Type A,
- Pin Construction - Phosphor Copper
- Plating - 1µm Gold
- Dimensions (HxWxL) - 10.0 x 20.1 x 37.1mm
- Connectors

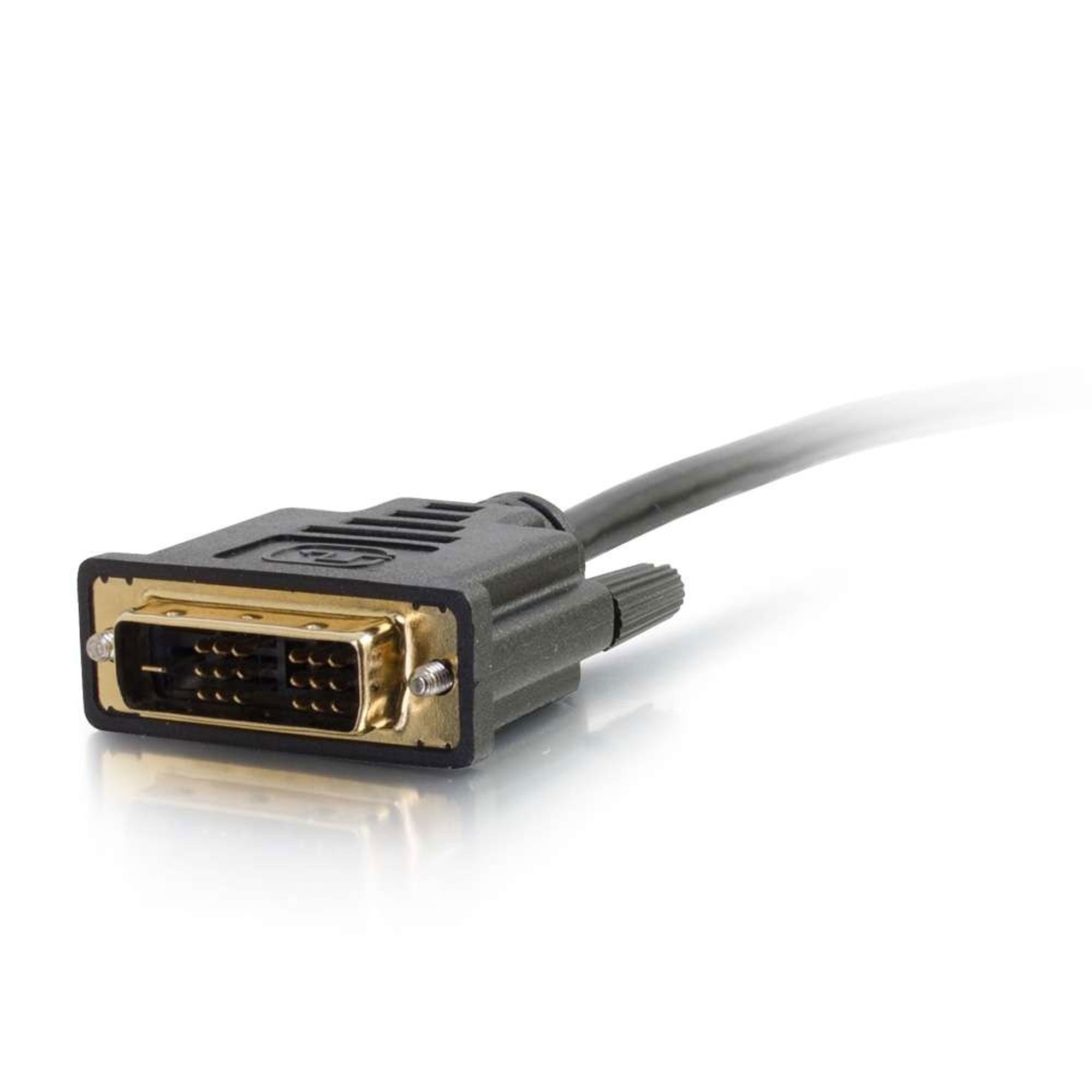

- Connector Type - DVI-D
- Pin Construction - Phosphor Copper
- Plating - 3µm Gold
- Dimensions (HxWxL) - 16.0 x 39.4 x 46.7mm
