Best-Tronics BT39CM Chassis Mount 39 Pin Connector with Dust Cap and Wiring Kit (Male)

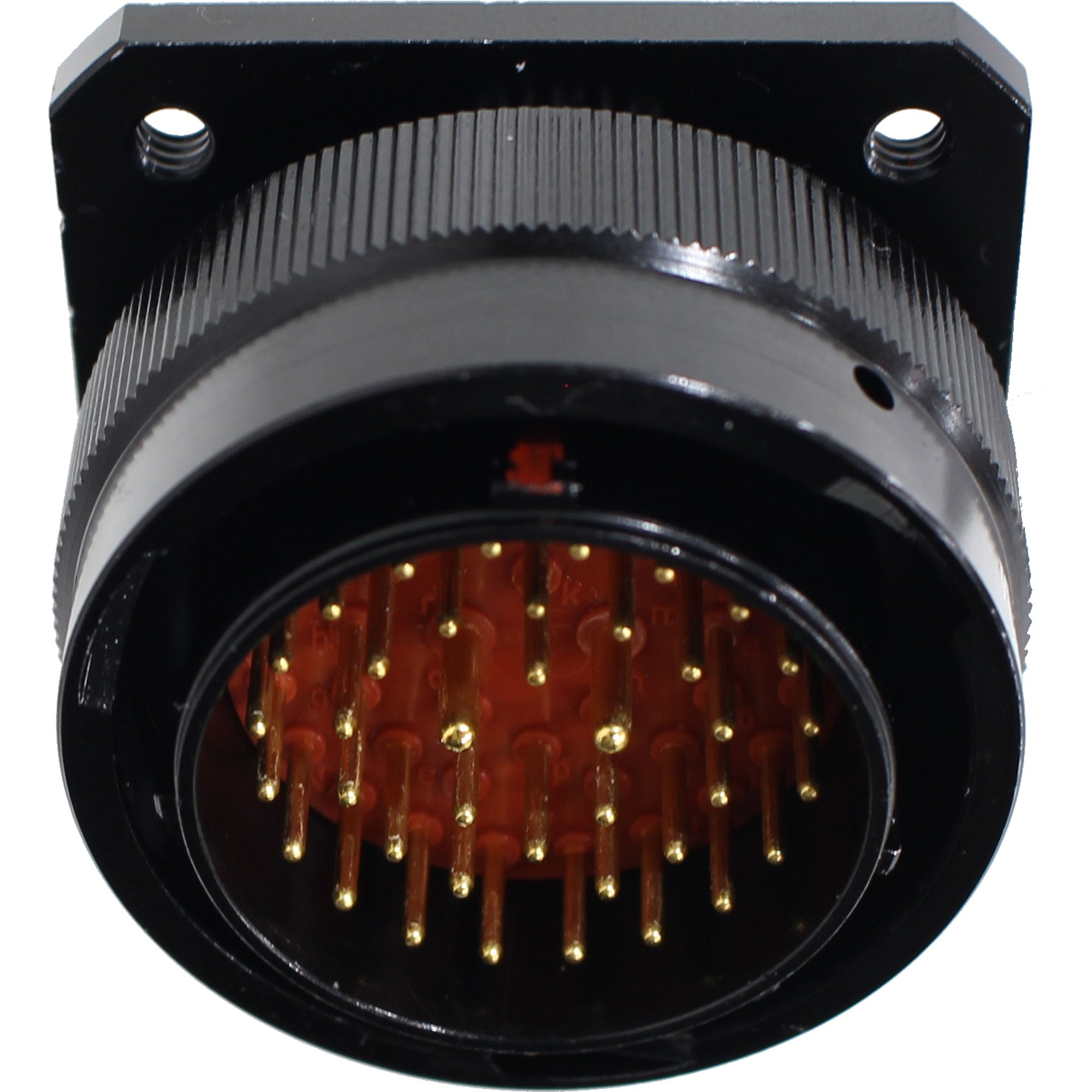

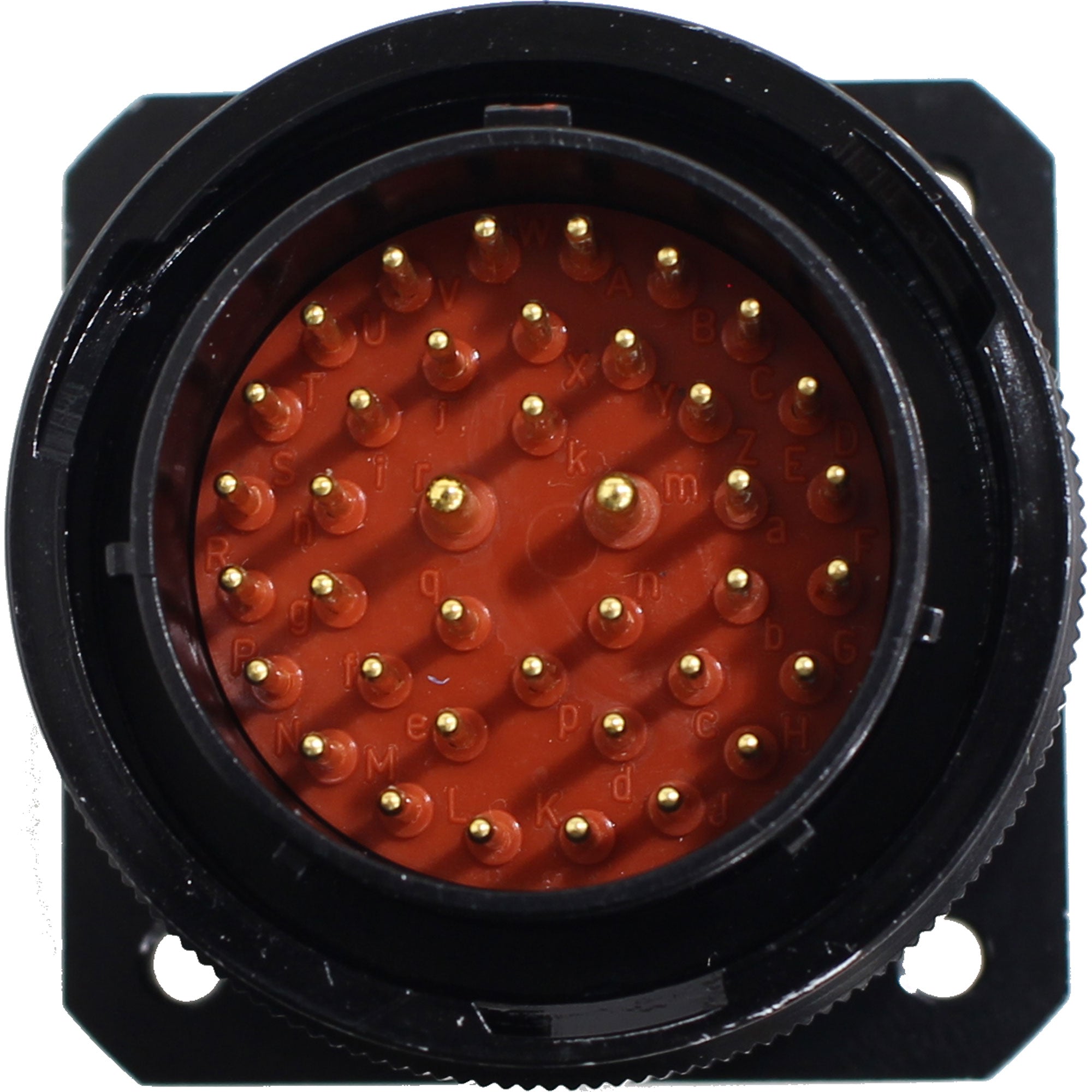

BT39CM Panel Mount (Chassis) Male 39 Pin Connector with dust cap and wiring kit

*Mates with W1IF and Amphenol MP-6216-39S-C*

The 39 pin male chassis connector is a perfect way to easily patch up to 12 balanced audio channels in a single rack unit (1U) format. These chassis connectors also come in handy on snake boxes! Replace the hard-wired, bulky, snake cable coming from your box with our 39 pin chassis connector. Your snake will now be able to have adaptable lengths per the stage size and gig you are heading to!

All of the BT39 connectors feature a complete wiring kit equipped with all necessary heat shrink, wiring diagrams, strip lengths for cable, and even the hole size for drilling into panels/chassis. The BT39 connectors also feature fixed solder-cup pins. This helps combat pins breaking from "pin float" that other multipin connectors often fall victim to. The fixed pins also means for less assembly time inserting pins.

What's In The Kit?

• BT39 Male Chassis Mount Connector

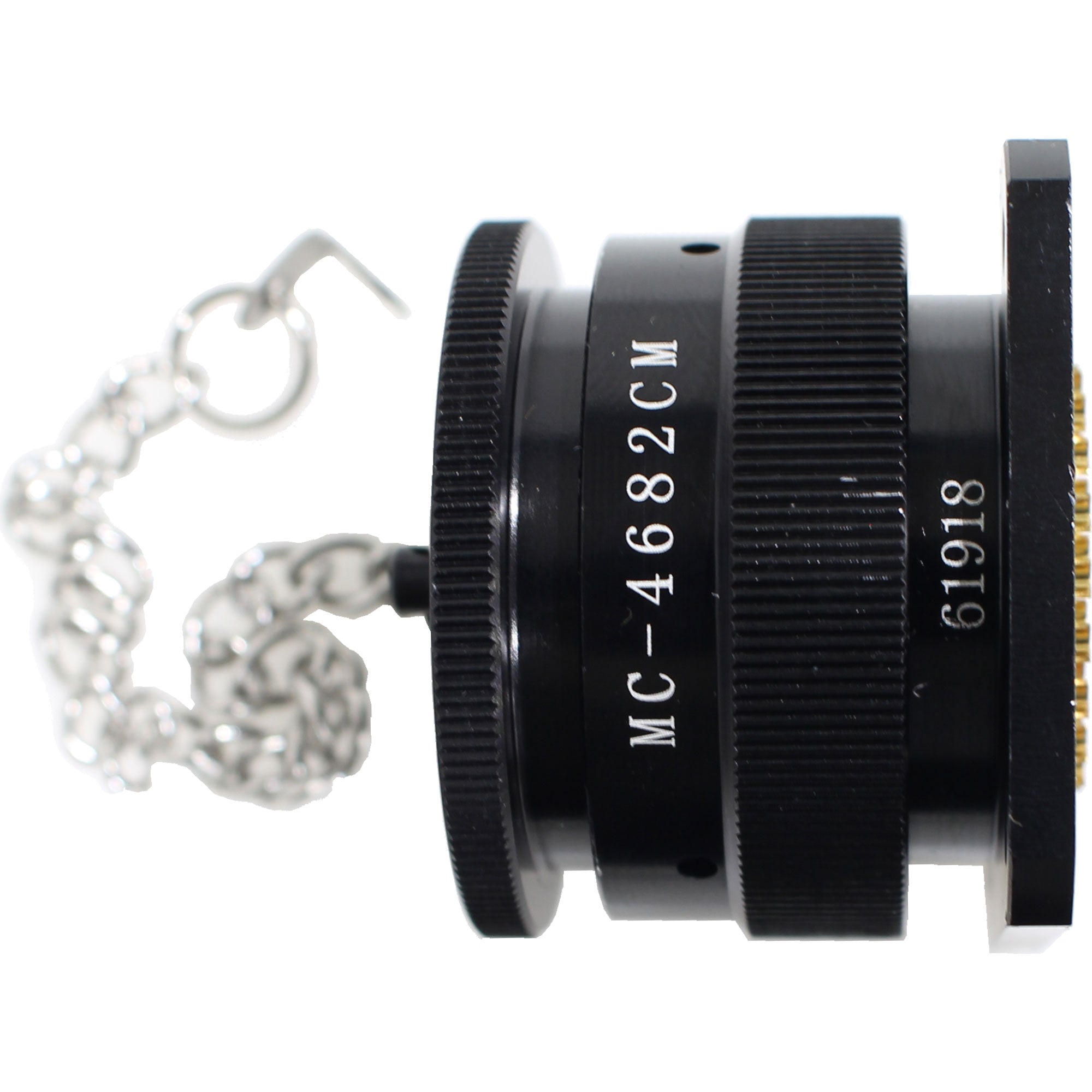

• BT39 Male Chassis Mount Dust Cap
• All necessary heat shrink for proper assembly
• BT39 Wiring instructions featuring strip length guide, wiring chart, and chassis hole sizes
• (4) 4-40 Screws and nylon insert stop nuts for mounting

Key Features

• Mates with widely used W1IF and MP-6216-39S-C connectors
• 12 Channel maximum audio channel count
• Red indicator line for easily mating connectors
• Metal mesh strain relief (on inline connectors)

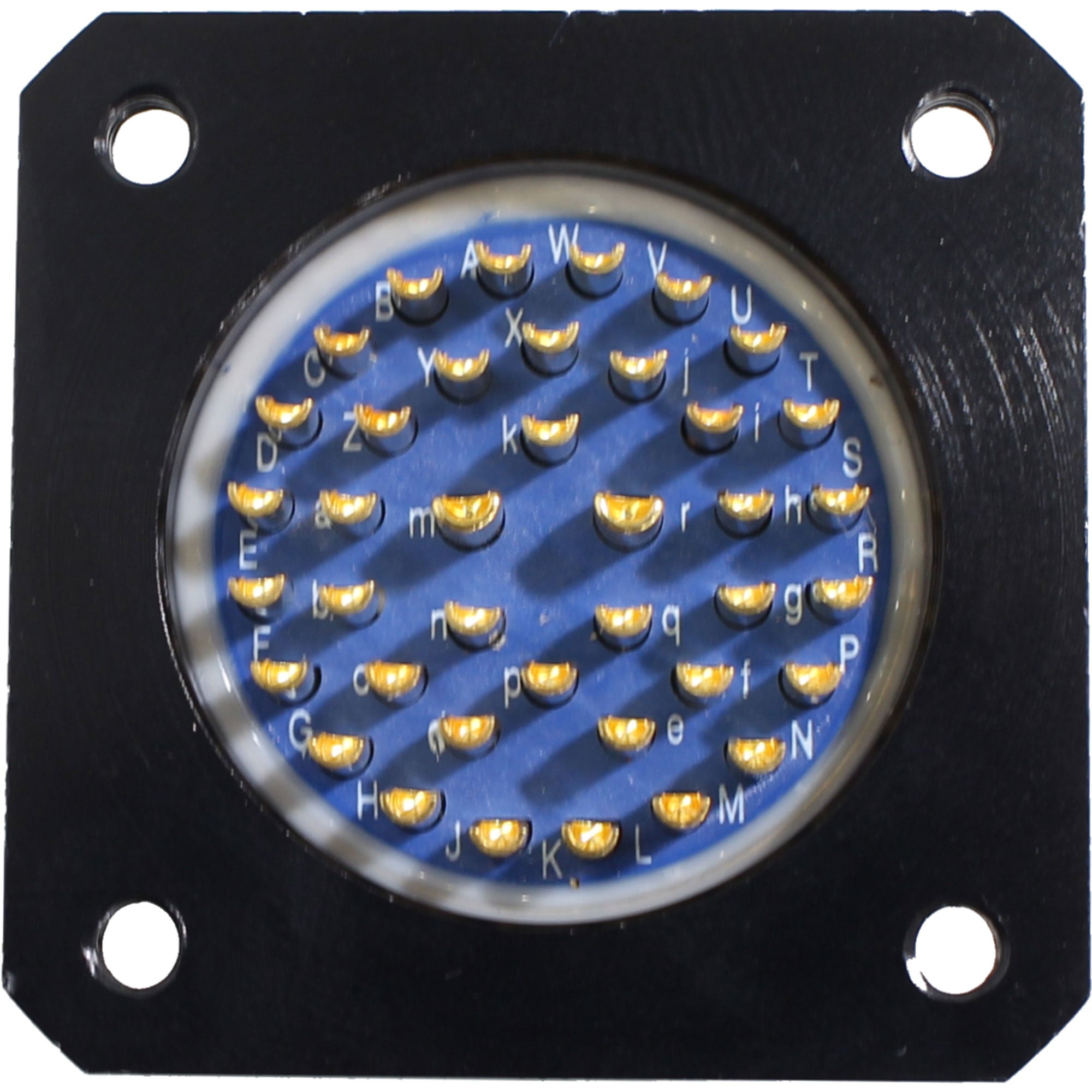

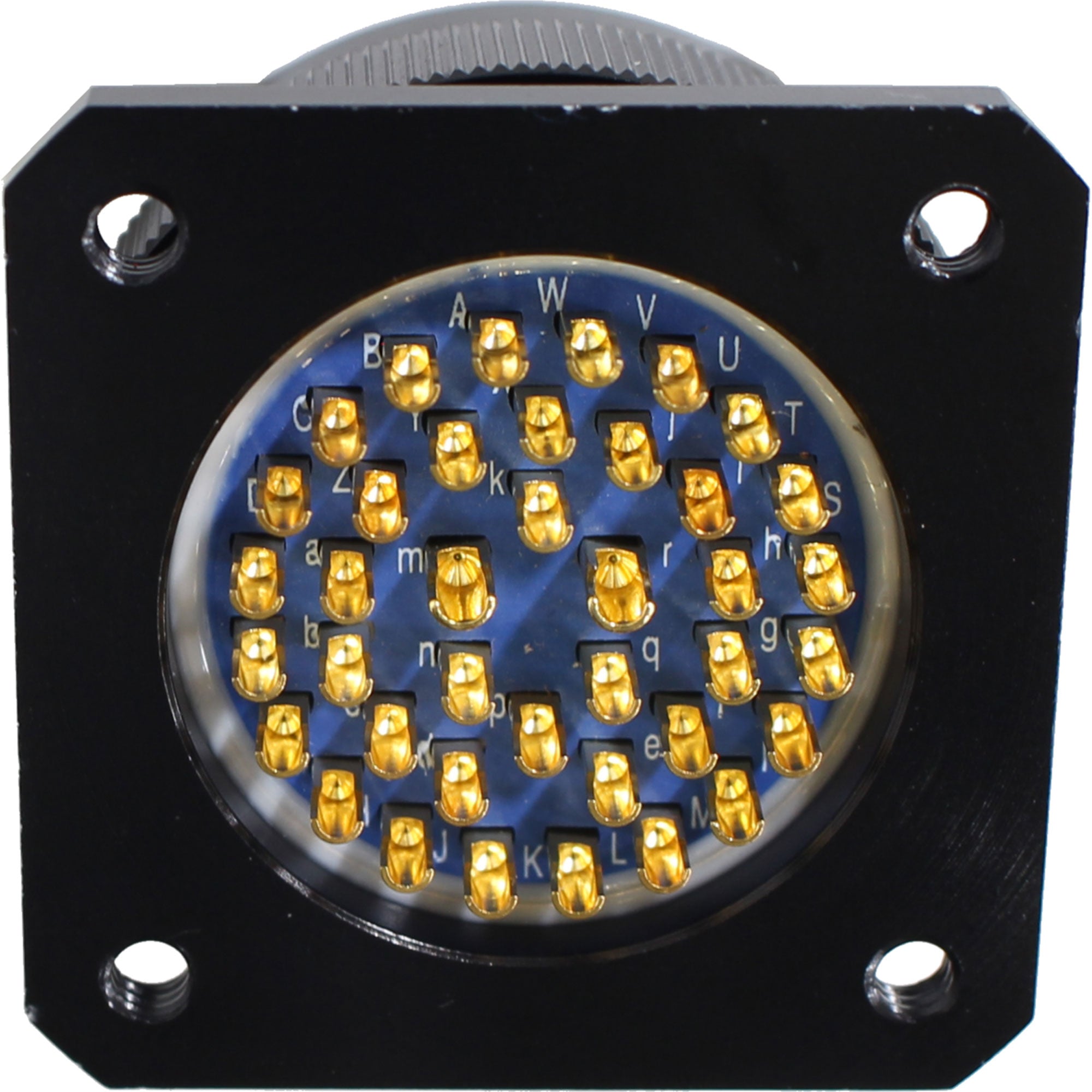

• Solder type contacts in fixed pin field for rigidity on the road
• Locking ring for secure and positive connection
• Full DIY Kit comes with connector, dust cap, wiring instructions, all necessary heat shrink
• 1U Panel Mount Format

Recommended Cable

• 12 channel applications, we recommend the Mogami W2933 or the Canare MR202-12AT
• 8 channel applications, we recommend the Mogami W2932 or the Canare MR202-8AT

History/Development

These circular connectors are a military style of connector that are used within the pro A/V industry. Our 50+ year history of contract manufacturing within the military industry makes us no stranger to these types of connectors. We leveraged our experience of operating in the military industry to create a more affordable and readily available 39 pin connector.

These connectors have been field tested and used for years before we have decided to list them for sale as bulk components. The connectors have proven to withstand the rigors of the road and the live music industry.

Specifications:

• Weight 0.3 lbs
• SKU BT39CM
• Color Black
• Operating Temperature -55°C - +- 125°C
• Gender Male
• Number Of Contacts 39
• Locking Ring Yes
• Locking Ring Material Metal
• Termination Solder Type
