Audix NC4BX10 Novacore Quad-Channel Bodypack Wireless System with ADX10 Lavalier Microphones

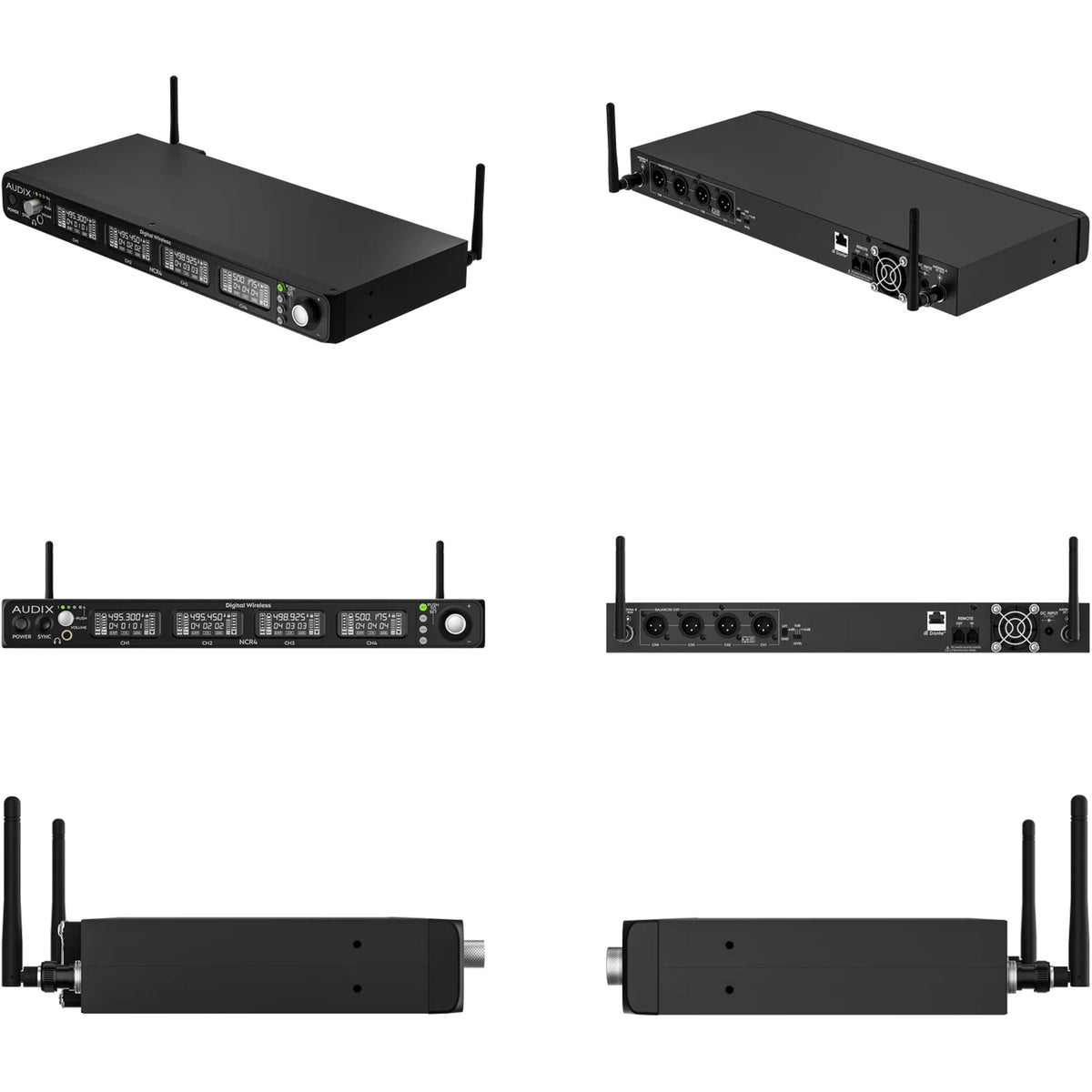

The Audix NC4BX10 Novacore equips four presenters, clergy members, or performers with hands-free wireless microphones through one quad-channel receiver. The package combines an NCR4 digital receiver, four NCBP bodypack transmitters, and four ADX10 cardioid lavalier condenser microphones for panel discussions, worship services, theatrical productions, and multi-presenter events.

Four Lavalier Channels in One Package

Give each speaker a dedicated microphone and bodypack while managing all four wireless channels through the NCR4 receiver. The miniature ADX10 lavaliers keep microphone placement discreet and leave hands free for notes, demonstrations, or stage movement. Their cardioid pickup pattern helps reject off-axis sound; careful placement and orientation remain important for consistent speech pickup.

Streamline Setup and Adjust Each Transmitter

One-touch IR sync pairs the NCBP transmitters with the receiver. Each bodypack offers input gain adjustment from -12 to +18 dB to accommodate different source levels, plus a dedicated 3.5 mm remote mute input for an external latching or momentary switch, sold separately.

Digital Wireless with Networked Audio Options

The Novacore platform provides AES-256 encryption and less than 3 ms latency across a 48 MHz UHF tuning range from 494–542 MHz. Balanced XLR outputs and integrated Dante/computer networking let the NCR4 connect to compatible audio systems.

Flexible Battery Choices for Each Bodypack

Each NCBP transmitter accepts two AA alkaline batteries or one optional NCLB rechargeable lithium-ion battery, with listed battery life of more than nine hours. Built-in USB-C charging supports the rechargeable battery option. Four USB-A to USB-C charging cables are included, one for each bodypack.

Adapt to Different Microphone Needs

The NCBP also supports compatible Audix lavalier and headset microphones, including the L5, L5O, HT5, HT7B3P, and HT7BG3P. For other microphones, confirm connector wiring and electrical compatibility before use; a TA3F connector alone does not establish compatibility. Additional compatible Novacore components allow expansion as your channel requirements grow.

Key Features

• Quad-channel digital wireless lavalier system for hands-free vocals and speech
• One NCR4 receiver, four NCBP bodypack transmitters, and four ADX10 cardioid condenser lavalier microphones
• UHF tuning range: 494–542 MHz, spanning 48 MHz
• AES-256 encryption with one-touch IR sync
• Latency: less than 3 ms
• Transmitter input gain: -12 to +18 dB
• Dedicated 3.5 mm remote mute input on each bodypack
• Balanced XLR outputs and integrated Dante/computer networking
• Transmitter power: two AA alkaline batteries or one optional NCLB rechargeable lithium-ion battery per bodypack
• Listed transmitter battery life: more than nine hours
• USB-C charging for the rechargeable battery option

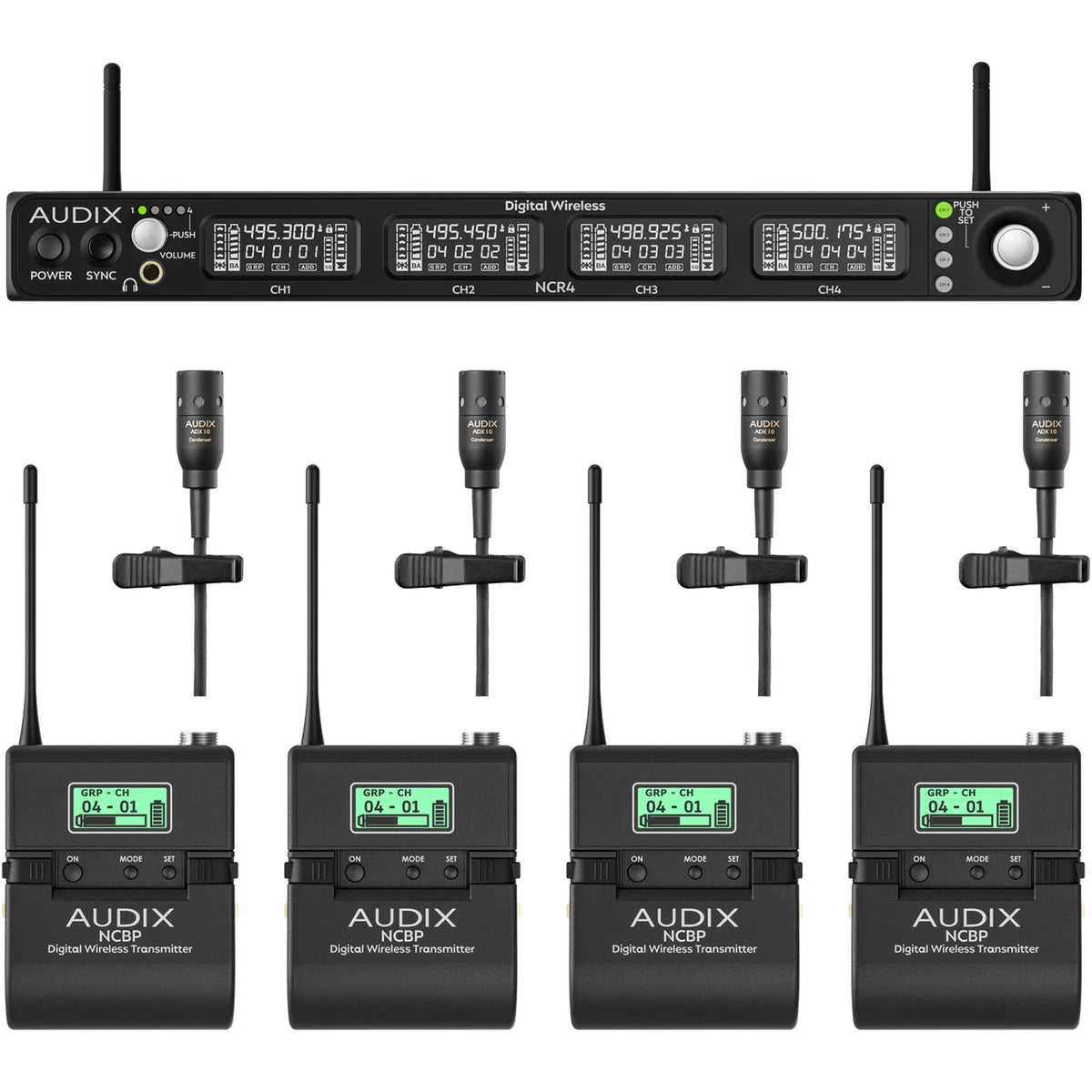

In the Box

• One NCR4 Novacore quad-channel digital receiver
• Four NCBP Novacore UHF digital bodypack transmitters
• Four ADX10 cardioid lavalier condenser microphones
• Two detachable BNC antennas
• One PS12V 12 VDC external power supply, compatible with 100–240 VAC, 50/60 Hz
• Four NCBC belt clips
• Four NCCC 20-inch USB-A to USB-C charging cables

NCLB rechargeable batteries, external mute switches, and alternate microphones are optional and sold separately.
