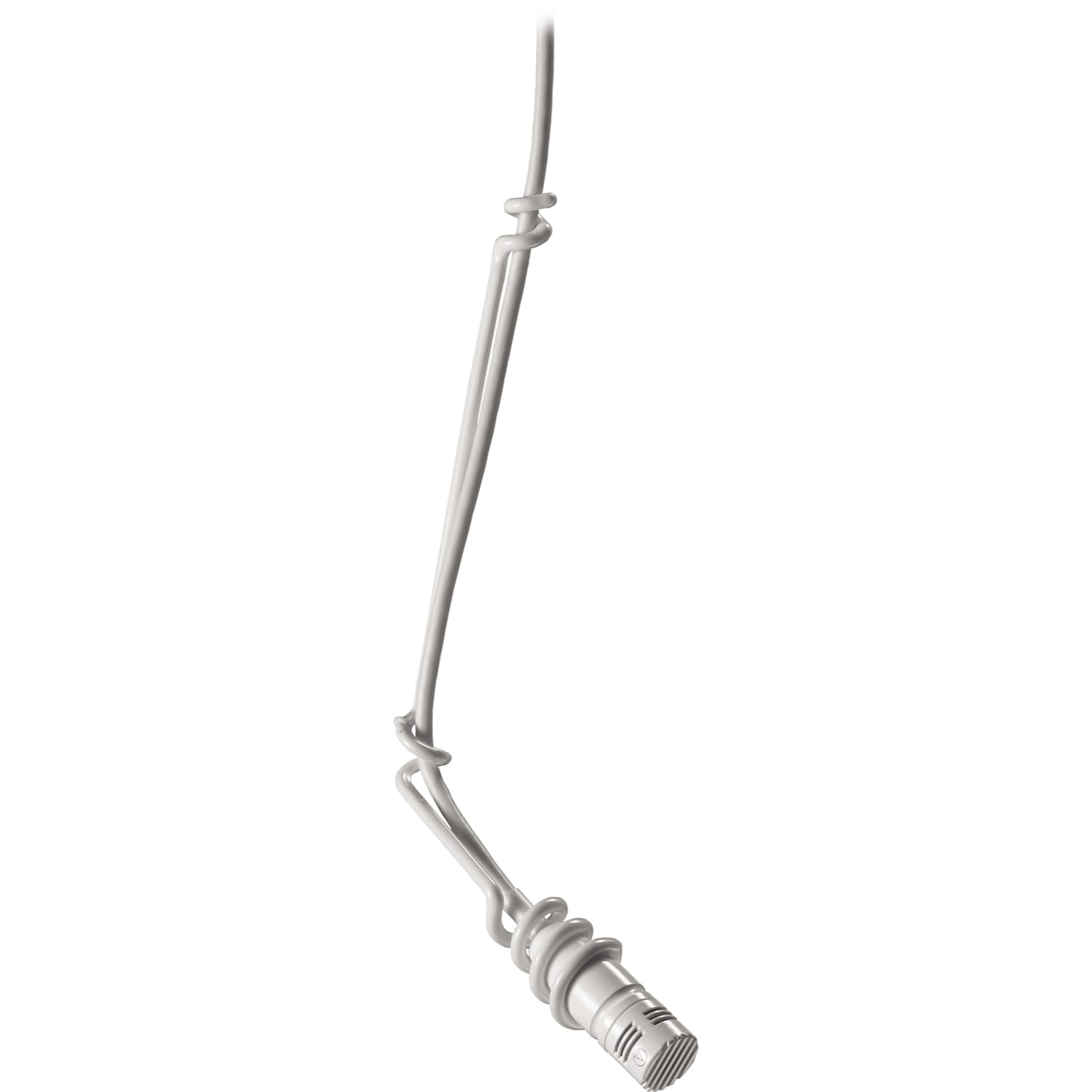

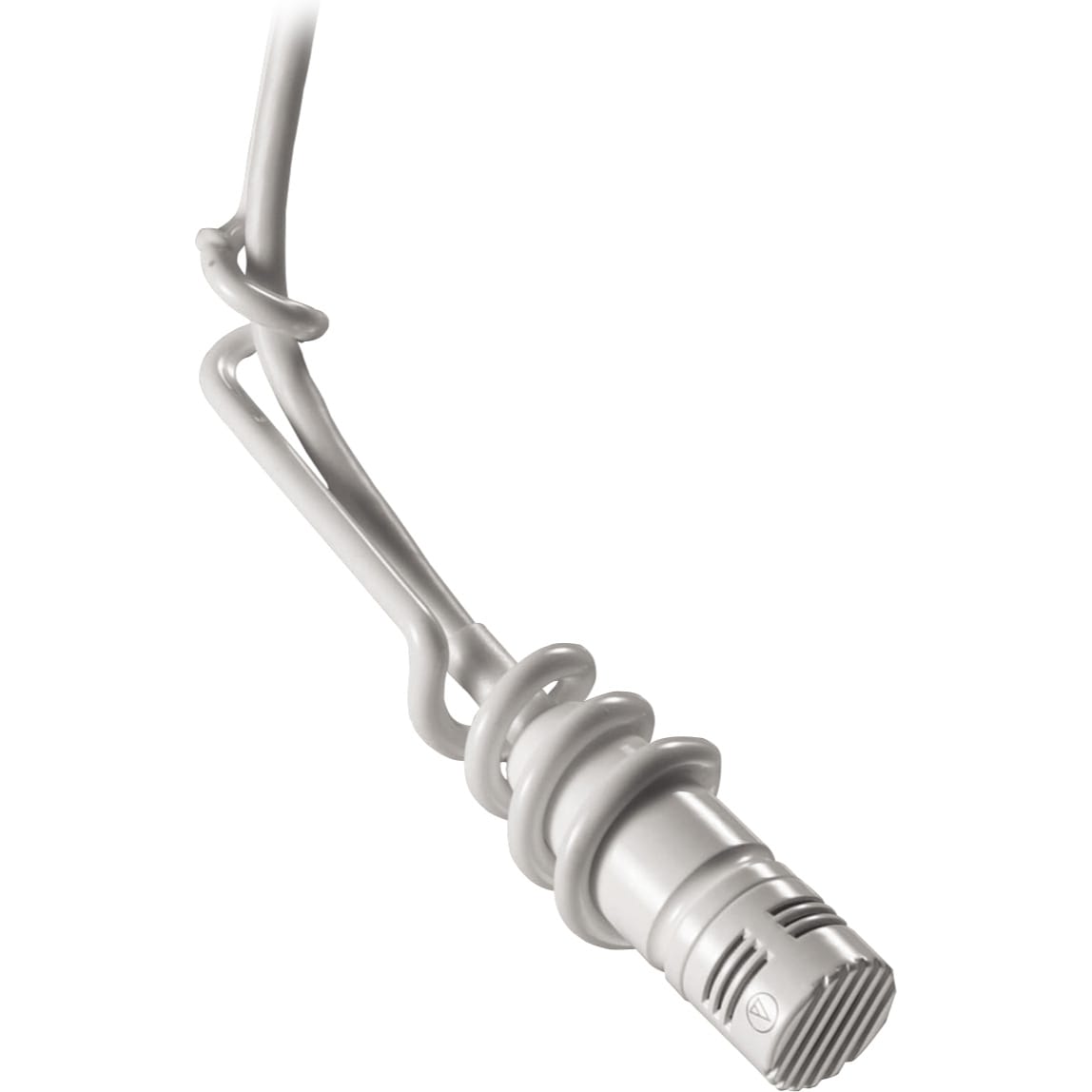

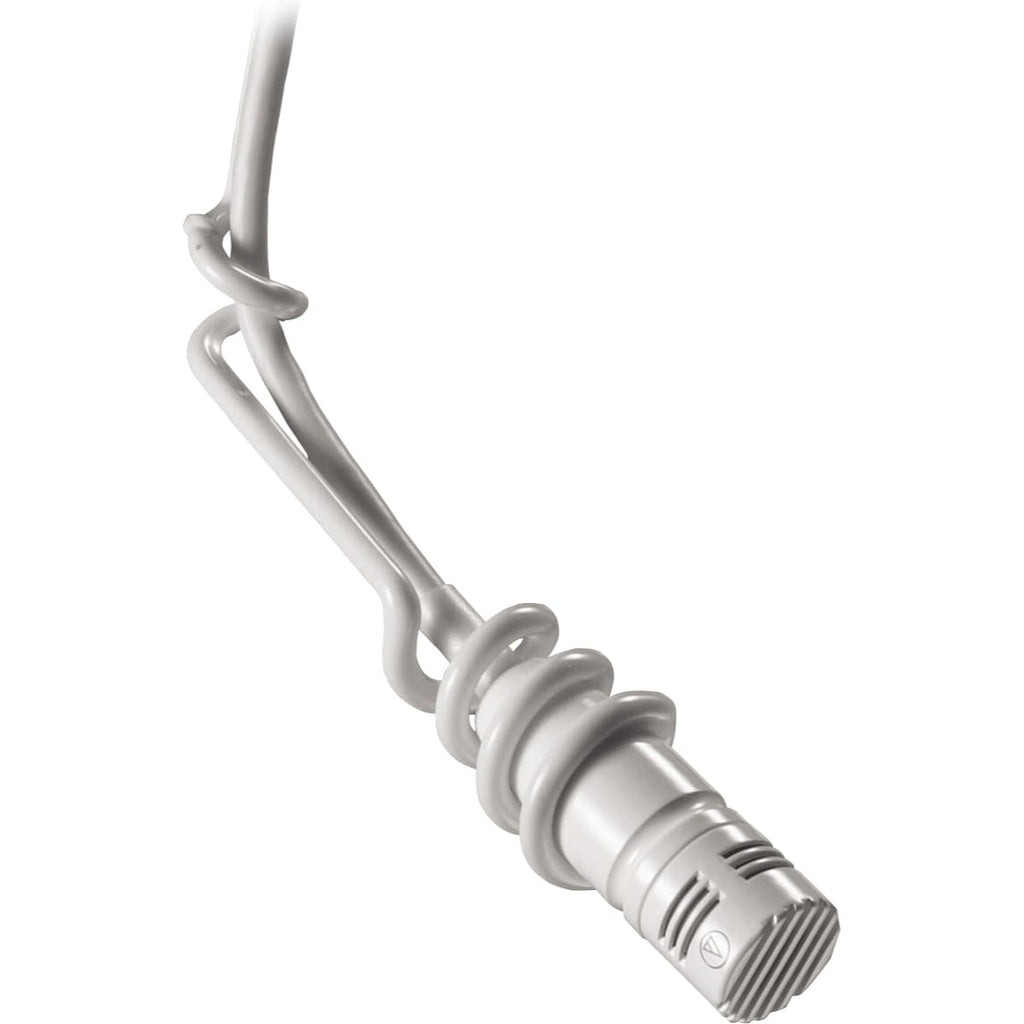

Audio-Technica U853RW Cardioid Condenser Hanging Microphone (White)

Cardioid Condenser Hanging Microphone - White

The white-finished version of U853R, the U853RW cardioid condenser hanging microphone is equipped with UniGuard innovations that offer unsurpassed immunity from radio frequency interference. The phantom-powered microphone accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine line cardioid polar patterns. The U853RW also offers an 80 Hz low-cut UniSteep filter that reduces pickup of low-frequency ambient noise.

Features:

• Designed for suspension over choirs, instrumental groups and theater stages
• Superior off-axis rejection for maximum gain before feedback
• UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• UniSteep filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
• Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
• Low-profile design with low-reflectance finish for minimum visibility
• Available in two colors: black (U853R) and white (U853RW)

Specifications:

• ELEMENT: Fixed-charge back plate, permanently polarized condenser
• POLAR PATTERN: Cardioid
• FREQUENCY RESPONSE: 30-20,000 Hz
• LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
• OPEN CIRCUIT SENSITIVITY: -39 dB (11.2 mV) re 1V at 1 Pa
• IMPEDANCE: 250 ohms
• MAXIMUM INPUT SOUND LEVEL: 139 dB SPL, 1 kHz at 1% T.H.D.
• DYNAMIC RANGE (typical): 115 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 70 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
• SWITCH: Flat, roll-off
• WEIGHT (MICROPHONE): 0.5 oz (14 g)
• WEIGHT (POWER MODULE): 2.9 oz (81 g)
• DIMENSIONS (MICROPHONE): 1.34" (34.0 mm) long, 0.48" (12.2 mm) diameter
• DIMENSIONS (POWER MODULE): 3.66" (92.9 mm) long, 0.74" (18.9 mm) diameter
• OUTPUT CONNECTOR (POWER MODULE): Integral 3-pin XLRM-type
• CABLE: 25.0' (7.6 m) long (permanently attached to microphone), 0.13" (3.2 mm) diameter, 2 conductor shielded cable with TA3F-type connector
• OPTIONAL INTERCHANGEABLE ELEMENTS:
  UE-H hypercardioid (100°);
  UE-O omnidirectional (360°);
  UE-UL UniLine (90°)

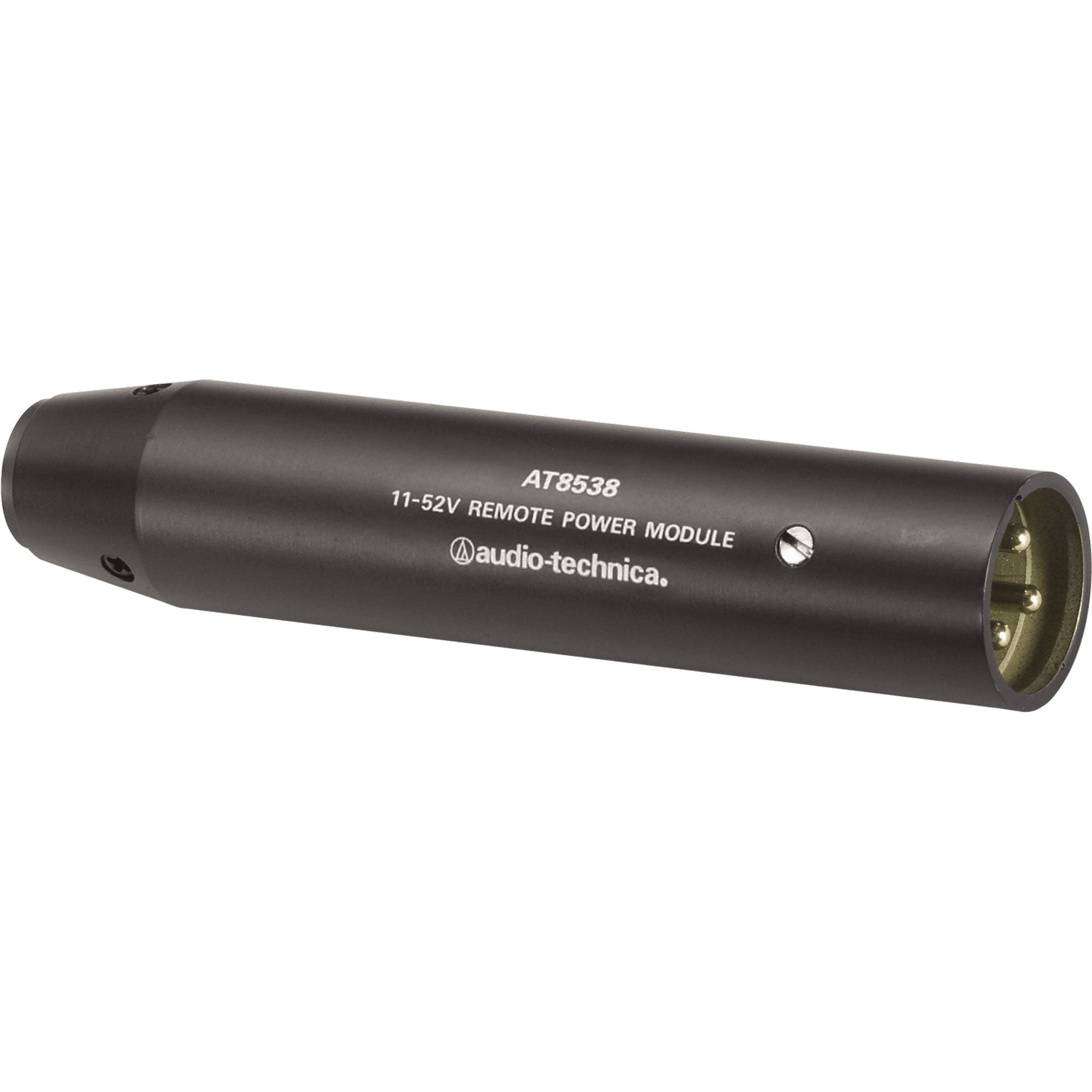

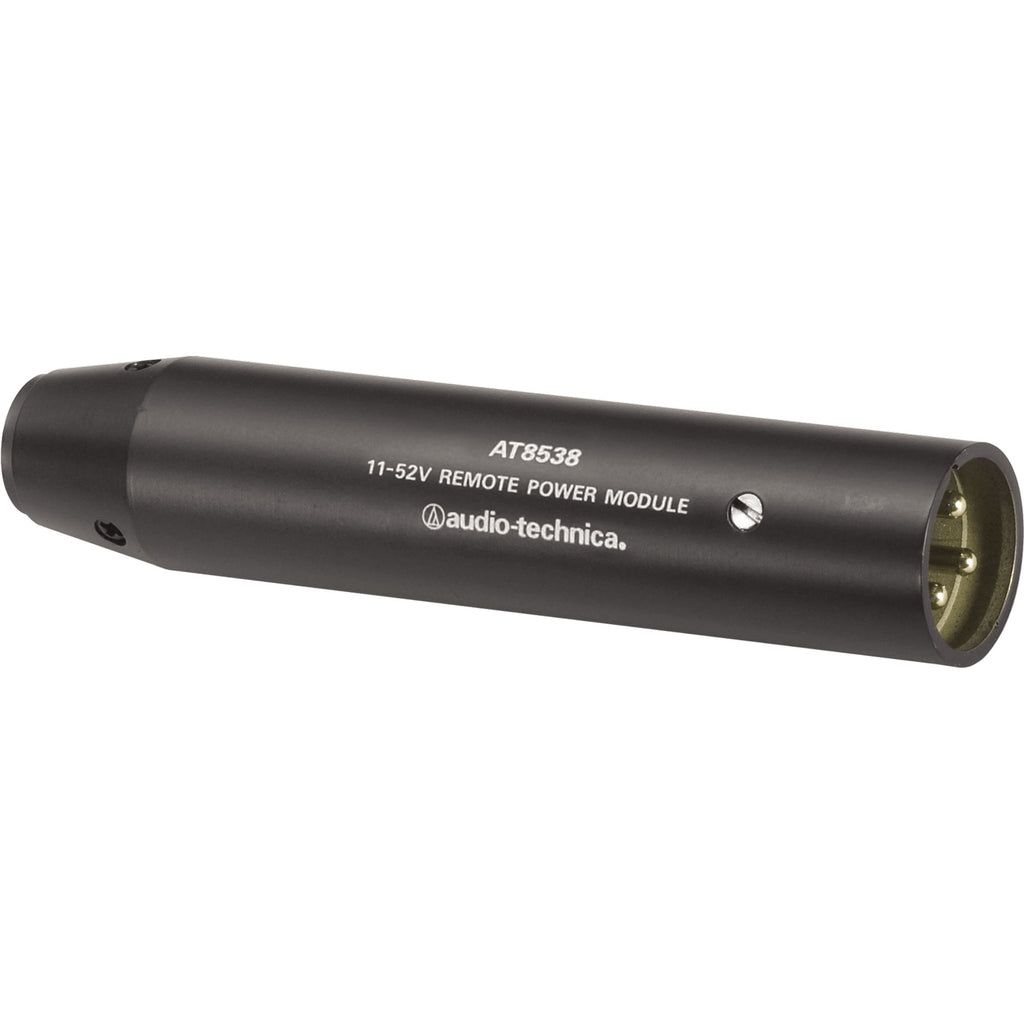

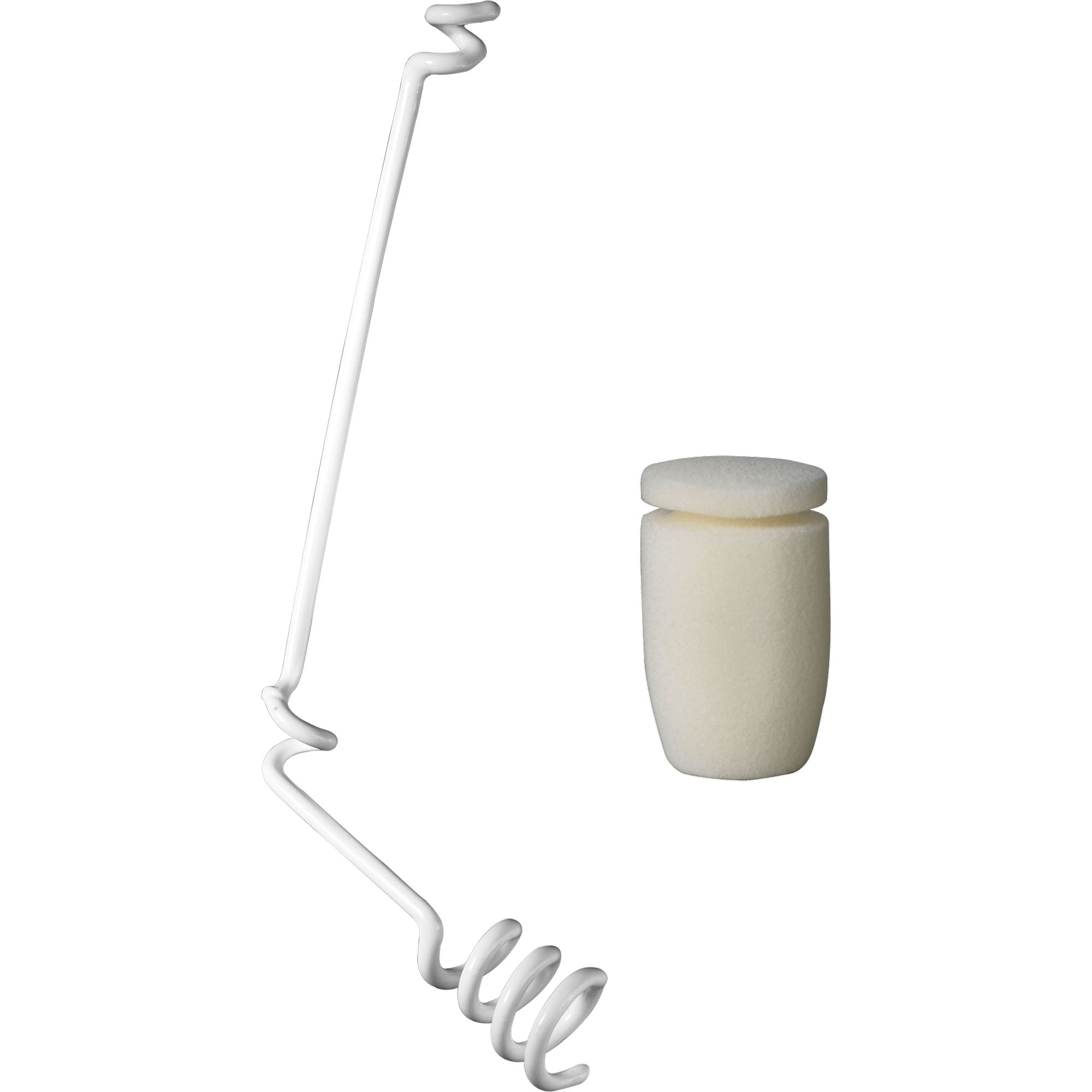

• ACCESSORIES FURNISHED: AT8153(WH) two-stage foam windscreen; AT8451(WH) steel hanger; AT8538 power module; AT8438 5/8"-27 stand adapter
• AUDIO-TECHNICA CASE STYLE: M12
