Key Features
- For Surface-Mount Applications
- High-Output Condenser Element
- Cardioid Polar Pattern
- Reduces Off-Axis Sound Pickup
- Enhanced Rejection of RFI
- 20 Hz to 20 kHz Frequency Response
- Switchable Low-Cut Filter at 80 Hz
- Rotatable TB3M Output Connector
- 11 to 52 VDC Phantom Powered
- Includes 25' TA3F to XLR Mic Cable
Description

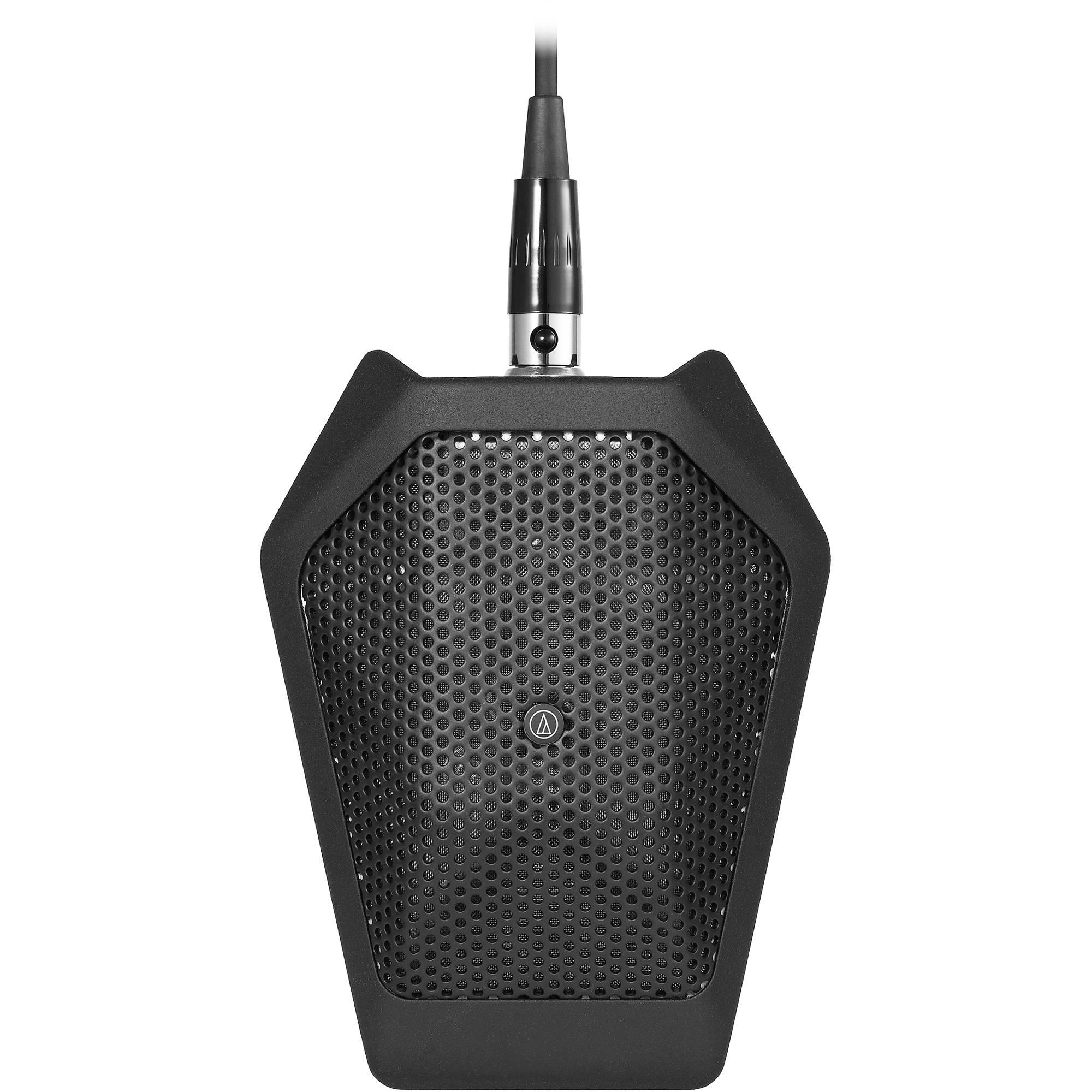

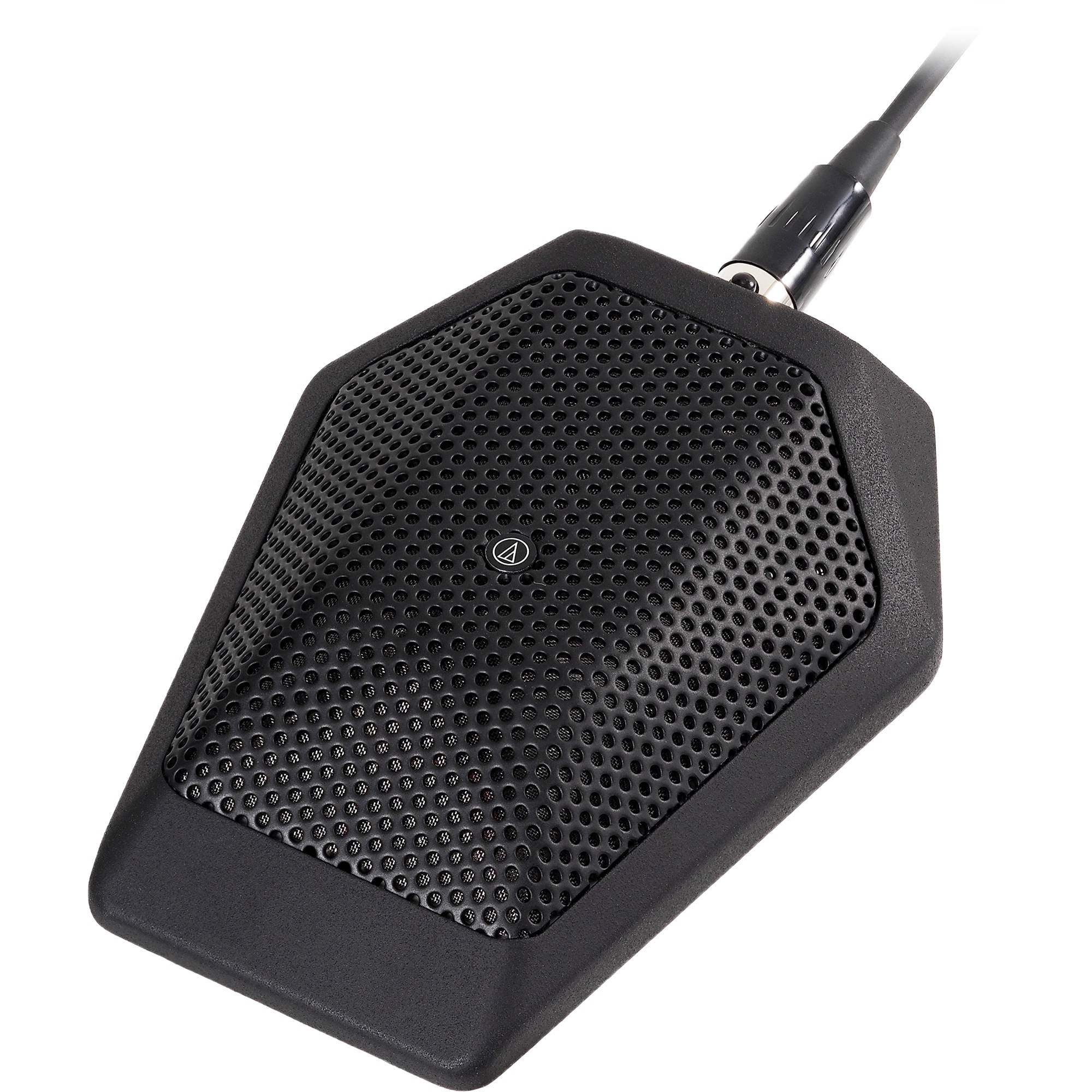

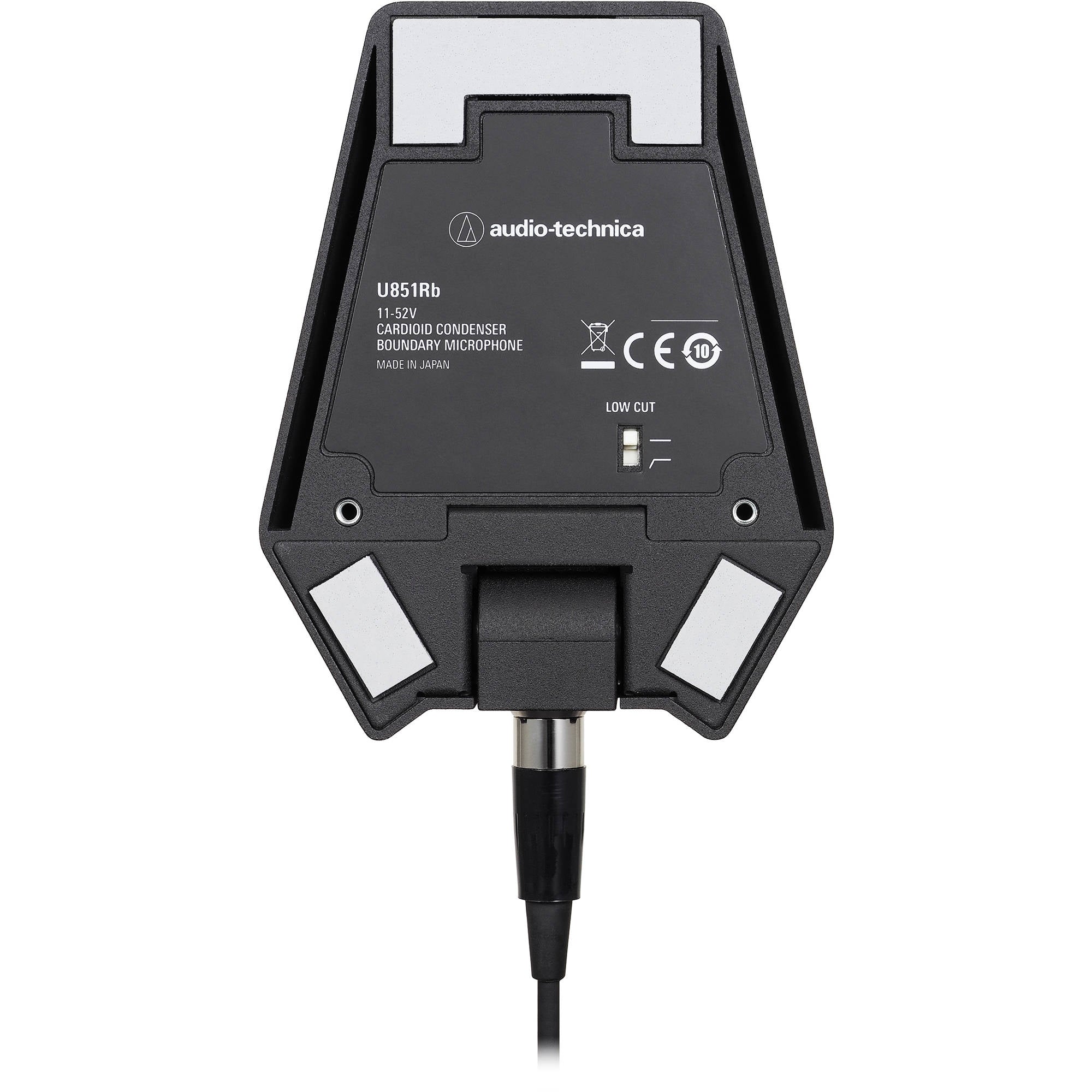

Cadioid Condenser Boundary Microphone - Black
The phantom-powered U851Rb condenser boundary microphone offers outstanding speech intelligibility and transparent sound quality for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing, and other demanding sound pickup situations. The microphone is equipped with a PivotPoint rotating output connector, UniSteep filter, and UniGuard RFI-shielding technology. It accepts interchangeable condenser elements - omnidirectional (360°), cardioid (120°), and hypercardioid (100°) - available separately. With a heavy die-cast case and silicon foam bottom pads to minimize coupling of surface vibration to the microphone, the U851Rb is equipped with self-contained electronics, eliminating the need for an external power module. Threaded inserts on the bottom of the microphone allow it to be mounted with screws for increased security.
Available configurations:
-
U851Rb: cardioid polar pattern (120° acceptance angle); 25.0' (7.6 m) cable with TA3F connector at the microphone and XLRM output connector; black finish.
-
U851RWb: cardioid polar pattern (120° acceptance angle); 25.0' (7.6 m) cable with TA3F connector at the microphone and XLRM output connector; white finish.
-
U851RbO: omnidirectional polar pattern (360° acceptance angle); 25.0' (7.6 m) cable with TA3F connector at the microphone and XLRM output connector; black finish.
Features
-
Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
-
Superior off-axis rejection for maximum gain before feedback
-
PivotPoint rotating output connector allows cable to exit from either the rear or the bottom of the microphone
-
Small-diameter UniPoint element near boundary eliminates phase distortion and delivers clear, high-output performance
-
Available interchangeable elements permit angle of acceptance from 100° to 360°
-
UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
-
Self-contained electronics eliminate need for external power module
-
Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
-
Low-profile design with low-reflectance finish for minimum visibility
-
Threaded inserts on bottom of microphone allow it to be mounted with screws for increased security
Specifications
-
Microphones
-
Element: Fixed-charge back plate, permanently polarized condenser
-
Frequency Response: 20-20,000 Hz
-
Low Frequency Roll Off: 80 Hz, 18 dB/octave
-
Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa
-
Maximum Input Sound Level: 134 dB SPL, 1 kHz at 1% T.H.D.
-
Dynamic Range: 108 dB, 1 kHz at Max SPL
-
Signal-to-Noise Ratio: 68 dB, 1 kHz at 1 Pa, A-weighted
-
Phantom Power Requirements: 11-52V DC, 4.4 mA
-
Switches: Flat, roll-off
-
Weight: 253 g (8.9 oz)
-
Cable: 25.0' (7.6 m) long, 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F and XLRM connectors
-
Dimensions: 0.91" (23.0 mm) H x 3.30" (83.9 mm) W x 4.25" (108.0 mm) D
-
Output Connector: Microphone: TB3M-type Cable: 3-pin XLRM-type
-
Optional Interchangeable Elements: UE-C cardioid (120°), UE-H hypercardioid (100°), UE-O omnidirectional (360°)
-
Accessories Included: Soft protective pouch
