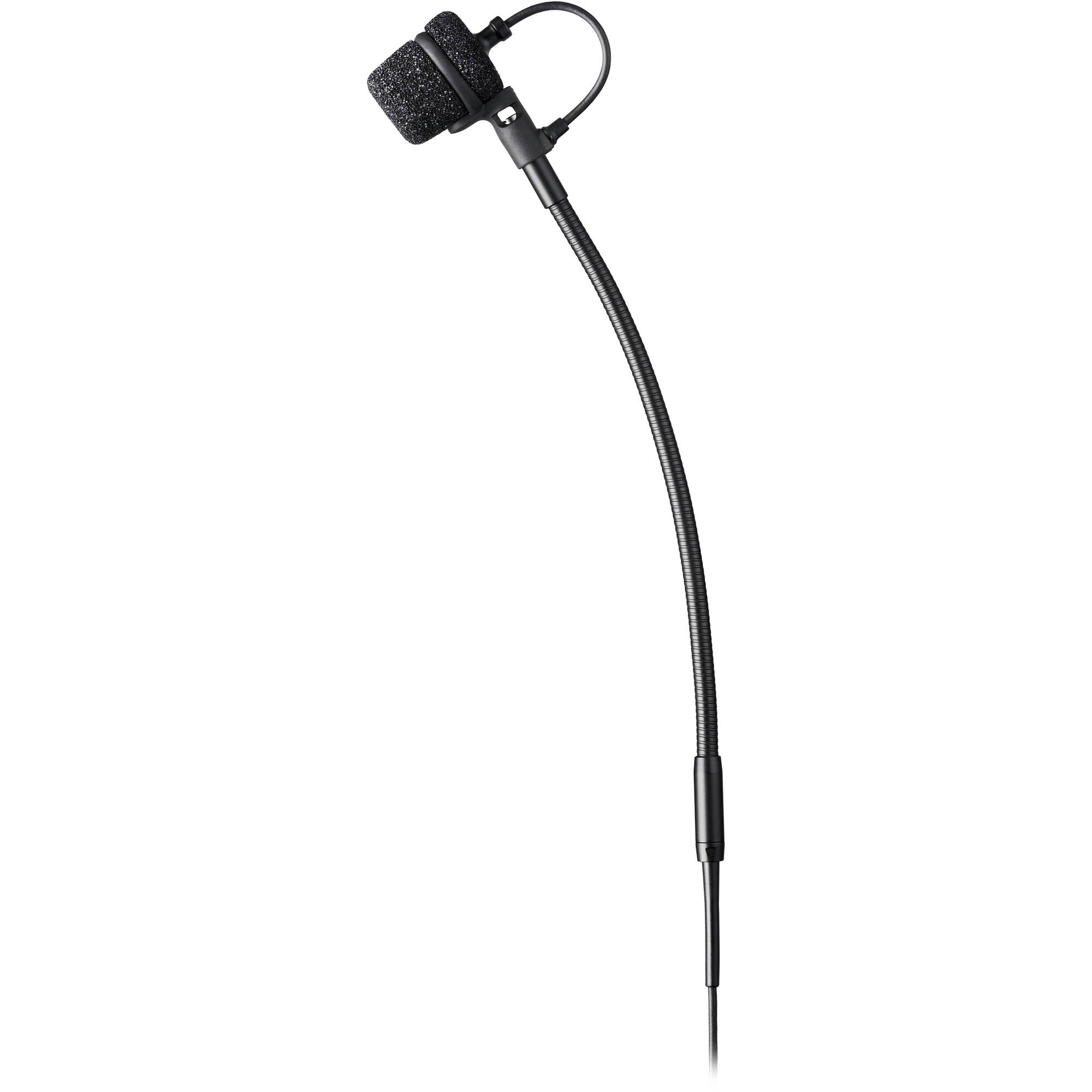

Audio-Technica ATM355VF Cardioid Condenser Clip-on Instrument Microphone for Audio-Technica (cW)

Clip-on Condenser Instrument Microphone with Cardioid Pattern, Phantom Power Module, Flexible Gooseneck, Violin and Flute Mounts, and cW-style Connector

Designed for professional live and studio use, the ATM355VF compact clip-on cardioid condenser makes it easy to accurately capture sounds from string, woodwind, and other instruments. This high-sensitivity microphone delivers clear, balanced sound from both low and high SPL sources - perfect for capturing all the subtleties and dynamics in a musical performance.

Features:

• Compact condenser for use with violins, violas, flutes, and other instruments
• High-sensitivity microphone for clear, balanced sound up to 148.5 dB SPL
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Flexible, lightweight gooseneck keeps microphone ideally positioned even during lively performances

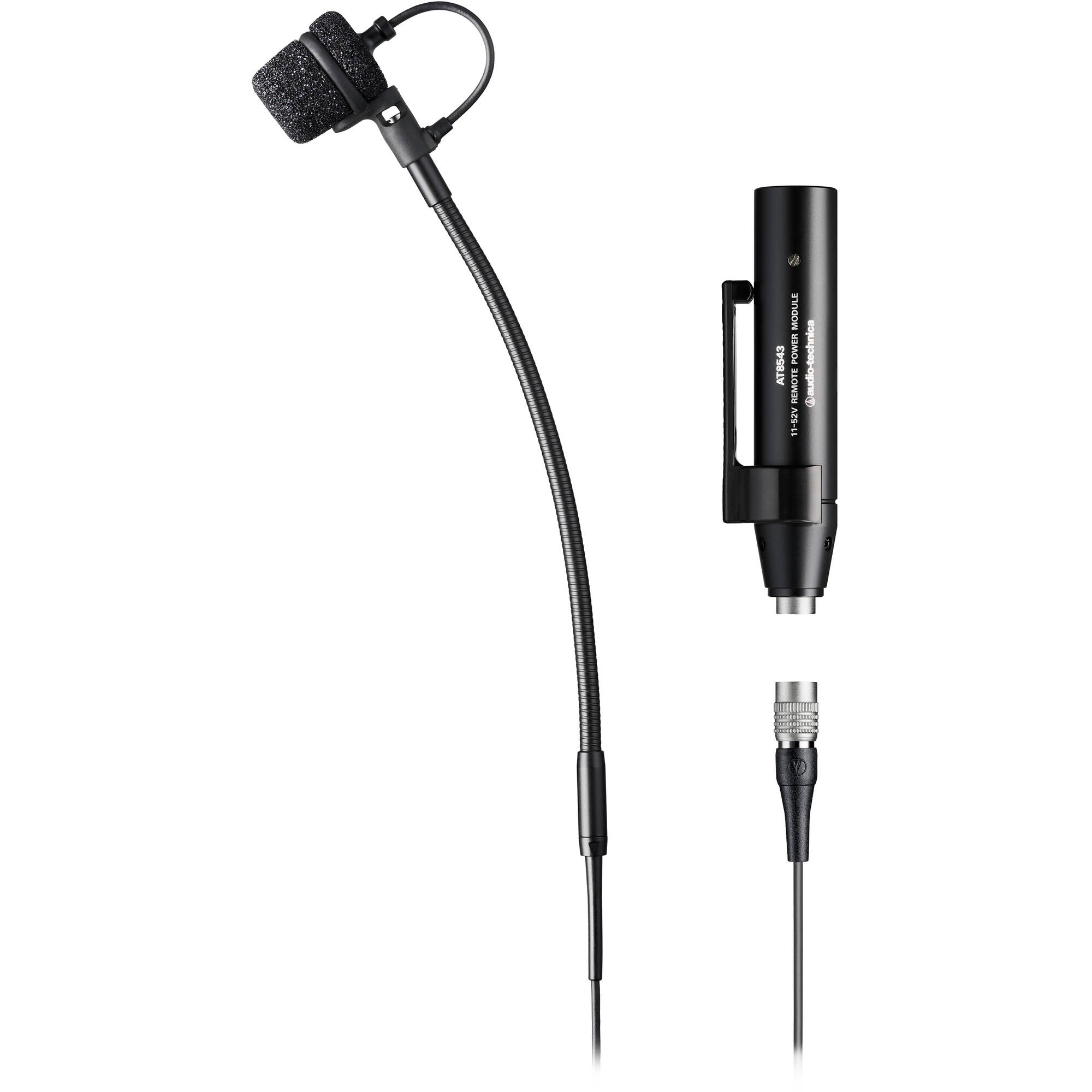

• AT8543 in-line power module is equipped with a switchable 80 Hz high-pass filter to reduce unwanted low-frequency sound (wired model only)
• Interchangeable elements available for hypercardioid and omnidirectional polar patterns

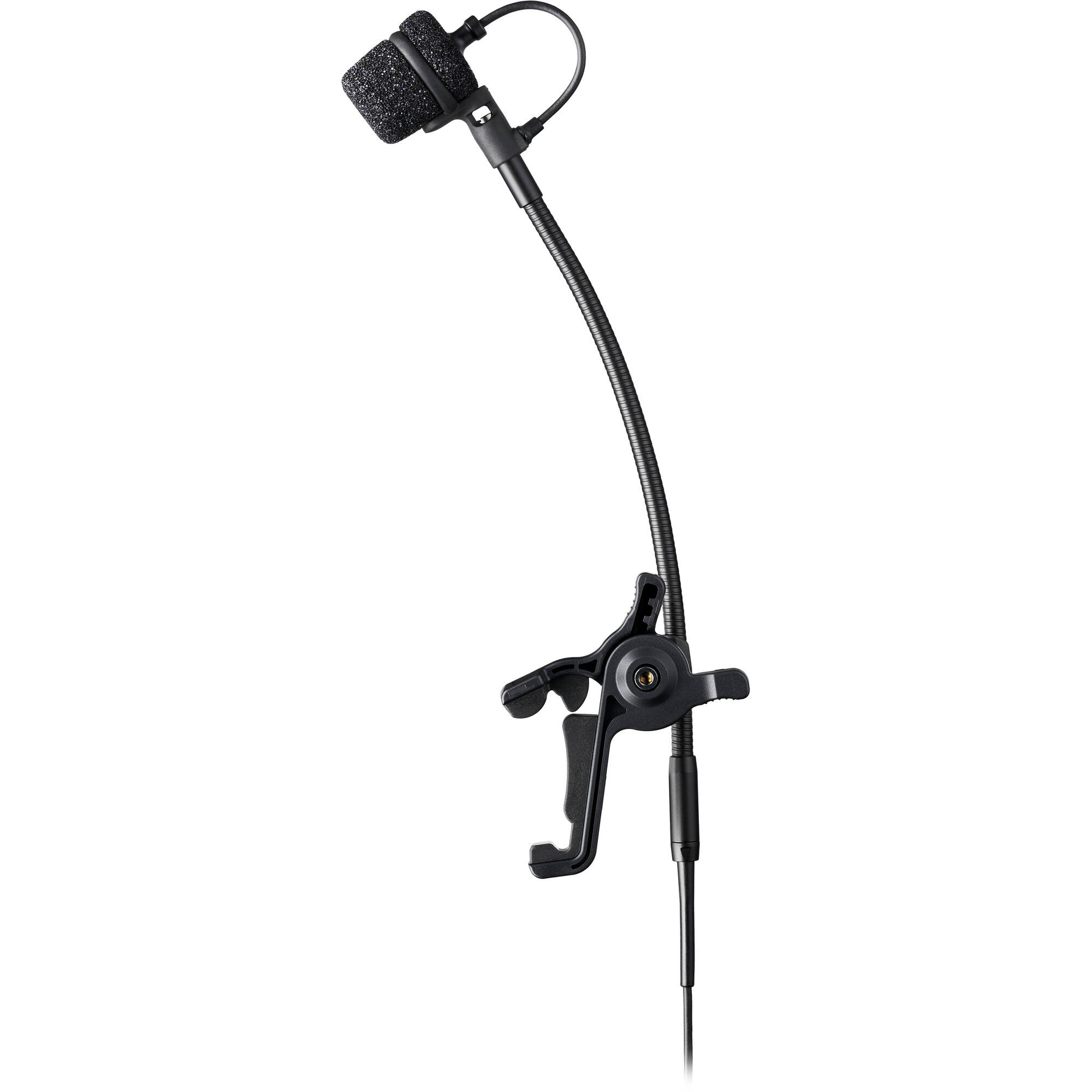

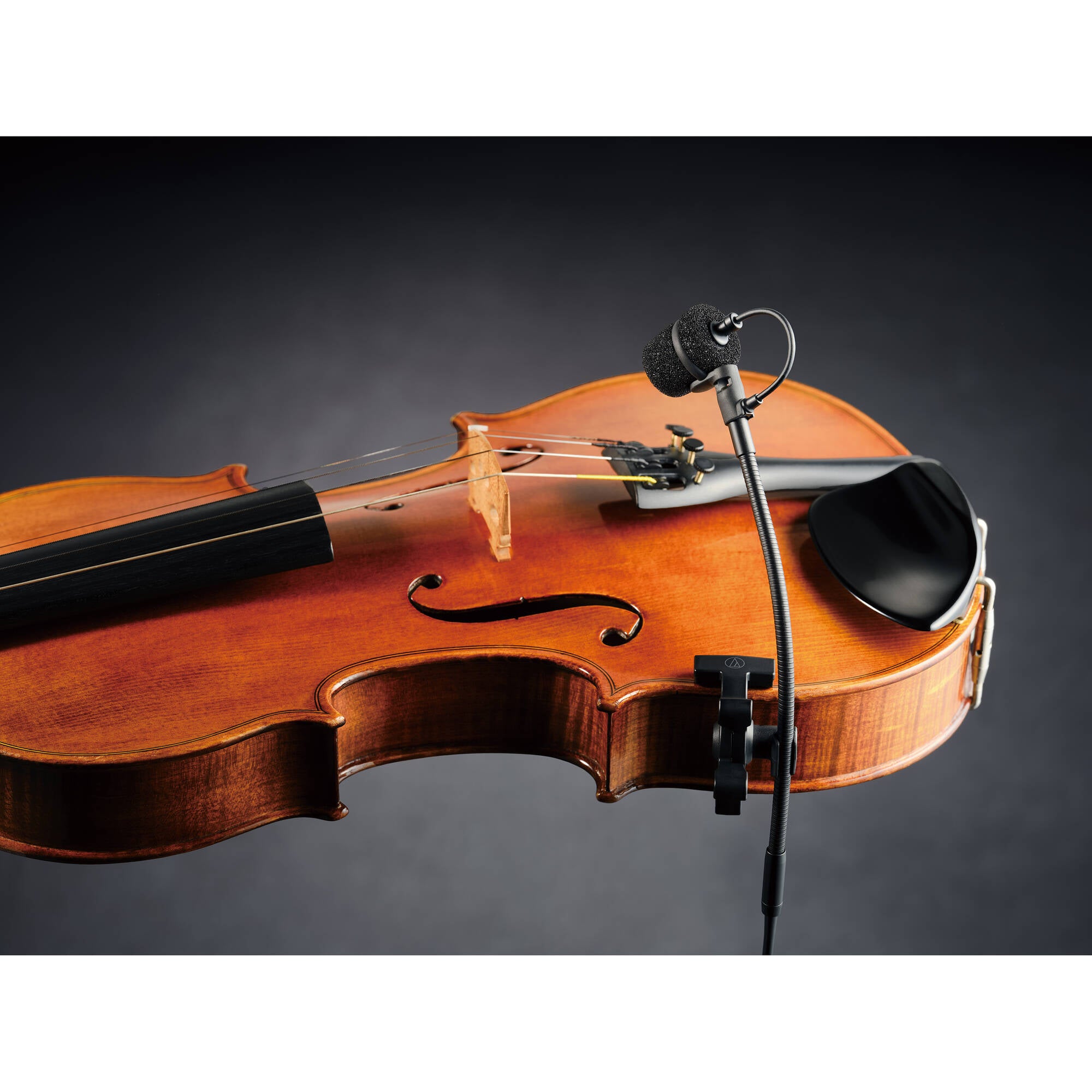

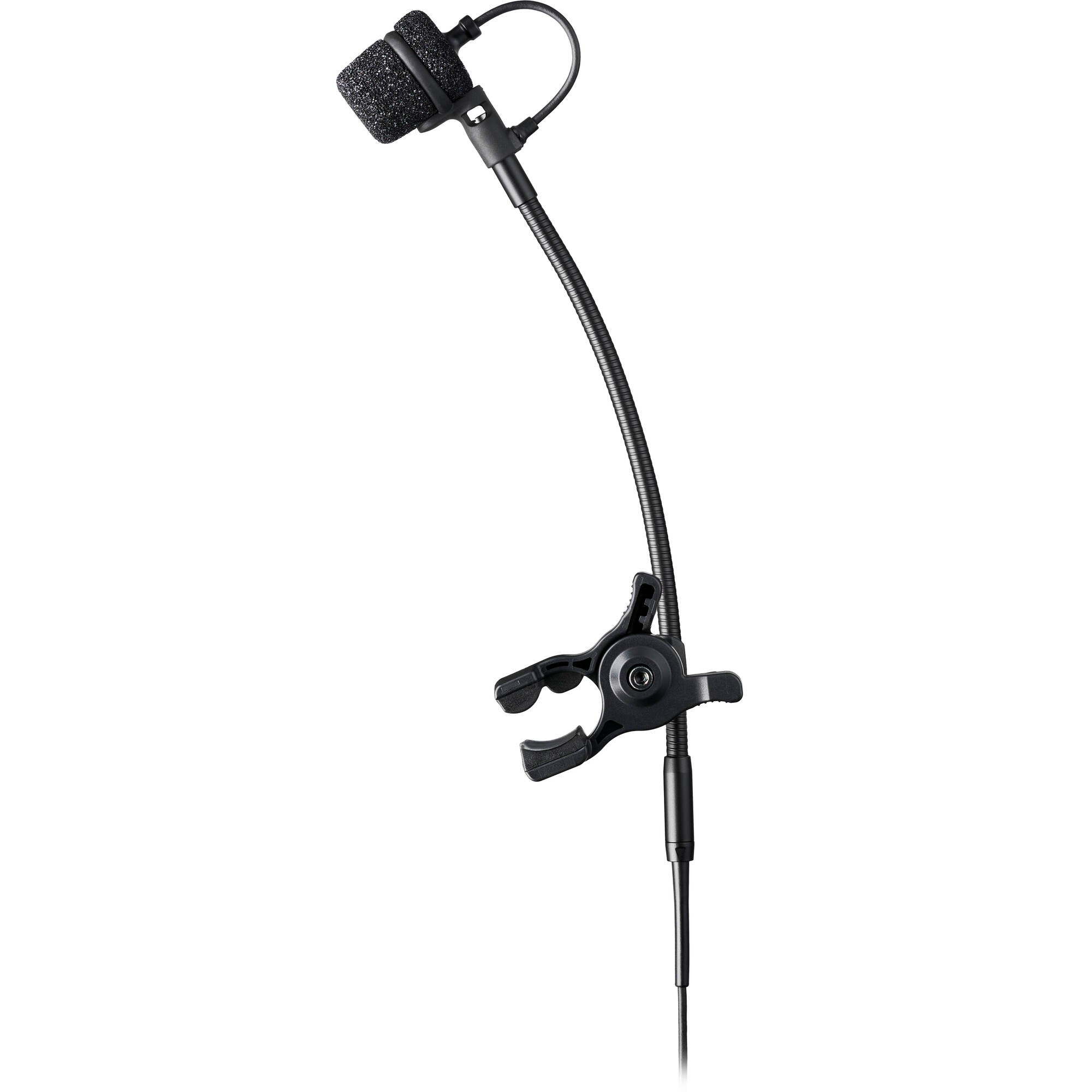

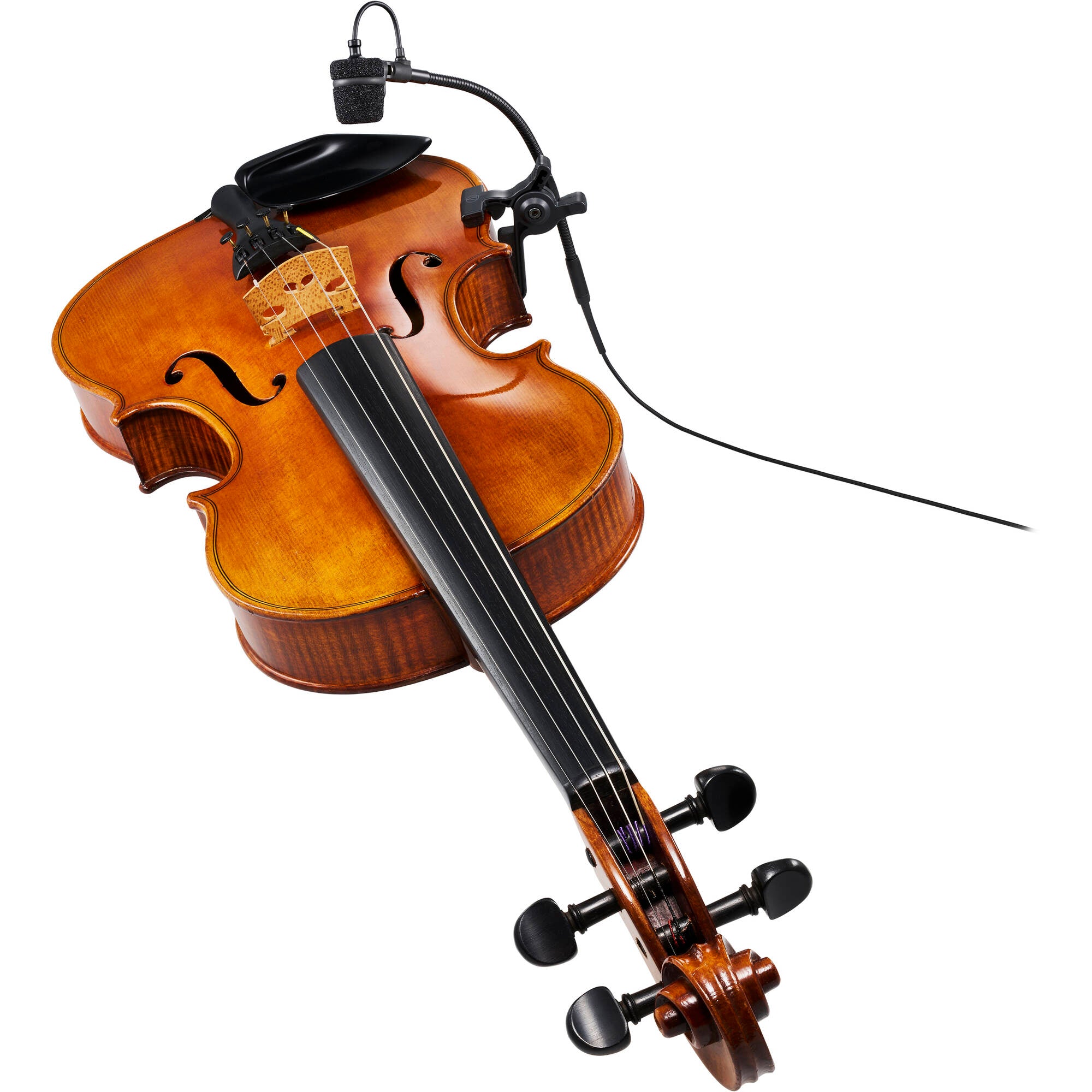

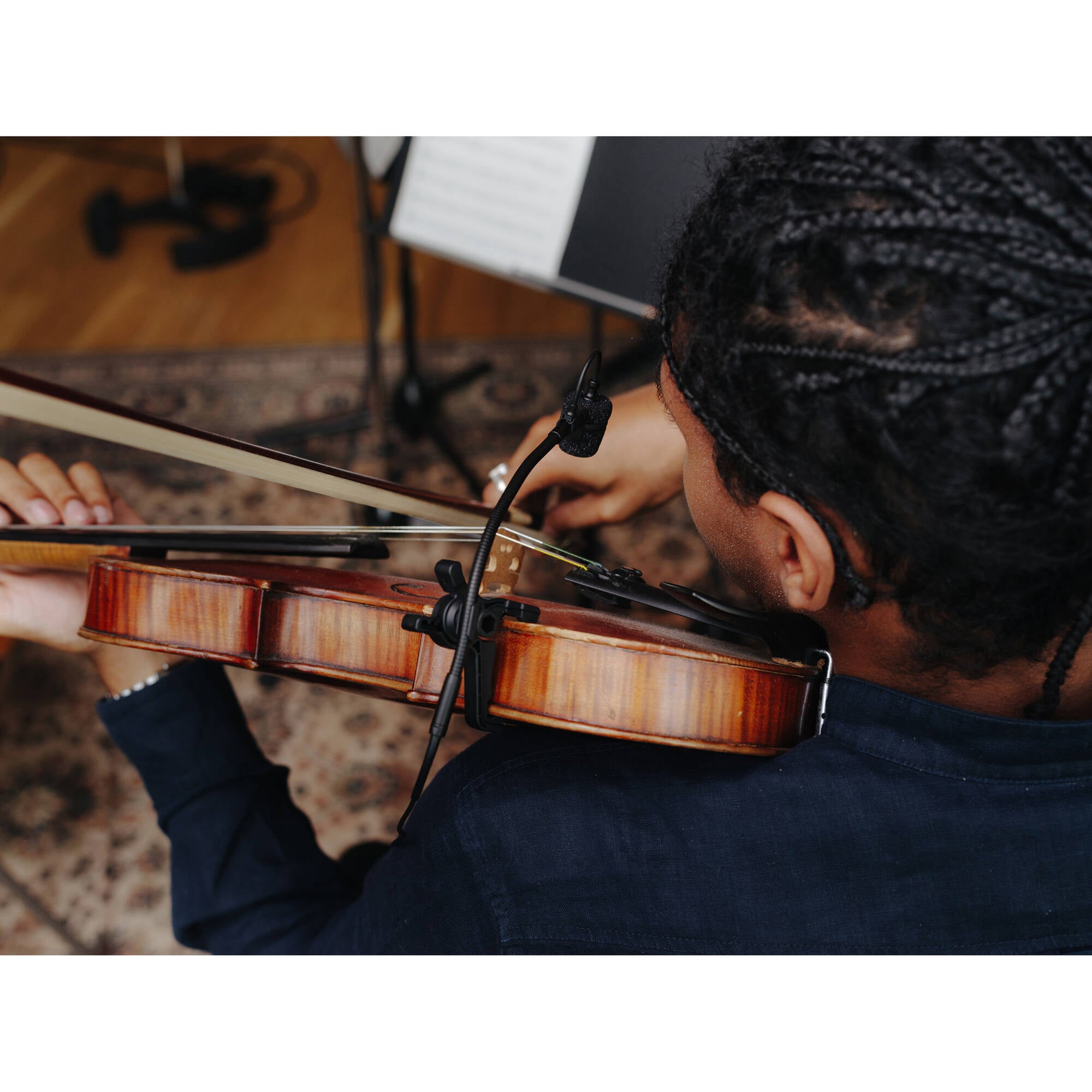

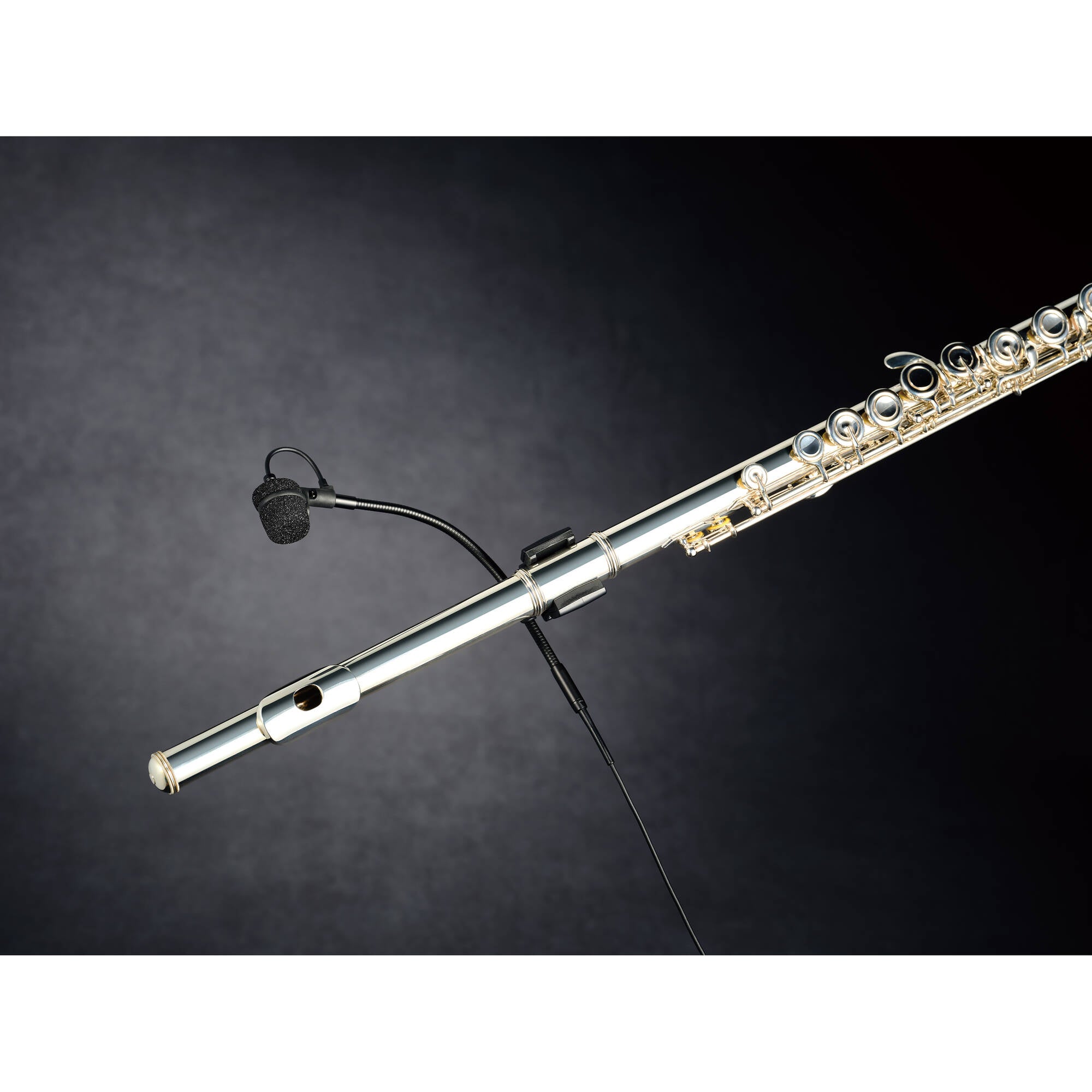

• Includes an AT8491V clip-type violin mount and an AT8491F flute mount for safe, easy connection to string and woodwind instruments

Specifications:

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 40 - 20,000 Hz
• Low Frequency Roll Off: 80 Hz, 12 dB/octave (mounted on an AT8543 Power Module)
• Open Circuit Sensitivity: -39 dB (12.6 mV) (0 dB=1 V/Pa, 1 kHz)
• Impedance: 200 ohms
• Maximum Input Sound Level: 148.5 dB SPL (1 kHz THD1%)
• Dynamic Range: 126.5 dB (1 kHz at Max SPL)
• Signal-to-Noise Ratio: 72 dB (1 kHz at 1Pa, A-weighted)
• Phantom Power Requirements: 11 - 52 V DC, 3.5 mA (mounted on an AT8543 Power Module)
• Element Power Requirements: 2.5-11V DC (0.1 mA current consumption typical at 5V DC)
• Switch: Flat, roll-off (mounted on an AT8543 Power Module)
• Weight (Microphone): 29.5 g (1.0 oz)
• Weight (Power Module): 90 g (3.2 oz)
• Operation Temperature Range: -10°C to 60°C (14°F to 140°F)
• Storage Temperature Range: -20°C to 60°C (-4°F to 140°F), 10% to 90%RH (no condensation)
• Cable: 1.8 m (5.9')
• Dimensions (Power Module): 92 mm (3.6") long, 18.9 mm (0.74") diameter
• Dimensions (Microphone): 21.6 mm (0.85") x 33 mm (1.3") x 200 mm (7.9")
• Output Connector (Power Module): Integral 3-pin XLR-M type
• Output Connector: cW connector (ATM355), cH connector (ATM355cH), TA4F connector (ATM355VFcT4), and Interlocking 3.5mm (ATM355VFcLM3)

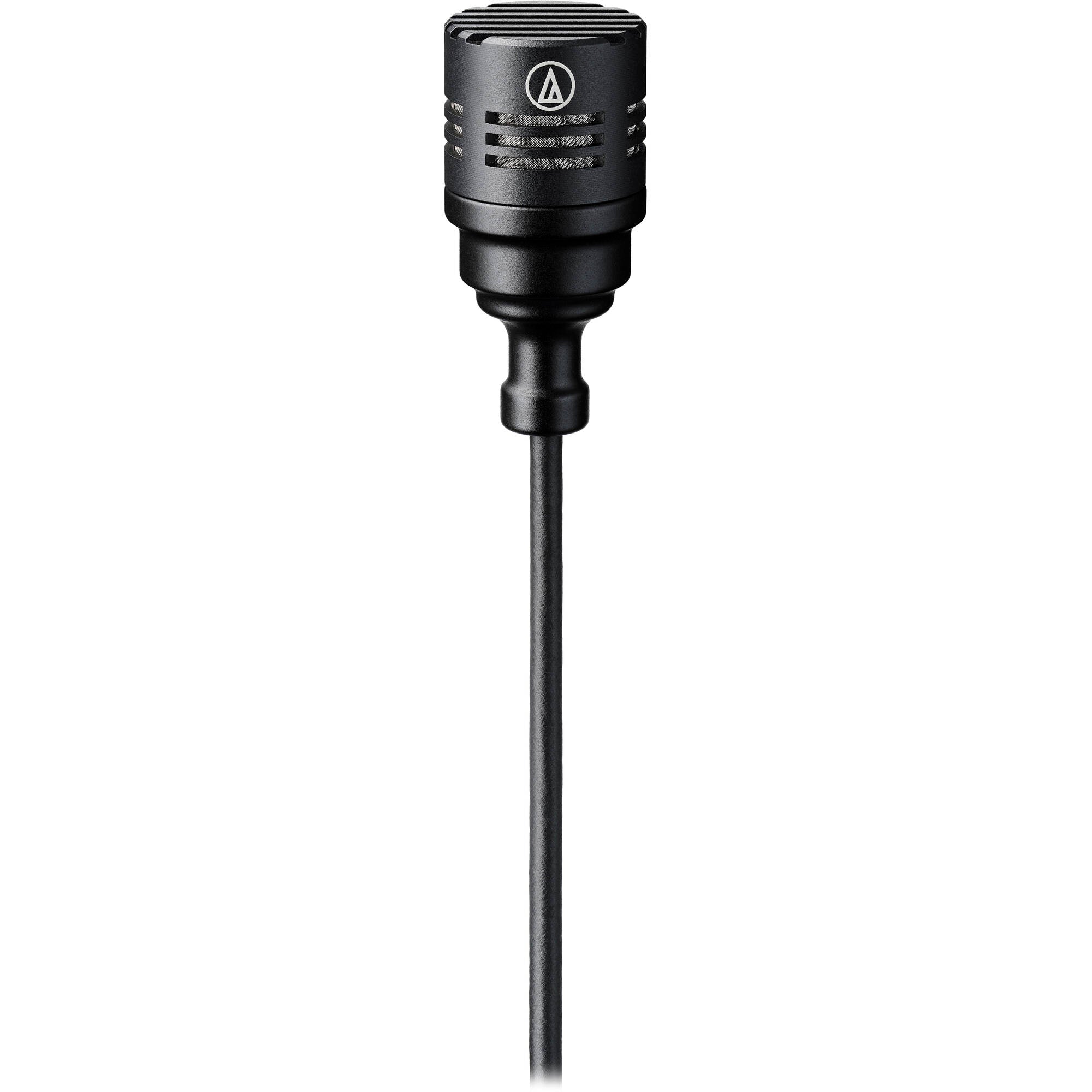

• Optional Interchangeable Elements: UE-O omnidirectional, UE-H hypercardioid
• Accessories Included: Power module (AT8543) (with cW version), Belt clip, Violin mount (AT8491V), Flute mount (AT8491F), Joint adapter (AT8493), Hard shell carry case
• Notes:
  ・Characteristic weighting measured when connected to a power module (AT8543).
  ・1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL
  ・For product improvement, the product is subject to modification without notice.
