Key Features
- Line + Gradient Polar Pattern
- Condenser Element
- 14.53" Length
- Battery or Phantom Power
- Switchable Low-Frequency Roll-Off
- Ideal for ENG/EFP Applications
- Includes Protective Pouch
- Includes Windscreen & Stand Clamp
Description

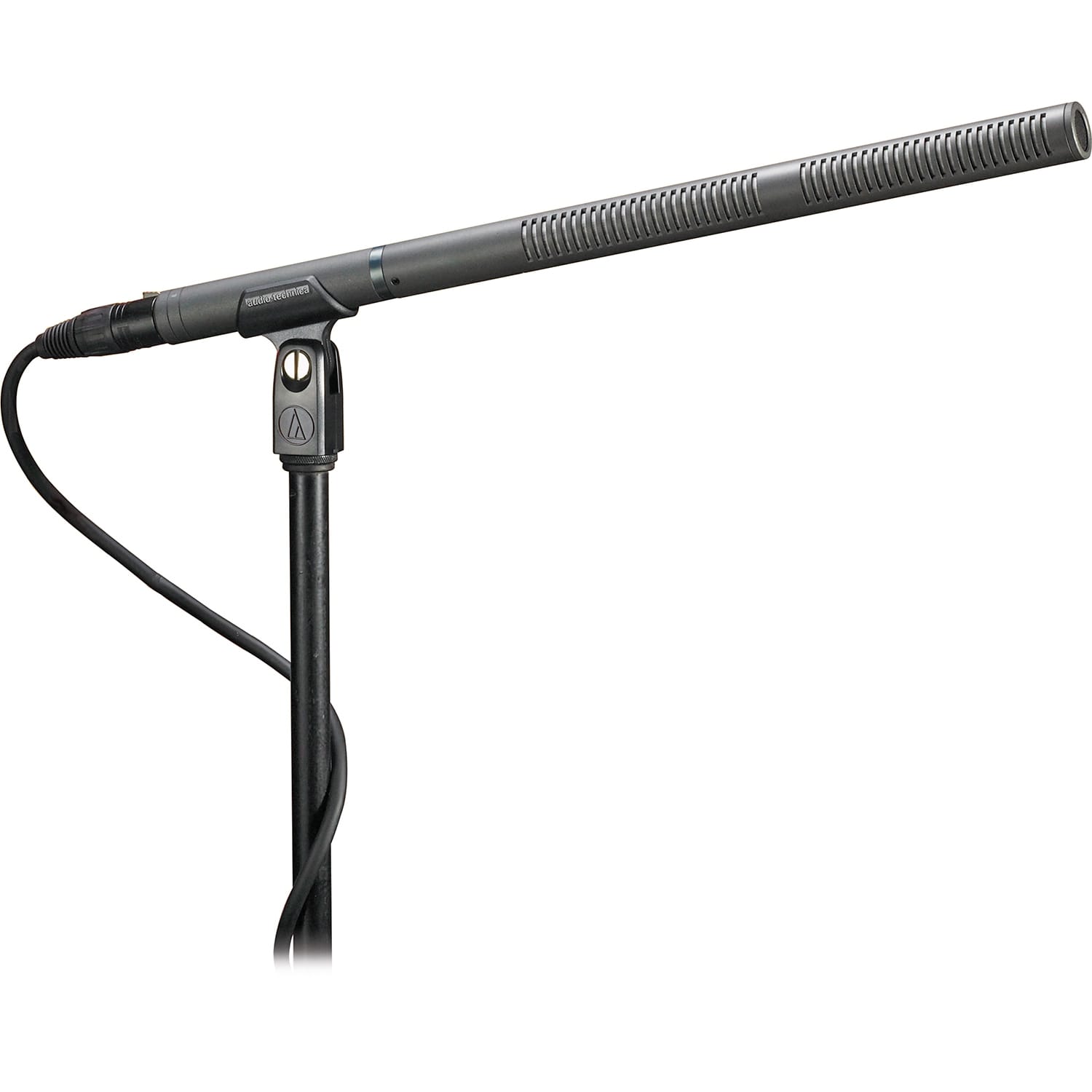

Line + Gradient Shotgun Condenser Microphone, 14.5" Long
The length (14.53") of the AT8035 Line + Gradient Condenser Microphone is well-suited for ENG, outdoor recording and other specialized uses. The microphone is designed for video production and broadcast (ENG/EFP) audio acquisition. Suited for both boom & handheld use, it provides the narrow acceptance angle desirable for long-distance sound pickup, featuring excellent sound rejection from the sides and rear of mic and switchable low-frequency roll-off. It operates on battery or phantom power.
Features:
- Designed for video production and broadcast (ENG/EFP) audio acquisition
- Length is well-suited for ENG, outdoor recording and other specialized uses
- Provides the narrow acceptance angle desirable for long-distance sound pickup
- Excellent sound rejection from the sides and rear of mic
- Switchable low-frequency roll-off
- Operates on battery or phantom power
- RoHS compliant-free from all substances specified in the EU directive on hazardous substances
Specifications:
- ELEMENT: Fixed-charge back plate, permanently polarized condenser
- POLAR PATTERN: Line + gradient
- FREQUENCY RESPONSE: 40-20,000 Hz
- LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave
- OPEN CIRCUIT SENSITIVITY:
Phantom: -38 dB (12.5 mV) re 1V at 1 Pa
Battery: -39 dB (11.2 mV) re 1V at 1 Pa - IMPEDANCE:
Phantom: 250 ohms
Battery: 300 ohms - MAXIMUM INPUT SOUND LEVEL:
Phantom: 132 dB SPL, 1 kHz at 1% T.H.D.
Battery: 120 dB SPL, 1 kHz at 1% T.H.D. - DYNAMIC RANGE (typical):
Phantom: 110 dB, 1 kHz at Max SPL
Battery: 98 dB, 1 kHz at Max SPL - SIGNAL-TO-NOISE RATIO: 72 dB, 1 kHz at 1 Pa
- PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
- BATTERY TYPE: 1.5V AA/UM3
- BATTERY CURRENT / LIFE: 0.4 mA / 1200 hours typical (alkaline)
- SWITCH: Flat, roll-off
- WEIGHT: 170 g (6.0 oz)
- DIMENSIONS: 369.0 mm (14.53") long, 21.0 mm (0.83") diameter
- OUTPUT CONNECTOR: Integral 3-pin XLRM-type
- ACCESSORIES FURNISHED: AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8132 windscreen; battery; protective carrying case
- AUDIO-TECHNICA CASE STYLE: SG1

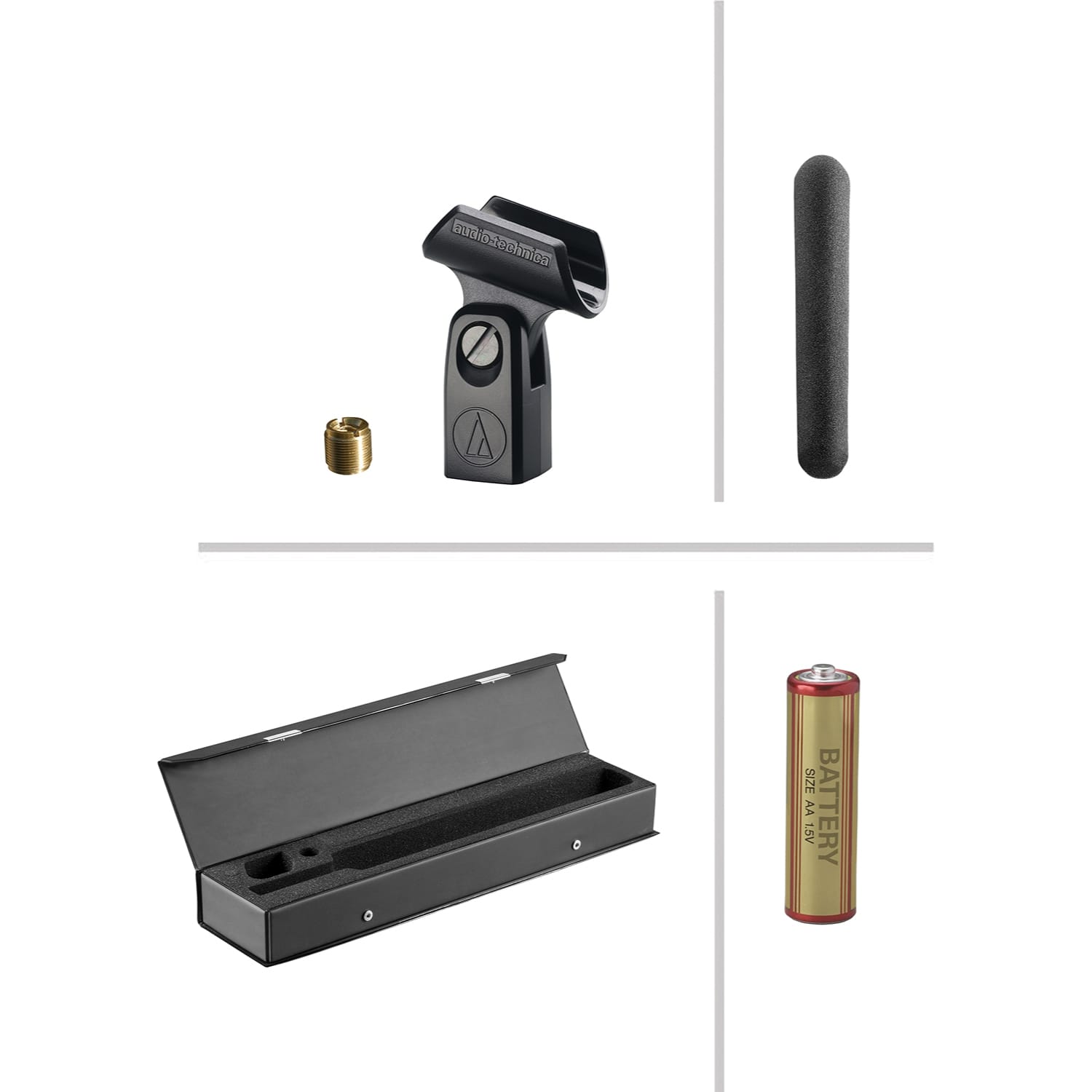

Includes:
- AT8035 Line + Gradient Condenser Microphone
- AT8405 Stand Clamp for 5/8"-27 Threaded Stands
- 5/8"-27 to 3/8"-16 Threaded Adapter
- AT8132 Windscreen
- 1.5v AA/UM3 Battery
- Protective Carrying Case
- 1 Year Warranty
