Audio-Technica AT-VM95C/H Headshell and Cartridge Combo Kit

Headshell/Cartridge Combo Kit

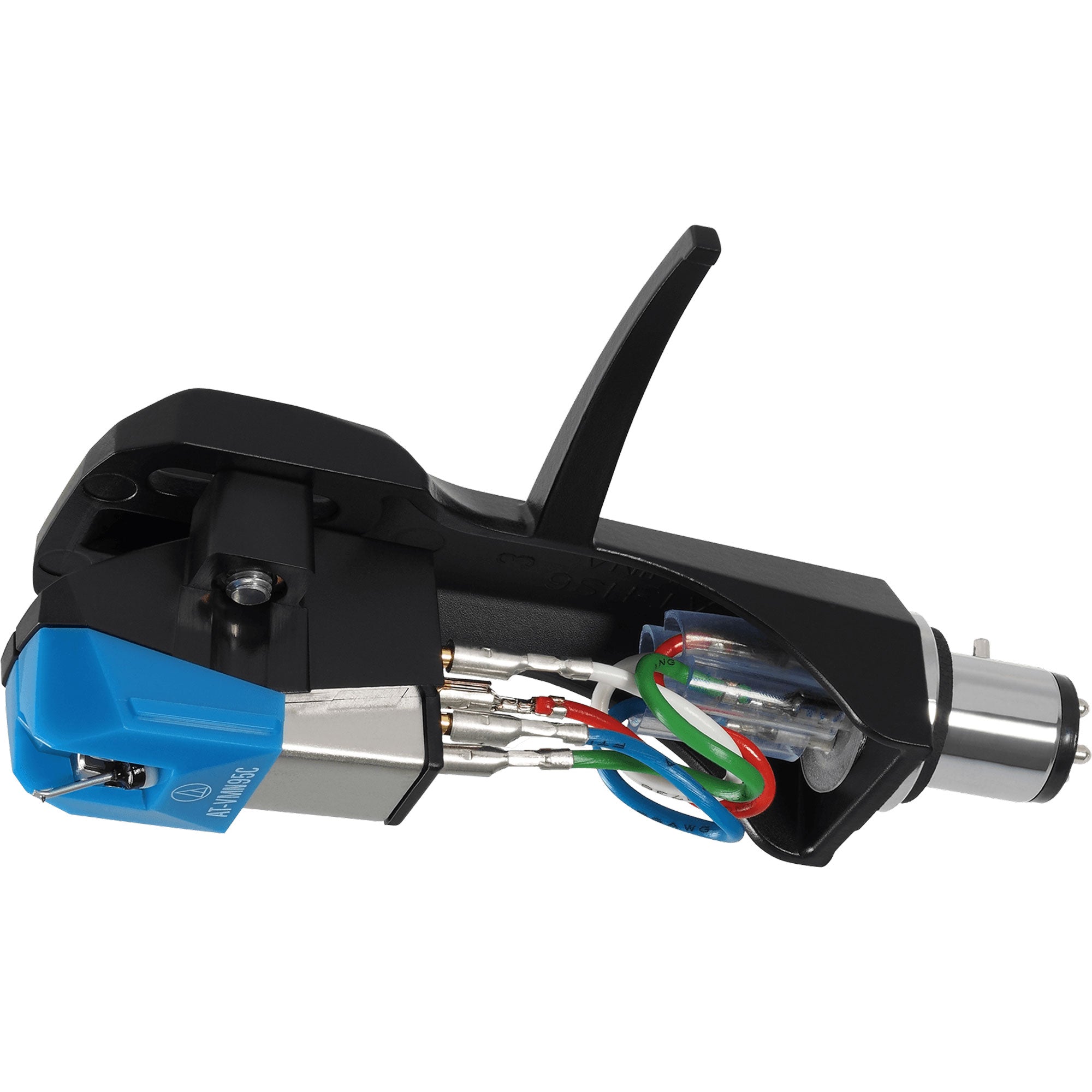

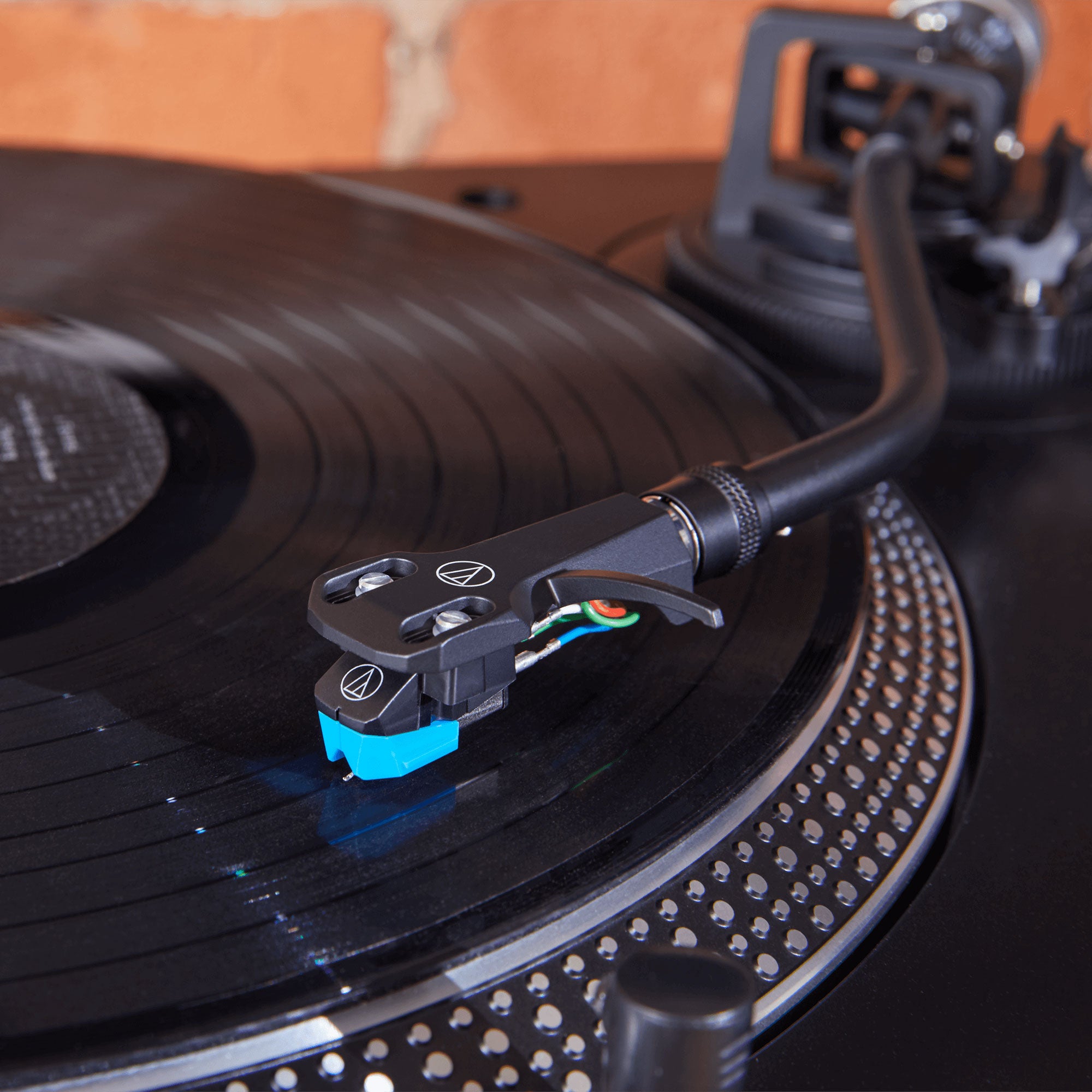

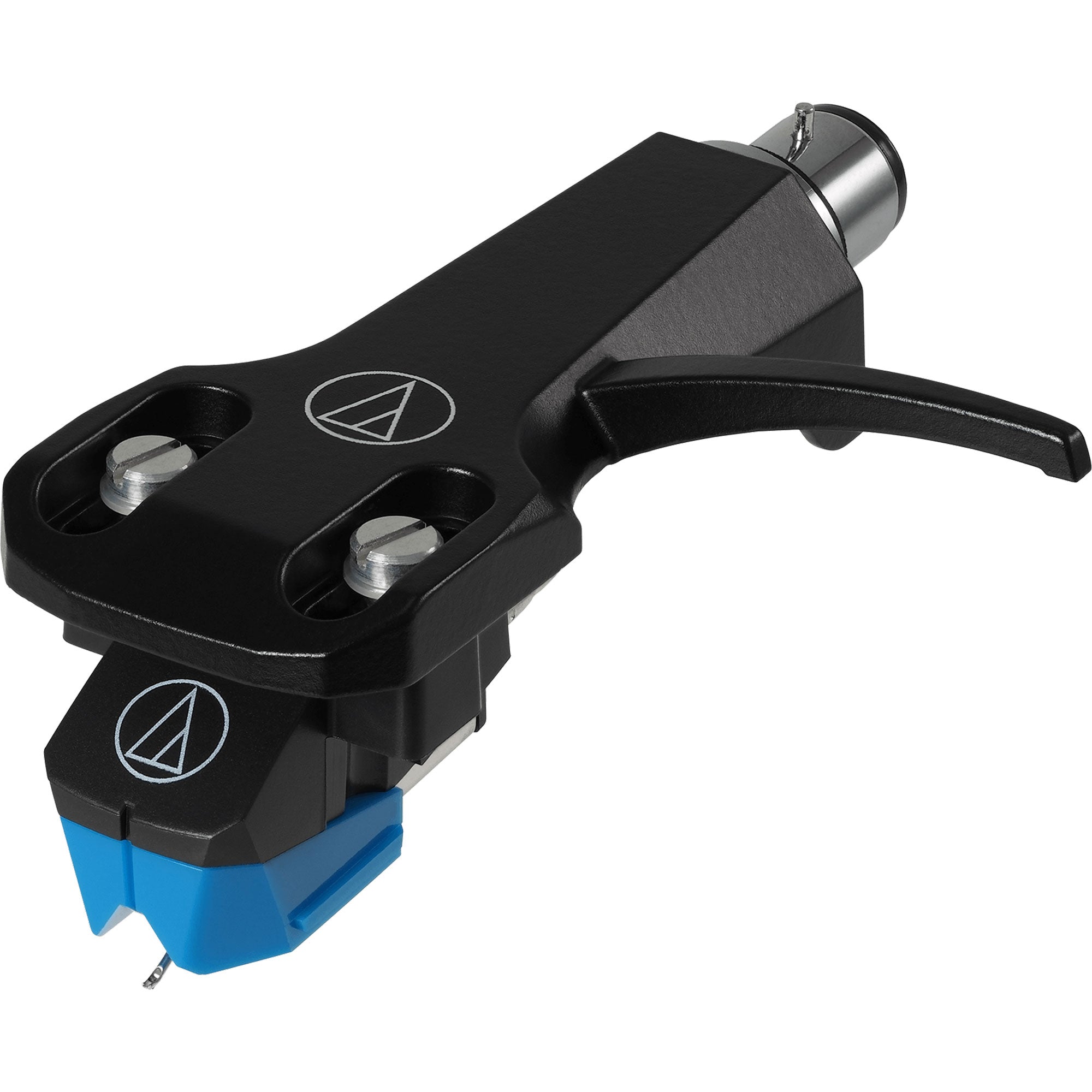

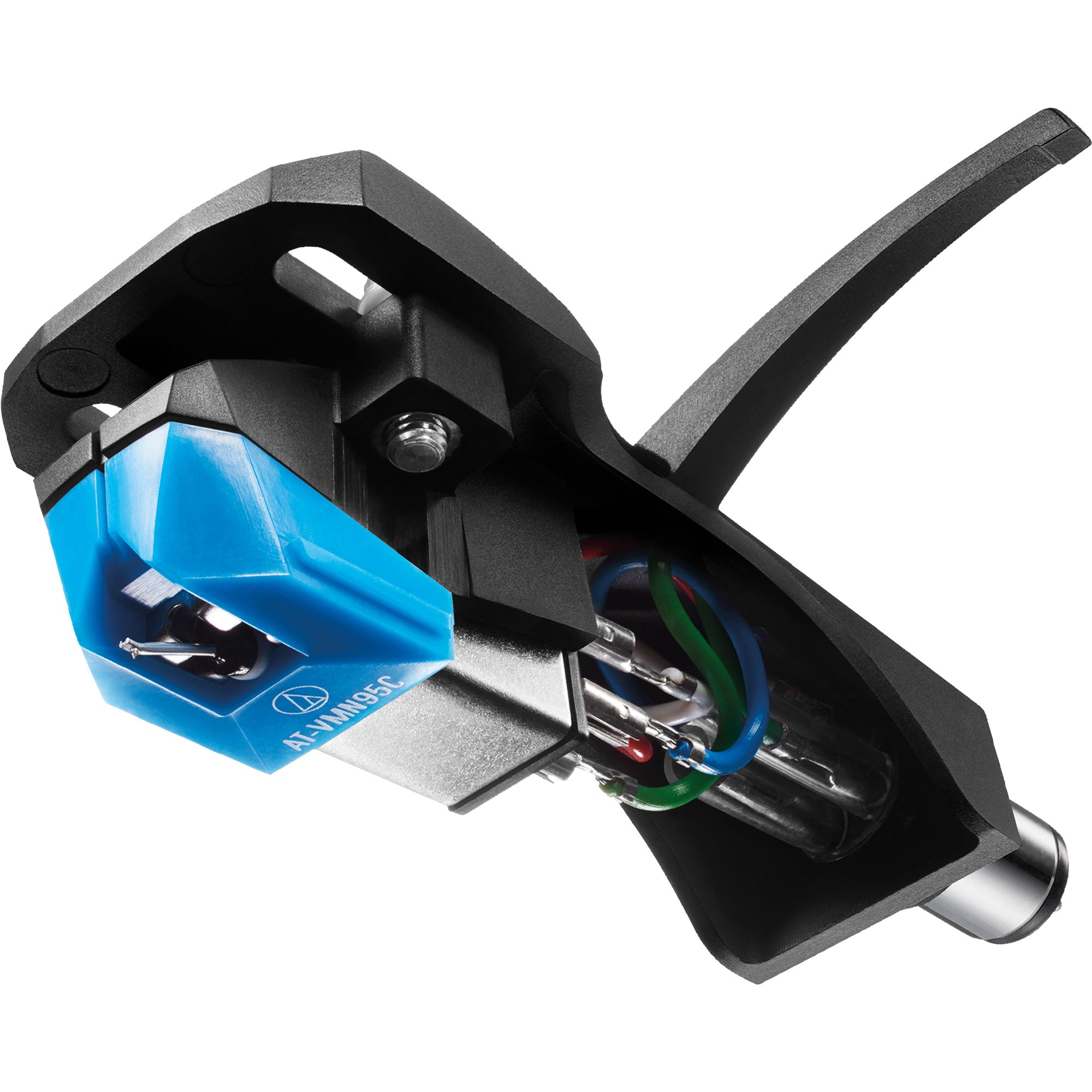

The AT-VM95C/H combo kit includes the AT-VM95C dual moving magnet cartridge premounted on the AT-HS6BK headshell.

Features

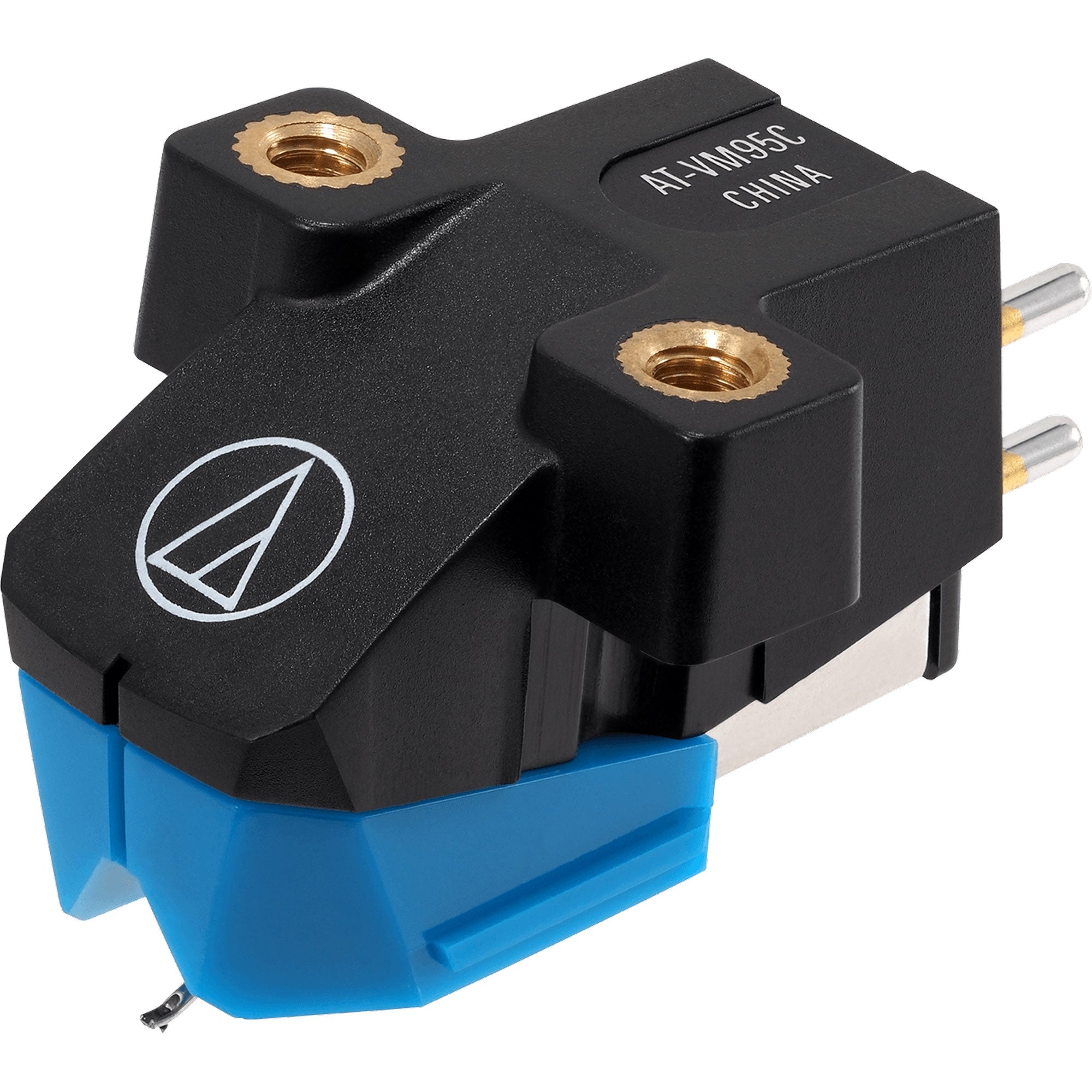

• VM dual magnet cartridge with 0.6 mil conical stylus
• Aluminum cantilever
• Specially wound coils increase output voltage
• Durable low-resonance polymer housing
• Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws - no nuts or washers required
• Compatible with any AT-VMN95 replacement stylus

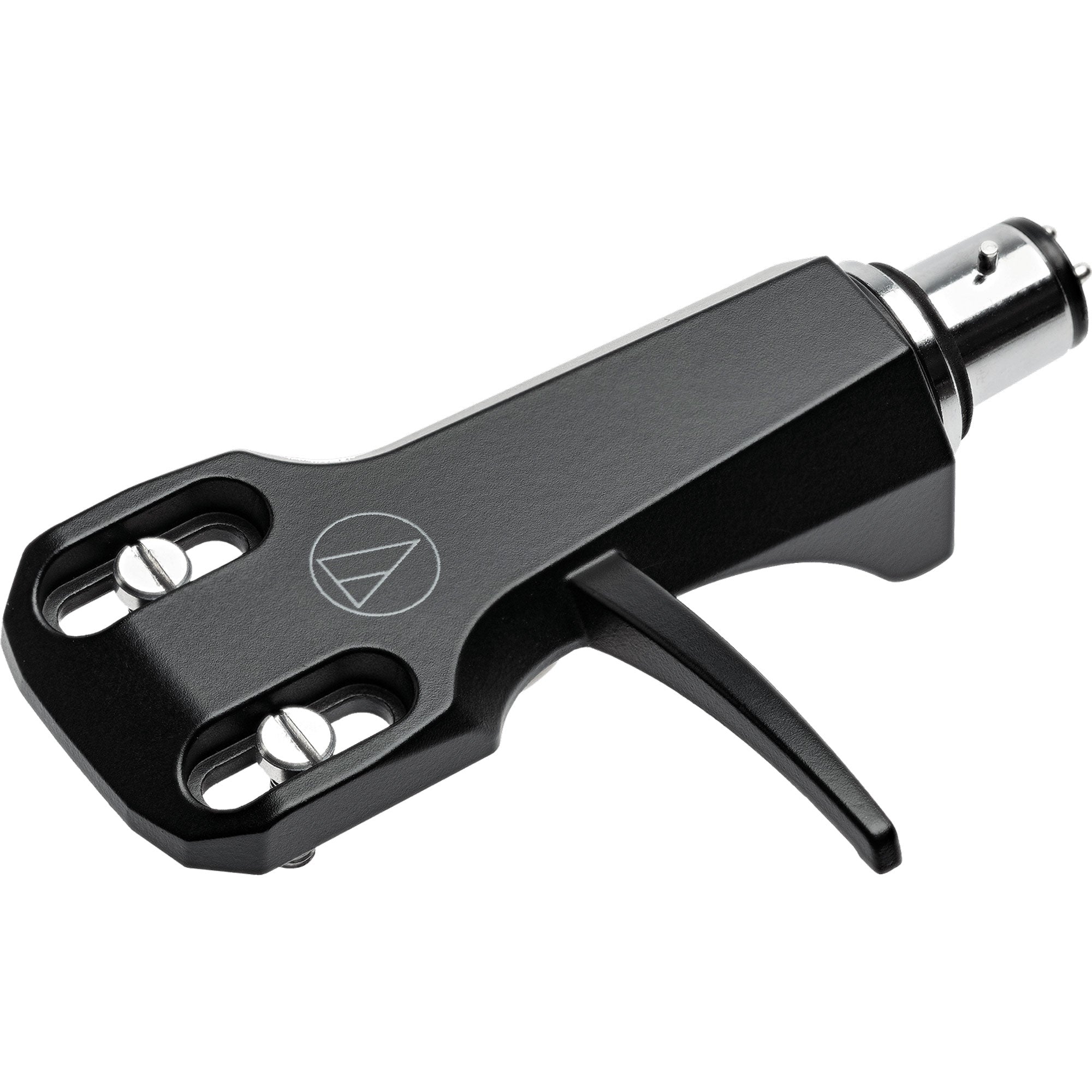

• Universal 1/2"-mount headshell for 4-pin turntable cartridges

Specifications

• Cartridge & Stylus
• Frequency Response: 20-20,000 Hz
• Channel Separation: 18 (dB at 1 kHz)
• Vertical Tracking Angle: 23°
• Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
• Stylus Construction: Bonded round shank
• Recommended Load Impedance: 47,000 ohms
• Coil Impedance: 3.3 k ohms (1 kHz)
• DC Resistance: 485 ohms
• Coil Inductance: 550 mH (1 kHz)
• Output Voltage: 4.0 mV (1 kHz, 5 cm/sec.)
• Output Channel Balance: 2.5 dB (1 kHz)
• Stylus Shape: 0.6 mil conical
• Cantilever: Aluminum pipe
• Static Compliance: 17 x 10 - 6 cm / dyne
• Dynamic Compliance: 6.5 x 10 - 6 cm / dyne (100 Hz)
• Mounting: Half-inch
• Dimensions: Cartridge 17.2 mm (0.68") H x 18.9 mm (0.74") W x 28.3 mm (1.20") D; Cartridge & Headshell 21.2 mm (0.83") H x 21.4 mm (0.84") W x 62.4 mm (2.46") D
• Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers
• Model: AT-VM95C/H
• Mounting Feature: Half-inch mount
• Recommended Load Capacitance: 100 to 200 pF
• Replacement Stylus: AT-VMN95C
• Stylus Size: 0.6 mil
• Type: VM Stereo Dual Magnet
• Weight: Cartridge 6.1 g (0.22 oz); Cartridge & Headshell 15.5 g (0.55 oz)
• Wire Used for Coil: T.P. Copper
