AtlasIED FC104T72FRK Fire Rated 4" Speaker with 4-Watt 25V/70V Transformer, Enclosure, and Baffle (6 Pack)

Fire Rated 4" Standard Loudspeaker, UL Listed, 25/70.7V-4W Transformer - 6 Complete Speaker Kits

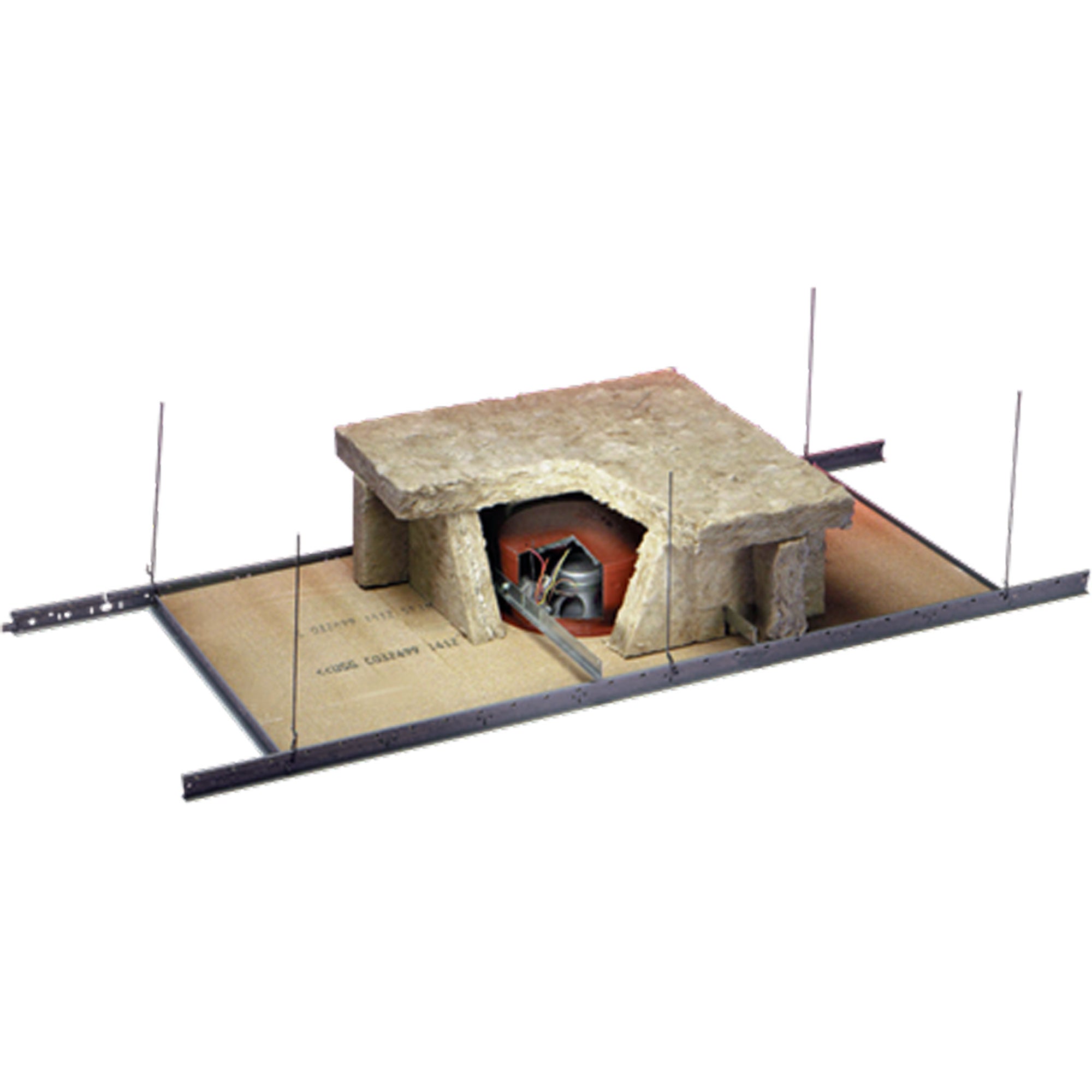

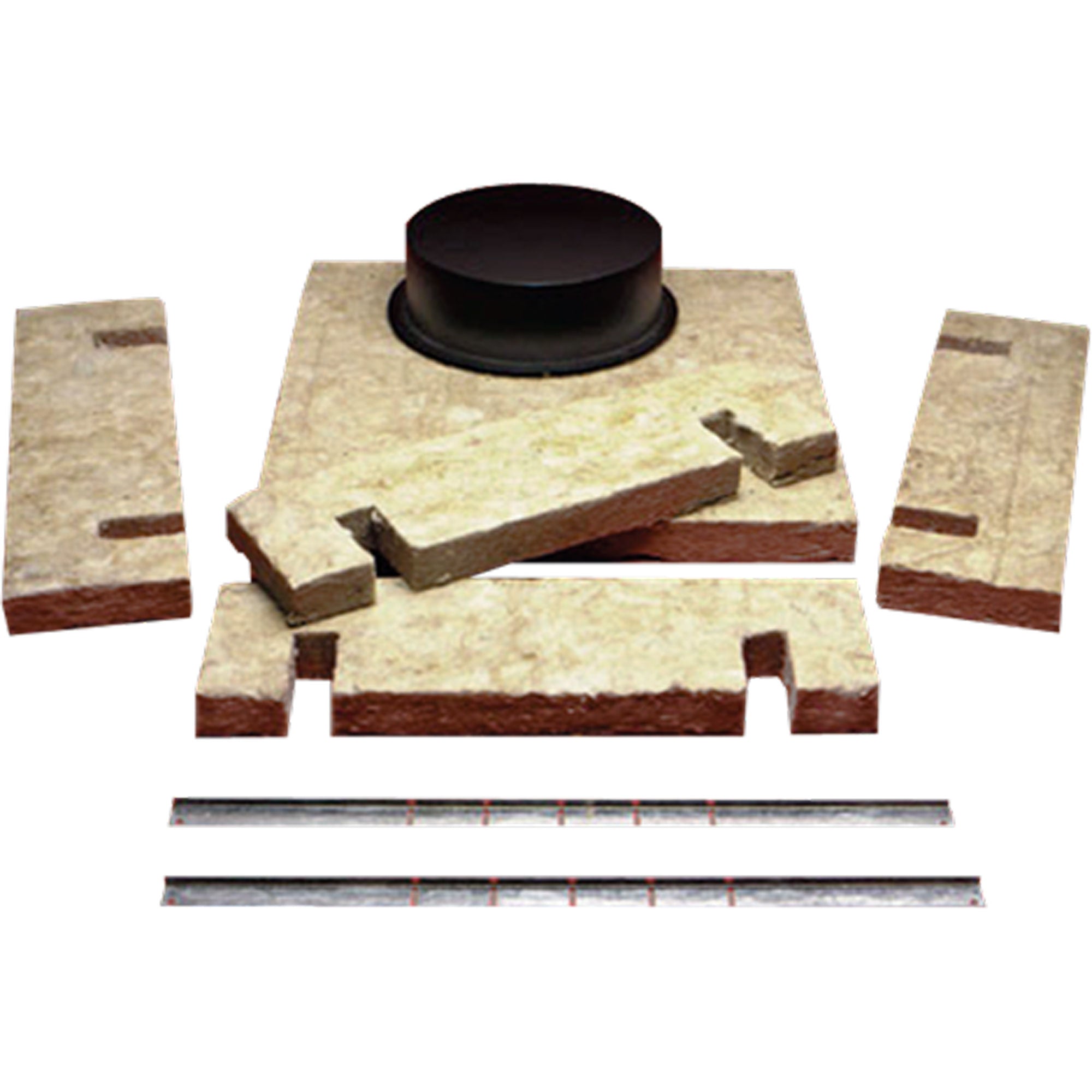

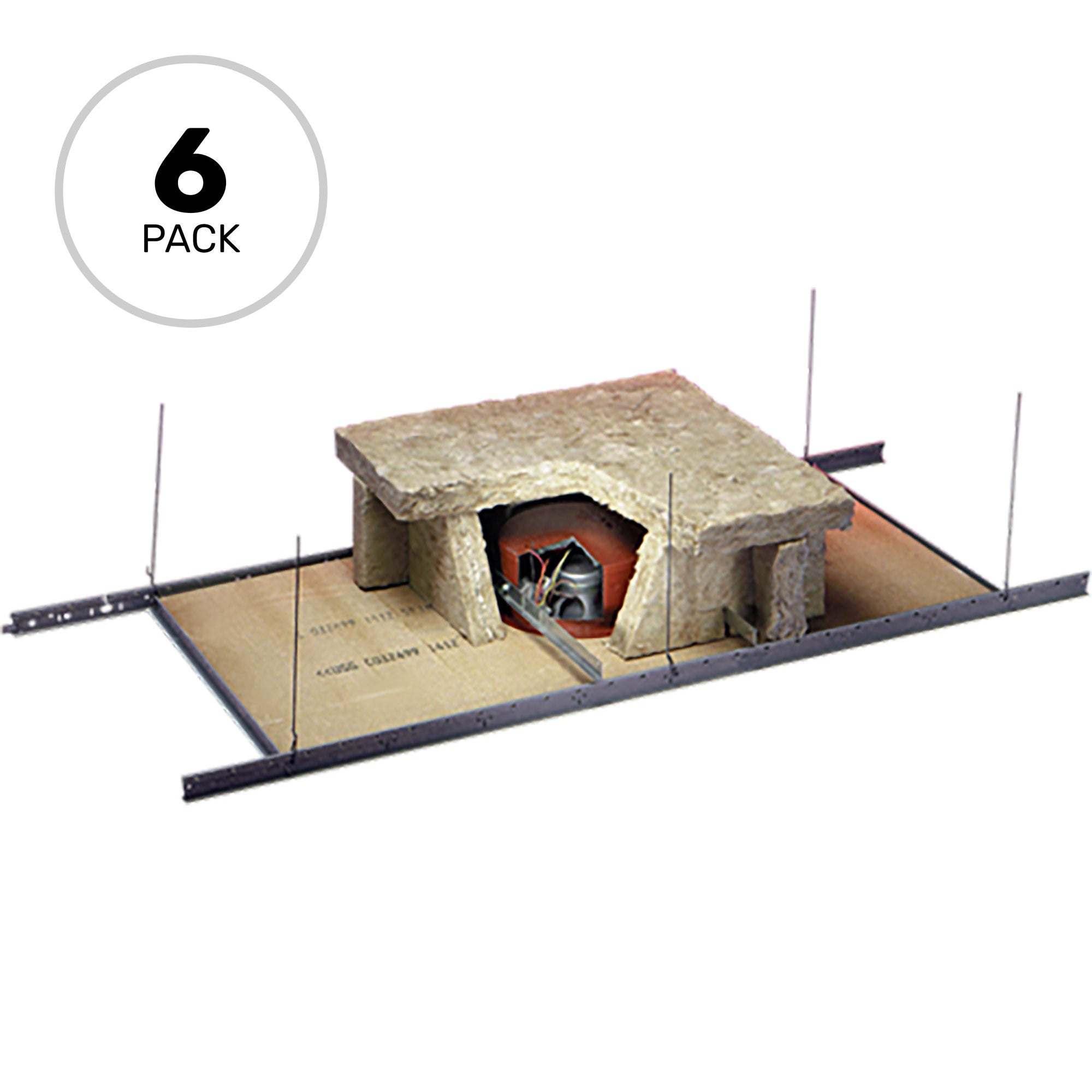

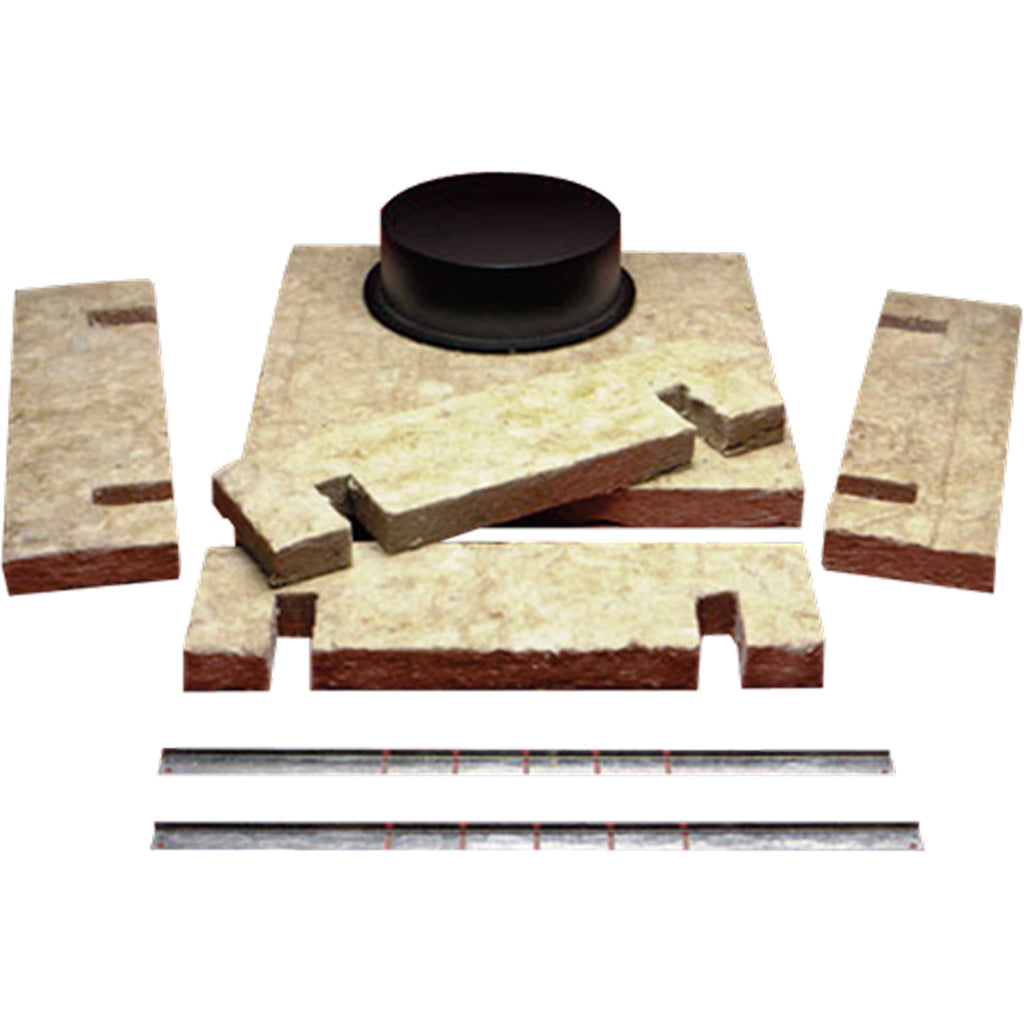

FC104T72FRK is UL classified for fire-resistance in the United States and Canada. The FC104T72FRK has passed a fire-rating up to three hours (rating varies by ceiling construction), and has been tested in accordance with the UL standard - Fire Test of Building Construction and Materials, ANSI/UL263 (ASTM E119, NFPA 251). The FC104T72FRK is pre-manufactured and assembles quickly on-site with no special tools or skills. The assembly includes an enclosure-fiber kit, UL listed speaker/transformer assembly, and choice of UL Listed baffle. Each enclosure-fiber kit includes pre-cut fiber panels, metal enclosure, rail set, and hardware. Atlas-Sound FR Series offers a wide variety of cost, performance, and aesthetic options. The 43 speaker/transformer combinations approved for use in FR assemblies are FR versions of the industry standard Atlas-Sound Strategy Series FA134, FA136, FA138 models and the C803A, C5A, C10A, and FC104 loudspeakers. The approved baffles are also FR versions of familiar Atlas-Sound models. To maintain UL Classification for fire-resistance, enclosure-fiber kits must be used with FR Series components.

Features:

• Efficient Wide-Range Frequency Response
• Ideal for Public Address and Background Music Installations
• Includes 4 watt 70-Volt transformer
• Industry Standard, 10-Watt, 4" High-Compliance Loudspeaker
• Kit includes speaker/transformer, baffle, and fiber enclosure kit
• Mounts a Large Selection of Atlas Sound 4" Grilles
• NFPA251 compliant
• Offers Proven Performance with Wide-Angle Sound Dispersion
• Tested to ANSI Standard E119
• UL Classified under standard UL263
• UL1480 Listed for General Signaling

Specifications:

• Height: 10-3/4" (27.305 cm)
• Width: 24" (60.96 cm)
• Depth: 24" (60.96 cm)
• Shipping Weight: 0.00 lbs (0.00 kgs)
• Included Baffle: 51-4FR
• Included Speaker: 96-4FR
• Included Enclosure: FC104T72FR
• UL Listed/Standard: ANSI / UL 263 (ASTM E119, NFPA 251)
