AtlasIED FA138T87FRK Fire Rated 8" Coaxial Speaker with 8W 70V Transformer, Enclosure, and Baffle (6 Pack)

Fire Rated 8" Strategy Series Coaxial Loudspeaker, UL Listed, 70.7V-8W xfmr - 6 Complete Speaker Kits

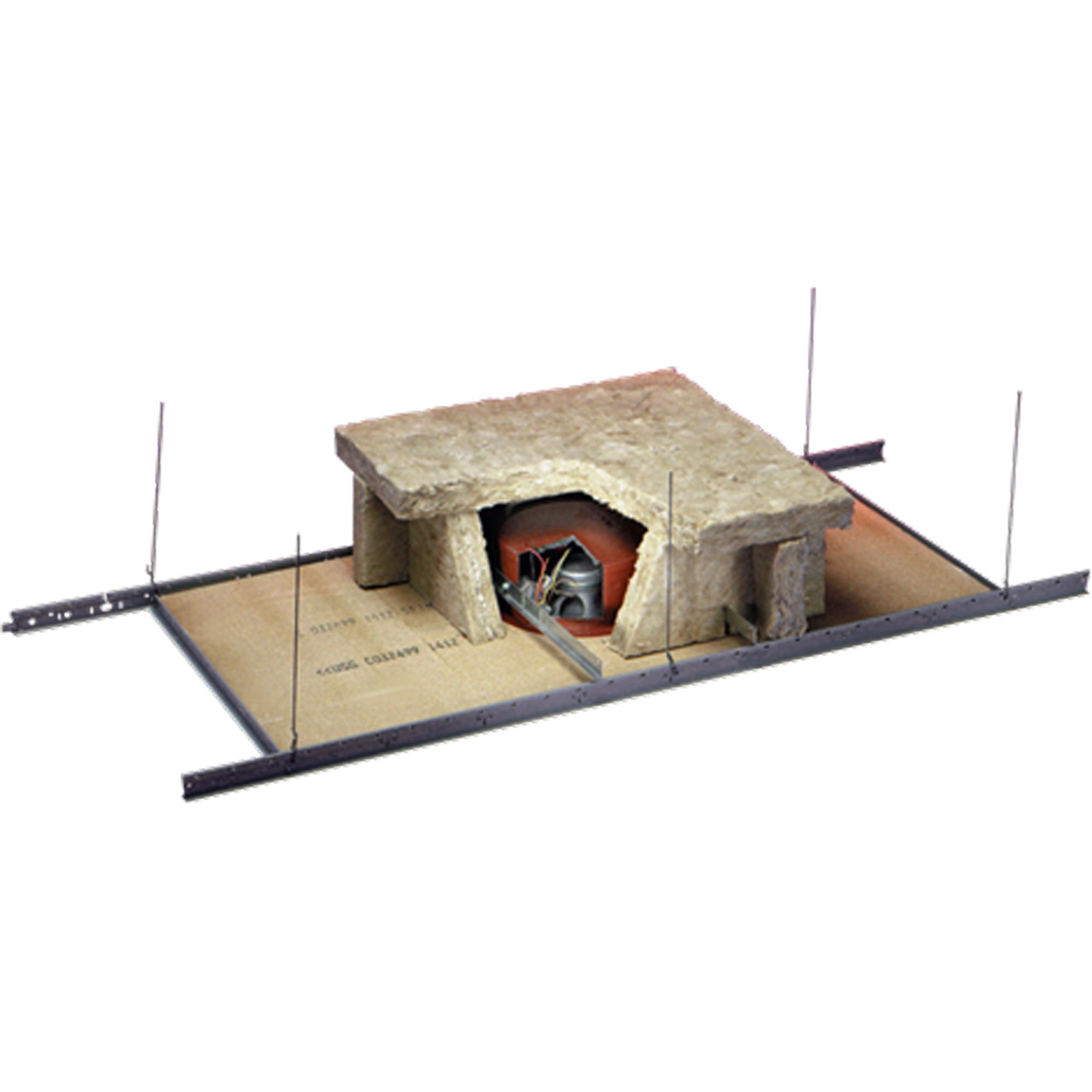

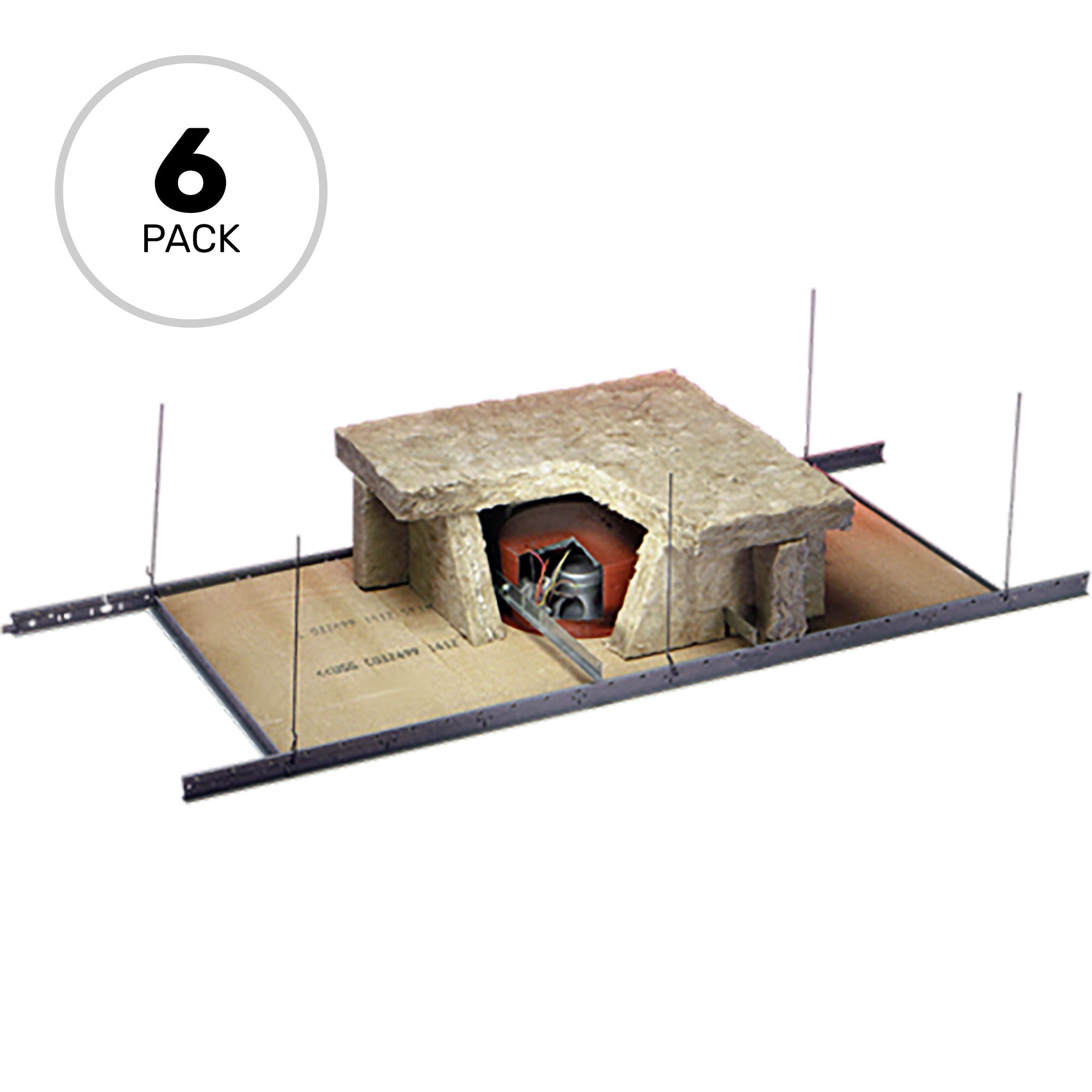

FA138T87FRK is UL classified for fire-resistance in the United States and Canada. The FA138T87FRK has passed a fire-rating up to three hours (rating varies by ceiling construction) and has been tested in accordance with the UL standard - Fire Test of Building Construction and Materials, ANSI/UL263 (ASTM E119, NFPA 251). FA138T87FRK assembly includes a enclosure-fiber kit, UL listed speaker/transformer assembly, and UL Listed baffle. Each enclosure-fiber kit includes pre-cut fiber panels, metal enclosure, rail set and hardware. The speaker/transformer approved for use with the FA138T87FRK are FR versions of the industry standard Atlas Sound Strategy Series FA136, FA138 models and the C803A, C10A, and FC104 loudspeakers.

Features:

• 8 watt 70 volt transformer
• 8" coaxial driver with tuned enclosure
• ASTM E119 Standard, NFPA 251
• Designed to work in 32 different 1,2, & 3 hour rated ceiling designs as listed in the 1999 UL Fire Resistance Directory

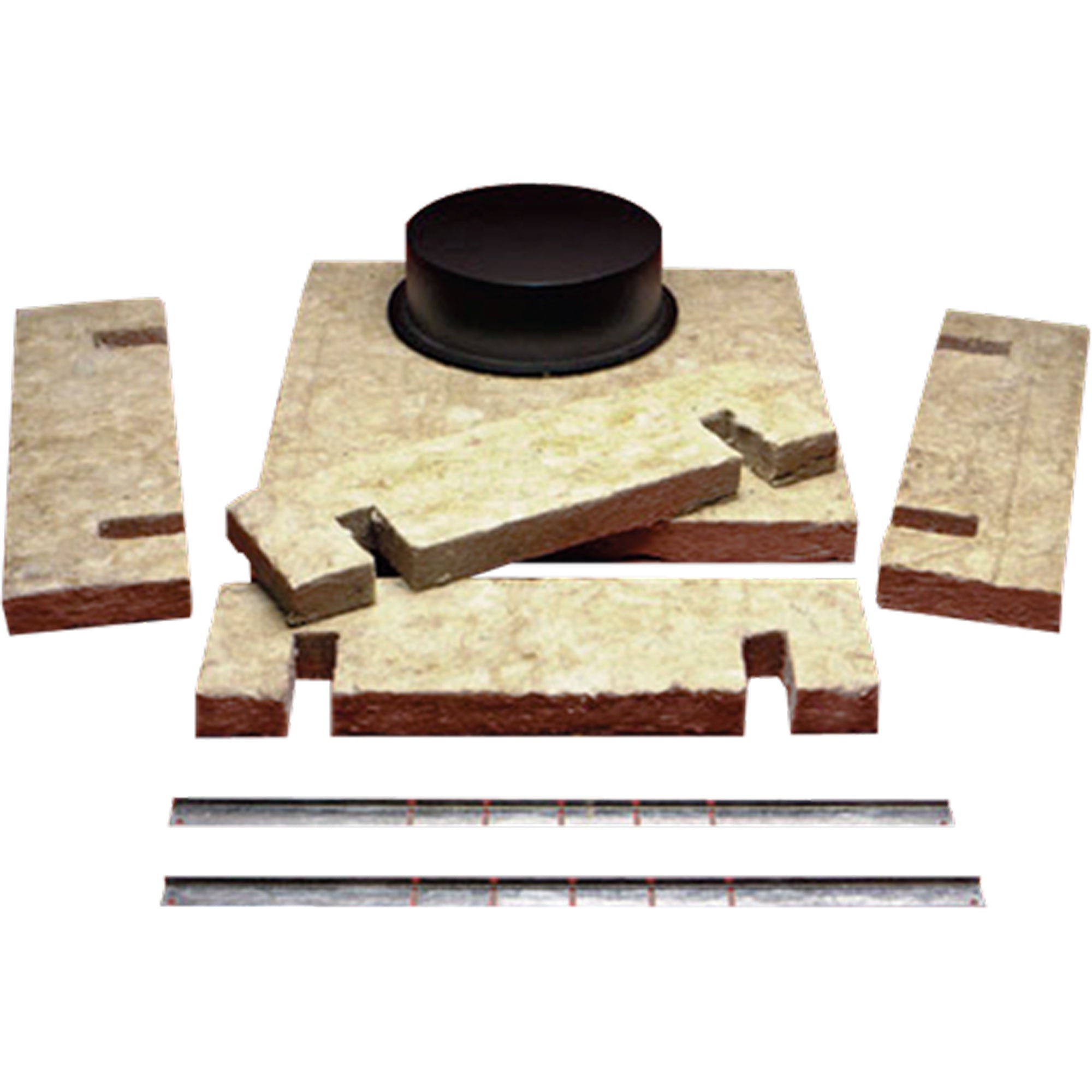

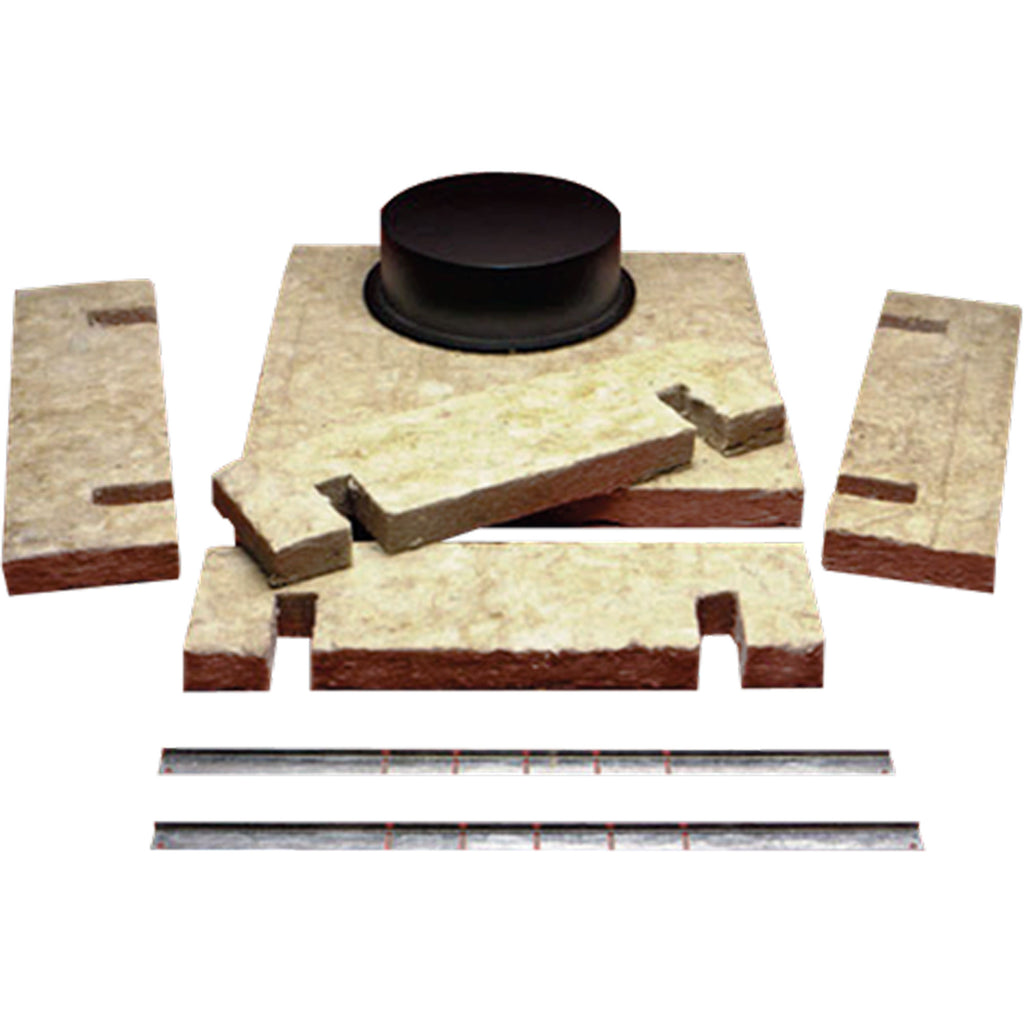

• Enclosure-fiber kit includes pre-cut fiber enclosures, metal enclosure, rail set, and hardware
• FR Series assemblies include enclosure kit, UL Listed speaker/transformer assembly, and UL listed baffle
• Quick installation & Low Installed cost
• UL 263 Listed for fire rated ceilings
• Uses industry standard Atlas Strategy Series components with proven performance

Specifications:

• Height: 10-3/4" (27.305 cm)
• Width: 24" (60.96 cm)
• Depth: 24" (60.96 cm)
• Shipping Weight: 0.00 lbs (0.00 kgs)
• Included Baffle: FA720-8FR
• Included Speaker: FA97-8FR
• Included Enclosure: FA138T87FR
• UL Listed/Standard: ANSI / UL 263 (ASTM E119, NFPA 251)
