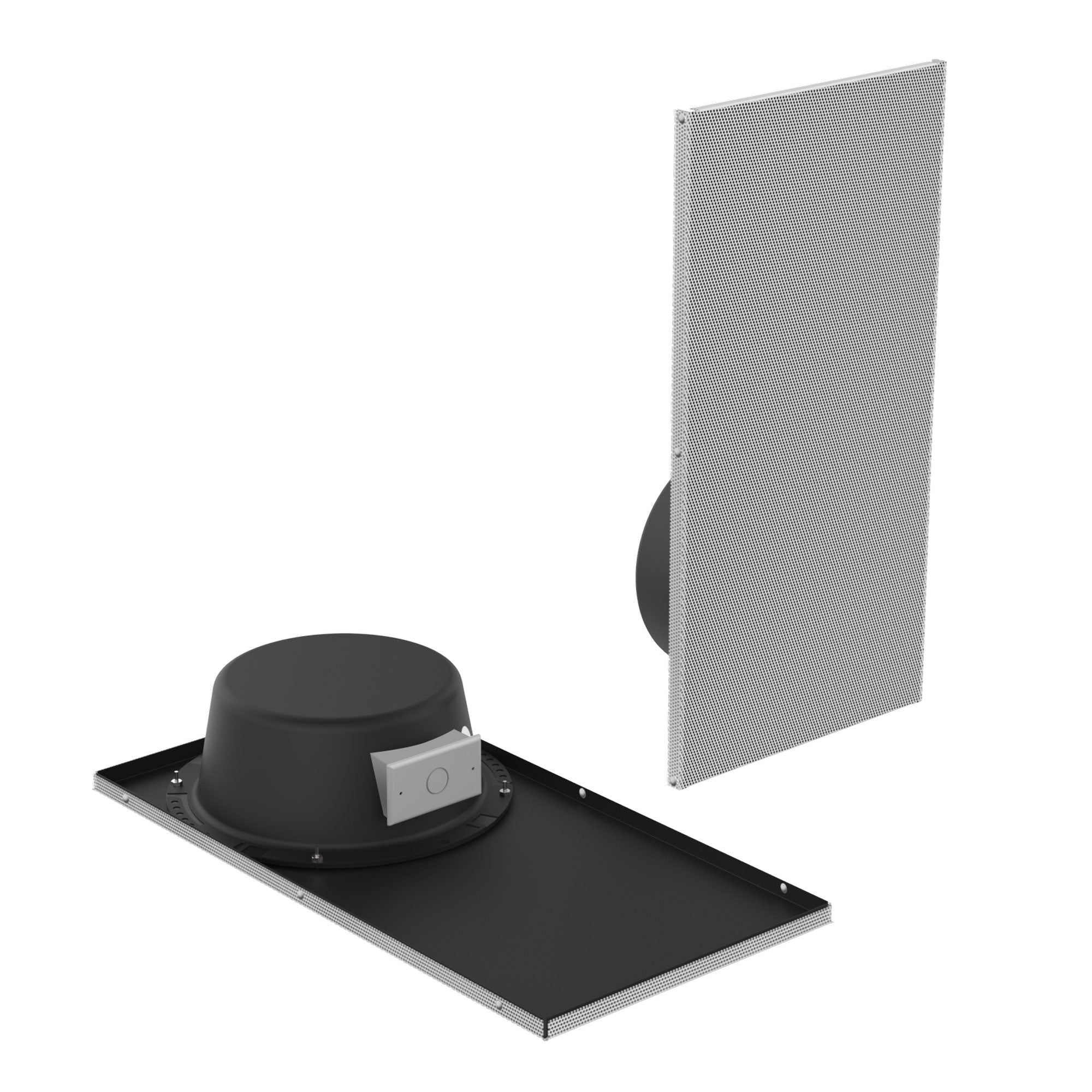

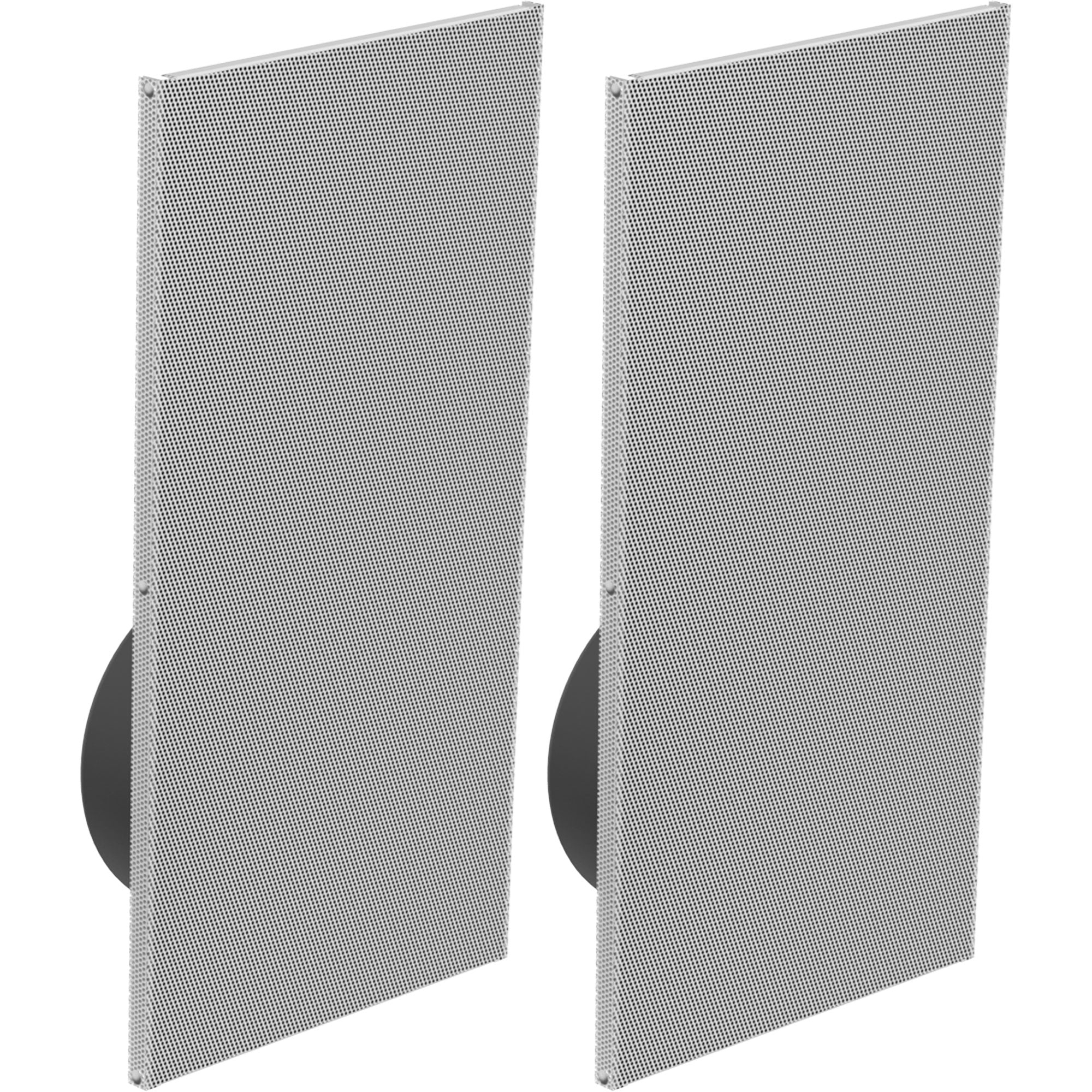

AtlasIED DT12 1'x2' Drop Tile Speaker Package with Perforation Across Entire Tile (Pair)

1' x 2' Drop Tile Loudspeaker Package with Perforation Across Entire Tile - Pair

The DT12 from AtlasIED combines ease of installation with superb intelligibility for speech and music reproduction.

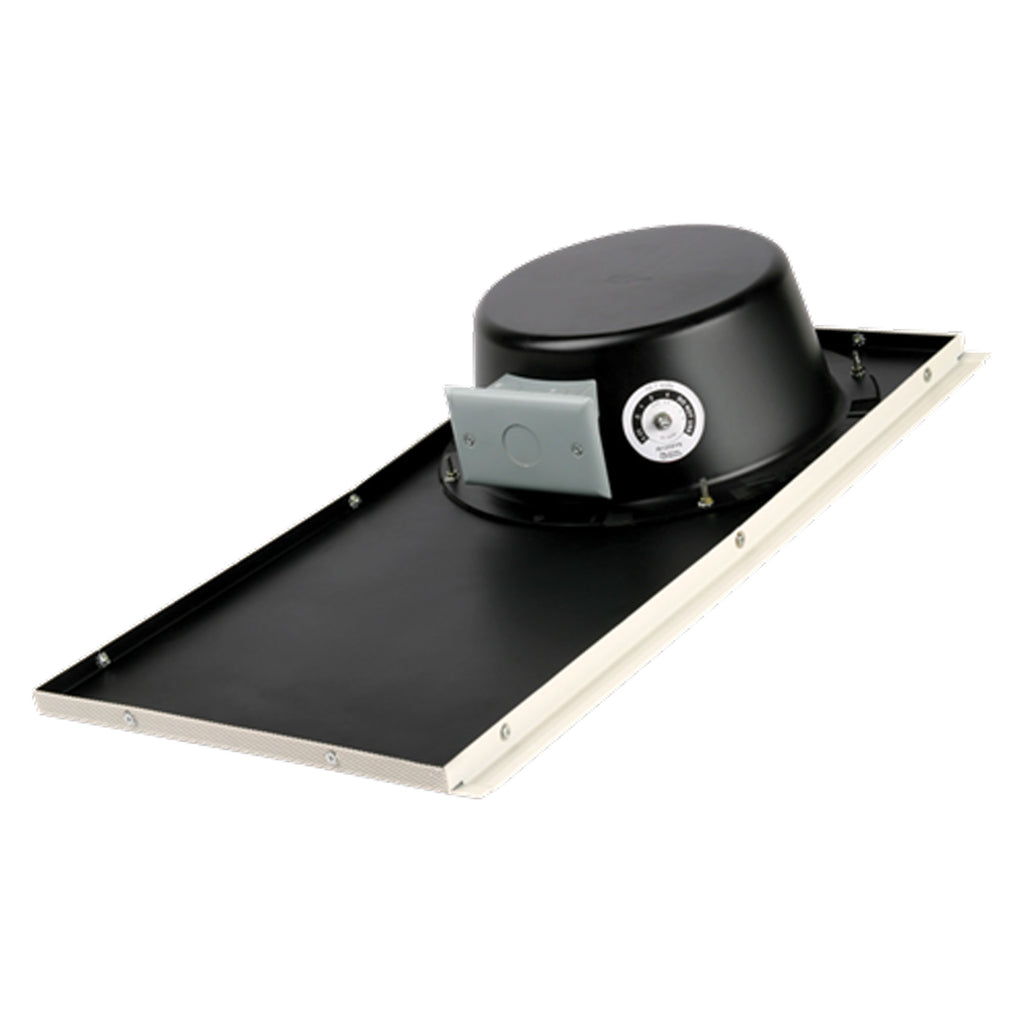

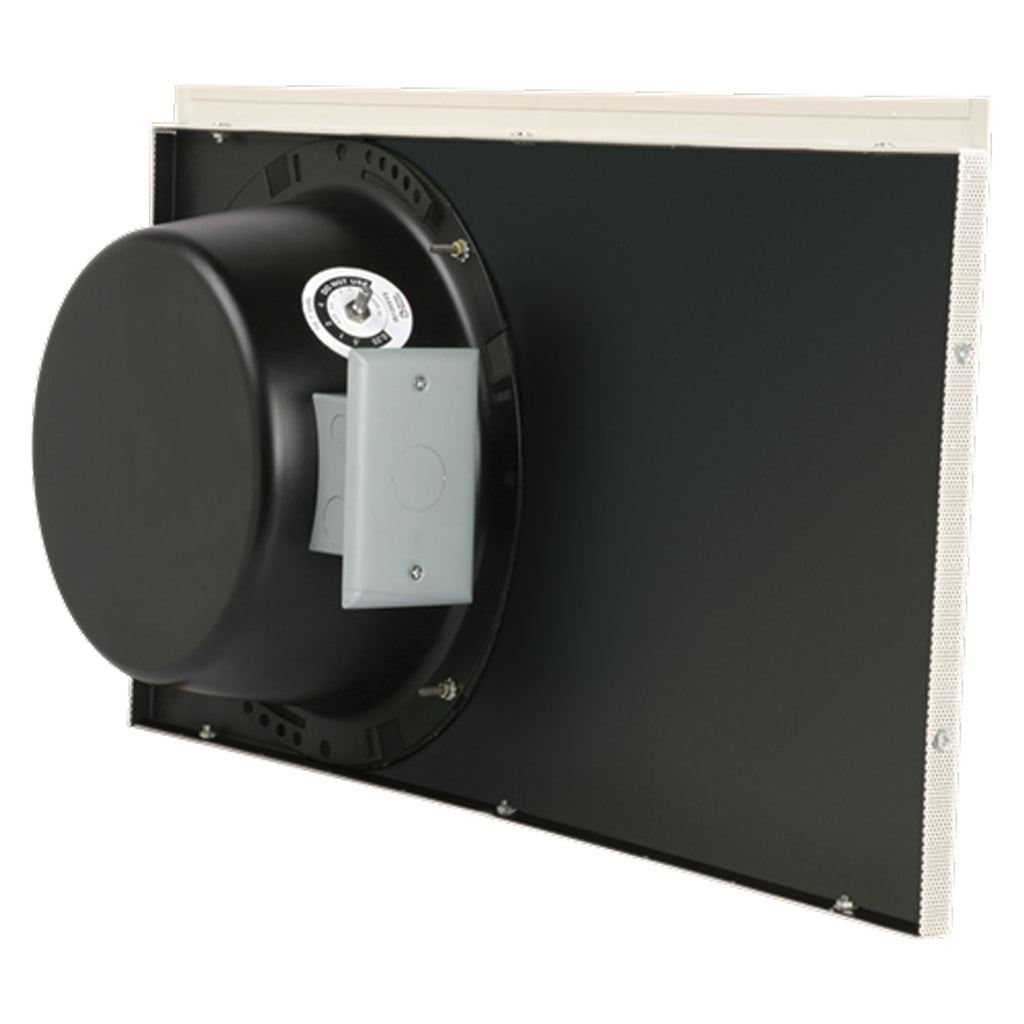

The 1' x 2' footprint allows quick installation into 2' x 2' or 2' x 4' acoustic tile ceilings. The E.O. box (with cover) is smartly positioned on the side of the conical enclosure to facilitate rigid or flexible conduit. An external tap selector switch (located on the side of the enclosure) allows for easy system tuning by providing quick installer access to the 70.7V tap settings ranging from .25 to 4 watts.

Features:

• 10oz 8" Dual Cone Speaker with 25V/ 70.7V Transformer
• External Tap Selector Switch
• Integral E.O. Box for Conduit or Plenum Wire Termination
• Low Profile Conical Enclosure

Specifications:

• Speaker Type: 8", 10oz Dual Cone
• Sensitivity: 97dB (1W/1m)
• Power Taps: .25, .5, 1, 2, 4 Watts & 8Ω Bypass
• Length: 23-7/8" (606mm)
• Frequency Response: 85Hz - 8kHz
• Width: 12-7/8" (327mm)
• Dispersion: 105° - 2kHz Octave Band (-6dB)
• Depth: 4-1/2" (114mm)
• Weight: 9.5 lbs (4.3kg)
