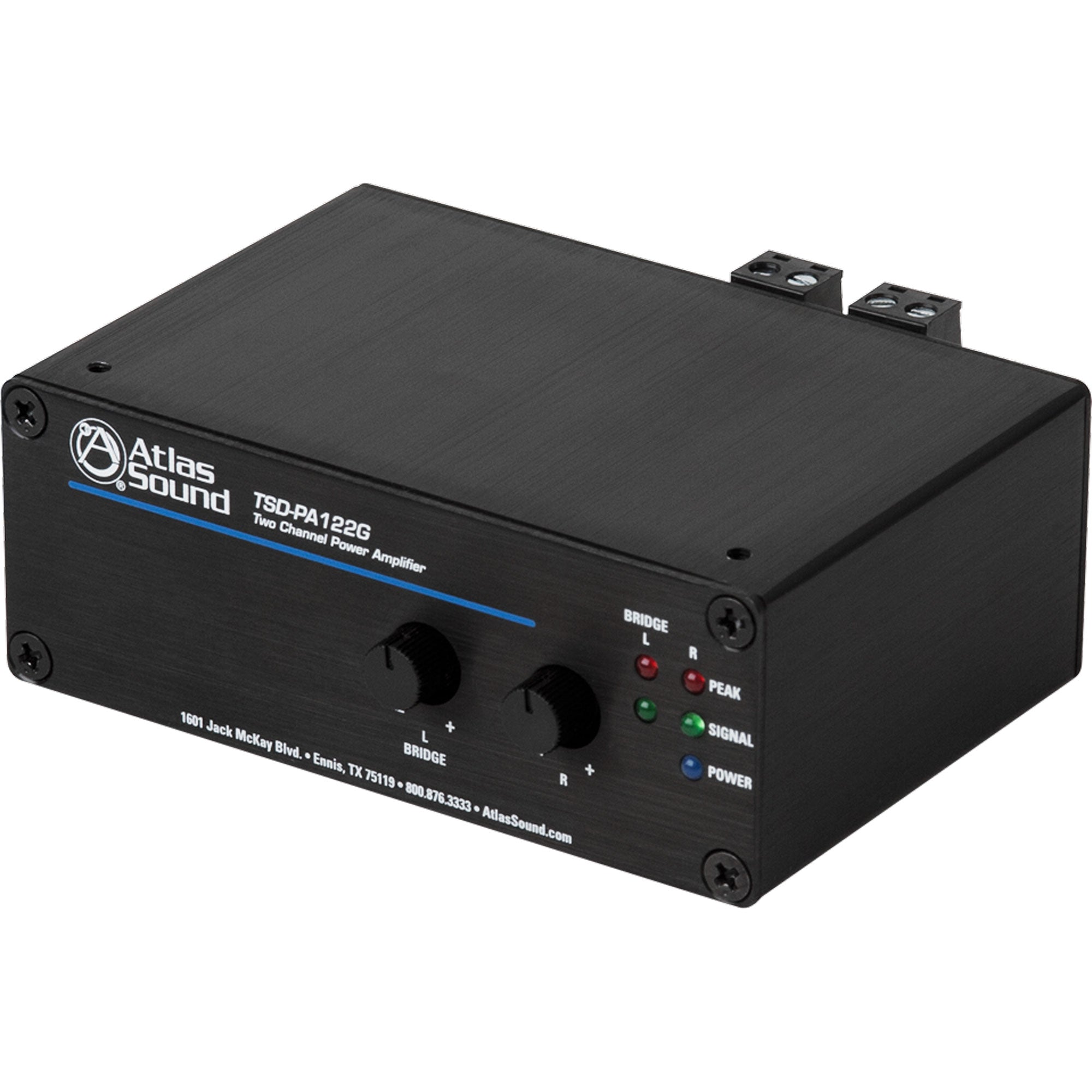

AtlasIED TSD-PA122G 12W x 2 @ 4 Ohms 2-Channel Power Amplifier

12 Watt Stereo Audio Amplifier

The TSD-PA122G 4Ω stereo amplifier is perfectly suited for almost any general amplification requirement. Perfect for adding sound reinforcement to small projector systems as it provides ample power to drive up to four 8Ω loudspeakers in a classroom or boardroom application.

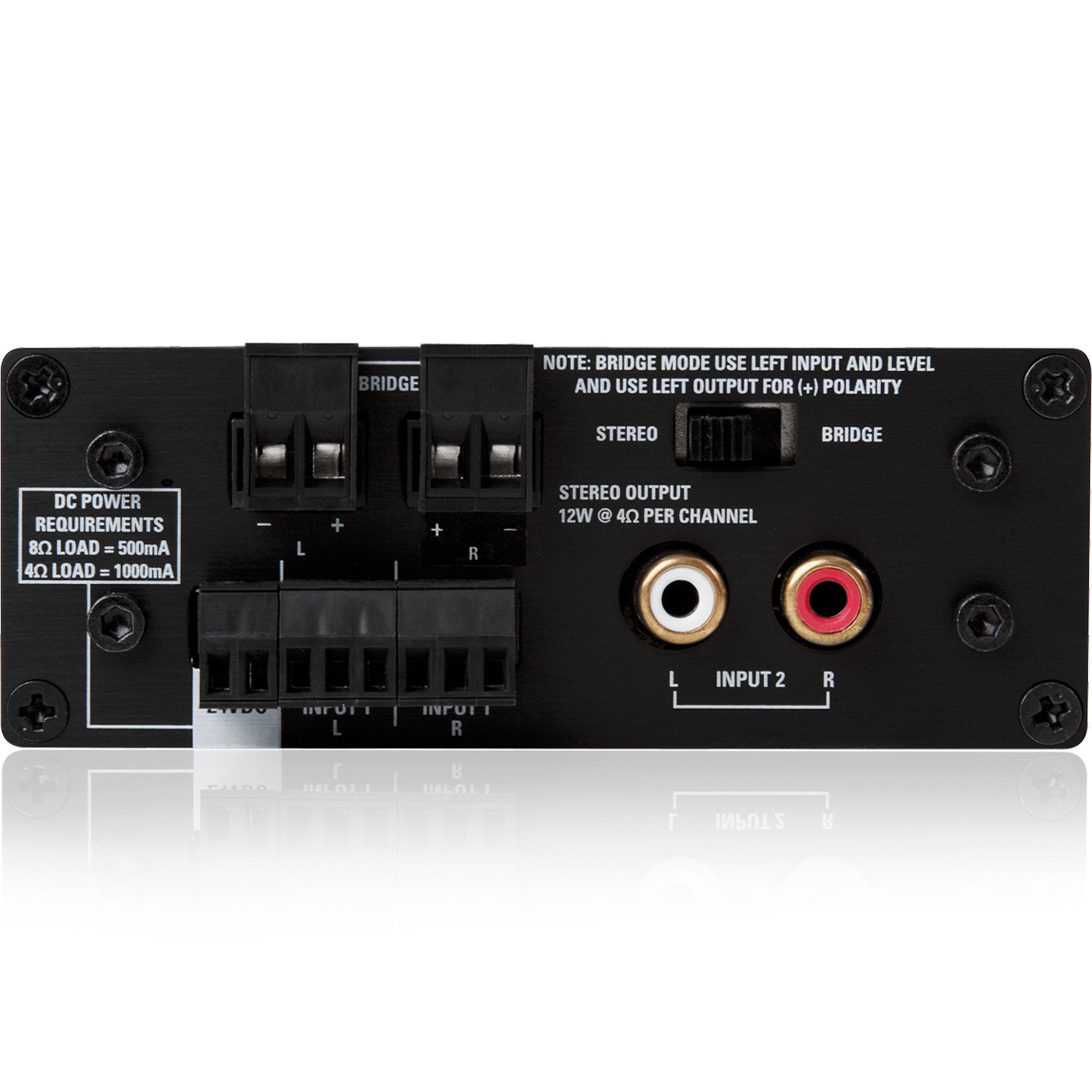

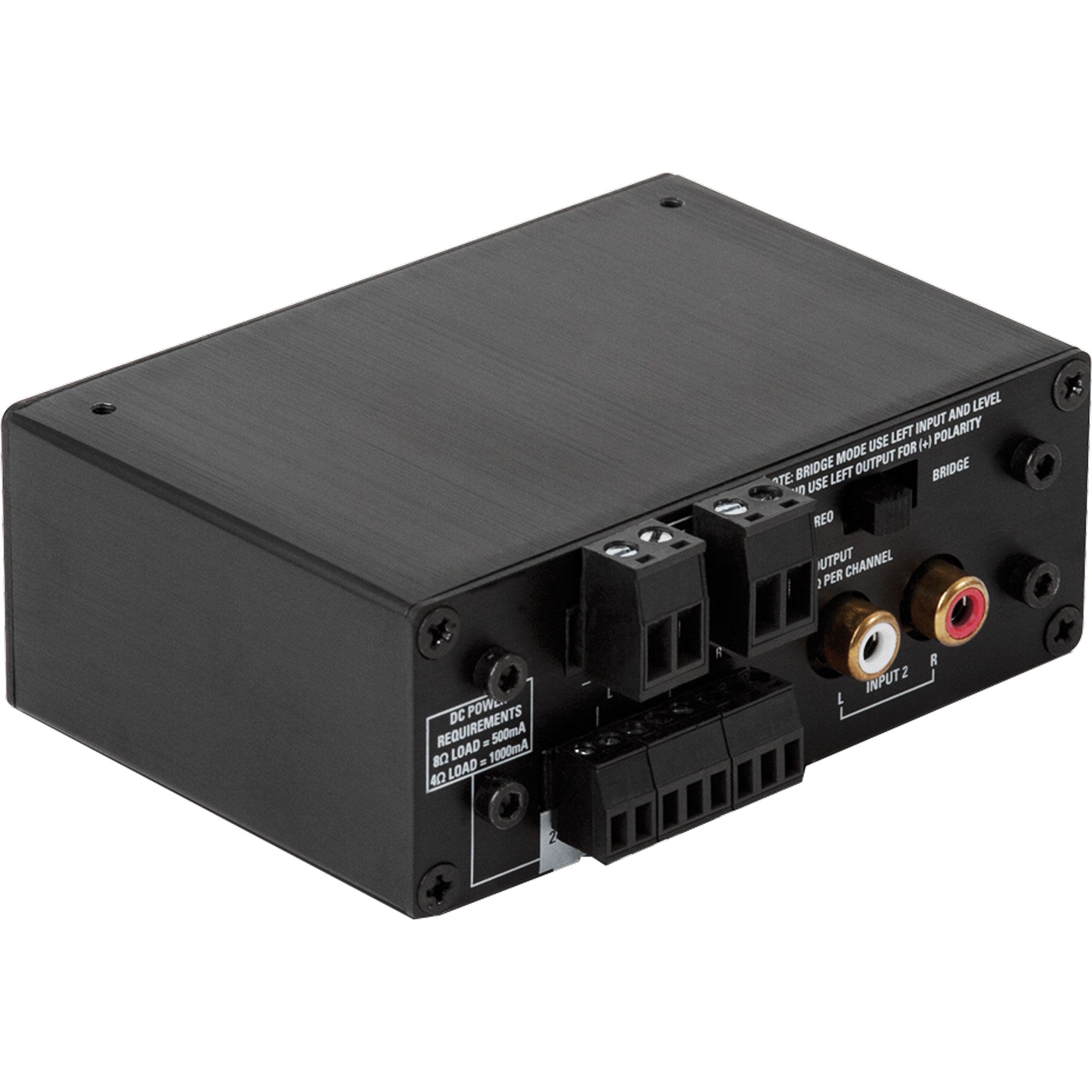

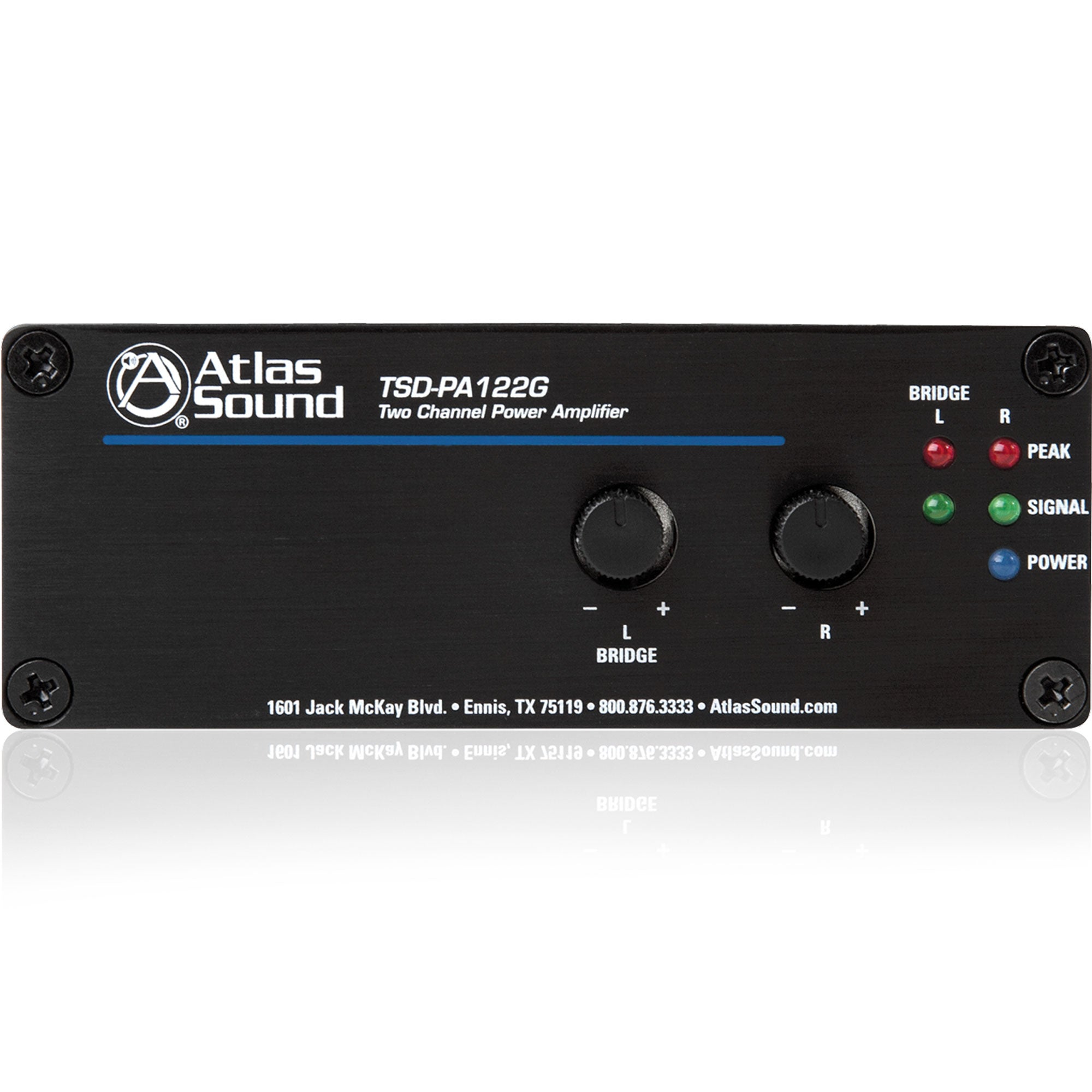

Output is 12W per channel at 4Ω or 24W bridged mono at 8Ω. Input is via balanced stereo phoenix style and unbalanced RCA connectors. Front panel gain controls provide adjustment for both left/right or bridged outputs and include removable knobs.

Features:

• 12W @ 4 Ohms x 2 Channels
• Bridgeable to 24W at 8 Ohms Mono Output
• Balanced Stereo Inputs
• Unbalanced Stereo Inputs Via Dual RCA Connectors
• Input Signal & Peak Indicator LED's
• Removable Phoenix Style I/O Connectors
• Security Covers Included for All Front Panel Controls
• Meets Energy Star Standards

Specifications:

• Power Output: 12W @ 4Ω x 2 CH, 6W @ 8Ω x 2 CH, 24W @ 8Ω Bridged
• Unbalanced Input Impedance: 10KΩ
• Input Level: 316mV (-10dBV)
• Balanced Input Impedance: 10KΩ Balanced, 5KΩ Unbalanced
• Line Input Level: 500mV (-6dBV) Balanced
• Frequency Response: 20Hz - 20kHz (+/-3dB)
• THD: 1% & 1kHz
• Signal to Noise Ratio: 80dBV
• 24VDC Power Requirements: 500mA
• Dimensions
• Height: 1.5" (3.81 cm)
• Width: 4" (10.16 cm)
• Depth: 2.5" (6.35 cm)
• Weight: 6oz., .165kg
