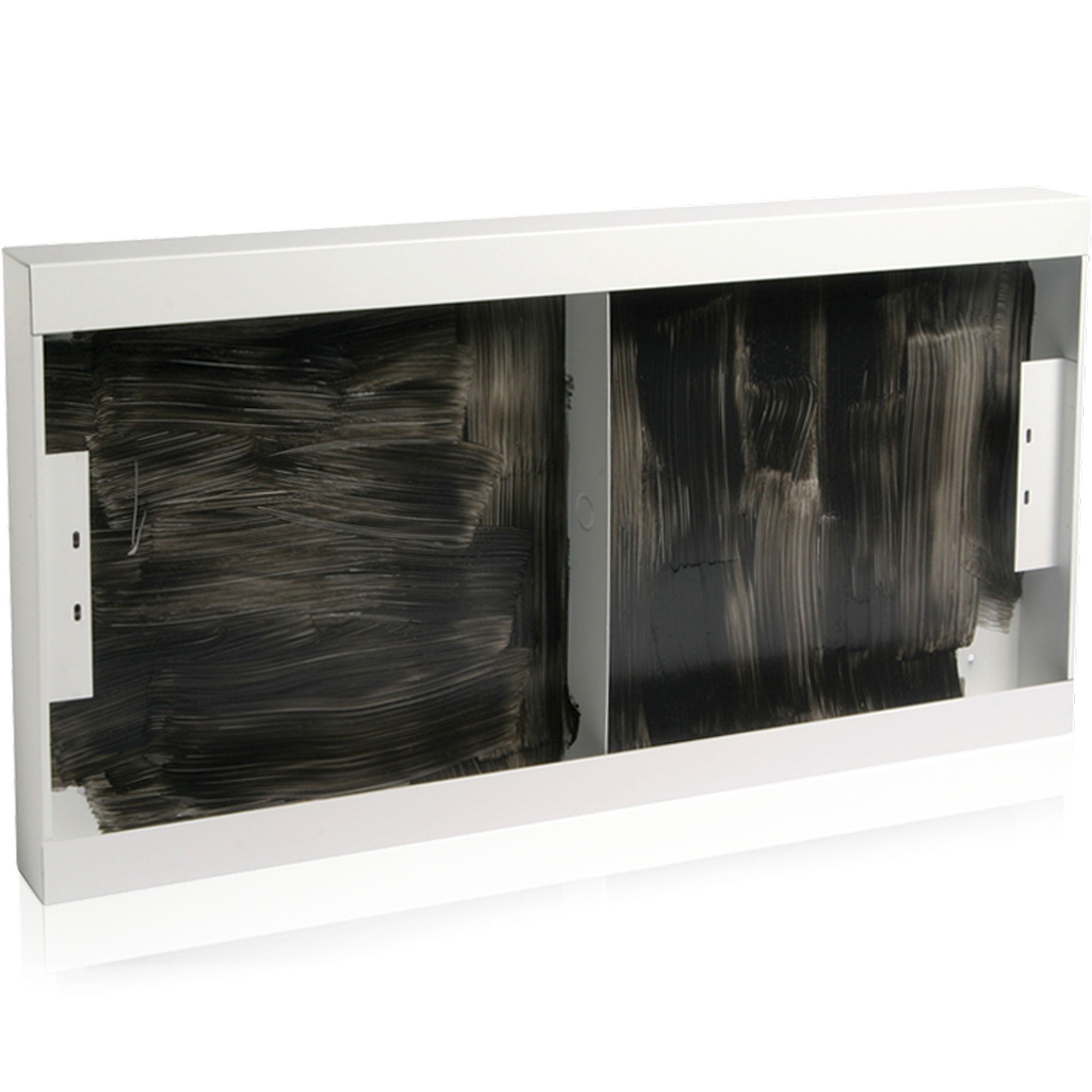

AtlasIED SM194-812 Surface Mount Clock / Speaker Enclosure Mounts in 830-812A Baffle

Surface Mount Clock & Speaker Enclosure - Mounts 830-812A Baffle

Use Atlas Sound 194 Series protective enclosures for recessed or surface mounting of 830 Series clock/speaker baffles. The 194 Series models contain 12 triple-compound conduit knockouts (six on both top and bottom) to facilitate easy wiring; 195 Series has 12 knockouts (four on both top and bottom, two at each end). Enclosures are constructed of 20-gauge CRS and are heavily undercoated to prevent mechanical resonances. Units contain a compartment divider to separate high and low voltage wiring. Models for surface application include an (SM) prefix and are finished in textured white epoxy to match the clock/speaker baffle panel.

Features:

• All Models Include Provisions for Easy Installation of Standard 8" Loudspeakers.
• Easy-to-Configure Standard Panels in Model NC850 Provide Custom Flexibility for Mounting Switches, Thermostat, and/or Lighting Controls.
• Recessed and Surface Mounting Styles Meet Installation Requirements.
• Reliable Design Installs Quickly in New or Retrofit Construction

• Height: 18" (45.72 cm)
• Width: 34" (86.36 cm)
• Depth: 3" (7.62 cm)
• Shipping Weight: 14.50 lbs (6.58 kgs)
• Mounts Baffle: 830-812A
