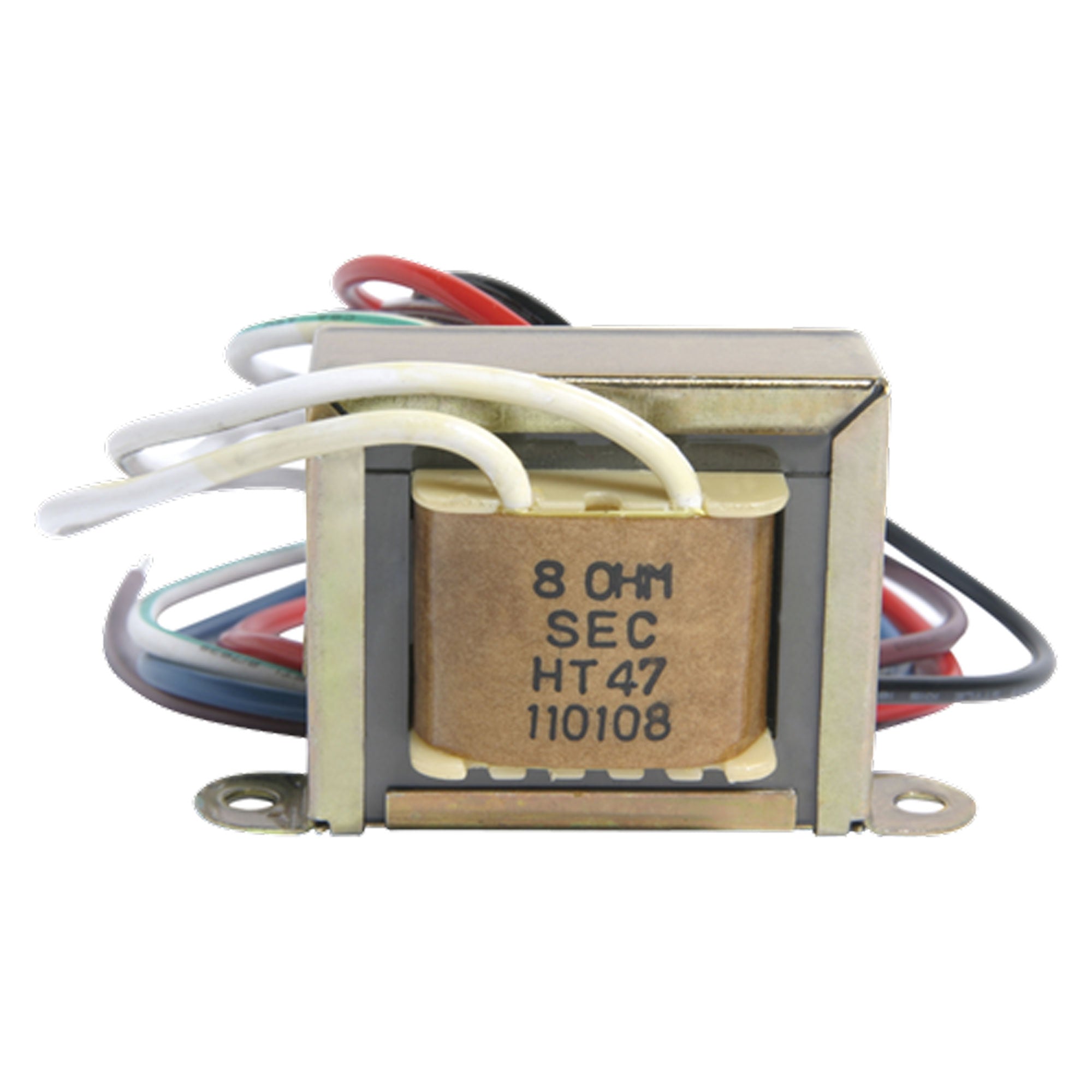

AtlasIED HT47 High-Quality 4-Watt Audio Transformer 70.7V

High-Quality Transformer 4 Watt, 70.7V

The HT47 is a Industry standard, high quality transformer with audio grade laminations. The unit offers low insertion loss (not to exceed 1.0dB) and full-range frequency response (+1dB from 60Hz - 12kHz).

Primary taps are .5, 1, 2 and 4 watts. Secondary impedance is 8 ohms. Model HT-47 is designed for use with 70.7-volt lines.

Features:

• Constructed with Audio Grade Laminations
• Designed for Use on 70 Volt Lines
• Frequency Response is 60Hz - 12KHz
• High Quality Matching Transformer with Only 1.0 dB Insertion Loss
• Primary Taps of .5, 1. 2. & 4 Watts

Specifications:

• Frequency Response: 60Hz - 12KHz
• Power Taps: .5, 1, 2 & 4
• Power Rating: 4W
• Primary Voltage: 70.7
• Height: 1 5/8" (4.1275 cm)
• Width: 1.969" (5.00126 cm)
• Depth: 3/4" (1.82626 cm)
• Shipping Weight: 1.02 lbs (0.46 kgs)
