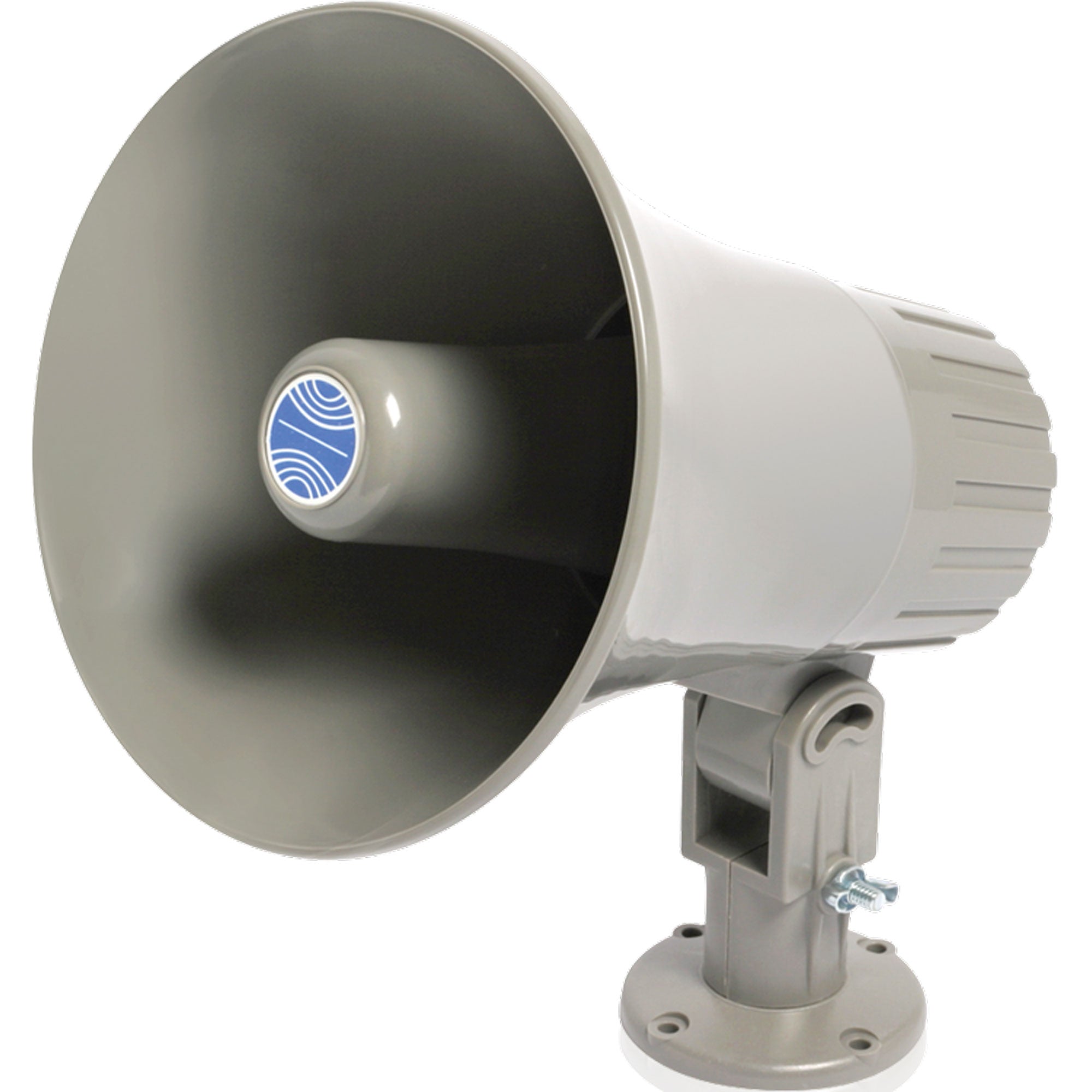

AtlasIED GA-15T Re-Entrant Horn Speaker with 15-Watt 25V/70V Transformer

Re-Entrant Horn Loudspeaker 15 Watt

Re-entrant Horn Loudspeaker 15W
The GA-15T loudspeaker is a utility horn perfectly suited for voice paging and music transmission.

Double re-entrant horn construction optimizes loudspeaker output to penetrate ambient sound levels. This 15-watt model incorporates a compression driver with ceramic magnet and includes a combination 25/70.7-volt line transformer with multi-position knob switch for selecting power taps. Unit is also equipped with wiring for an 8-ohm connection to facilitate installation when a transformer is not required.

GA-15T features a round, high-impact plastic horn and will withstand outdoor installation in high-humidity environments.

Adjustable surface mounting bracket provides multiple (vertical & horizontal) positioning. Each assembly is supplied with 21 gauge 18" color coded wire leads for matching polarity and loudspeaker connection.

Entire assembly is gray with silver colored hardware.

Features:

• Dual Voltage, Knob-Adjustable Impedance Selection for 25/70.7V Line Connection
• Multi-Function, Re-Entrant Horn Loudspeakers Offer Efficient Sound Penetration and Dispersion for Paging, Music and Intercom Use
• Sturdy Construction for Long-Term Indoor and Outdoor Use

Specifications:

• Depth: 9-3/8" (23.8125 cm)
• Diameter: 7-1/2" (19.05 cm)
• Shipping Weight: 3.63 lbs (1.64 kgs)
• Frequency Response: 500 - 3,000 Hz (+5dB)
• Power Taps: .5, 1, 2, 4, 8, 15W @ 70.7V
• Dispersion: 80
• Power Rating: 15 watts
• Sensitivity: 103dB
