Key Features
- For Use with up to 6 ECM-20/M Modules
- For Racks with 60" of Internal Height
- 4 Electrical Inlets
- Breakaway Mounting Tabs for Installation
- 2 Blank Panels Included
Description

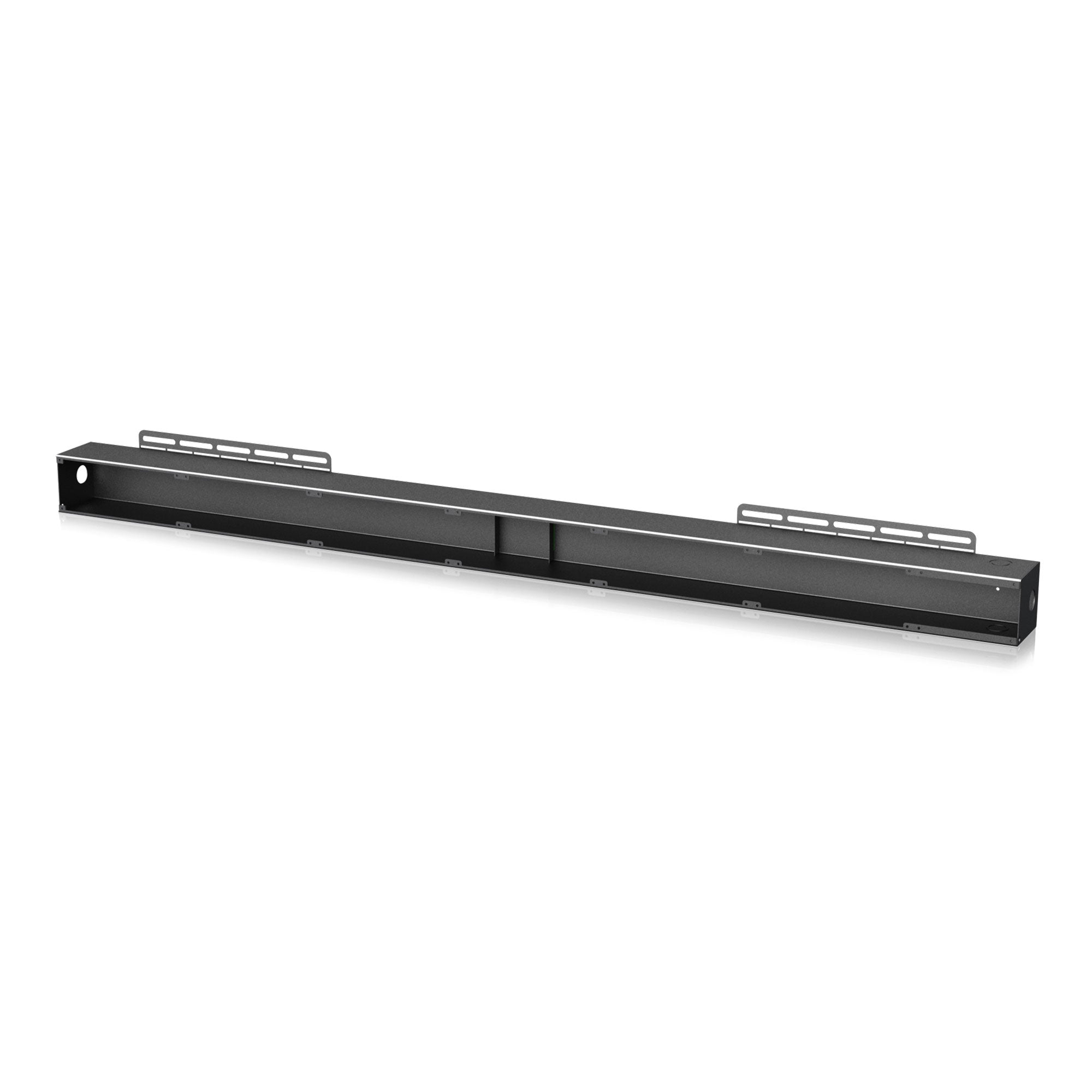

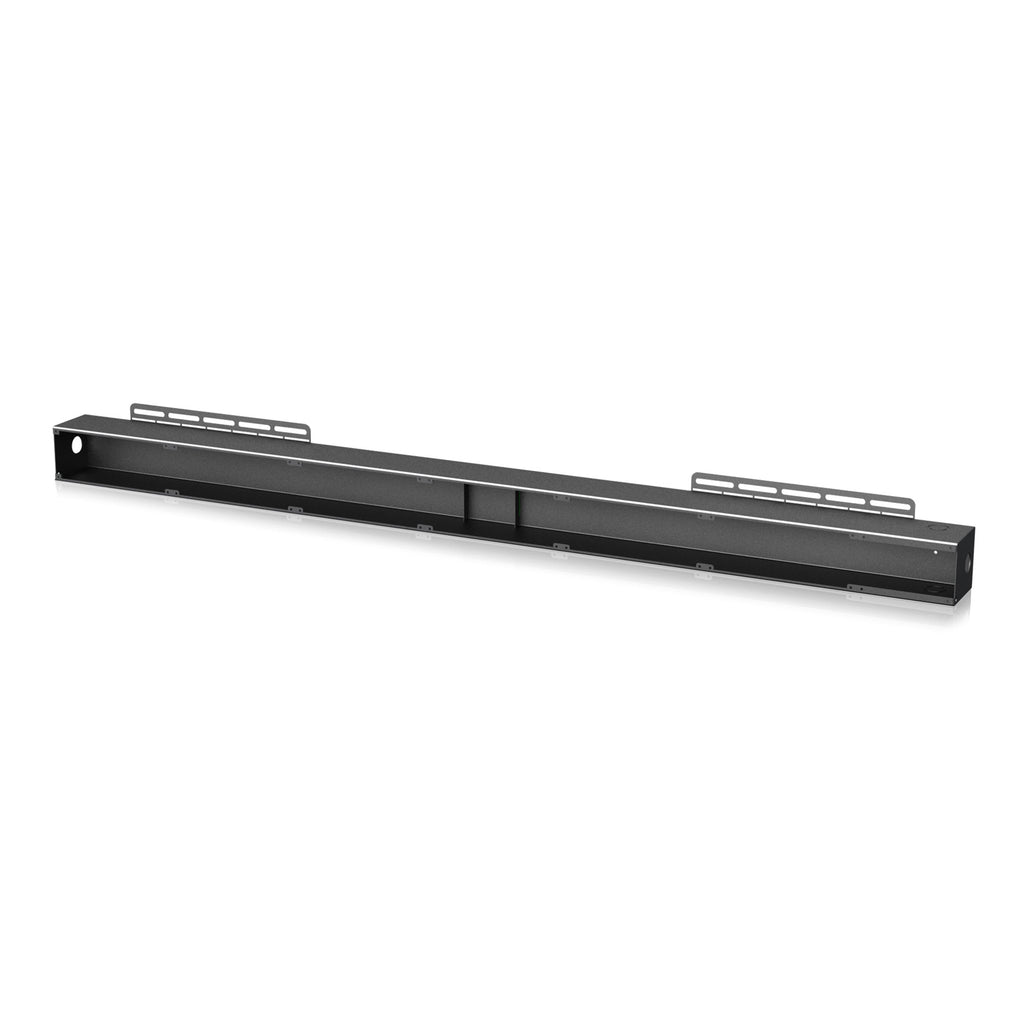

Electrical Housing for ECM-20/ECM-20M Modules
The ECM-RACEWY6 is designed to house up to six ECM-20/M modules to provide up to six separate 20A AC legs for up t 120A of power distribution. There are four 1/2" and 3/4" dual knockouts that support standard electrical conduit components for wiring 120V AC mains into the raceway housing from the electrical panel. If six sequenced sections are not needed,two ECM-3BP blank plates are included to cover unused ECM module slots. Other blank plates are available as an accessory item (ECM-3BP).
The ECM-RACEWY6 can be mounted into most racks that have at least 60" internal height and the Raceway has breakaway mounting tabs that make it convenient to secure the Raceway in most applications.
Features:
- Housing for Up to 6 ECM Modules
- 4 Electrical Inlets
- Finished in Black Paint
Specifications:
- Height: 3.0" (7.6cm)
- Length: 56.5" (143.5cm)
- Depth: 3.375" (8.5cm)
- Weight: 11.75 lbs (5.32 kg)
