Key Features
- 75° Sound Distribution
- Fits Standard 1-3/8" Compression Drivers
- Exponentially-Flared
- Weatherproof, All-Metal Construction
Description

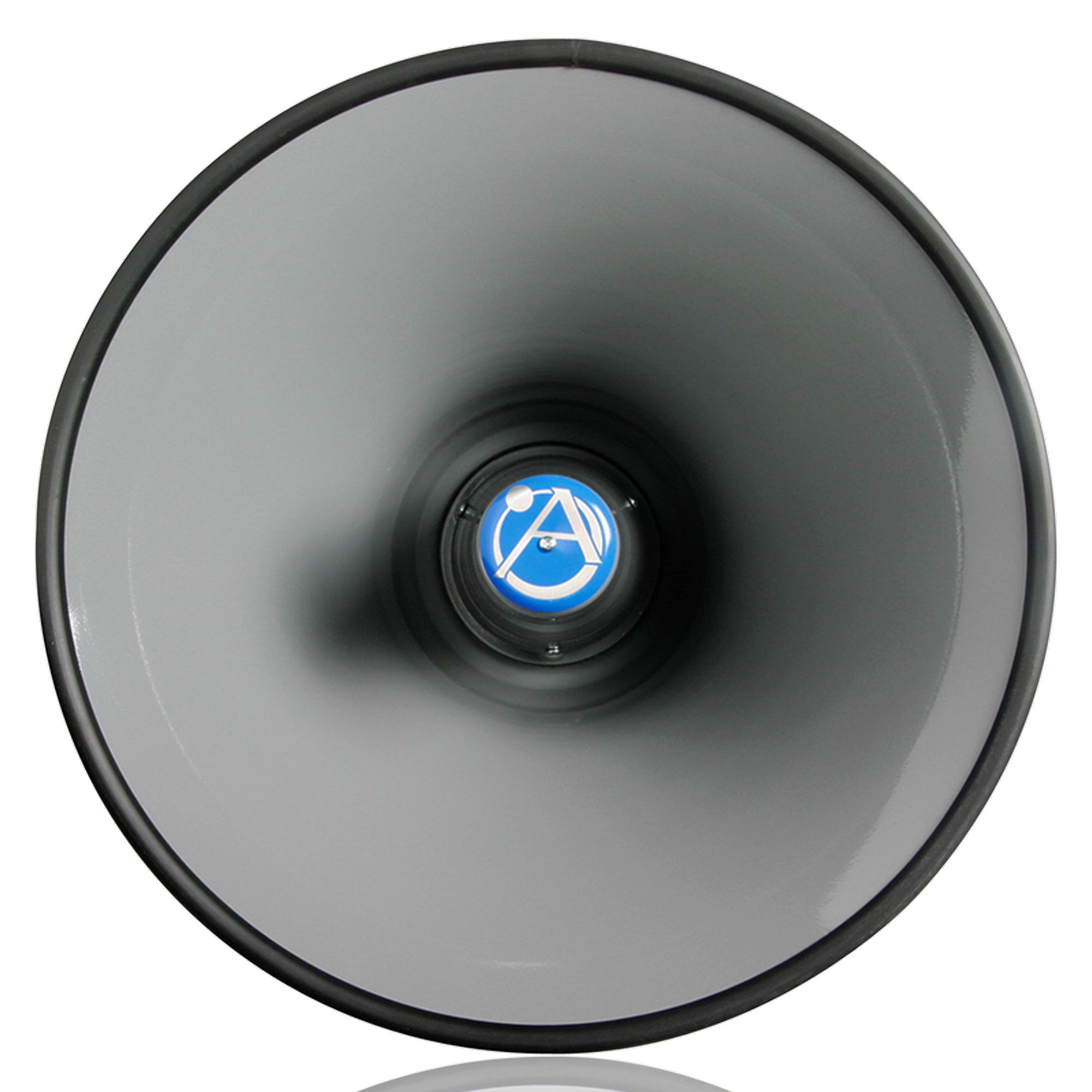

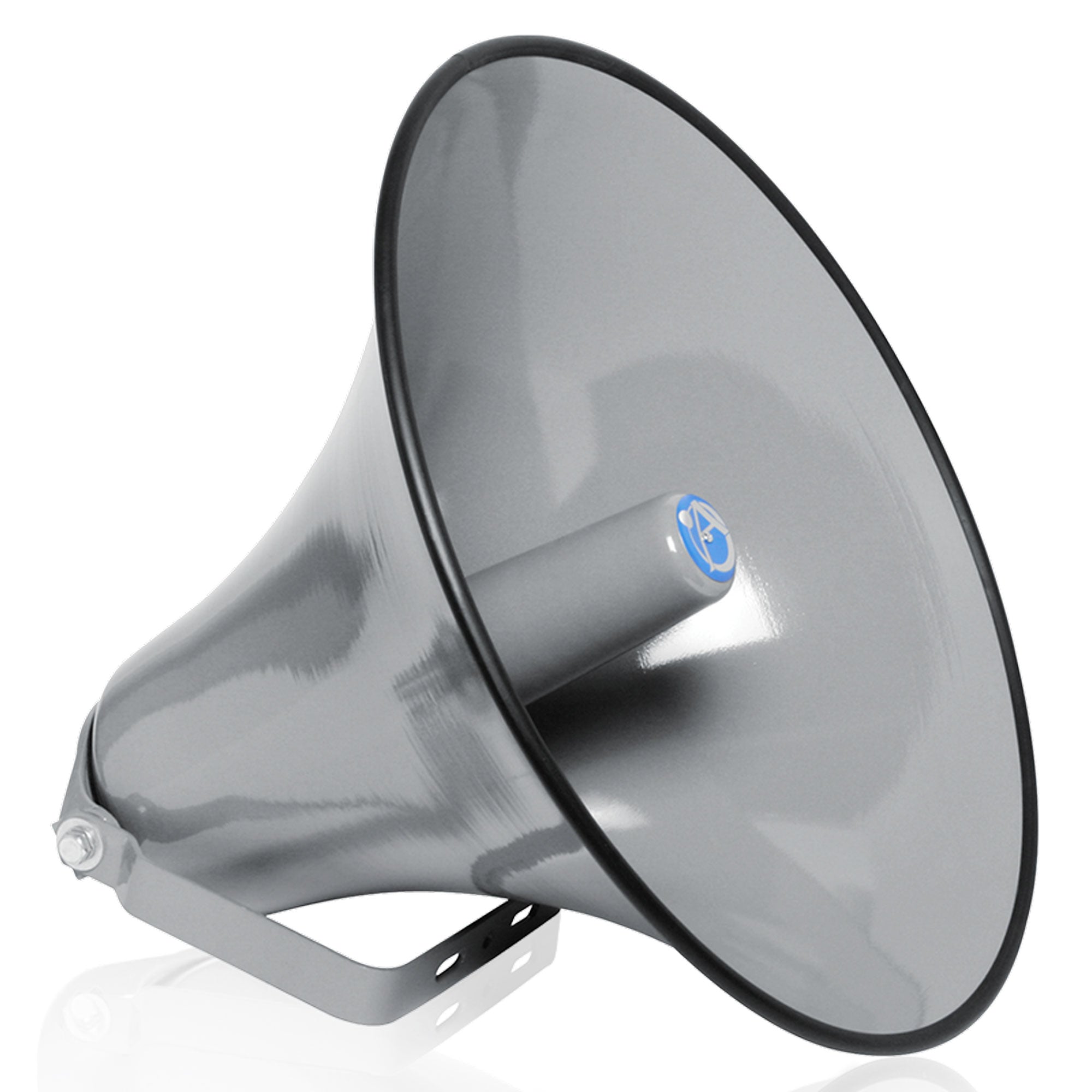

75° Uniform Coverage Horn
AtlasIED DR Series double re-entrant horns are designed for use with compression driver units to offer superior music and voice communications over distance and ambient noise. The circular projectors are equipped with a resonance damping ring for best response through an extended frequency range.
Weather-resistant units will accommodate AtlasIED PD and SD Series compression drivers or any driver with standard 1 3/8" -18 male thread coupling. The integral "U-type" steel mounting bracket provides maximum directional aiming flexibility and enhances installation capability when used outdoors or in industrial environments.
The rugged all-metal, exponentially-flared horns are finished in durable grey epoxy.
Features:
- Accepts All Standard High Efficiency Compression Drivers with 1 3/8" - 18 Male Threads
- Exponentially-Flared for Uniform Sound Distribution
- Multi-Purpose Reflex Sound Horns for High Intelligibility Sound Distribution and Voice and Signal Applications
- Weatherproof, All-Metal Construction for Year Round Use
Specifications:
- Dispersion: 75°
- Depth: 19" (48.26 cm)
- Diameter: 26" (66.04 cm)
- Shipping Weight: 20.00 lbs (9.07 kgs)
Details
- Manufacturer: AtlasIED
- MPN: DR-54
- Model Number: DR-54
- UPC: 612079112340
