Key Features
- Fits 8" Loudspeakers
- For General Use
- Cost Effective Enclosure System
- Perfect for SD72W or DLS4
- Stackable for Easy Storage
Description

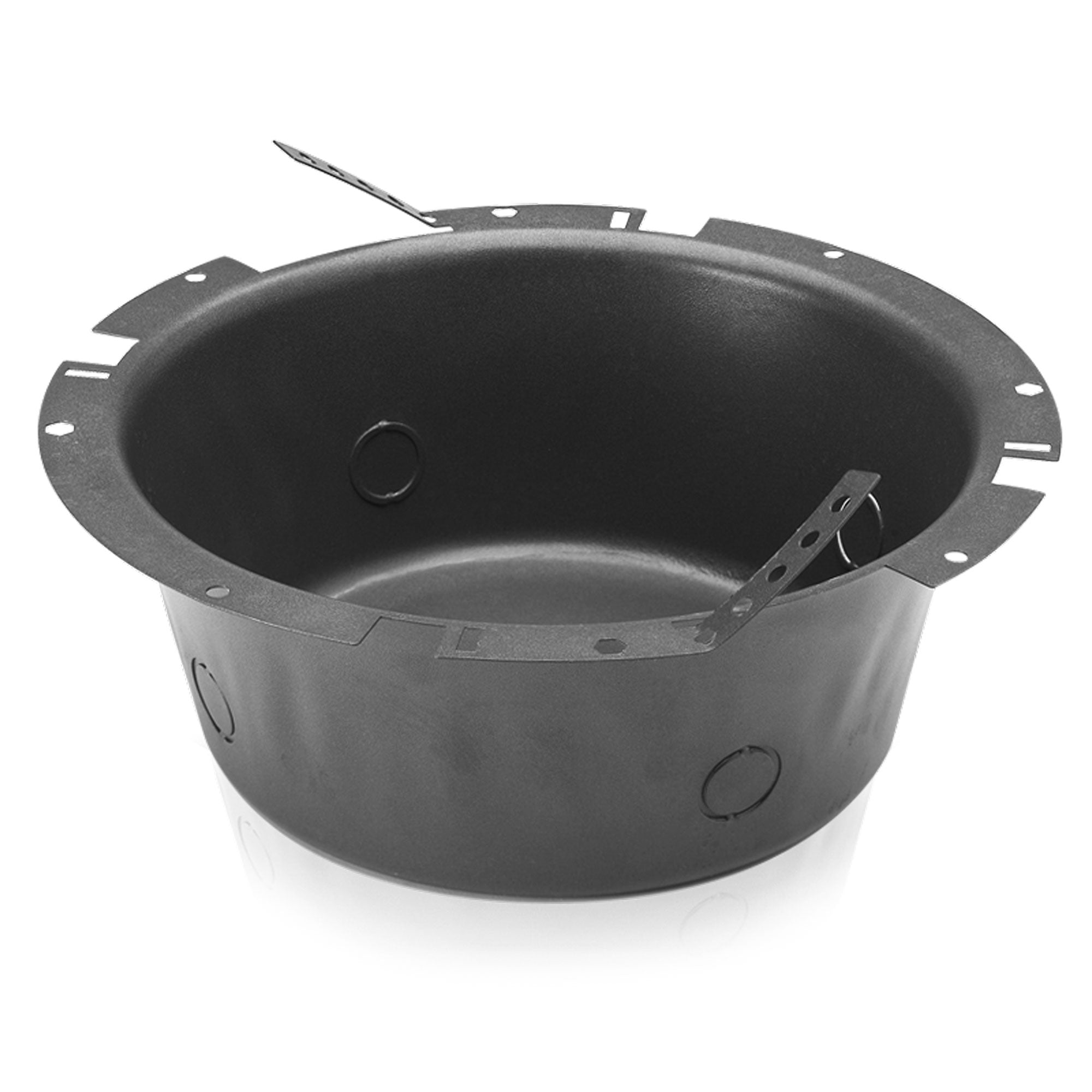

8" Recessed Round Stacking Enclosure
Ideal for contractors with limited storage facilities, this conically shaped enclosure nests to achieve reduced inventory space requirements and transportation costs.
Furnished with four combination conduit knockouts 1/2" - 3/4" (13-19mm), four J-clips and two flexible perforated mounting straps. One-piece CRS construction, undercoated, patch-jute lined, and finished in epoxy.
The CS95-8 enclosure is a perfect for use with AtlasIED model SD72W,SD72WV or high performance 8" 8-watt coaxial model GD87W speaker/ transformer/baffle packages.
Note: Enclosure is not designed to mount other speaker packages with pre-mounted high performance transformers (HT-167, HT-327).
Features:
- Cost Effective Enclosure System for General Use
- Perfect for SD72W or DLS4
- Stackable for Easy Storage
Specifications:
- Depth: 4 1/4" (10.80 cm)
- Diameter: 11 3/4" (29.85 cm)
- Shipping Weight: 2.33 lbs (1.06 kgs)
- Mounts Baffle: 51-8, 60-8(W), 61-8W, 62-8, 63-8, 67-8(W), G22-8, M222(W), P900, VP60-R
- Safety Listed: 1480, 2043
